Offset Detachable Lift-off Hinge M5 Right Hand 32.5mm

Reliable offset detachable lift-off hinge for efficient access.

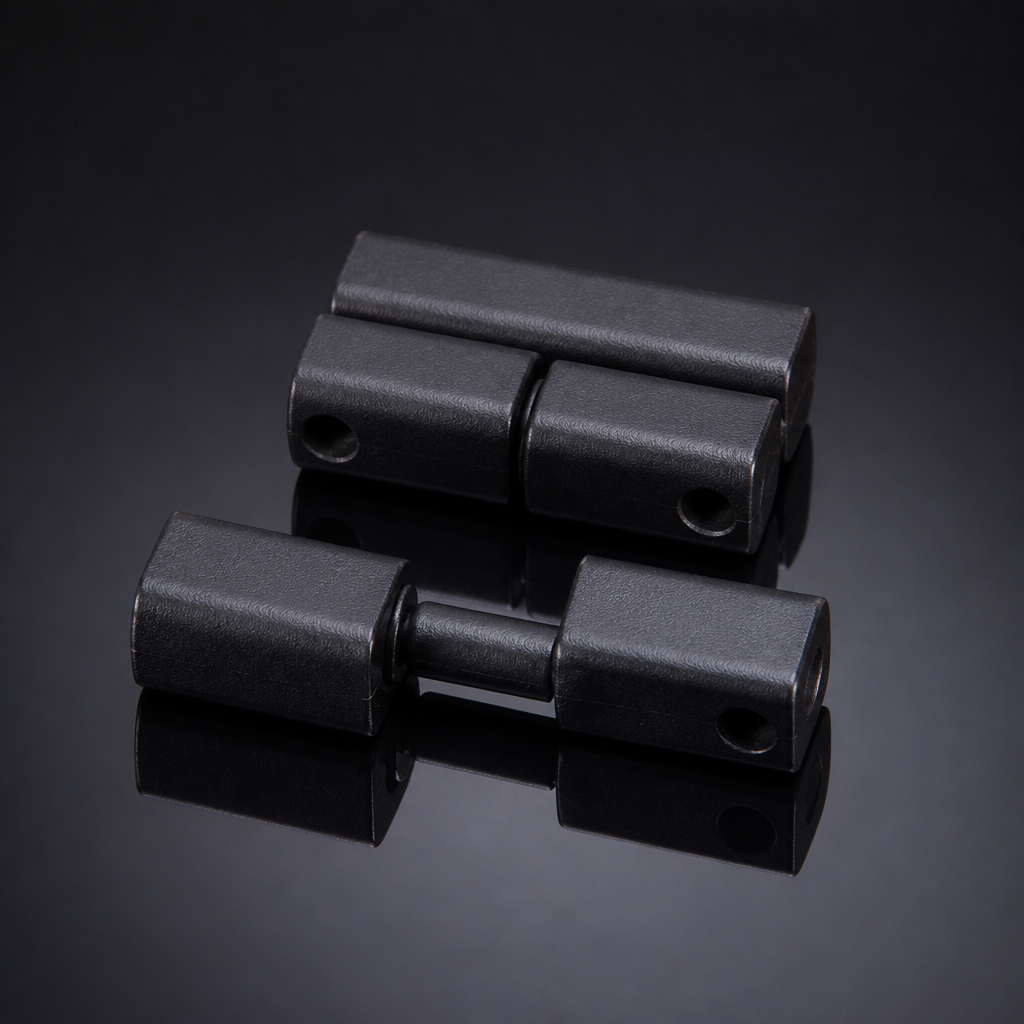

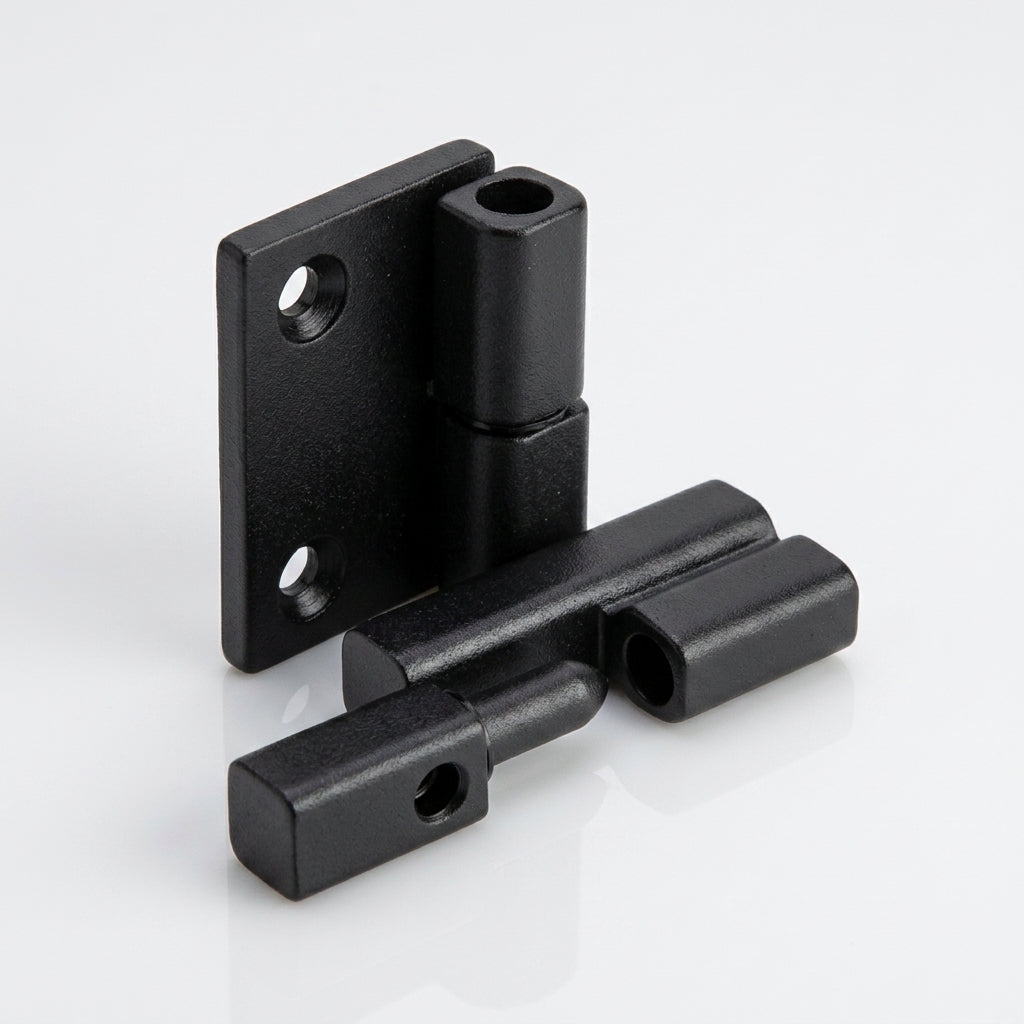

This right-hand offset detachable lift-off hinge is crafted from durable die-cast zinc, featuring a sleek black finish. It is designed for applications where easy removal and reattachment of doors or panels is essential, making it ideal for various installations.

Key Features

• Colour: Black – matches or contrasts with a variety of surfaces.
• Height: 32.5mm – check against the required height for installation.
• Hinge Depth Excluding Joint (F): 31mm – depth measurement excluding the joint.
• Hinge Hole Centres Length (C): 51mm – distance between screw holes along the length.
• Hinge Hole Centres Width (D): 17mm – distance between screw holes across the width.
• Hinge Length (A): 64mm – overall length of the hinge.
• Thread Size (D1): M5 – must match the receiving thread for secure attachment.

Specifications

• Material: Die-cast zinc
• Finish: Black
• Type: Right-hand offset detachable
• Thread: M5

Applications

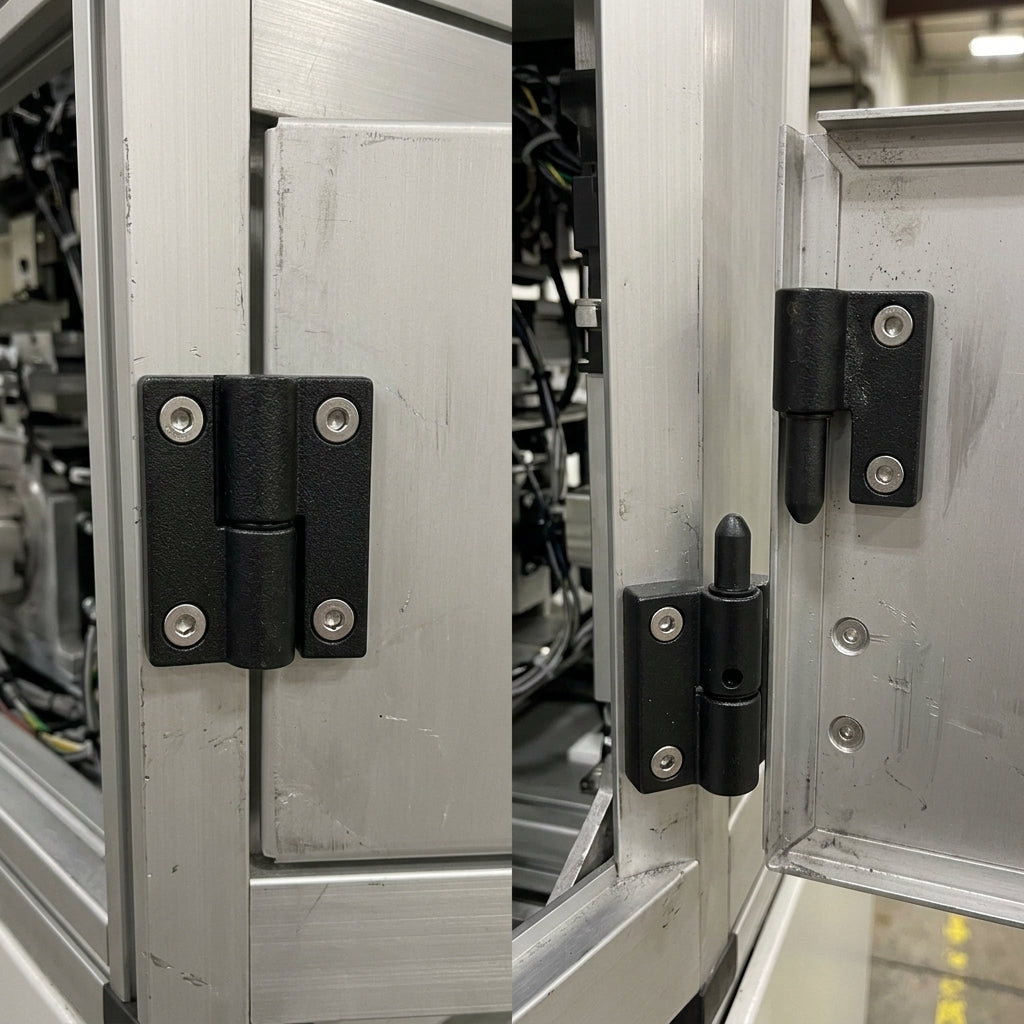

• Cabinet Doors: Allows for easy removal and reattachment.
• Access Panels: Used in situations where panels need frequent removal.
• Furniture Assembly: Ideal for modular furniture designs.
• Maintenance Access: Facilitates quick access for repairs or inspections.
