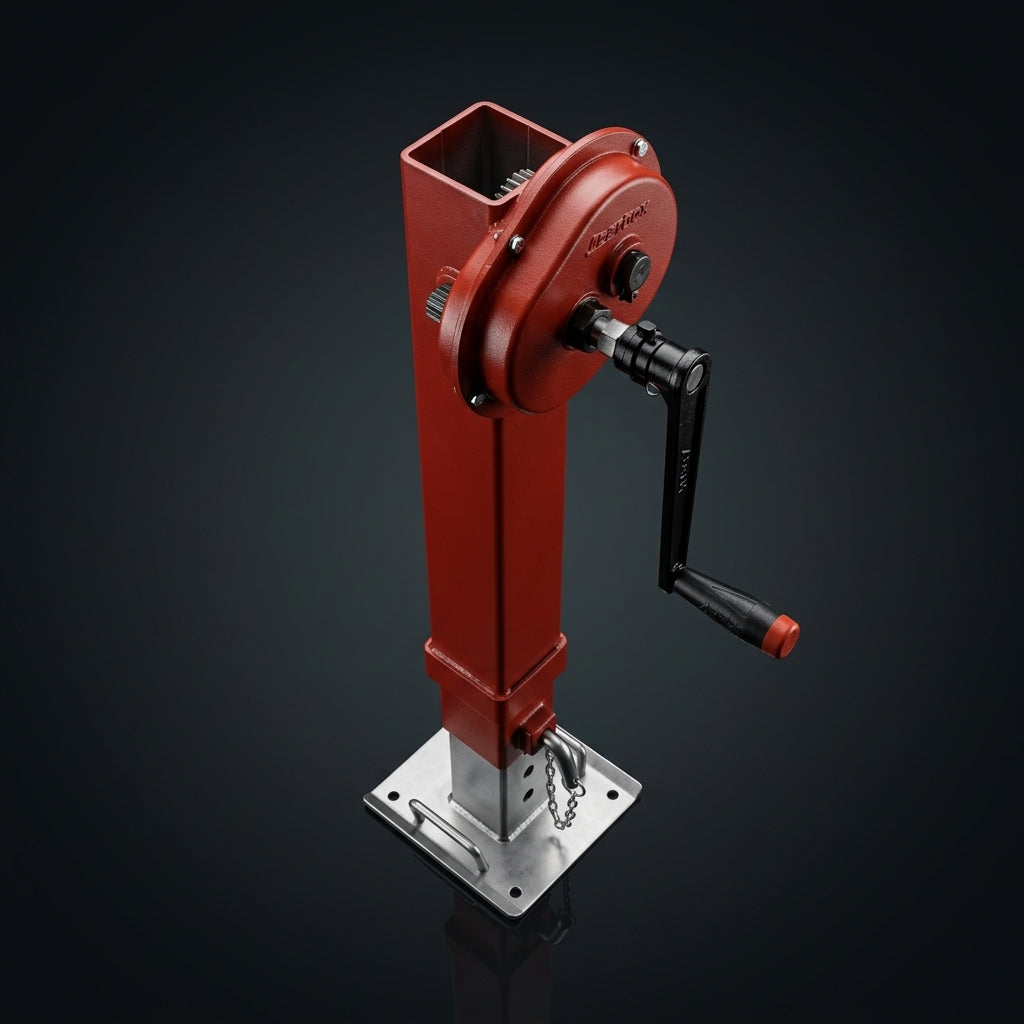

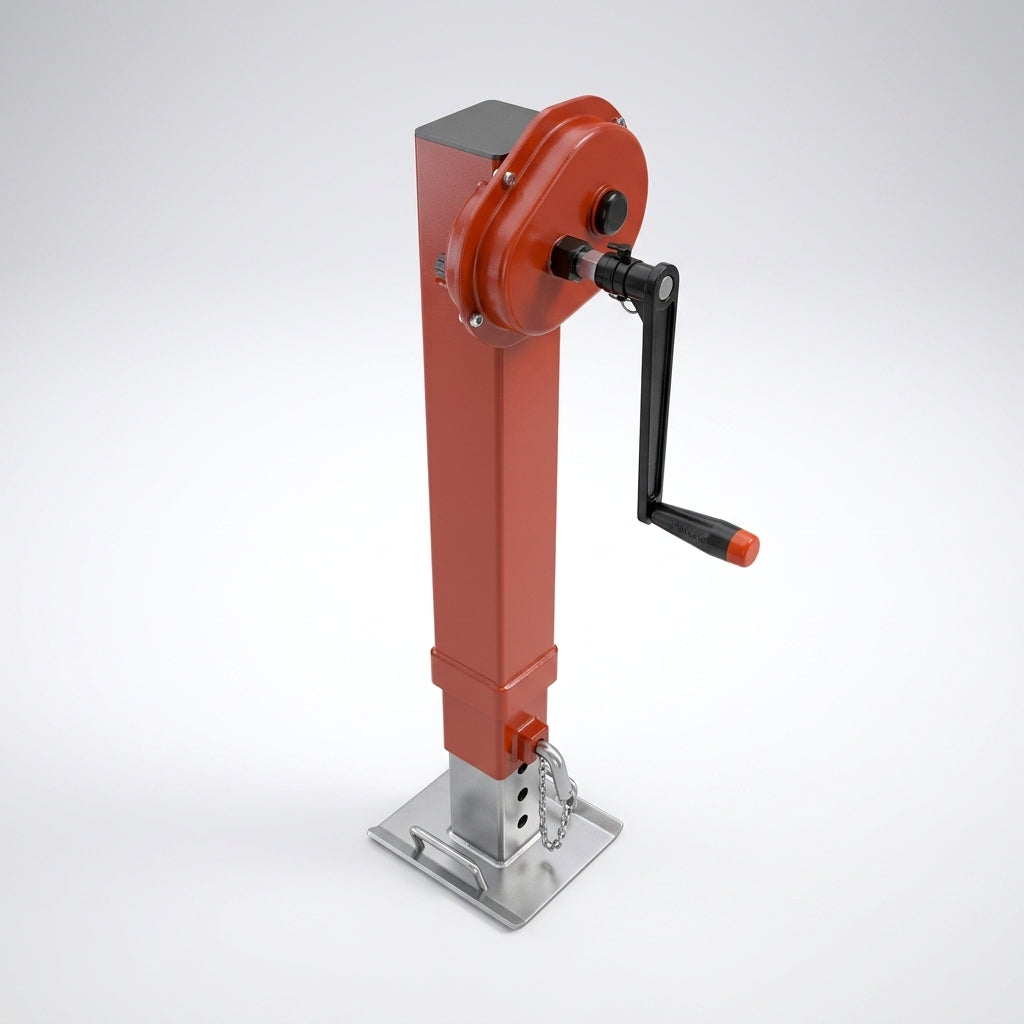

Landing Gear 1200kg with Gearbox, 110mm Outer Tube

Robust landing gear designed for heavy-duty applications.

This landing gear is equipped with a gearbox and side handle, allowing for precise control when lifting and lowering loads up to 1200kg. With an outer tube diameter of 110mm, it provides a sturdy structure suited for various industrial environments. The ergonomic handle design ensures smooth operation, making it an essential tool for efficient load management.

Key Features

• Static Load: 1200kg – suitable for heavy-duty applications.
• Lift Range: 420mm – accommodates various height requirements.
• Extended Height: 1240mm
• Retracted Height: 820mm
• Footplate Size: 250mm – provides a stable base.
• Handle Length: 250mm – designed for effective manual operation.
• Outer Tube Size: 110mm – ensures a robust construction.
• Surface Treatment: Red Water Based rust prevention.

Specifications

• Static Load Capacity: 1200kg
• Lift Range: 420mm
• Extended Height: 1240mm
• Retracted Height: 820mm
• Outer Tube Diameter: 110mm

Applications

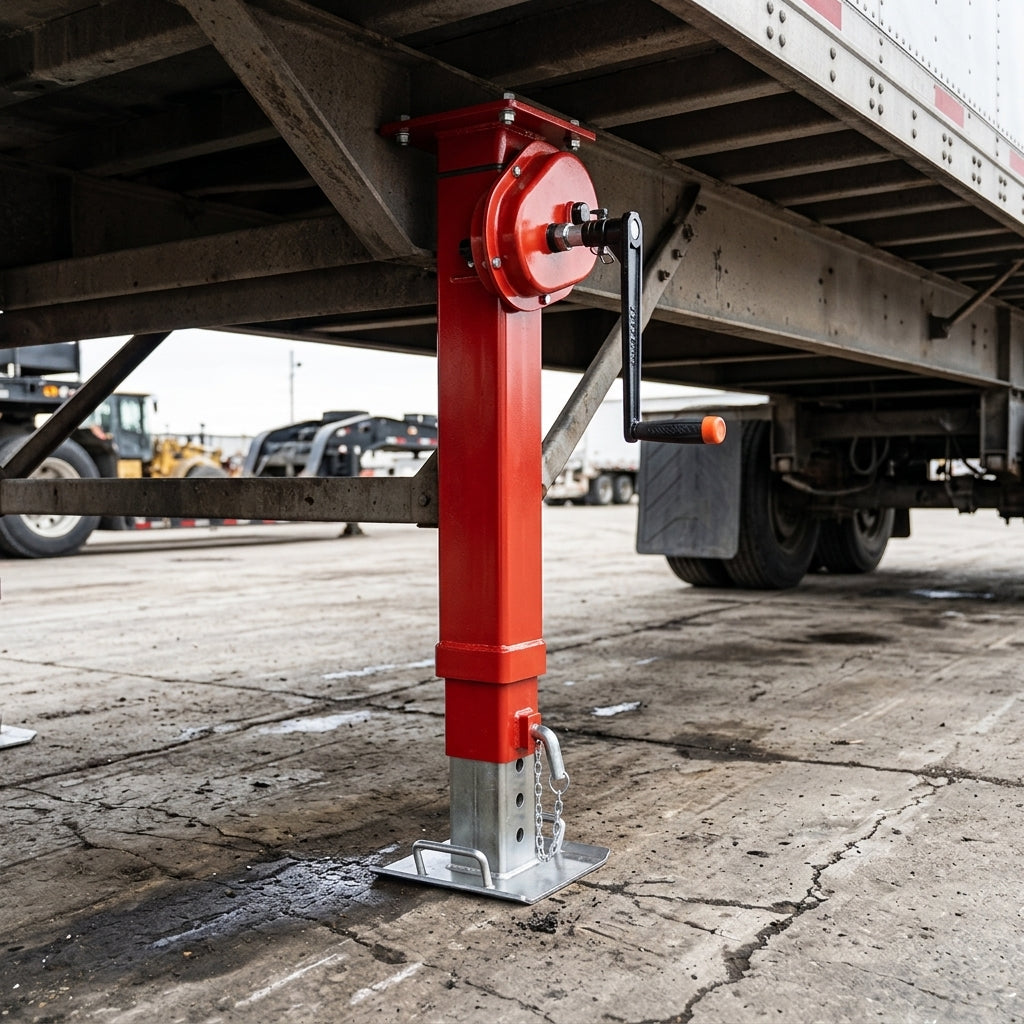

• Industrial trailers
• Heavy-duty equipment
• Construction sites
• Logistics and transport
