- Load per castor508kg per castor *
- Wheel diameter203mm
- Overall height254mm
- WheelErgonomic Polyurethane on Aluminium Centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Ergonomic Swivel Castor, Maintenance-Free, Extended Lead
- Wheel Diameter
- 203mm
- Wheel Material
- Ergonomic Polyurethane on Aluminium Centre
- Wheel Colour
- Orange
- Tread Hardness
- 87 Shore A
- Tread Width
- 50mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 508kg per castor *
- Plate Size
- 159 x 114mm
- Plate Hole Diameter
- 12mm
- Swivel Radius
- 190mm
- Total Castor Height
- 254mm
- Temperature Range
- -32°C to +82°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -32°C to +82°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

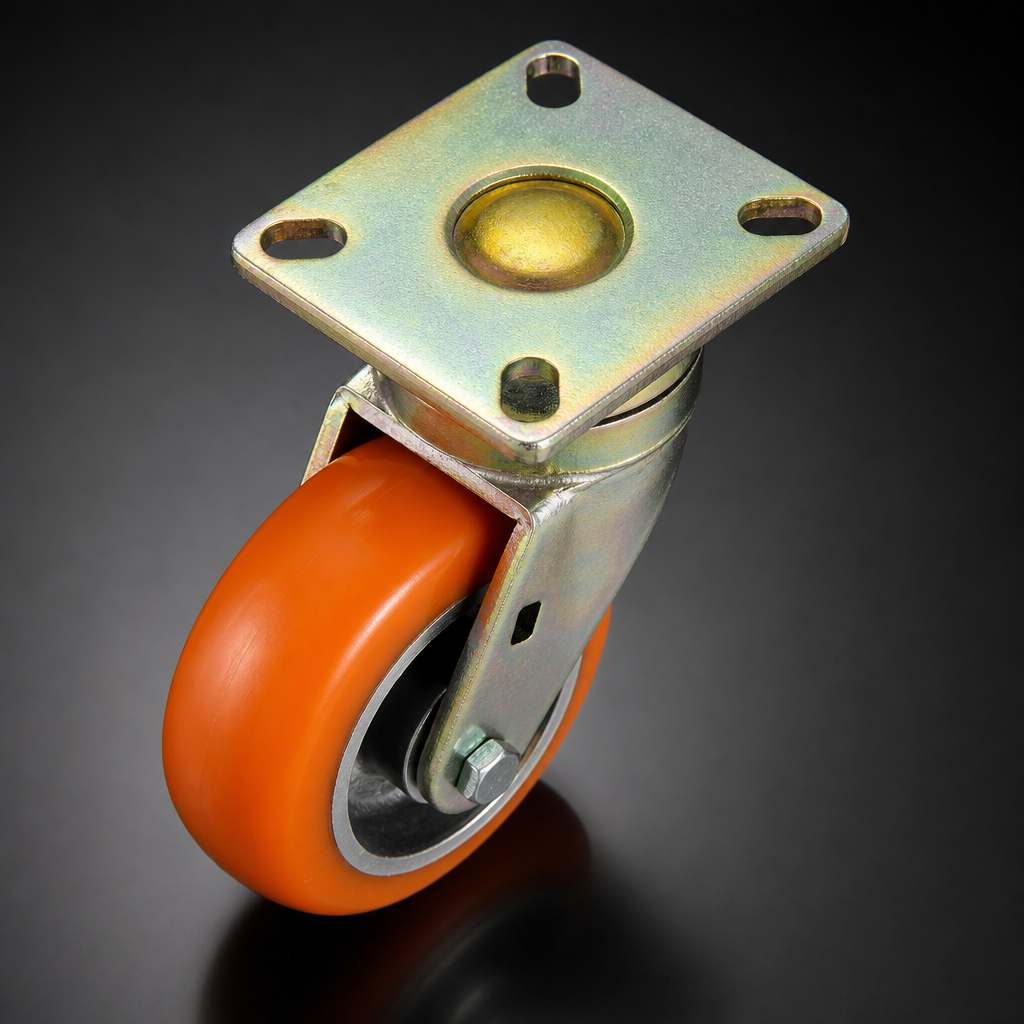

Ergonomic Heavy Duty Castors
This 200mm heavy duty ergonomic swivel castor is built for manual push and pull work where loads are heavy and floors need protecting. The orange polyurethane tread on an aluminium centre rolls with low effort, helping reduce strain on staff who move trolleys and equipment all day.
A smooth ball bearing, a maintenance-free swivel head and an extended lead make the castor easy to start, steer and keep in line. It fits with a 159 x 114mm top plate, carries 508kg per castor and stands 254mm tall.
Why Choose This Castor
- ✓ Ergonomic polyurethane tread (87 Shore A) for low push and pull effort.
- ✓ 508kg per castor for very heavy trolleys and equipment.
- ✓ Maintenance-free swivel head with no regular greasing needed.
- ✓ Extended lead for quick, stable tracking when changing direction.
- ✓ Ball bearing for smooth, easy rolling.
- ✓ Floor friendly and quiet on smooth hard floors.
* Load capacity is per castor (dynamic). Use a flat, solid mounting surface large enough for the 159 x 114mm plate.
Where It Works Best

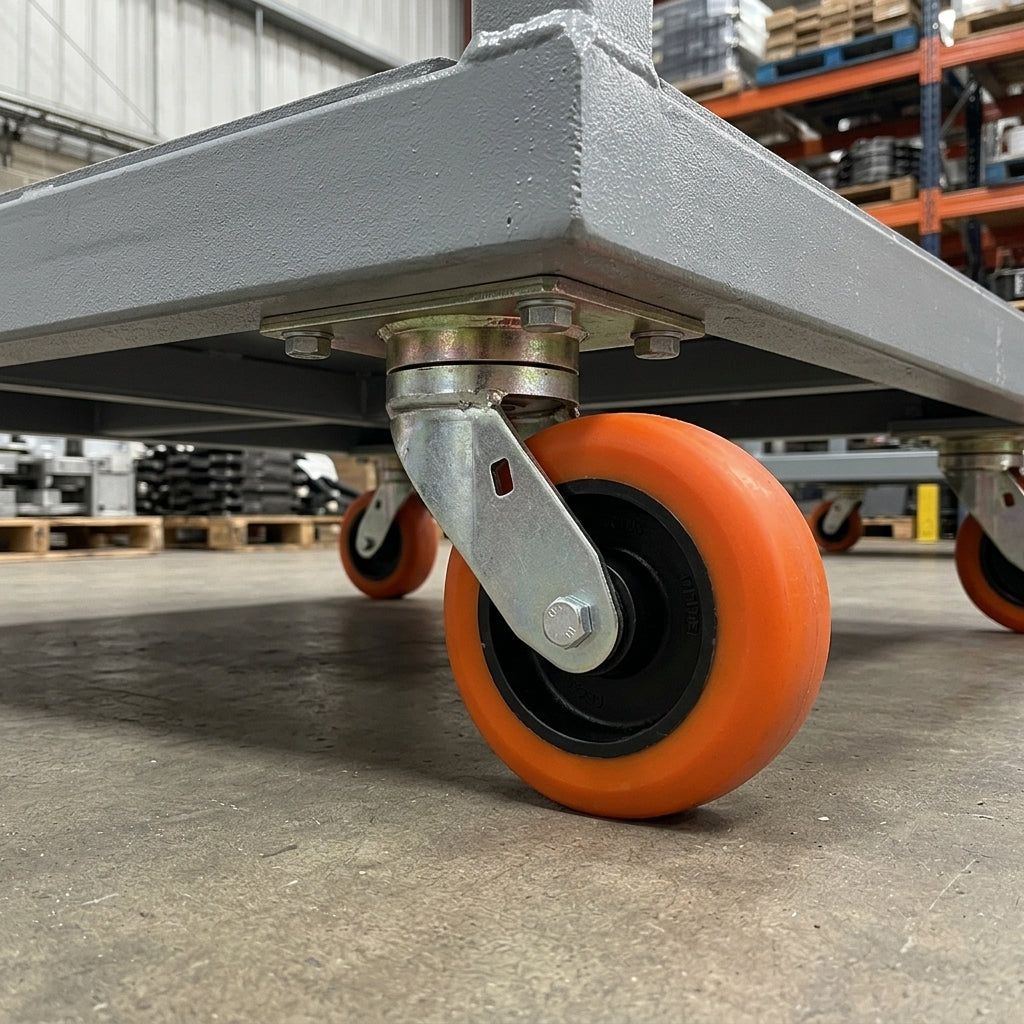

- ✓ Warehouse and factory trolleys: moving heavy goods smoothly and safely.
- ✓ Material handling trolleys and carts: where ergonomic movement matters.
- ✓ Tow lines: heavy carts pulled in trains around a site.
- ✓ Workbenches and industrial equipment: high load capacity with easy repositioning.
- ✓ Mobile machine bases: moving heavy machines with less effort.
Frequently Asked Questions
What makes this castor ergonomic?
The soft 87 Shore A polyurethane tread and ball bearing reduce the force needed to start and keep a heavy load moving, which helps cut strain on the people pushing and pulling trolleys every day.
What does maintenance-free mean?
The swivel head is built so it does not need regular greasing, keeping the castor turning smoothly with less upkeep.
What is an extended lead?
The wheel axle sits further behind the swivel centre (190mm swivel radius), so the castor lines up quickly when you change direction and the trolley tracks straighter under load.
How much weight can it carry?
Each castor is rated at 508kg dynamic load, so a set of four can carry very heavy trolleys and equipment.
How do I fit it?
Bolt the 159 x 114mm top plate to a flat, solid surface with four 12mm bolts.
Will it protect my floor?
Yes. The polyurethane tread is kinder to smooth hard floors than steel or nylon wheels and runs quietly.
