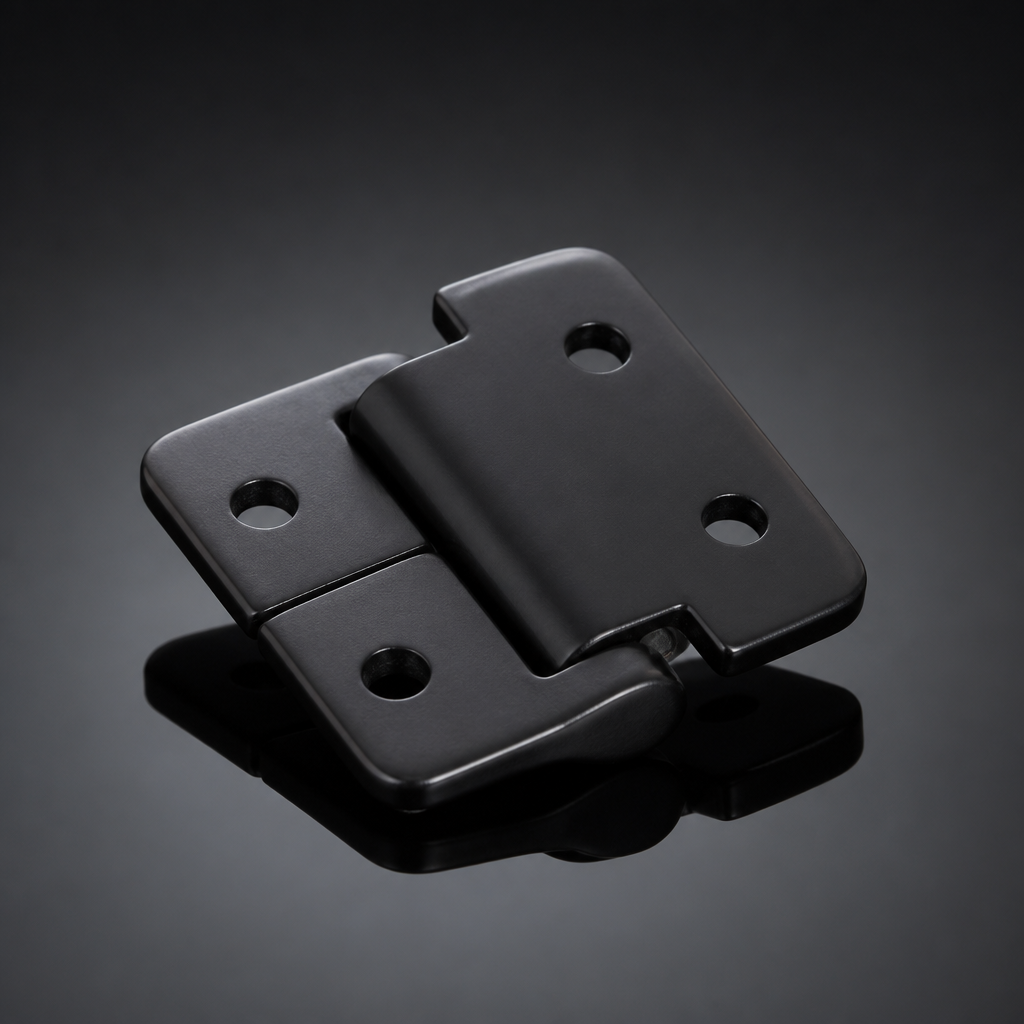

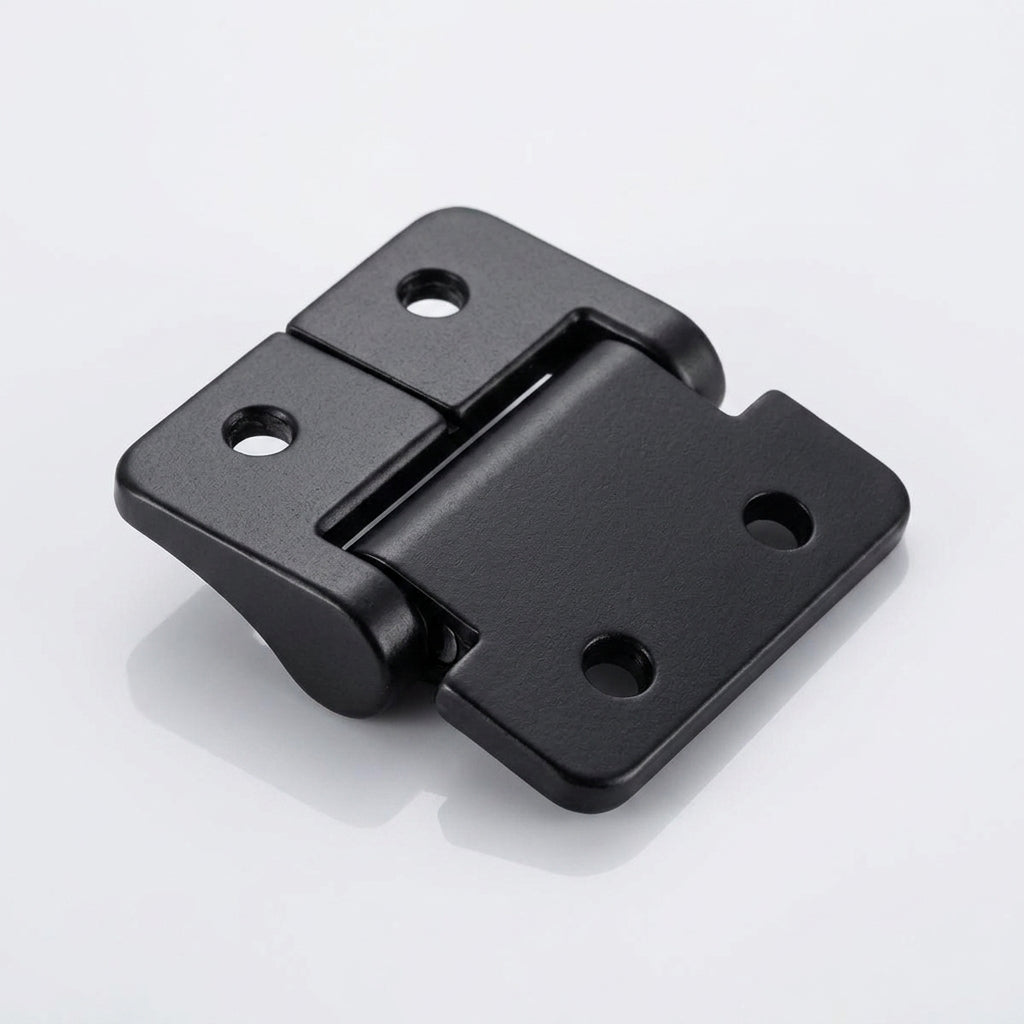

Constant Torque Positioning Hinge 40mm Height

Reliable and precise positioning solution

The Constant Torque Positioning Hinge is designed for applications that require exact positioning and consistent torque. Its robust construction makes it suitable for various industrial settings, ensuring smooth operation and stability in machinery.

Key Features

• Bore Size: 4.5mm – Provides a snug fit for secure attachment.
• Colour: Black – Offers a sleek and professional appearance.
• Height: 40mm – Compact design suitable for limited space applications.
• Hinge Depth Excluding Joint (F): 10mm – Ensures minimal protrusion where space is at a premium.
• Hinge Depth Including Joint (E): 3mm – Allows for efficient integration into existing designs.
• Hinge Length (A): 38mm – Compact size for versatile applications.

Specifications

• Hinge Hole Centres Length (C): 18mm – Facilitates easy installation with standard fittings.
• Hinge Hole Centres Width (D): 28mm – Provides flexibility in mounting options.

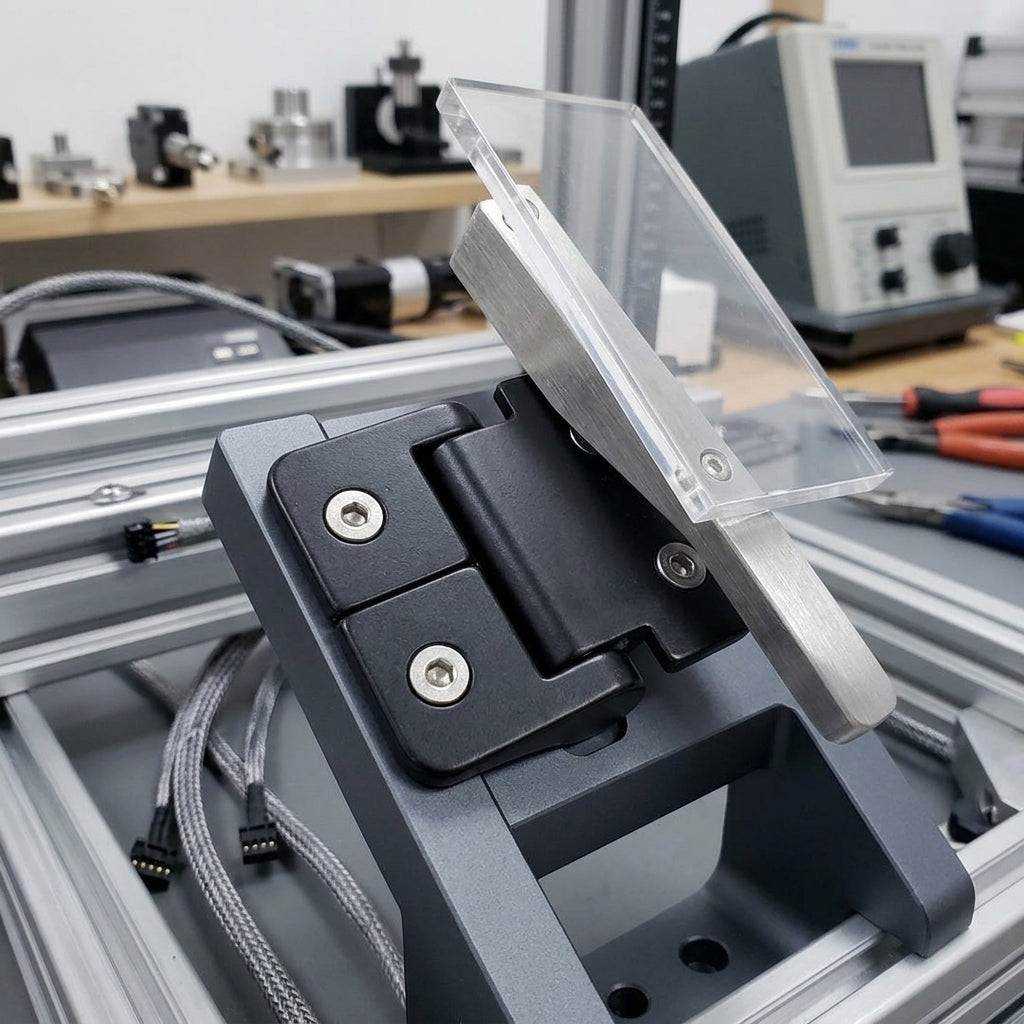

Applications

• Industrial machinery
• Automated systems
• Furniture design
• Access panels
• Equipment enclosures
