Adjustable Torque Hinge 43mm x 37mm – Position Control

Experience precise position control with this adjustable torque hinge.

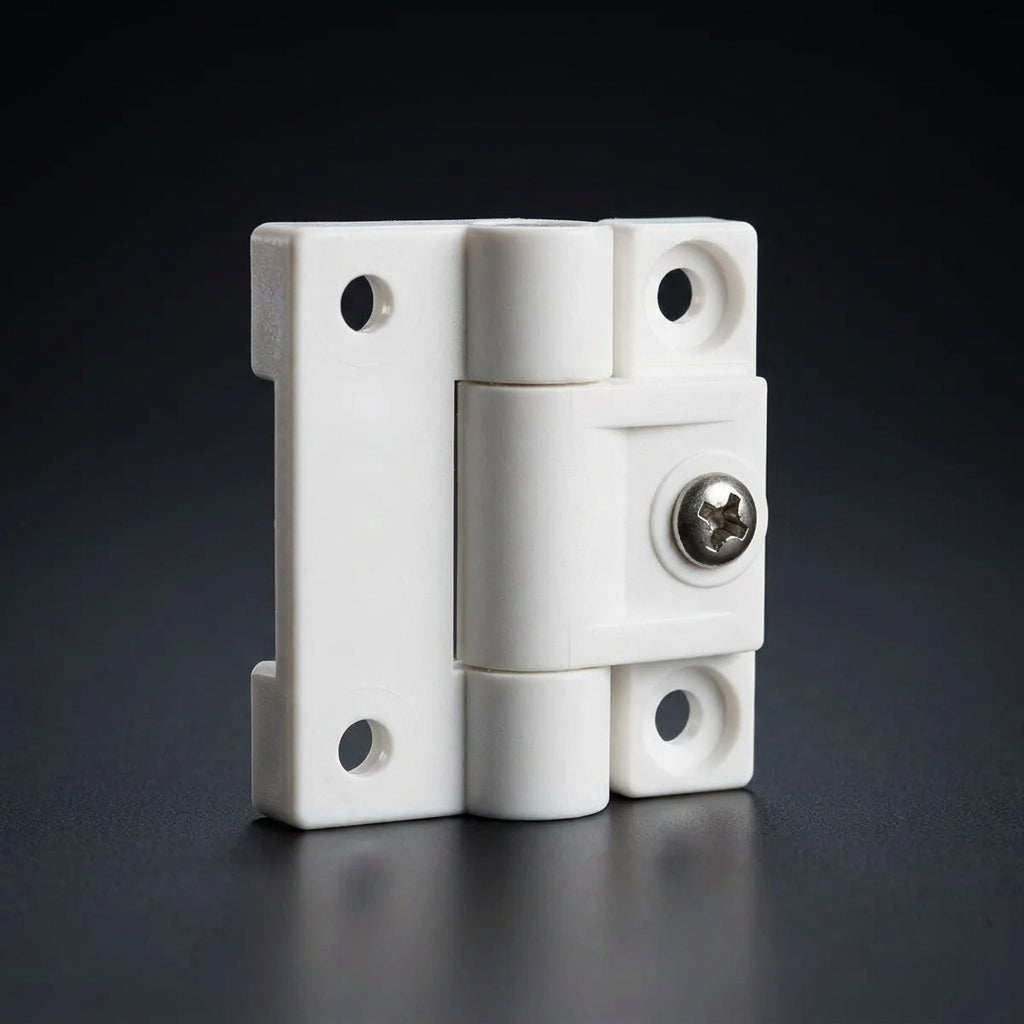

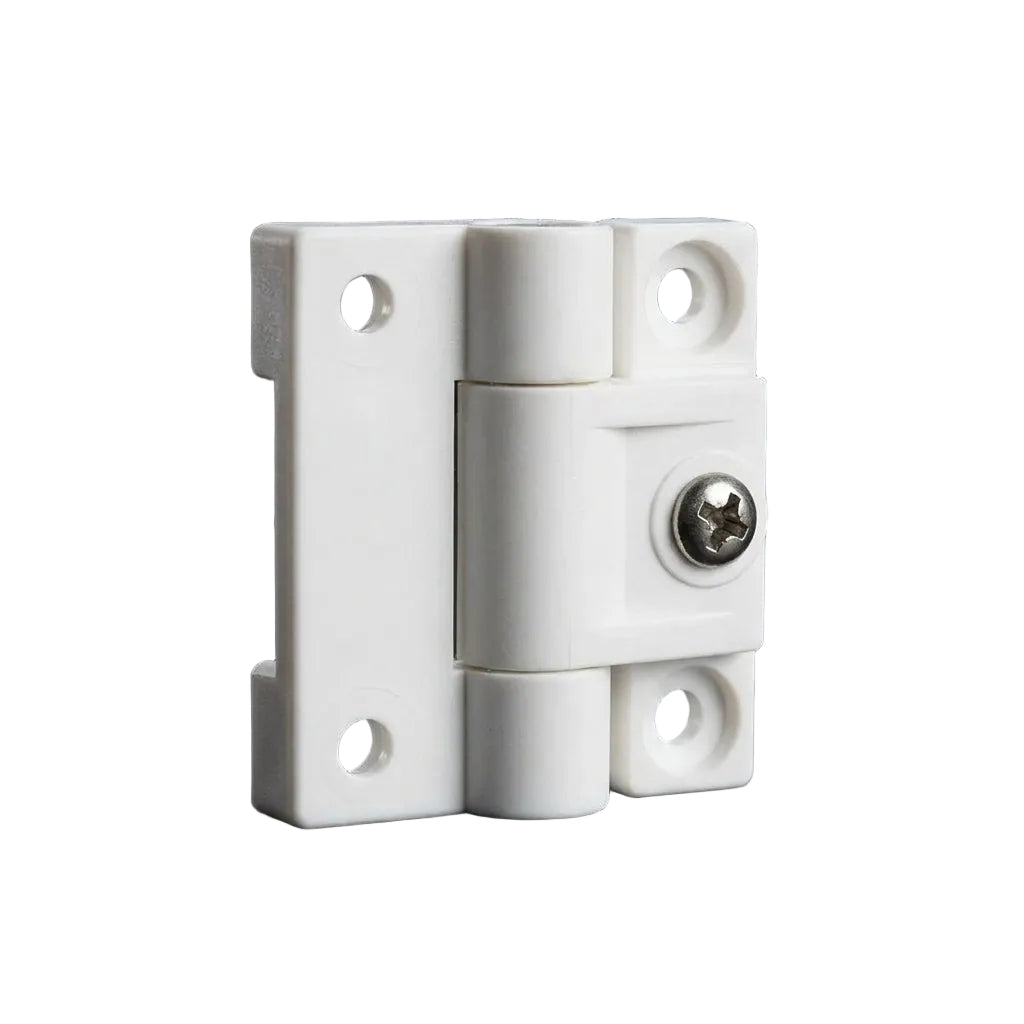

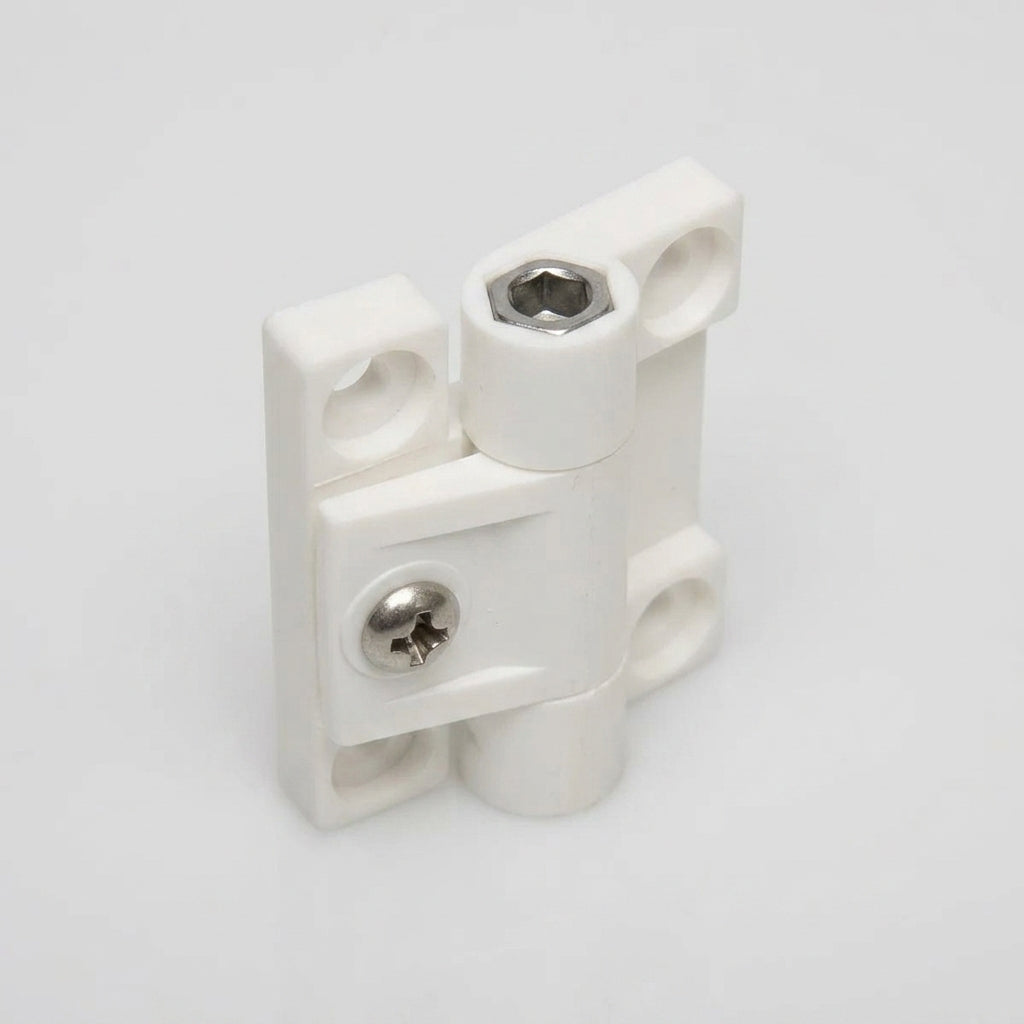

This hinge enables precise position control, ideal for applications requiring adjustable torque. Distinguished by its white finish, the hinge measures 43mm in length and 37mm in width, ensuring a compact yet effective design.

Key Features

• Colour: White – visually distinct for specific aesthetic requirements.
• Height: 37mm – overall height of the hinge.
• Hinge Hole Centres Length (C): 32mm – distance between the mounting holes lengthwise.
• Hinge Hole Centres Width (D): 25mm – distance between the mounting holes widthwise.
• Hinge Length (A): 43mm – total length of the hinge.
• Hinge Width (B): 37mm – total width of the hinge.
• Thread Length (L): 4.2mm – length of the threaded section.
• Tread Width: 19mm – width of the hinge tread.

Specifications

• Length: 43mm
• Width: 37mm
• Height: 37mm
• Thread Length: 4.2mm
• Tread Width: 19mm

Applications

• Cabinet doors: Used for controlled opening and closing positions.

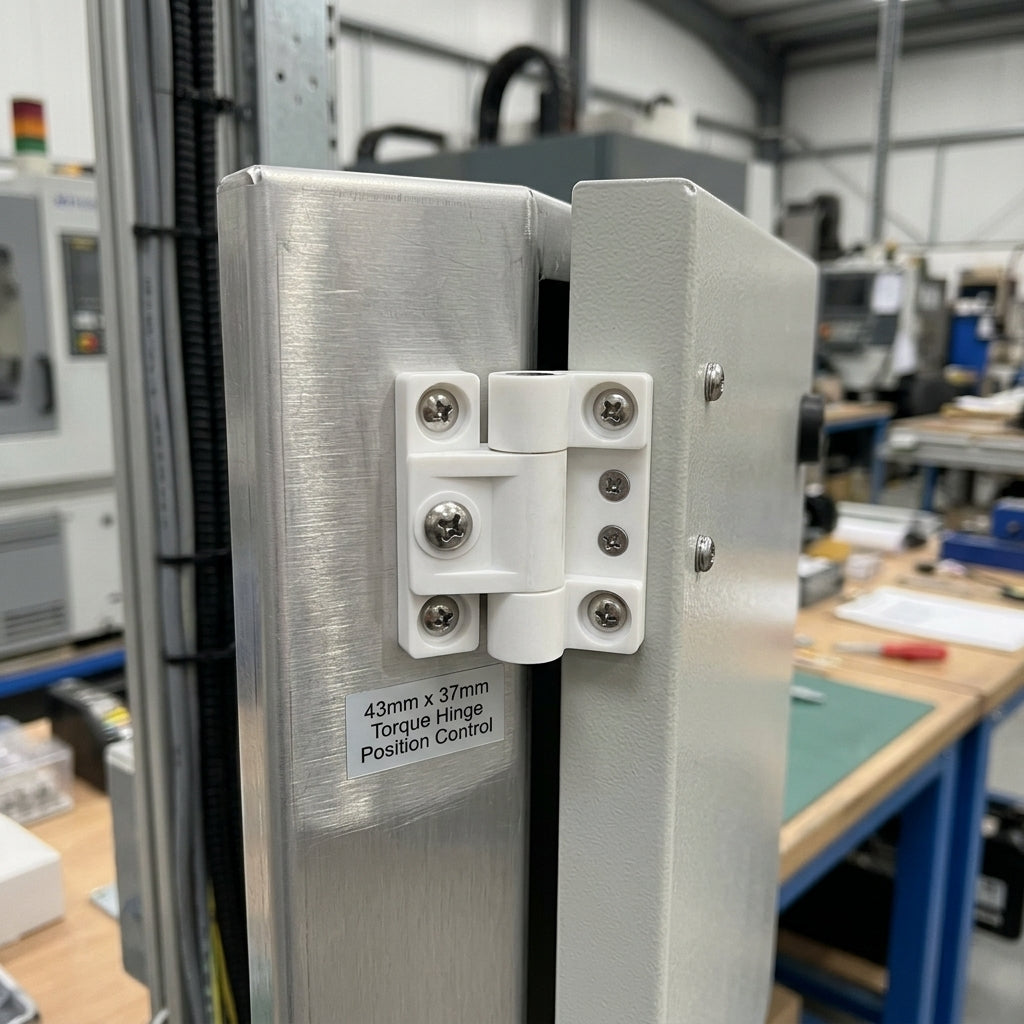

• Electronic enclosures: Ensures secure positioning of access panels.
• Furniture components: Allows for adjustable positioning in various furniture designs.
