Our Clients
- Load per castor100kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- High Temperature Phenolic
- Wheel Colour
- Black
- Tread Width
- 34mm
- Hardness of Tread
- D85
- Bearing Type
- Plain Bearing
- Load Capacity
- 100kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 85mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +280°C
Will it fit?
- Bolt hole12mm
- Overall height108mm
- Swivel radius85mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +280°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs

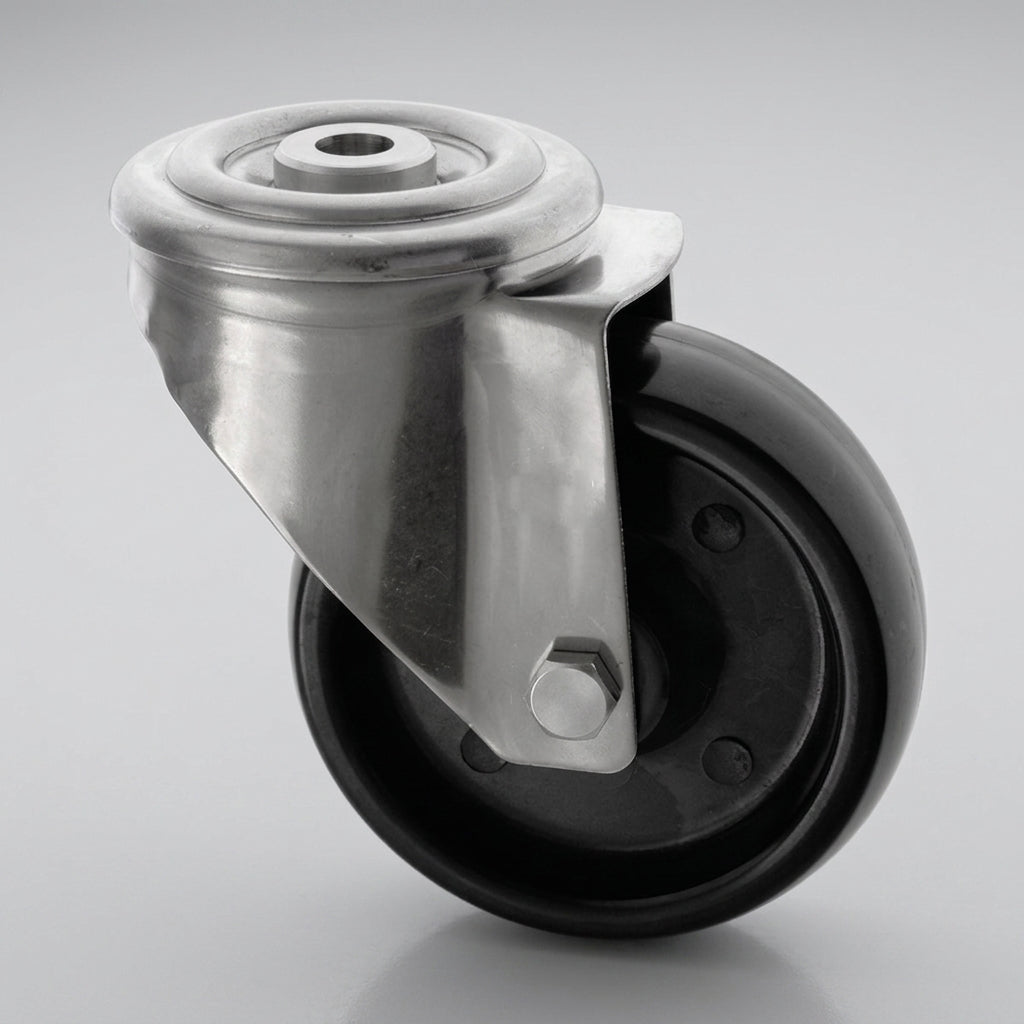

Stainless Steel High Temperature Bolt Hole Castor

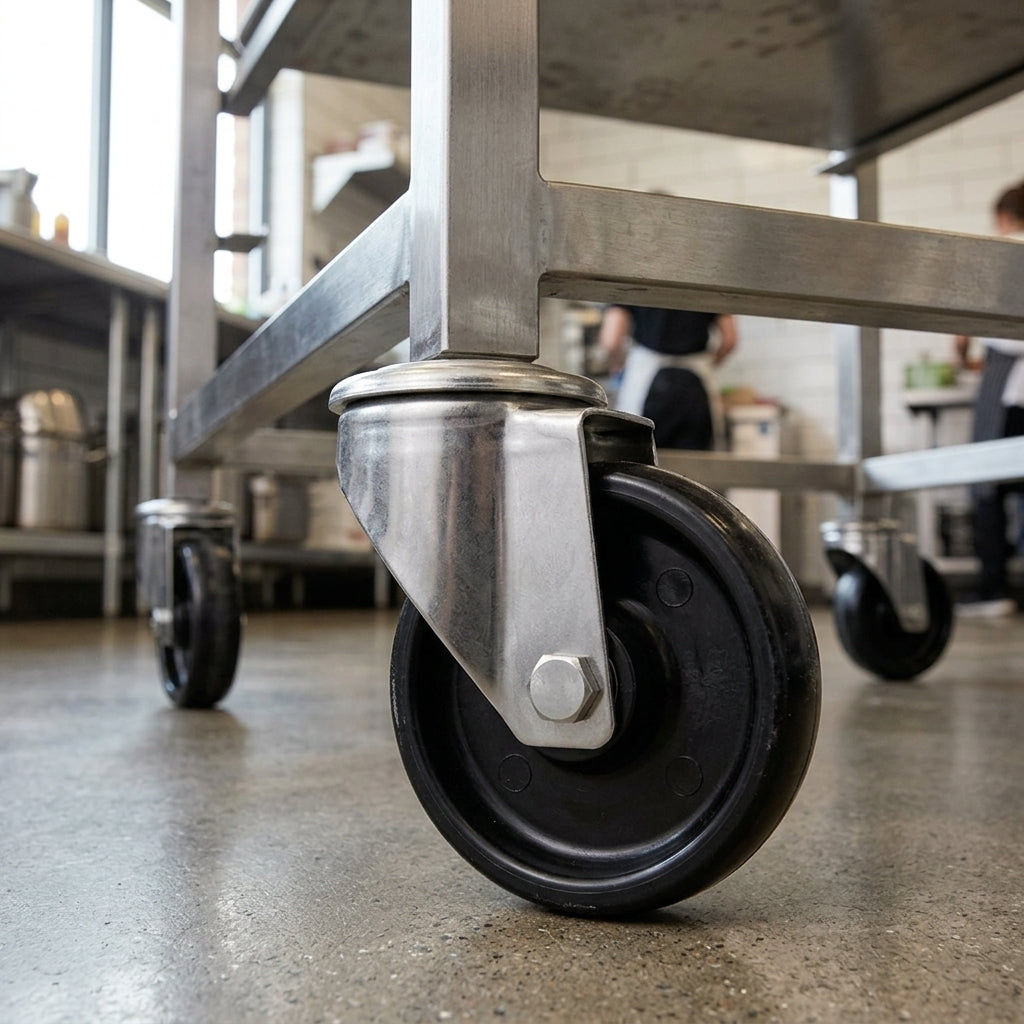

This 80mm stainless steel swivel castor runs on a black high temperature phenolic wheel that works from -40°C to +280°C and carries up to 100kg per castor. It suits food manufacturing equipment, baking ovens and industrial kitchens, where standard wheels would fail in the heat.
The hard D85 tread has a 34mm width, and the plain bearing gives straightforward rotation. A single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing, which makes the castor easy to attach to your equipment.
Why Choose This Castor
- ✓ Works from -40°C to +280°C for ovens and hot areas
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ Hard black phenolic wheel with a 34mm tread
- ✓ 100kg load capacity per castor
- ✓ Full swivel with an 85mm swivel radius
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment in high temperature areas
- ✓ Equipment used with baking ovens
- ✓ Industrial kitchens and other high heat settings
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
What temperatures can this castor handle?
The castor works from -40°C up to +280°C, so it suits ovens, bakeries and other hot work areas.
How much weight can it carry?
Each castor is rated at 100kg. A set of four is best used for loads up to around 300kg, allowing for uneven floors.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What is the wheel made of?
The wheel is black high temperature phenolic with a hard D85 tread and a 34mm tread width.
How tall is the castor?
The total castor height is 108mm and it needs 85mm of clearance to swivel freely.
