- Load per castor50kg per castor
- Wheel diameter80mm
- Overall height109mm
- WheelThermoplastic Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Thermoplastic Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- Shore A85
- Bearing Type
- Ball Bearing
- Load Capacity
- 50kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 65 x 50mm
- Plate Hole Centres
- 50 x 36mm
- Plate Hole Diameter
- 6mm
- Swivel Radius
- 70mm
- Total Castor Height
- 109mm
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

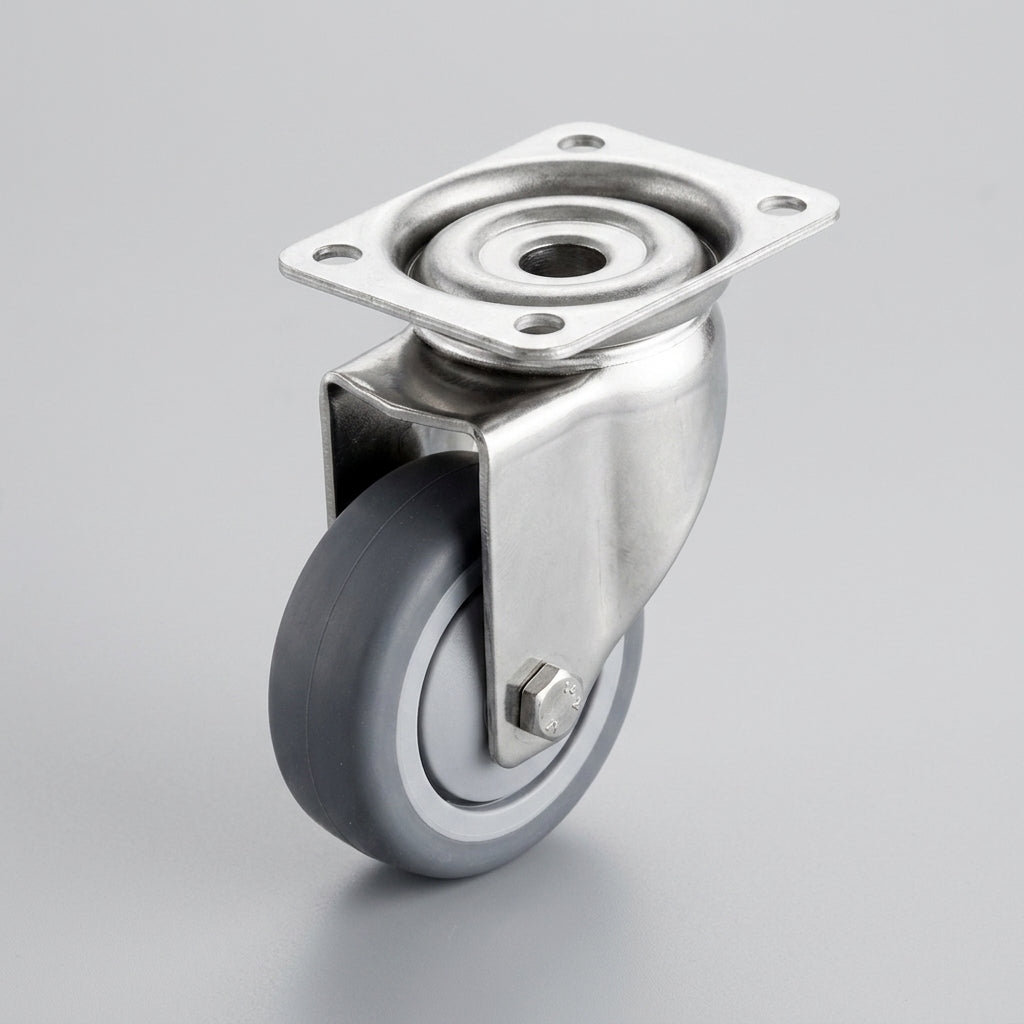

Stainless Steel Swivel Castor

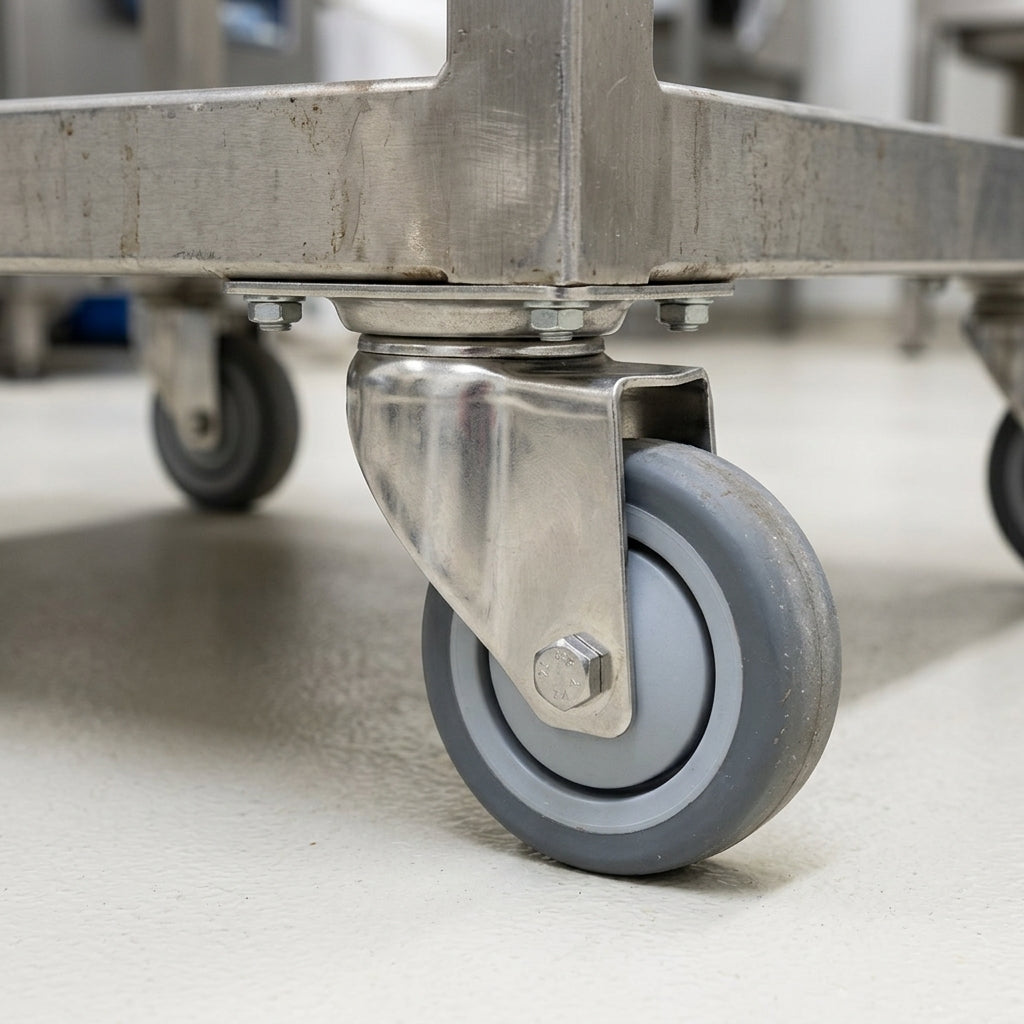

This 80mm stainless steel swivel castor runs on a quiet grey thermoplastic rubber wheel with a lightweight polypropylene centre, carrying up to 50kg per castor. It is made for medical trolleys, hospital beds, laboratory equipment and diagnostic machines that need smooth, controlled movement.
The stainless steel housing stands up to regular cleaning, and the compact 65 x 50mm top plate bolts securely to the underside of your equipment. The soft A85 rubber tread gives a good balance of grip and wear resistance with low vibration, while the ball bearing keeps the castor swivelling smoothly.
Why Choose This Castor
- ✓ Soft, quiet rubber tread with low vibration
- ✓ Stainless steel housing for hygienic and clean areas
- ✓ 50kg load capacity per castor
- ✓ 80mm grey rubber wheel with a 22mm tread
- ✓ Ball bearing for smooth swivelling
- ✓ 65 x 50mm top plate with four 6mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Medical trolleys: smooth, controlled movement in healthcare areas.
- ✓ Hospital beds: easy repositioning within patient care areas.
- ✓ Laboratory equipment: moving sensitive apparatus with minimal vibration.
- ✓ Diagnostic machines: precise positioning and relocation in medical facilities.
Frequently Asked Questions
What is the wheel made of?
A soft grey thermoplastic rubber tread on a lightweight polypropylene centre, running on a ball bearing. It is quiet and gentle on floors.
How much weight can it carry?
Each castor is rated at 50kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a 65 x 50mm top plate with four 6mm holes on 50 x 36mm centres, bolted to the underside of your equipment.
What temperatures is it suitable for?
The castor is rated for use from -20°C to +60°C, which suits hospitals, laboratories and normal indoor areas.
Does it have a brake?
No, this is a plain swivel castor. Choose a braked version if you need to lock your equipment in place.
How tall is the castor?
The total castor height is 109mm and it needs 70mm of clearance to swivel freely.
