- Load per castor50kg per castor *
- Wheel diameter80mm
- Overall height109mm
- WheelThermoplastic Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Thermoplastic Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- A85
- Bearing Type
- Plain
- Load Capacity
- 50kg per castor *
- Brake
- Foot-Operated Pedal Brake
- Top Plate Size
- 65 x 50mm
- Bolt Hole Centres
- 50 x 36mm
- Bolt Hole Diameter
- 6mm
- Swivel Radius
- 98mm
- Total Castor Height
- 109mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole50 x 36mm
- Overall height109mm
- Swivel radius98mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

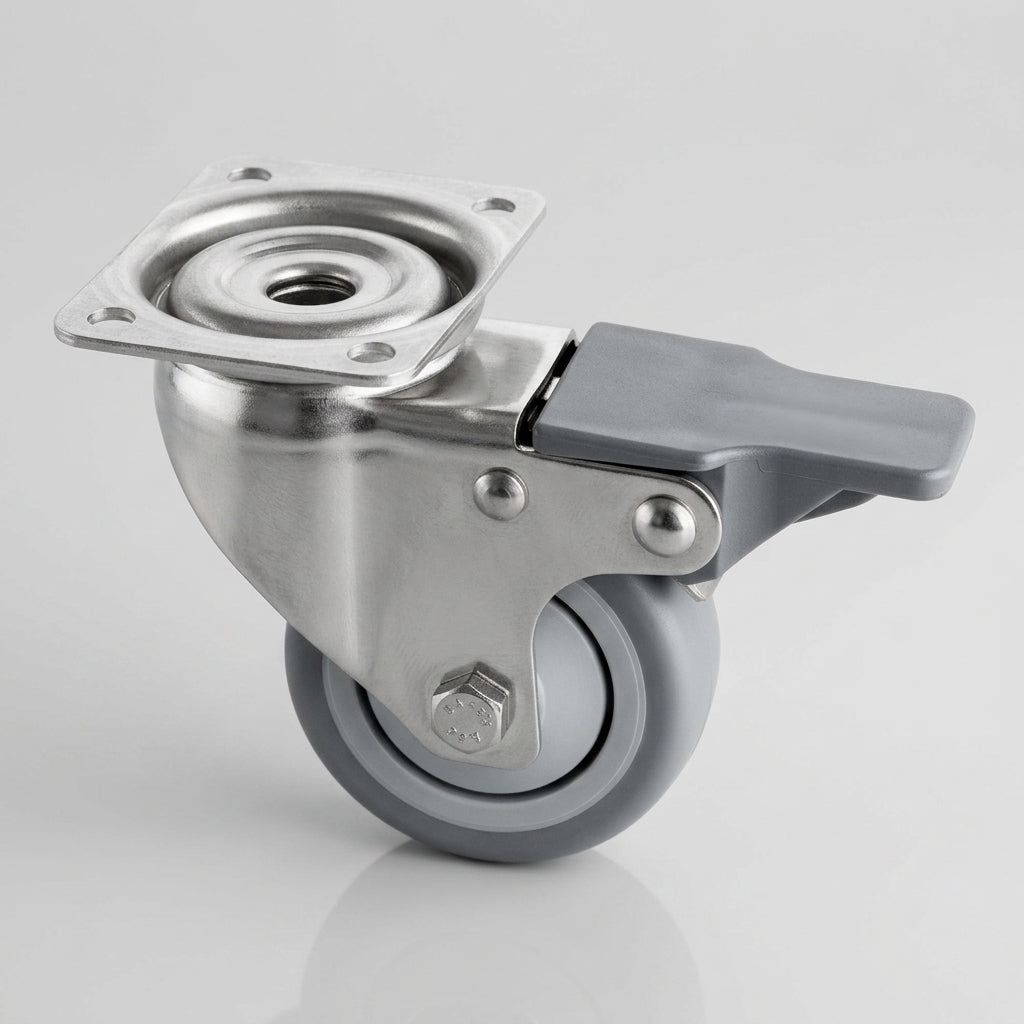

Stainless Steel Braked Castor
This 80mm stainless steel braked swivel castor runs on a grey thermoplastic rubber wheel with a lightweight polypropylene centre, carrying up to 50kg per castor. It is made for hospital beds, medical trolleys and laboratory carts that need smooth movement and secure parking.
A foot-operated brake holds the castor in place, so equipment stays put when needed. A low-maintenance plain bearing keeps the castor simple, the A85 rubber tread grips well and runs quietly, and the compact 65 x 50mm top plate with four 6mm holes gives a secure fitting. It works from -20°C to +60°C.
Why Choose This Castor
- ✓ Grey thermoplastic rubber tread on a polypropylene centre
- ✓ Foot-operated brake to keep equipment in place
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ A85 tread hardness with a 22mm width for grip and quiet running
- ✓ Low-maintenance plain bearing
- ✓ Compact 65 x 50mm top plate with 6mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital beds and medical trolleys that need smooth mobility
- ✓ Laboratory carts that must stay in place while in use
- ✓ Hygienic areas where equipment is washed down regularly
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
How does the brake work?
Press the grey pedal down with your foot to apply the brake and stop the wheel rolling. Lift the pedal to release it.
What is a thermoplastic rubber wheel?
It has a soft rubber-like tread moulded onto a rigid polypropylene centre. The tread grips well and runs quietly, while the centre keeps the wheel light.
How much weight can it carry?
Each castor is rated at 50kg. A set of four is best used for loads up to around 150kg, allowing for uneven floors.
How is it fitted?
The 65 x 50mm top plate has four 6mm holes on 50 x 36mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 109mm and it needs 98mm of clearance to swivel freely.
