- Load per castor150kg per castor
- Wheel diameter80mm
- Overall height108mm
- WheelRubber on Polypropylene (non-marking)
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on Polypropylene (non-marking)
- Wheel Colour
- Blue
- Tread Width
- 36mm
- Hardness of Tread
- A70
- Bearing Type
- Roller
- Fixing
- Top Plate
- Plate Size
- 105 x 85mm
- Plate Hole Centres
- 80/77 x 60mm
- Plate Hole Diameter
- 8mm
- Swivel Radius
- 123mm
- Total Castor Height
- 108mm
- Load Capacity
- 150kg per castor
- Temperature Range
- -20°C to +80°C
- Brake
- Yes, locks the wheel
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Medium Duty Top Plate Castors

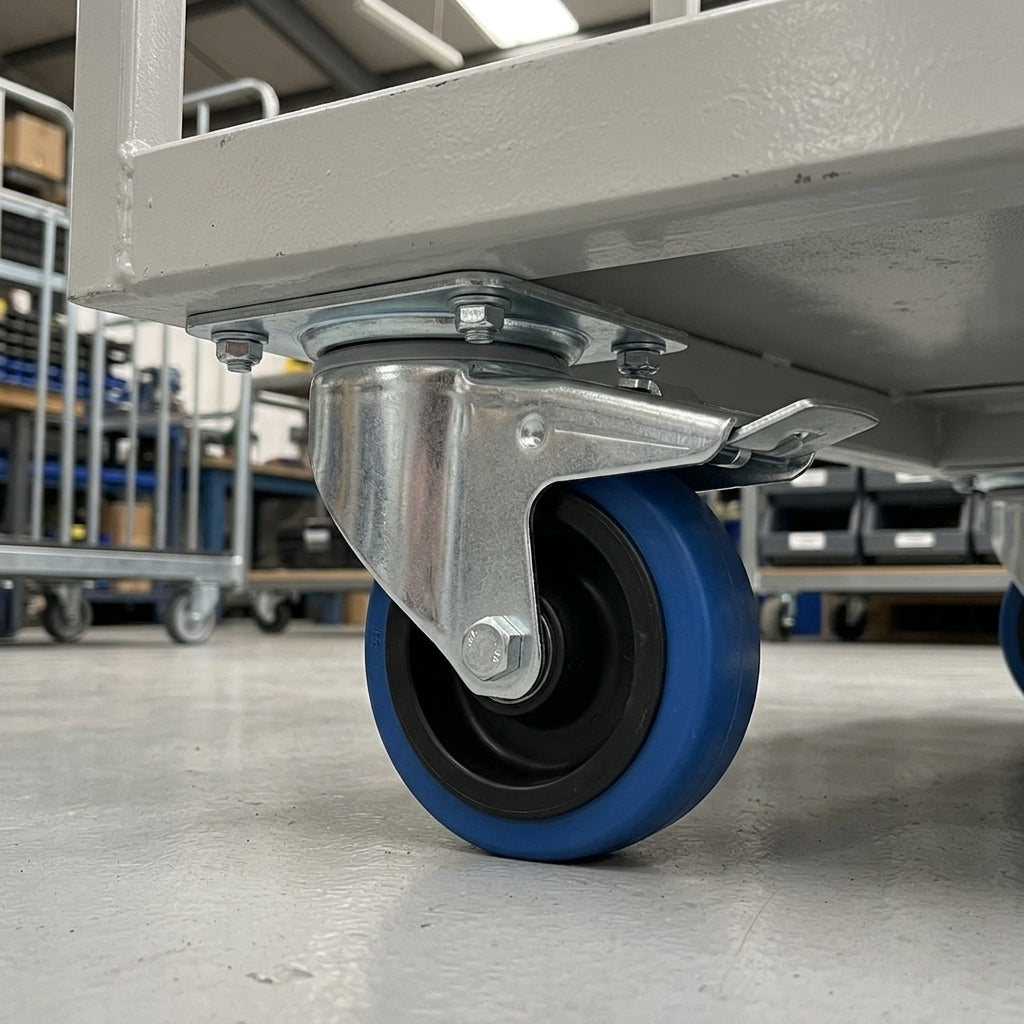

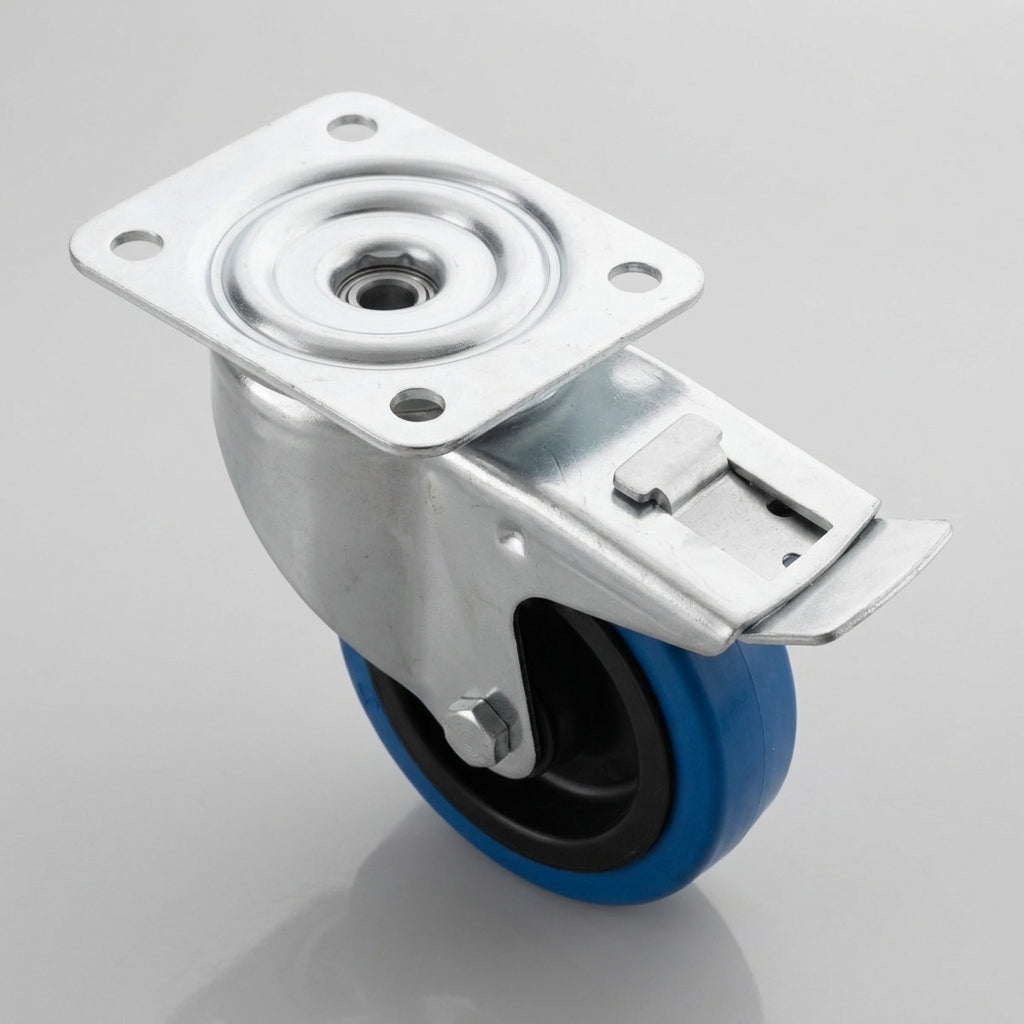

This compact 80mm braked swivel castor has a blue non-marking rubber wheel on a polypropylene centre and carries up to 150kg per castor. It bolts on with a 105 x 85mm top plate, rolls smoothly on a roller bearing, and its foot brake locks the wheel in place, making it ideal for warehouse trolleys, industrial carts, hospital equipment and retail display units where floor protection matters.
Designed for industrial use, this blue rubber braked top plate castor combines a low 108mm total height with a 123mm swivel radius and a 36mm tread. The rubber on polypropylene wheel balances strength and flexibility, the non-marking tread helps keep floors clean, and it works from -20°C to +80°C.
Why Choose This Castor
- ✓ Blue non-marking rubber wheel protects floors where marks are not acceptable.
- ✓ 150kg load capacity per castor in a compact 80mm size.
- ✓ Foot brake locks the wheel in place for stability when stationary.
- ✓ Roller bearing for smooth rotation that makes heavy loads easier to move.
- ✓ A70 tread hardness gives good grip on hard indoor floors.
- ✓ 105 x 85mm top plate with four 8mm holes for a secure bolted fixing.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres match your mounting area before fitting.
Where It Works Best
This braked top plate castor is made for equipment that must move easily and then stay put:
- ✓ Warehouse trolleys: smooth movement and stability for transporting goods.
- ✓ Industrial carts: moving heavy loads in manufacturing settings.
- ✓ Hospital equipment: medical carts that need non-marking wheels.
- ✓ Retail display units: easy repositioning of display stands.
Frequently Asked Questions
Will the blue wheel mark my floor?
No. The blue rubber wheel is non-marking, so it suits hospital, retail and other clean floors.
How much weight can this castor carry?
Each castor is rated for 150kg.
What does the brake lock?
The foot brake locks the wheel, so the castor stays in place when the equipment is parked.
What size bolts do I need?
The top plate has four 8mm holes, so it suits M8 bolts. The hole centres are 80/77 x 60mm on a 105 x 85mm plate.
How tall is the castor?
The total castor height is 108mm and the swivel radius is 123mm.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
