- Load per castor70kg per castor
- Wheel diameter80mm
- Overall height318mm
- WheelRubber on polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Swivel Braked Jacking Castor
- Series
- JA4
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on polypropylene
- Wheel Colour
- Grey
- Tread Width
- 27mm
- Bearing Type
- Roller
- Load Capacity
- 70kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 318mm
- Total Height to Plate Lower Bolt Hole
- 131mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 394mm
- Swivel Radius
- 124mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height318mm
- Swivel radius124mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Medium Duty Jacking Castors

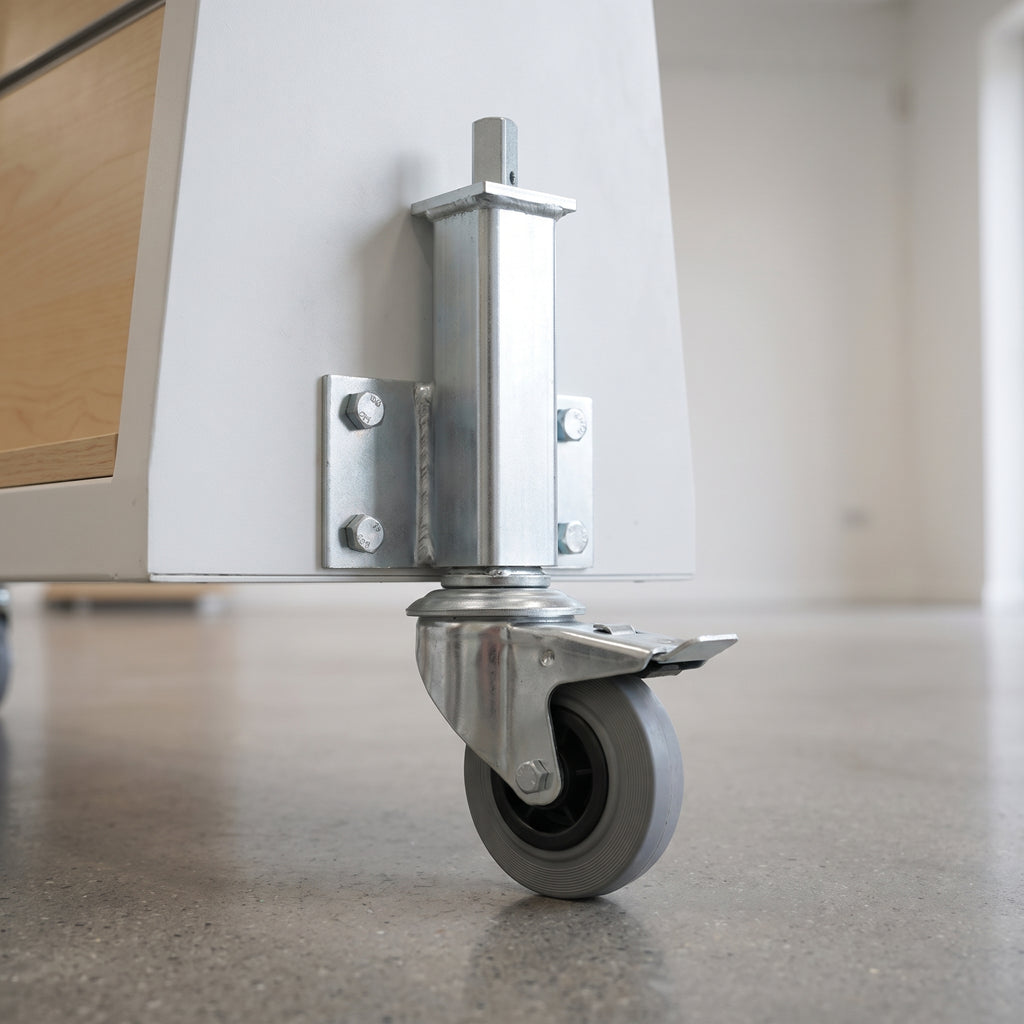

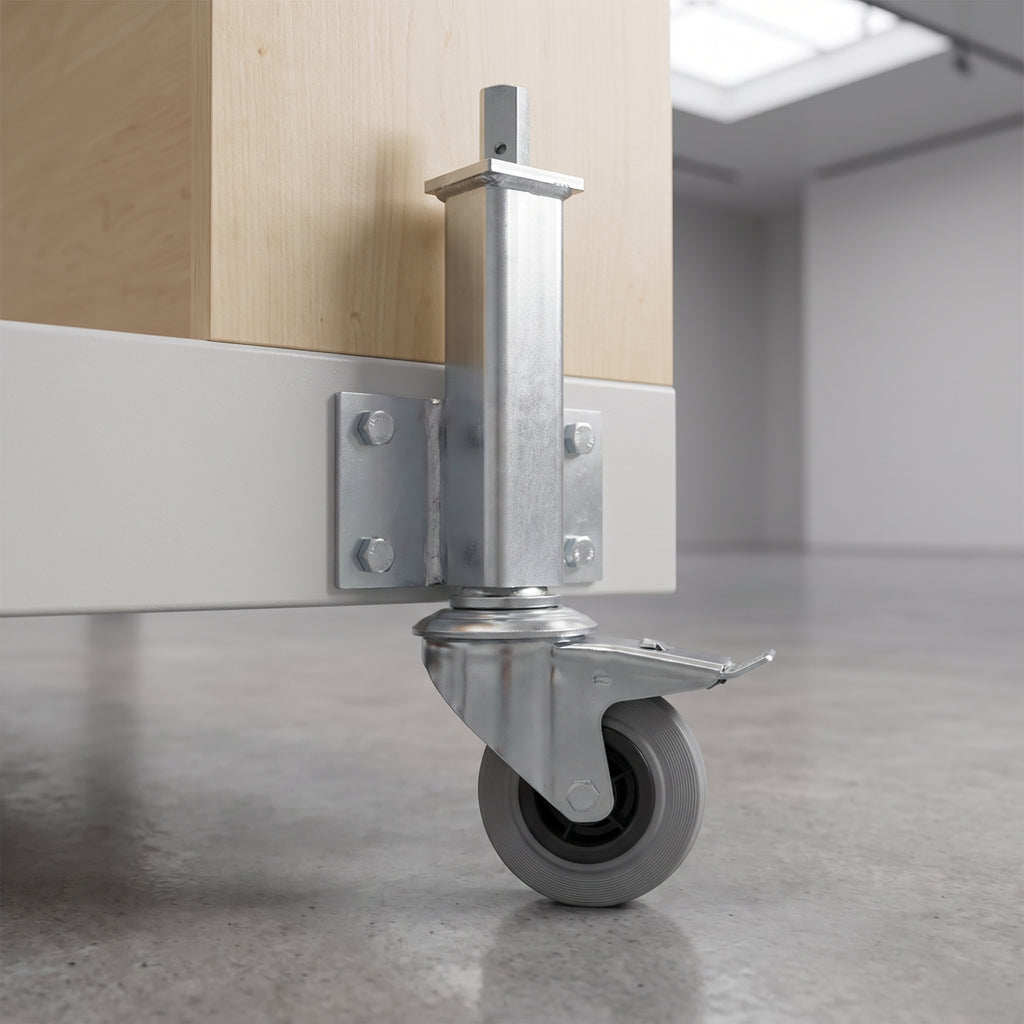

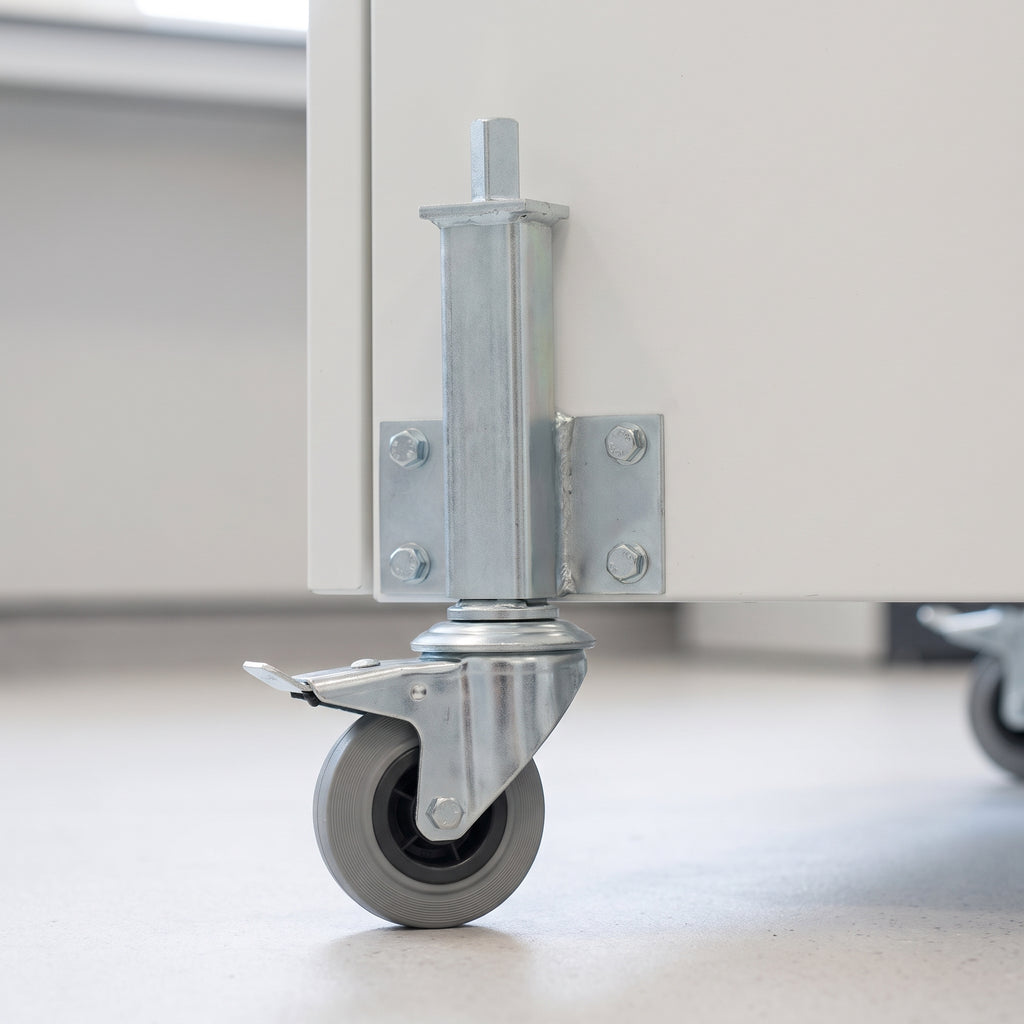

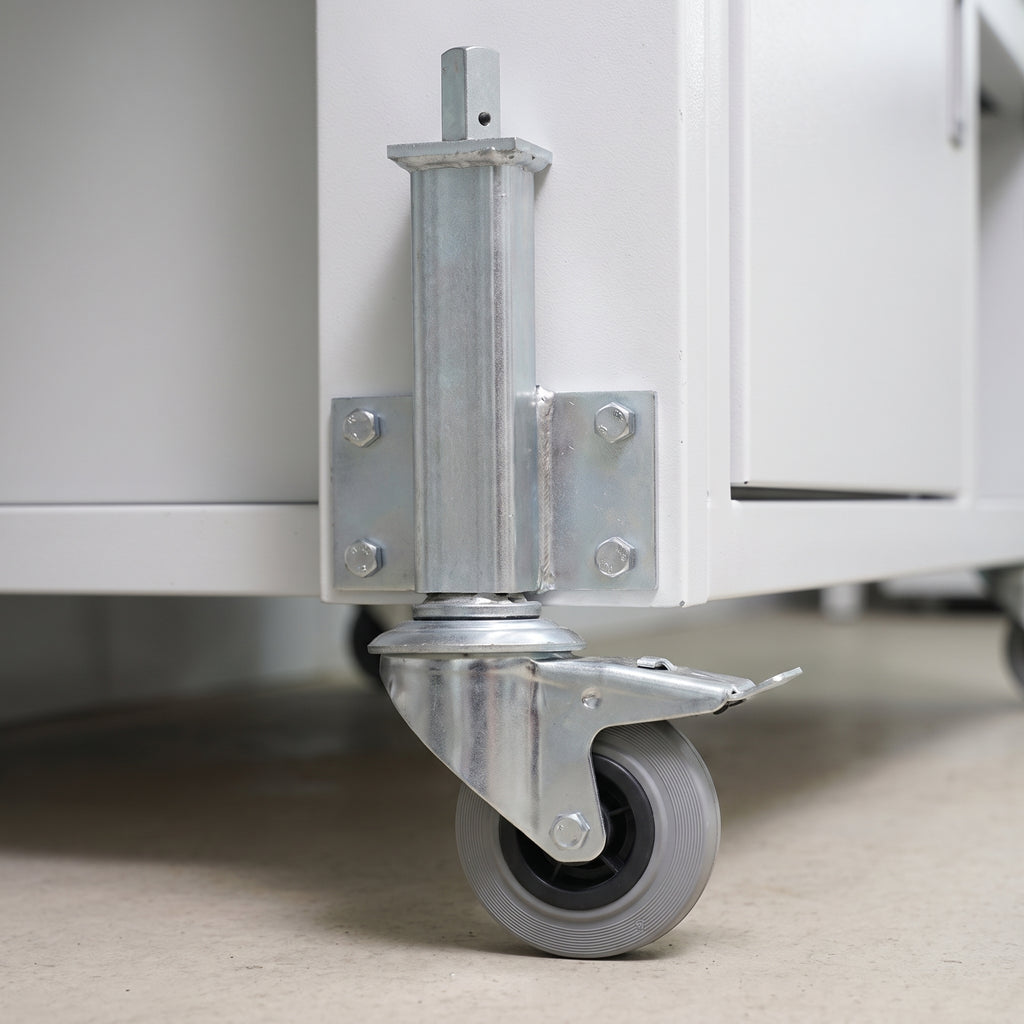

Move your equipment when you need to, then hold it firmly in place. This medium duty braked jacking castor combines an 80mm grey rubber on polypropylene swivel wheel and a brake with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine for moving, then wind it back up so the equipment rests firmly on its own feet. Use the brake for controlled movement and secure positioning while the wheel is down. The roller bearing keeps the wheel turning smoothly, and each castor is rated for 70kg.
It fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. The castor is 318mm tall and the jacking unit reaches 394mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift raises and lowers your equipment so it can roll or stand firm.
- ✓ Brake for controlled movement and secure positioning.
- ✓ 24mm spanner operation simple, controlled height adjustment with a standard spanner.
- ✓ Grey rubber wheel 80mm rubber on polypropylene wheel with a 27mm tread for a smooth ride.
- ✓ Swivel castor 124mm swivel radius for easy steering.
- ✓ 70kg load capacity per castor for medium duty equipment.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty braked swivel jacking castor suits:
- ✓ Industrial equipment: moving and positioning machinery.
- ✓ Material handling: trolleys and carts in industrial settings.
- ✓ Adjustable height support: stability and height adjustment for many applications.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake do?
The brake gives controlled movement and secure positioning, helping to hold your equipment in place while it is on its castors.
How much weight can this castor carry?
Each castor is rated for 70kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
An 80mm grey rubber tyre on a polypropylene centre with a 27mm tread, running on a roller bearing.
Does this castor swivel?
Yes. The wheel swivels with a 124mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
