Description

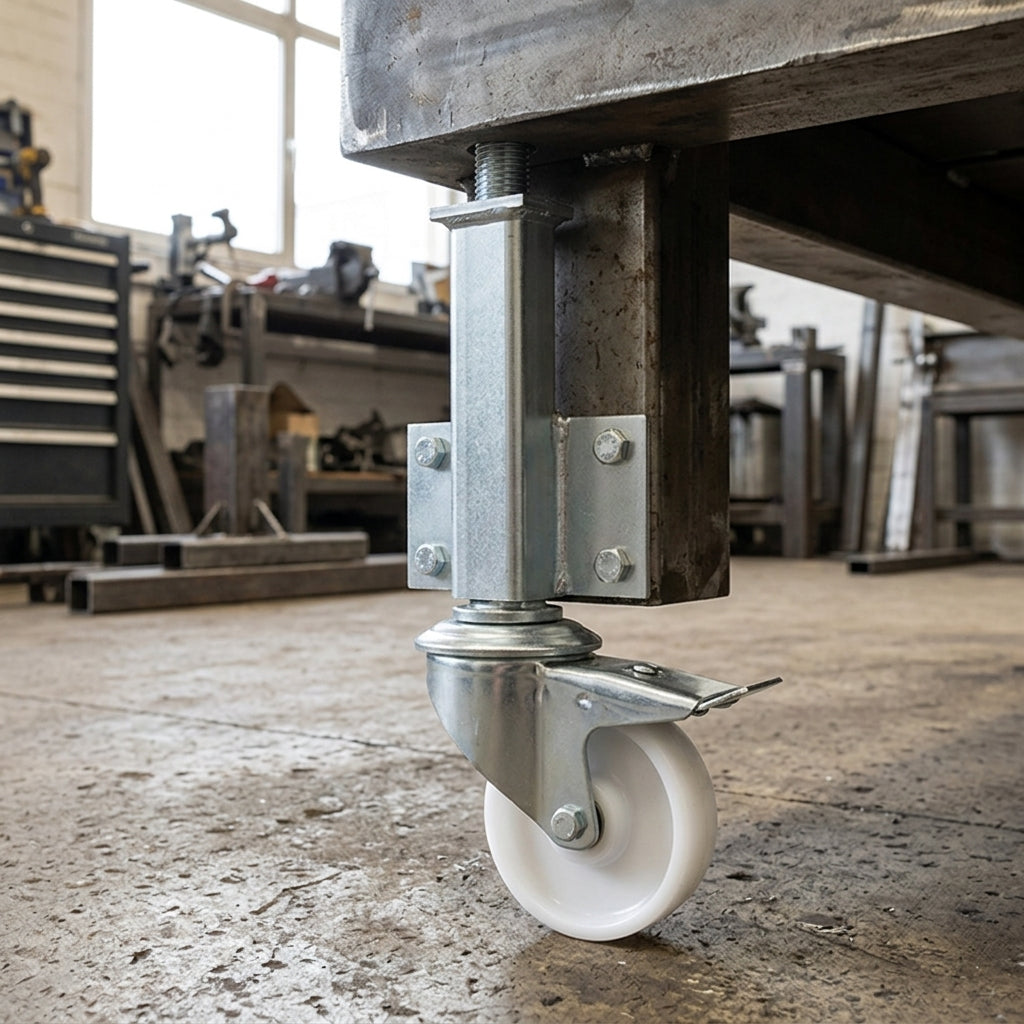

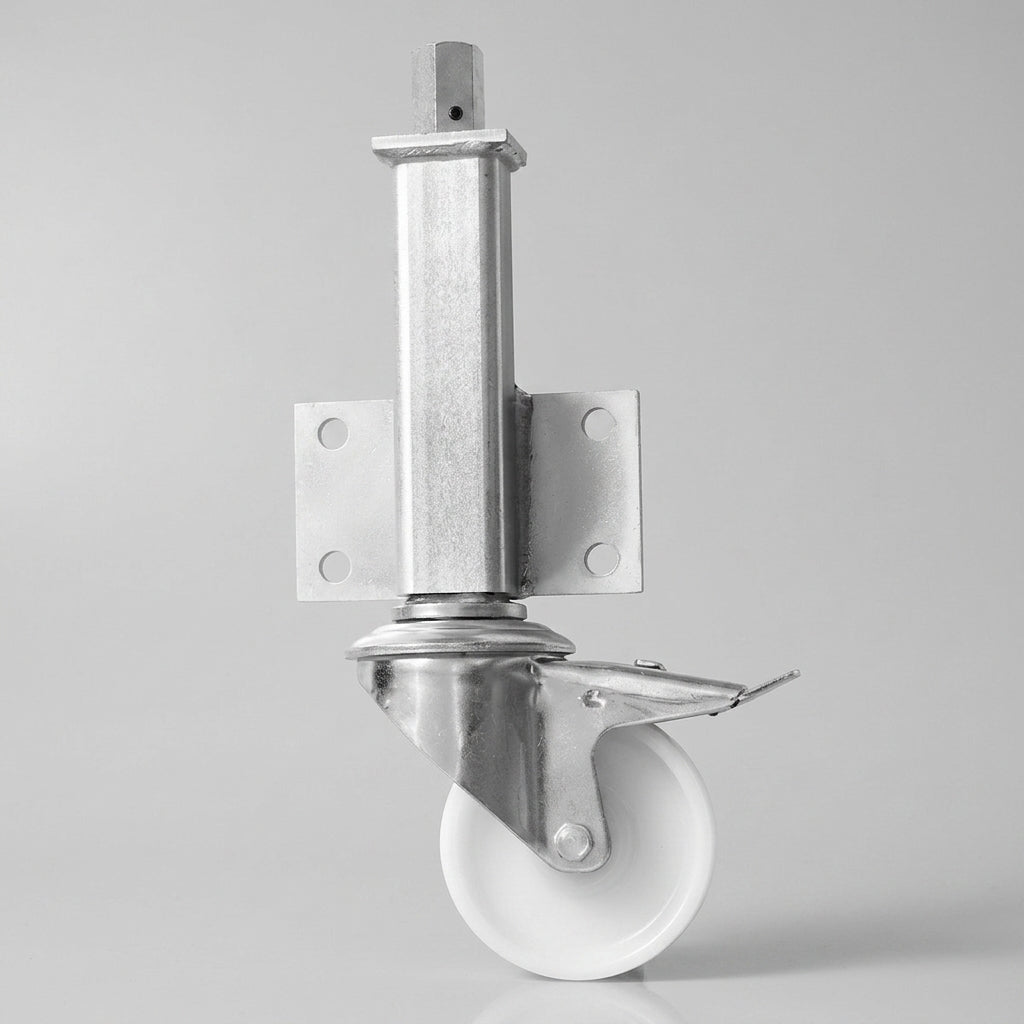

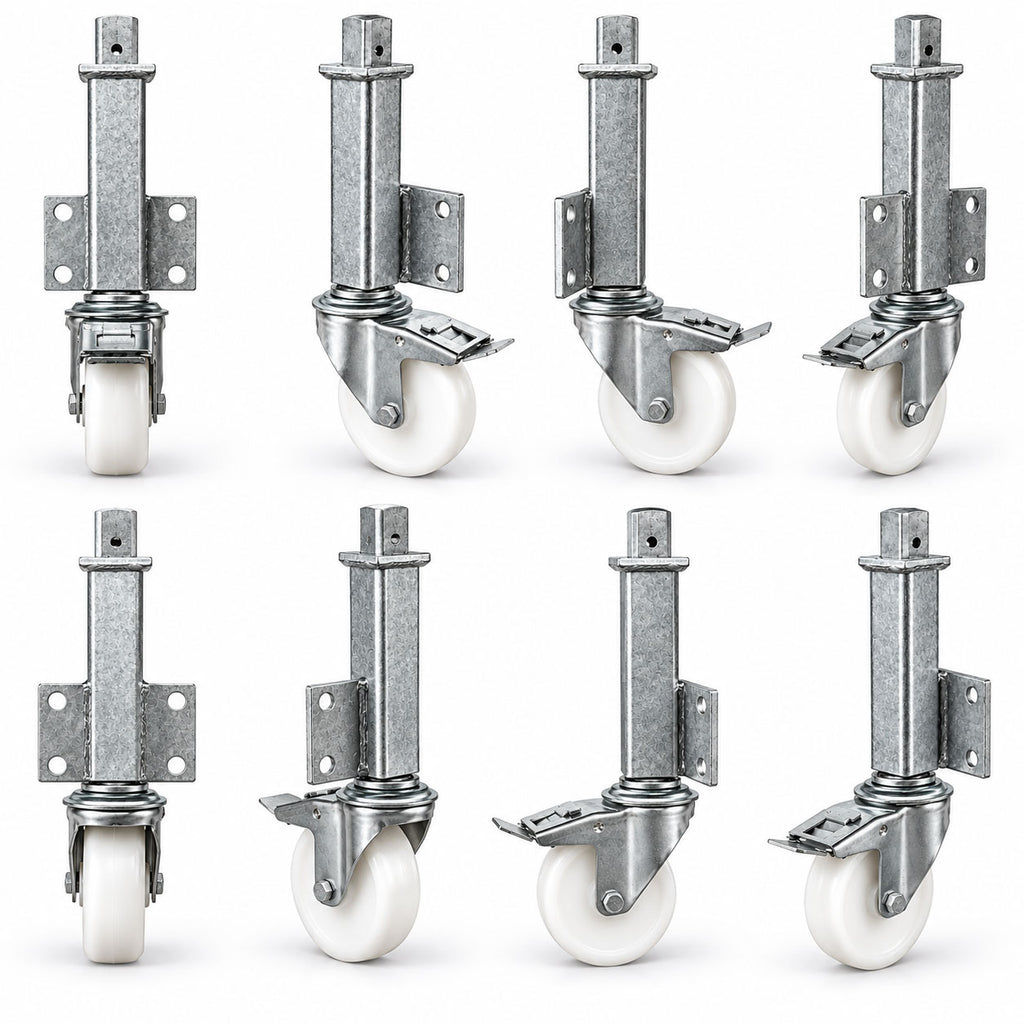

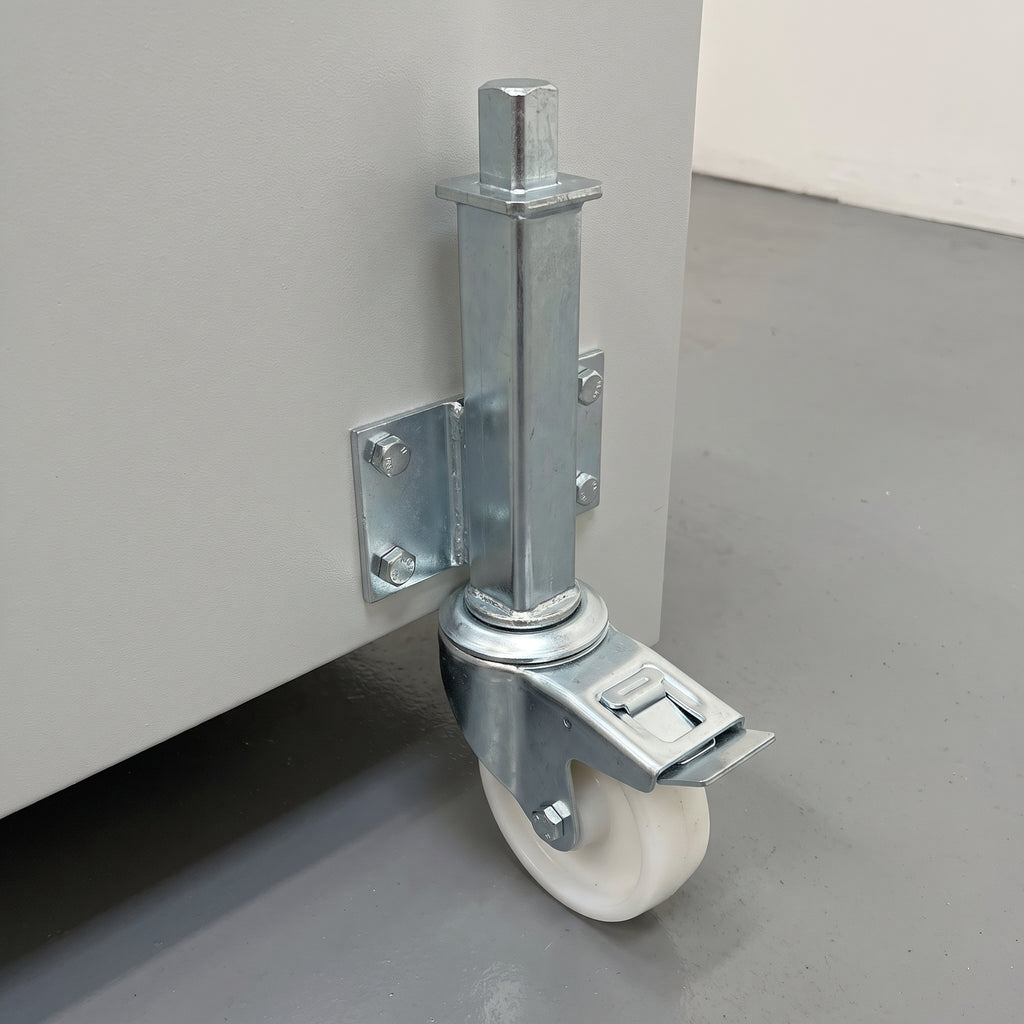

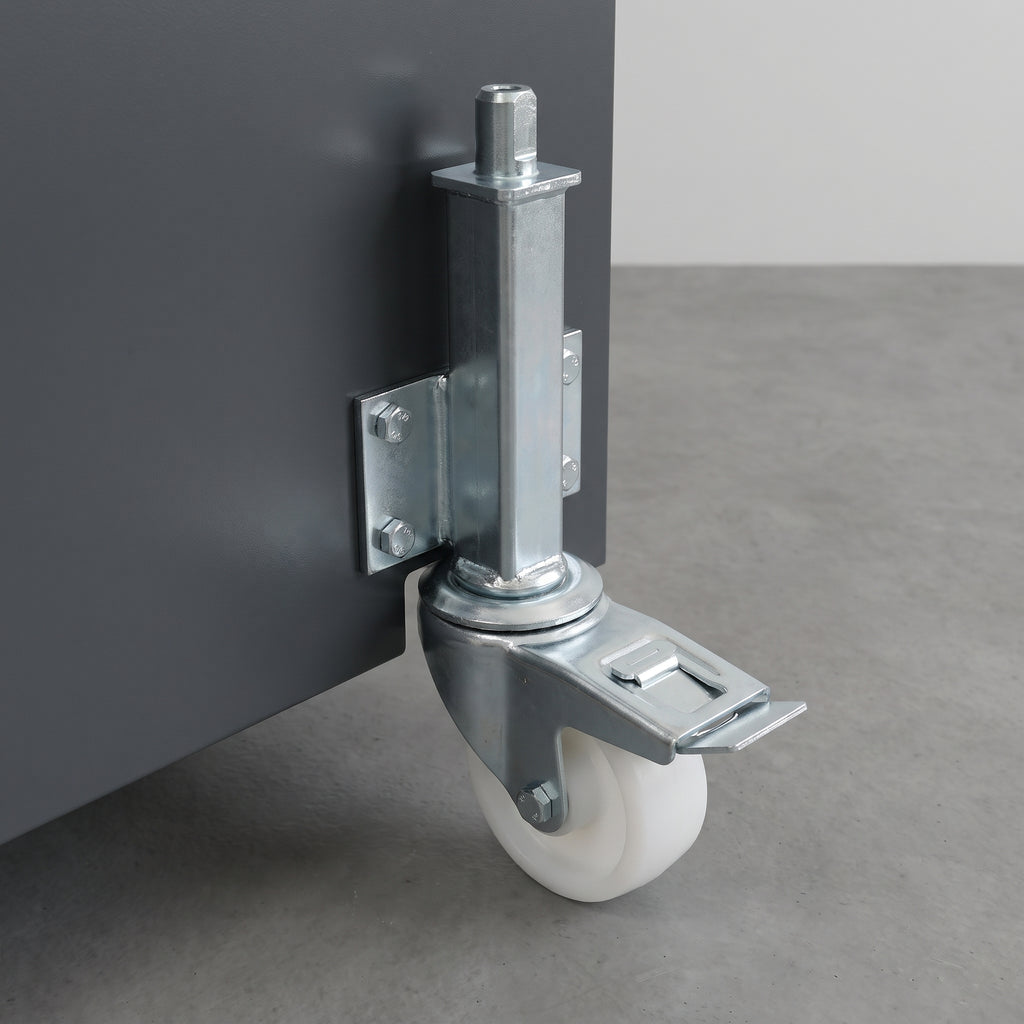

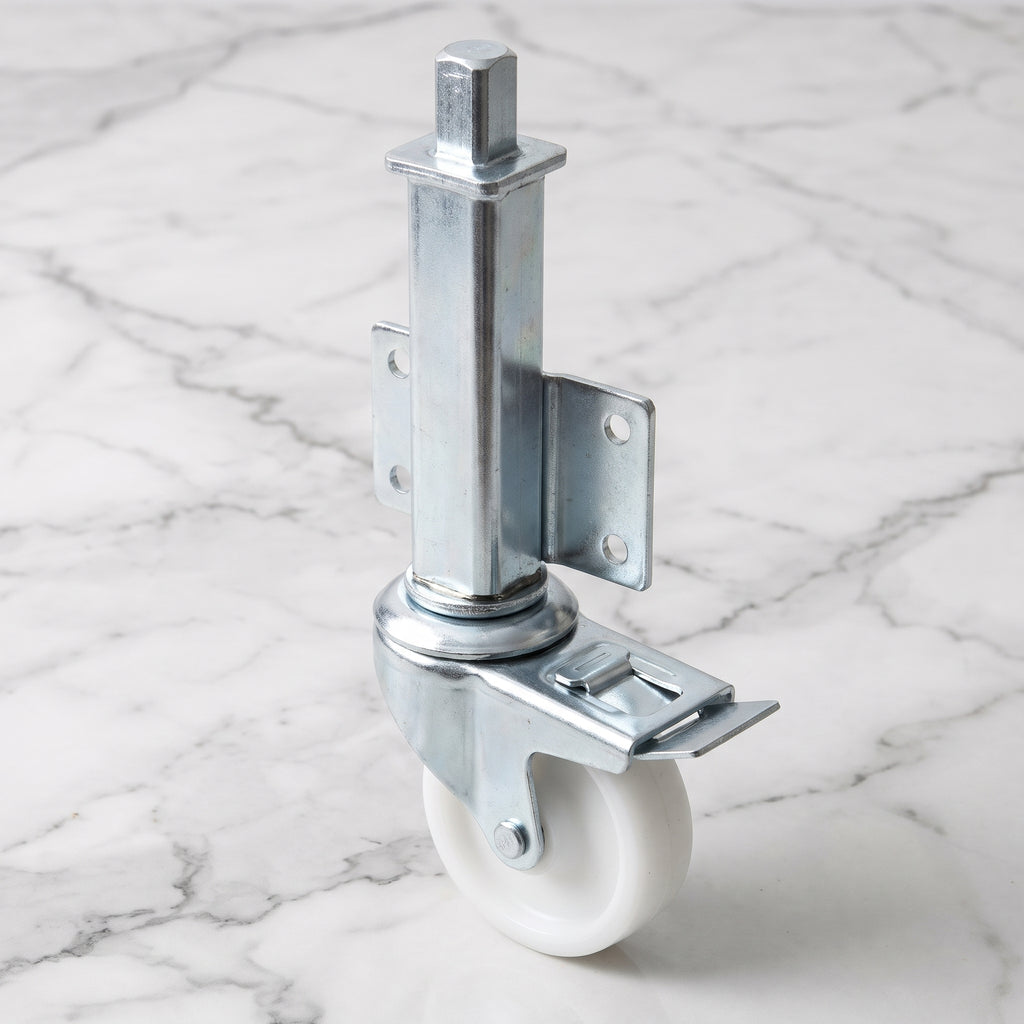

80mm Medium Duty Swivel Braked Jacking Castor with Nylon Wheel
This 80mm Medium Duty Swivel Braked Jacking Castor is expertly engineered for industrial applications, offering exceptional mobility and stability. Designed with a durable nylon wheel, this castor facilitates smooth movement while supporting a load capacity of up to 150kg. Ideal for various industrial settings, it combines the benefits of swivel maneuverability and braking functionality for precise positioning.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Jacking Castors |
| Bearing Type | Plain |
| Load Capacity | 150 kg |
| Tread Width (mm) | 34 |
| Bolt Hole Size | 10 |
| Max Load Capacity for 2 Jacking Castors | 150 kg |
| Total Height to Plate Lower Bolt Hole | 131 |
| Jacking Unit Height When Extended (76mm) | 394 |
| Plate Length (mm) | 130 |
| Plate Width (mm) | 75 |
| Plate Hole Centres Length (mm) | 102 |
| Plate Hole Centres Width (mm) | 51 |
| Plate Hole Diameter | 11 |
| Swivel Radius | 211 |
| Total Castor Height | 318 |
| Wheel Colour | White |
| Wheel Diameter (mm) | 80 |
| Wheel Material | Nylon |
Applications
- Industrial Equipment Mobility: Enhances the movement and positioning of machinery and equipment.
- Warehousing Operations: Facilitates the transportation of goods and materials within storage facilities.
- Manufacturing Processes: Supports the movement of components and assemblies on production lines.
FAQs
- What is the load capacity of this castor?
- The 80mm Medium Duty Swivel Braked Jacking Castor has a load capacity of 150kg.
- What type of wheel material is used?
- This castor features a durable nylon wheel, ideal for industrial use.
- Can this castor swivel?
- Yes, it is designed with a swivel function for enhanced maneuverability.
- Is there a braking mechanism?
- Yes, it includes a braked feature for controlled positioning.
- What are the typical applications for this castor?
- It is suitable for industrial equipment mobility, warehousing operations, and manufacturing processes.
- How is the castor adjusted?
- The operating method is simplified using a 24mm spanner for adjustments.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
