- Load per castor150kg per castor
- Wheel diameter80mm
- Overall height108mm + 76mm
- WheelPolyurethane on nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Braked Swivel Jacking Castor
- Wheel Diameter
- 80mm
- Wheel Material
- Polyurethane on nylon
- Wheel Colour
- Maroon
- Tread Width
- 38mm
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor
- Function
- Swivel with brake
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Fixing
- 4 bolt hole mounting plate
- Plate Length
- 130mm
- Plate Width
- 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 108mm + 76mm
- Total Height to Plate Lower Bolt Hole
- 131mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 394mm
- Swivel Radius
- 298mm
Will it fit?
- Top plate130mm × 75mm
- Fixing holeØ 11mm
- Overall height108mm + 76mm
- Swivel radius298mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Medium Duty Polyurethane Wheel Jacking Castors

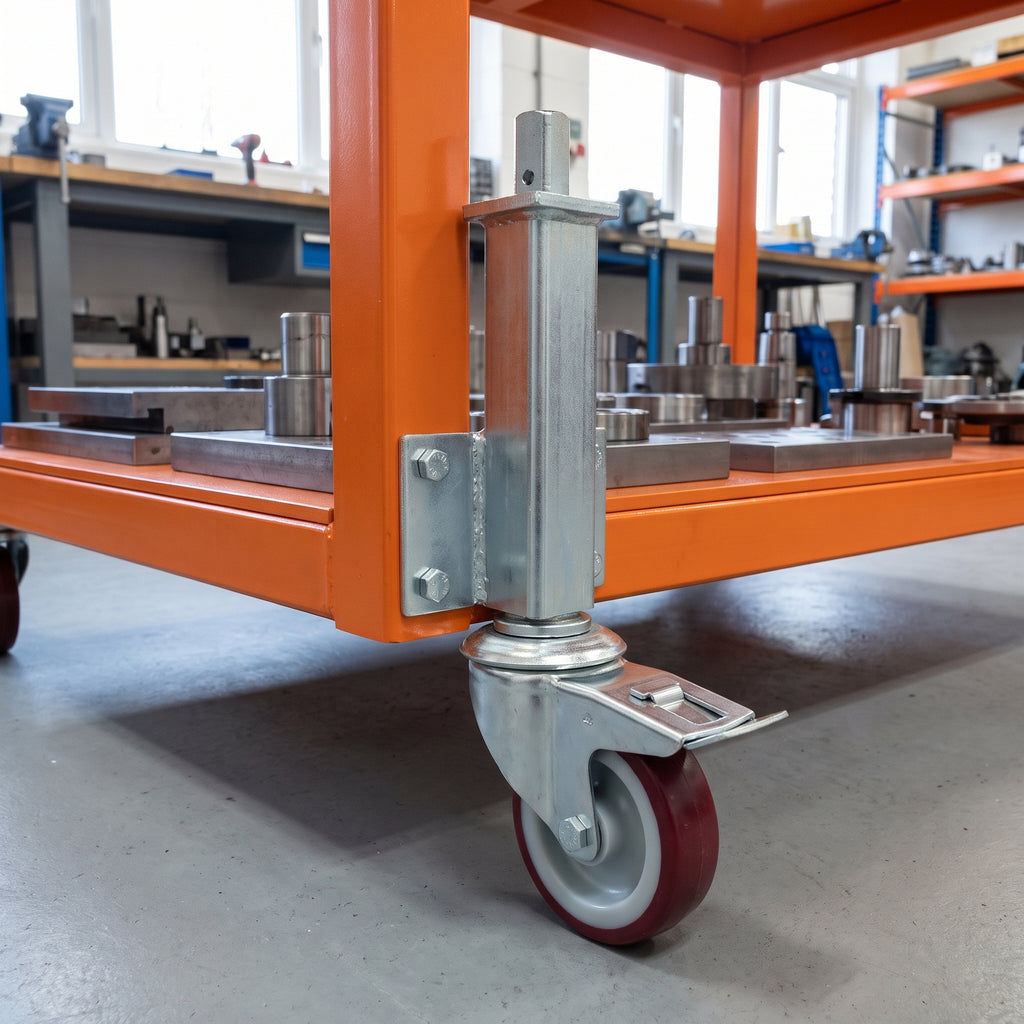

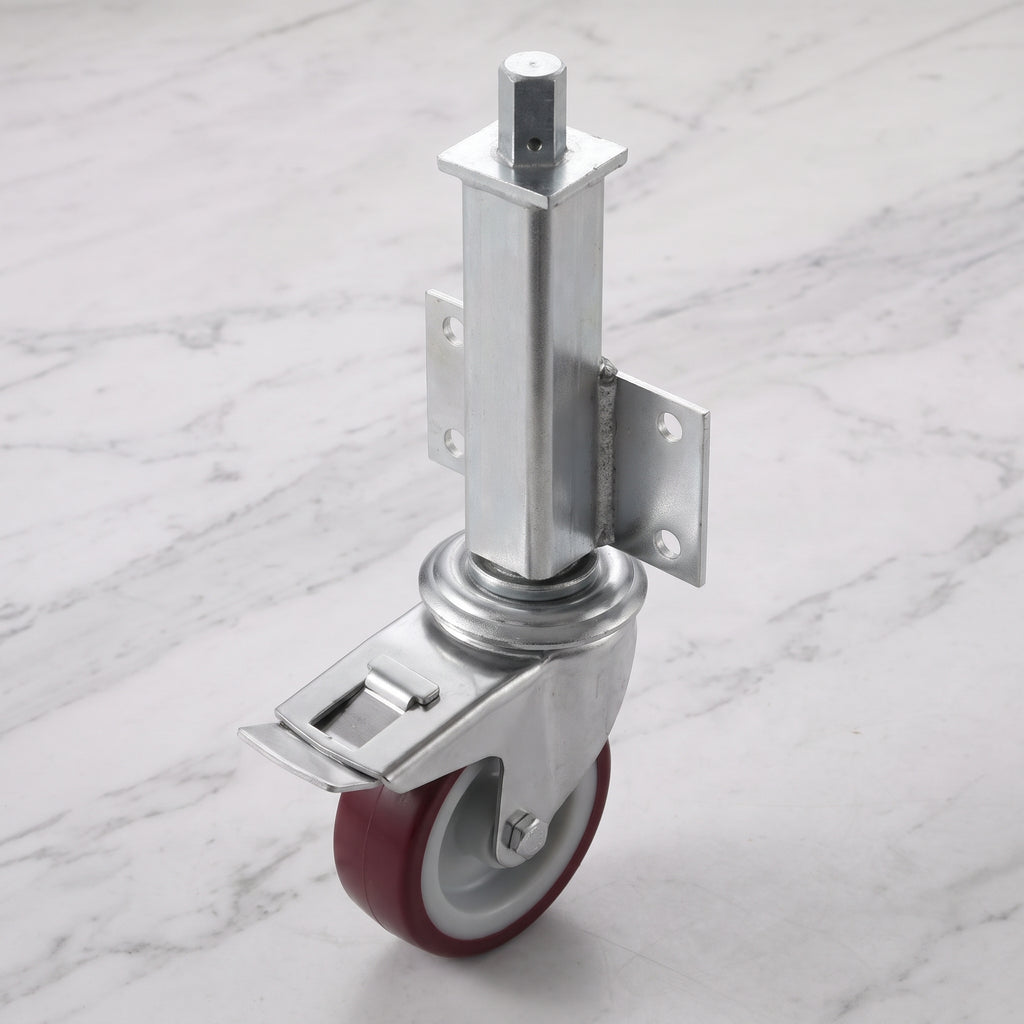

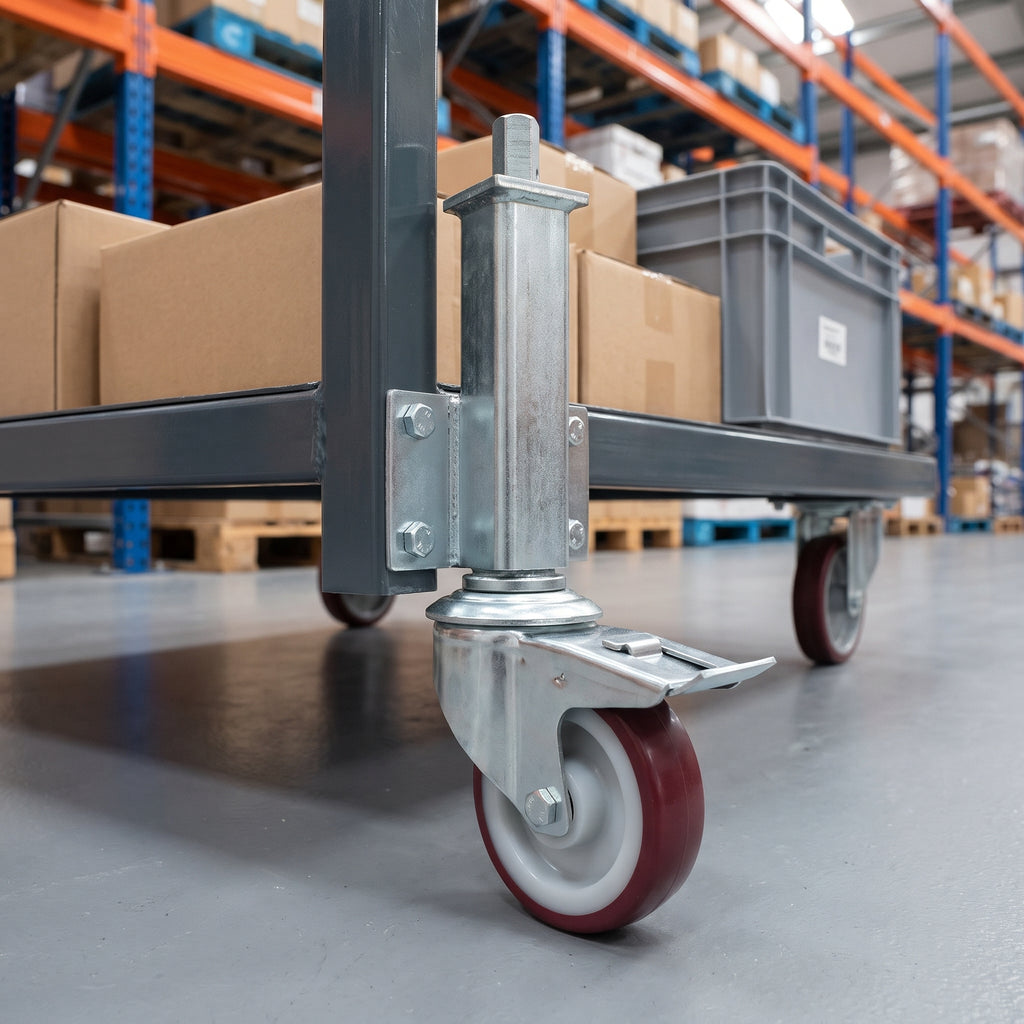

Roll your equipment into place, hold it there with the brake, then wind it down onto its own feet. This medium duty braked jacking castor pairs an 80mm maroon polyurethane on nylon swivel wheel with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine, workbench or equipment stand for moving, then wind it back up so it stands firm and stable. The swivel and brake give you controlled movement and secure positioning, the roller bearing keeps the wheel turning smoothly, and each castor is rated for 150kg.
The polyurethane tread gives a smooth, quiet ride on workshop and warehouse floors. The castor fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, and the jacking unit reaches 394mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift raises your equipment onto its castors to move it, then lowers it back onto its own feet so it stands firm.
- ✓ Built-in brake secure locking for added control and stability when the equipment is resting on its wheels.
- ✓ Swivel castor turns freely so you can steer and position equipment with ease.
- ✓ 24mm spanner operation simple, controlled height adjustment with a standard spanner.
- ✓ Maroon polyurethane wheel 80mm polyurethane on nylon wheel with a 38mm tread, combining durability with smooth rolling.
- ✓ Roller bearing smooth, efficient operation with less effort.
- ✓ 150kg load capacity per castor for medium duty equipment.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty braked swivel jacking castor suits:
- ✓ Industrial use: environments where medium duty load handling is required.
- ✓ Equipment mobility: easy movement of machinery and equipment.
- ✓ Stability solutions: secure positioning with the built-in brake.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake lock?
The brake is applied with the lever above the wheel and locks the castor, giving secure positioning and extra stability while your equipment is resting on its wheels.
How much weight can this castor carry?
Each castor is rated for 150kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
An 80mm maroon polyurethane tyre on a nylon centre with a 38mm tread, running on a roller bearing.
Does this castor swivel?
Yes. It is a swivel castor, so you can steer and position your equipment easily once it is lifted onto the castors, then apply the brake to hold it.
