- Load per castor150kg per castor
- Wheel diameter80mm
- Overall height108mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Brake
- Foot brake
- Wheel Diameter
- 80mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Grey
- Tread Width
- 38mm
- Tyre Hardness
- D60
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Swivel Radius
- 123mm
- Total Castor Height
- 108mm
- Load Capacity
- 150kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

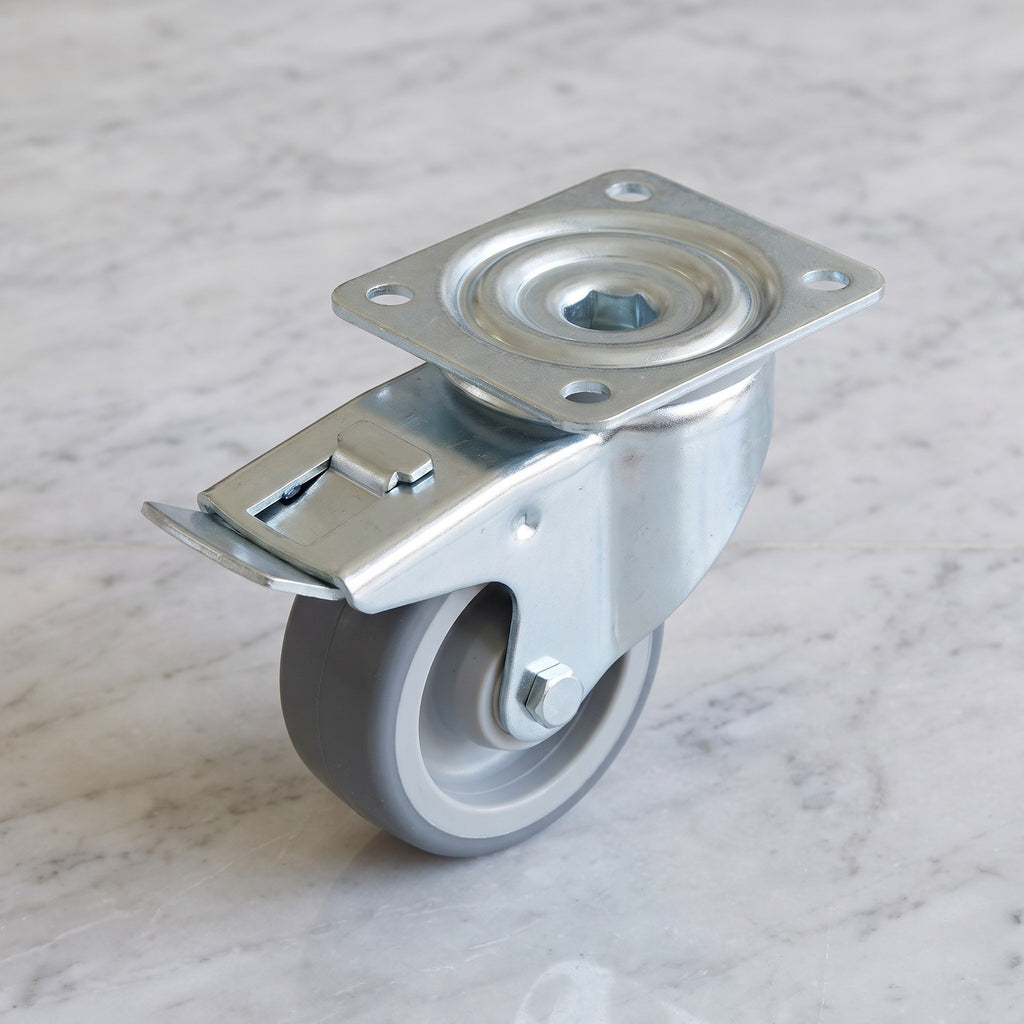

Grey Polyurethane Braked Castors
Fitted with a grey polyurethane wheel, this 80mm braked swivel castor is built for industrial use with a load capacity of 150kg per castor. It turns freely for easy manoeuvring, and the foot brake holds equipment securely in position when needed, suiting industrial trolleys, warehouse carts, workbenches and equipment racks.
The polyurethane on nylon wheel gives a balance of strength and quiet operation, with a D60 tread hardness and a roller bearing for smooth movement. This top plate castor fixes with a 105 x 85mm plate, has a 123mm swivel radius, stands 108mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Foot brake for secure positioning when needed.
- ✓ Grey polyurethane on nylon wheel for a balance of strength and quiet operation.
- ✓ 150kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth movement.
- ✓ 80mm wheel with 38mm tread and D60 tread hardness.
- ✓ 105 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This braked top plate castor suits equipment that needs to move easily and then stay put:
- ✓ Industrial trolleys: mobility and stability for heavy-duty trolleys.
- ✓ Warehouse carts: moving goods within storage facilities.

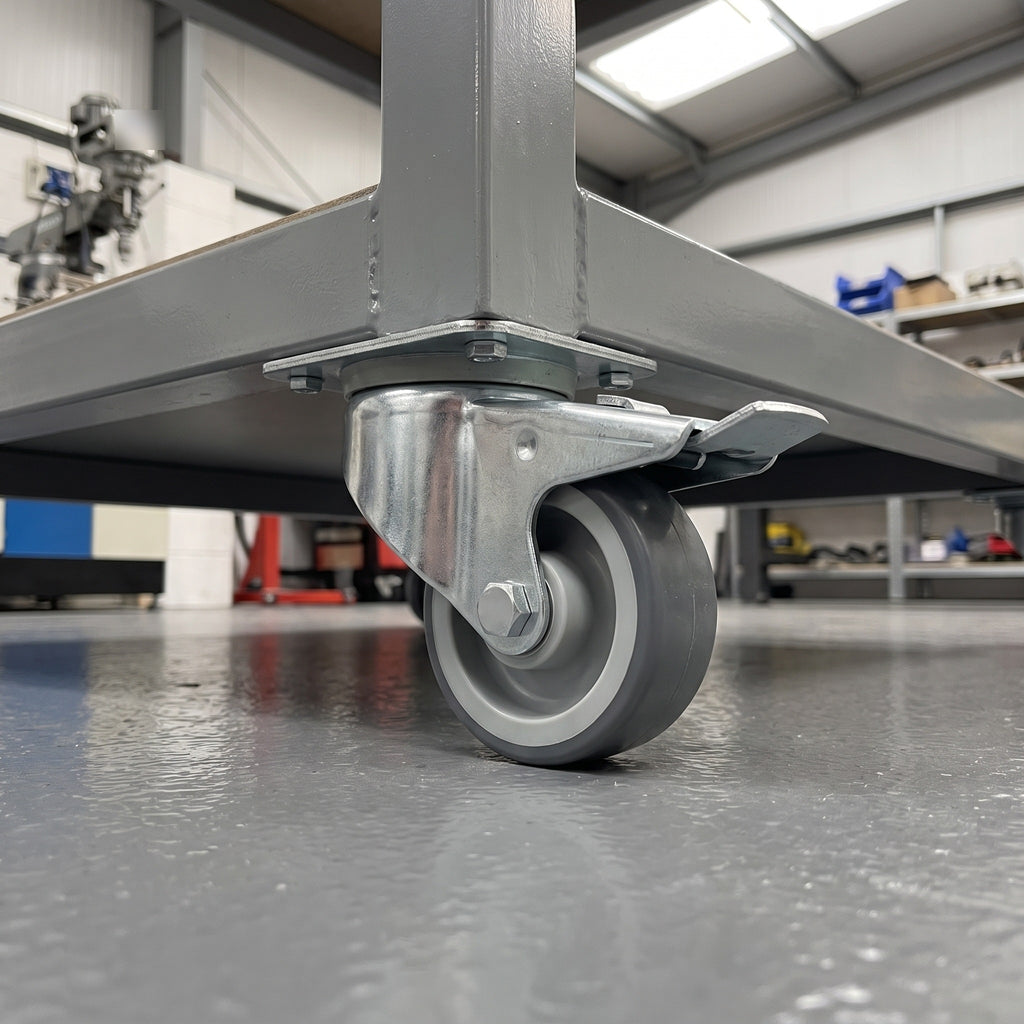

- ✓ Workbenches: repositioning workbenches in manufacturing settings.

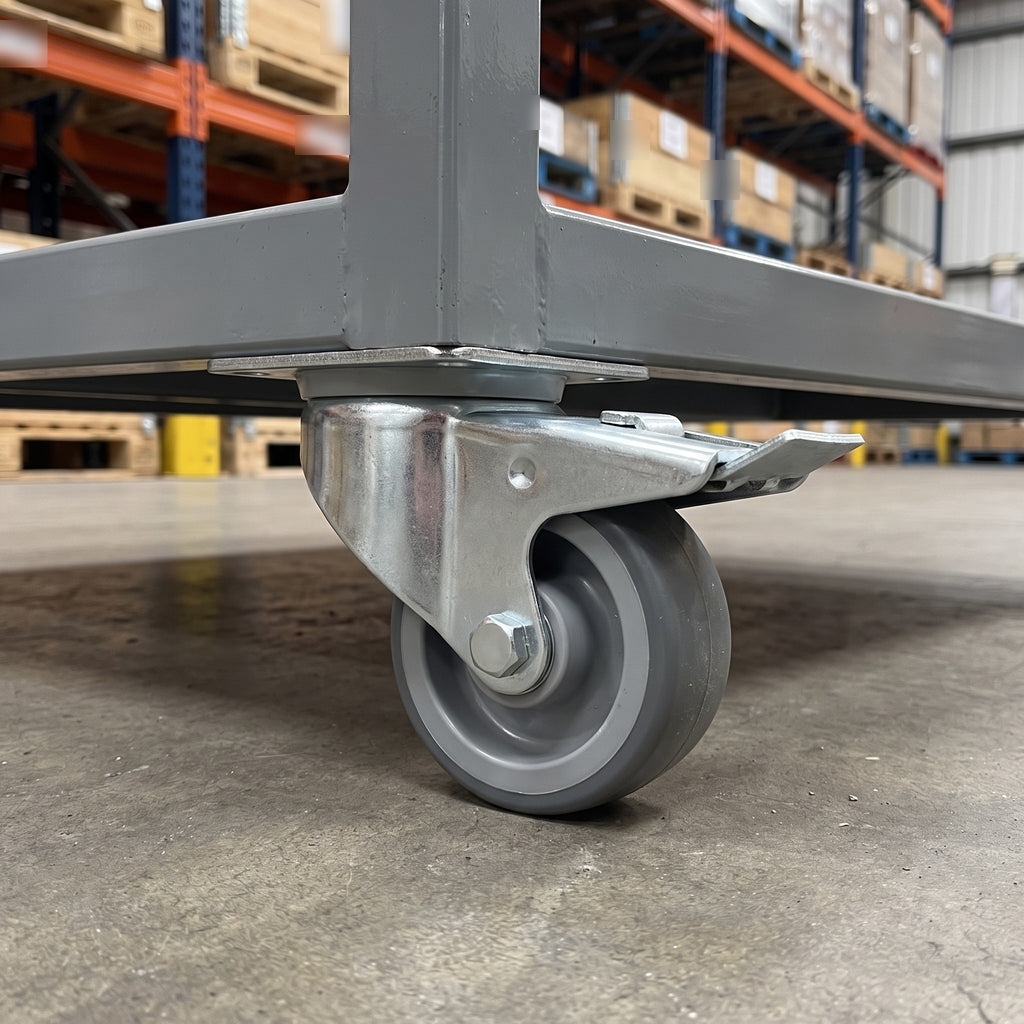

- ✓ Equipment racks: moving and positioning equipment racks.
Frequently Asked Questions
How does the brake work?
Press the foot brake lever to hold the castor in position, and release it when you want to move the equipment again.
How much weight can this castor carry?
Each castor is rated for 150kg.
How is the castor fitted?
It has a 105 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 123mm and the total castor height is 108mm.
What is the wheel made of?
An 80mm grey polyurethane tread on a nylon centre, 38mm wide with D60 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
