- Load per castor150kg per castor
- Wheel diameter80mm
- Overall height108mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 80mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Tyre Hardness
- D60
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 108mm
- Load Capacity
- 150kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

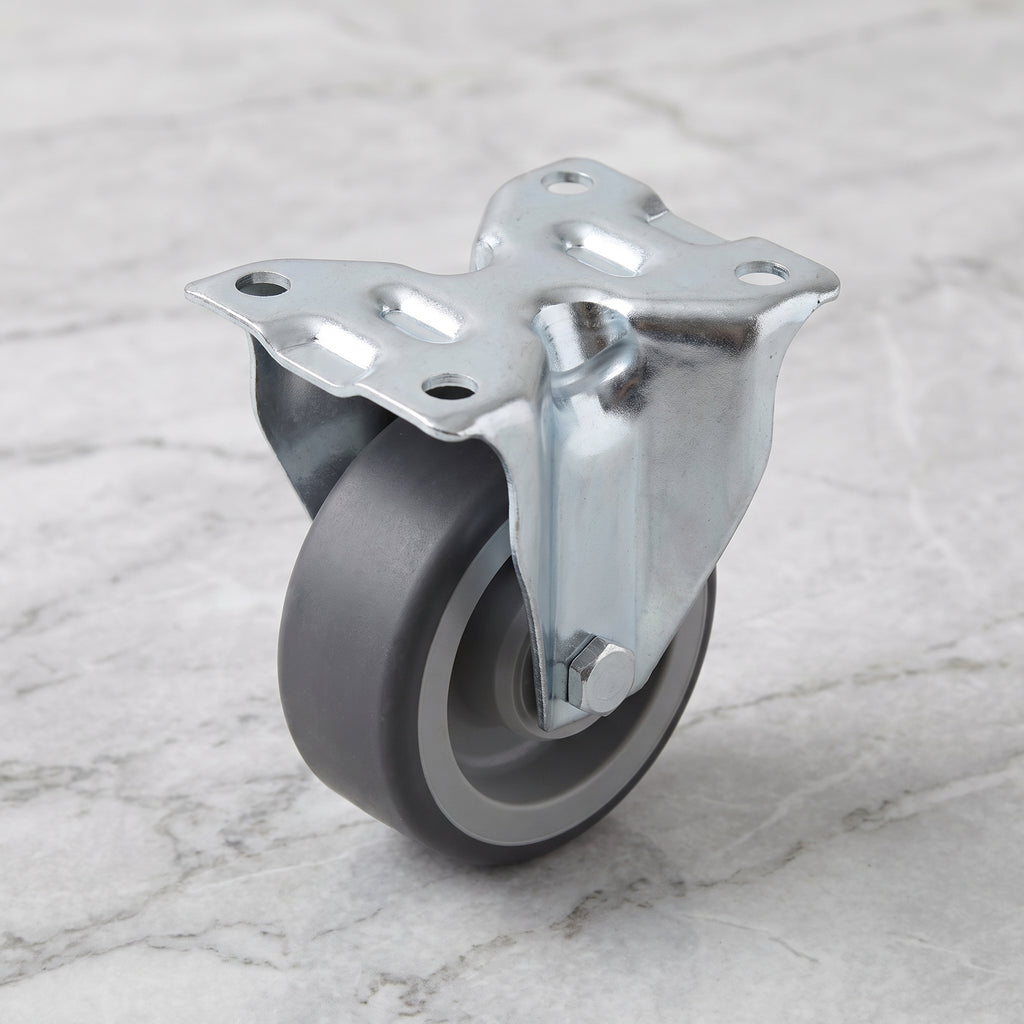

Grey Polyurethane Fixed Castors
Fitted with a grey polyurethane wheel on a nylon core, this 80mm fixed castor gives a balance of strength and quiet operation and supports up to 150kg per castor. The fixed bracket keeps a consistent direction of travel, making it a reliable choice for industrial trolleys, warehouse carts, material handling equipment and factory machinery.
The polyurethane on nylon wheel has a D60 tread hardness for firm contact on smooth floors, and the roller bearing gives smooth rotation. This fixed top plate castor bolts securely to a flat surface with a 105 x 85mm plate, stands 108mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ Grey polyurethane on nylon wheel for strength and quiet operation.
- ✓ 150kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth rotation.
- ✓ 80mm wheel with 30mm tread and D60 tread hardness.
- ✓ 105 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and mounting space suit your mounting area before fitting.
Where It Works Best
This fixed top plate castor suits equipment that needs steady, straight-line movement:

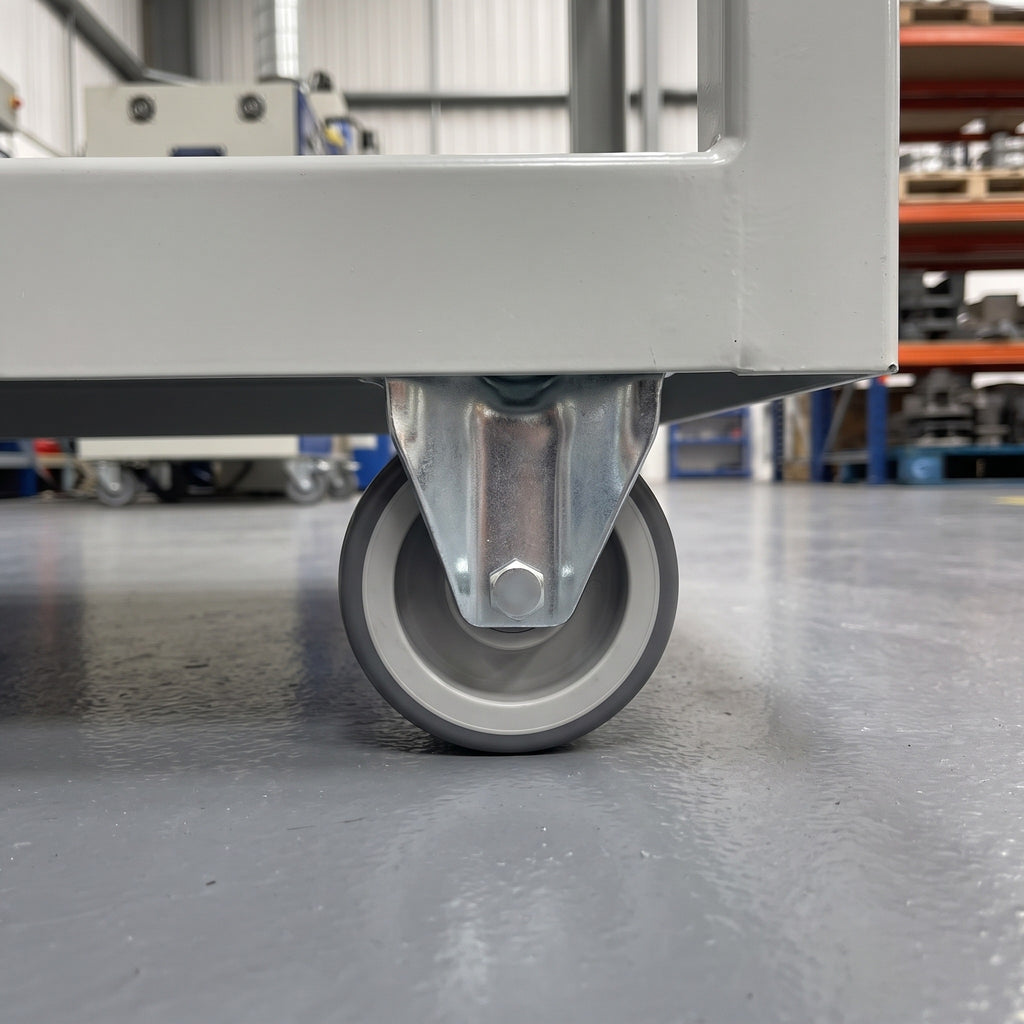

- ✓ Industrial trolleys: stable and controlled movement.

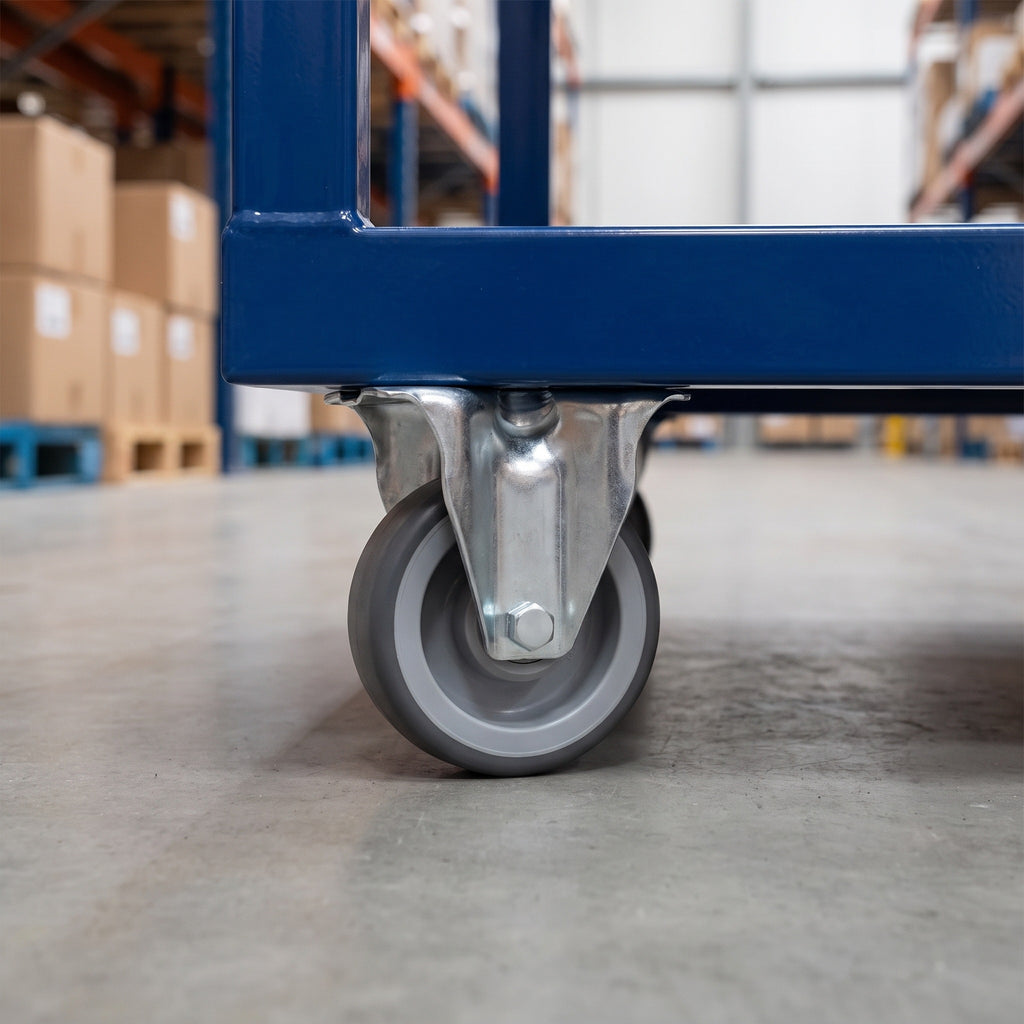

- ✓ Warehouse carts: a consistent direction of travel.
- ✓ Material handling equipment: smooth operation on hard floors.
- ✓ Factory machinery: keeping machinery on a fixed line of travel.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with swivel castors with the same 80mm grey polyurethane wheel.
How much weight can this castor carry?
Each castor is rated for 150kg.
How is the castor fitted?
It has a 105 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 108mm.
What is the wheel made of?
An 80mm grey polyurethane tread on a nylon centre, 30mm wide with D60 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
