- Load per castor150kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Blue
- Tread Width
- 38mm
- Hardness of Tread
- D60
- Bearing Type
- Roller Bearing
- Load Capacity
- 150kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 120mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole12mm
- Overall height108mm
- Swivel radius120mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -40°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

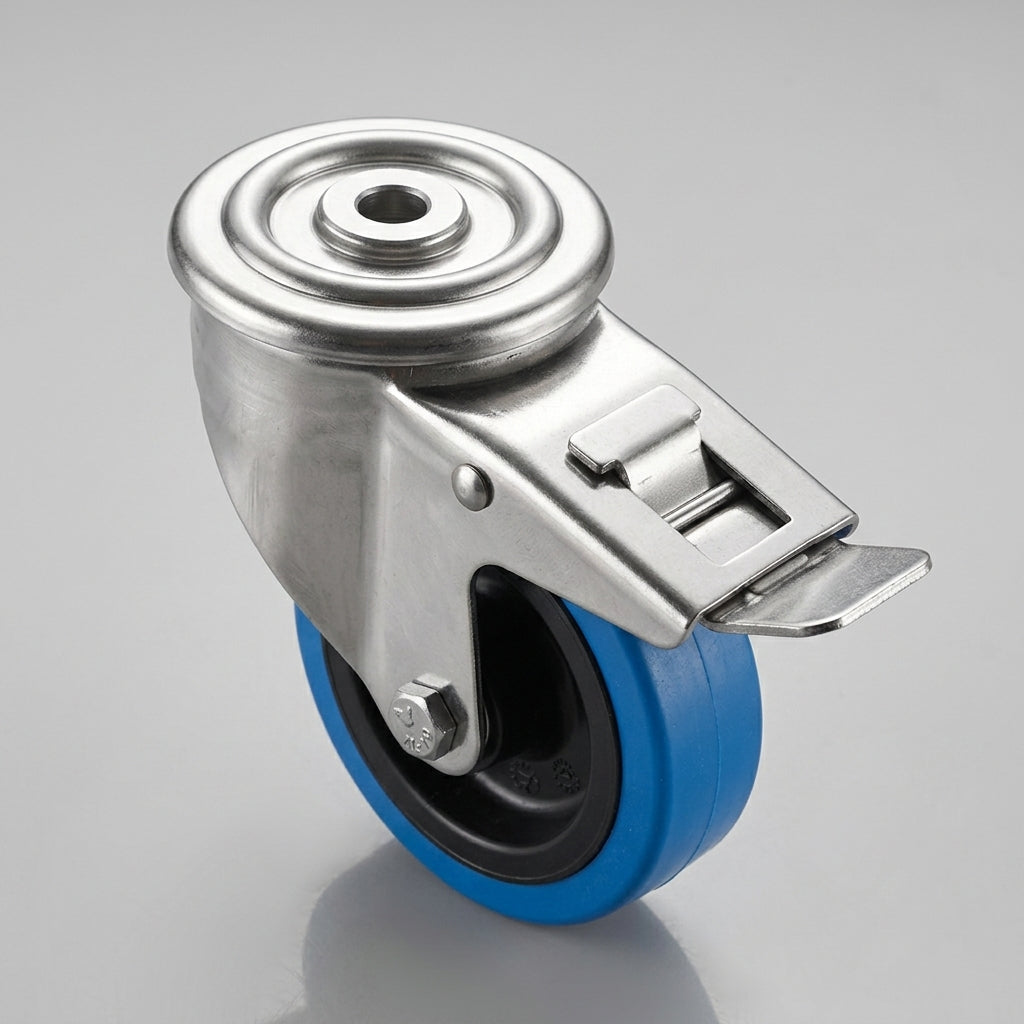

Stainless Steel Bolt Hole Castor

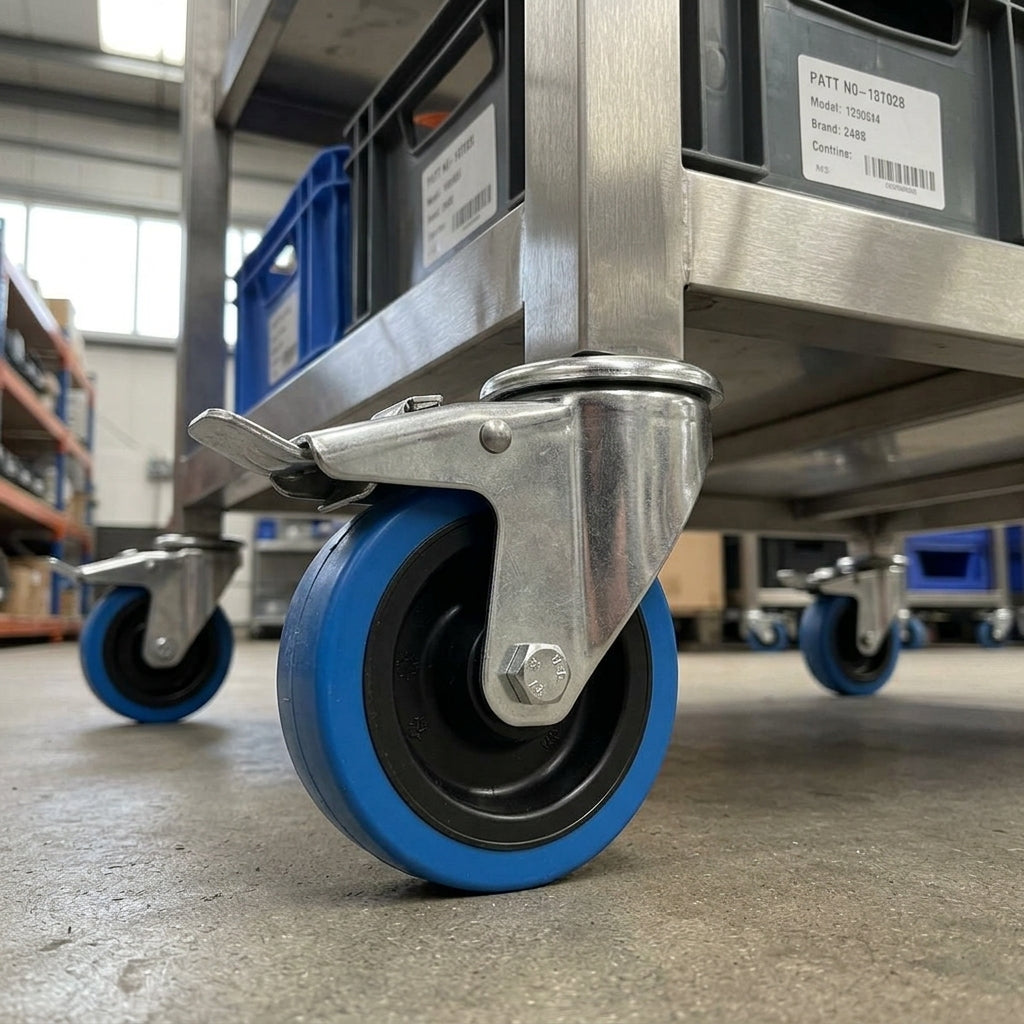

This 80mm stainless steel braked swivel castor runs on a blue non-marking rubber wheel with a polypropylene core and carries up to 150kg per castor. It suits hospital equipment, retail displays, food service carts and laboratory equipment.
The brake locks both the wheel and the swivel head, so the equipment stays stable when stationary. The roller bearing gives efficient rotation, and a single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing.
Why Choose This Castor
- ✓ Brake locks both the wheel and the swivel head
- ✓ Blue non-marking rubber wheel for smooth, controlled movement
- ✓ Stainless steel housing for washdown areas
- ✓ Roller bearing for efficient rotation
- ✓ 150kg load capacity per castor
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital equipment such as trolleys and carts
- ✓ Retail display units that need repositioning
- ✓ Food service and catering trolleys
- ✓ Laboratory equipment that needs stable positioning
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
What does the brake lock?
The brake locks both the wheel and the swivel head, so the castor stays stable when it is stationary.
Will the wheel mark my floor?
The blue rubber wheel is non-marking, so it suits indoor floors in hospitals, shops, kitchens and laboratories.
How much weight can it carry?
Each castor is rated at 150kg. A set of four is best used for loads up to around 450kg, allowing for uneven floors.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What temperatures can it work in?
The castor works from -40°C to +80°C.
How tall is the castor?
The total castor height is 108mm and the swivel radius is 120mm.
