- Load per castor100kg per castor
- Wheel diameter80mm
- Overall height108mm
- WheelRubber on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on polypropylene centre
- Wheel Colour
- Blue non-marking tyre, black centre
- Tread Width
- 36mm
- Hardness of Tread
- 64 Shore A
- Bearing Type
- Roller bearing
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 115mm
- Total Castor Height
- 108mm
- Load Capacity
- 100kg per castor
Will it fit?
- Bolt hole12mm
- Overall height108mm
- Swivel radius115mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Braked Non-Marking Bolt Hole Castors

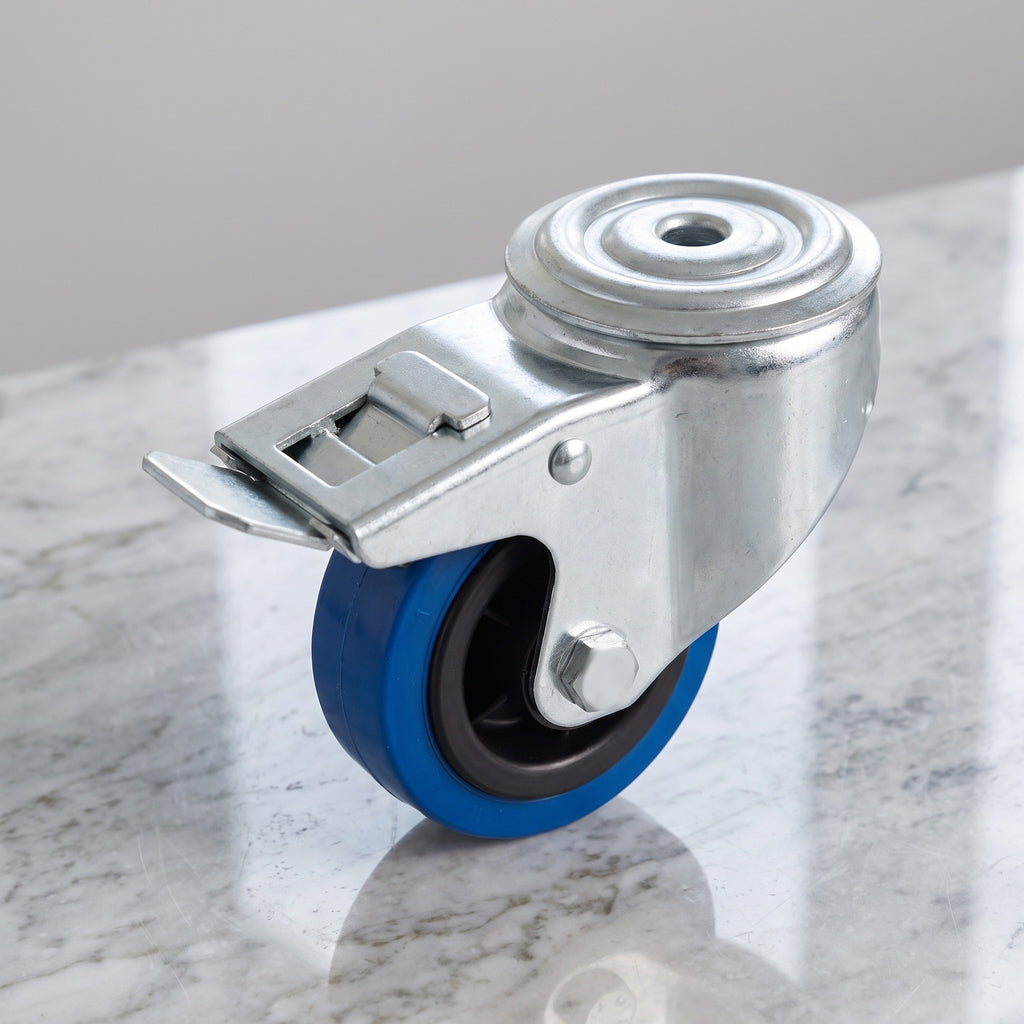

This 80mm braked swivel castor has a heavy-duty blue non-marking elastic rubber tyre on a polypropylene centre, made for equipment that is repositioned often and needs to stay securely in place. The swivel head turns a full 360 degrees, the foot brake locks the wheel when needed, and the roller bearing gives smooth running. It carries 100kg per castor.
It fixes through a single 12mm bolt hole, has a 115mm swivel radius and stands 108mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Blue non-marking tyre on a polypropylene centre, 64 Shore A.
- ✓ Roller bearing for smooth rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 100kg load capacity per castor.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This braked non-marking bolt hole castor suits:

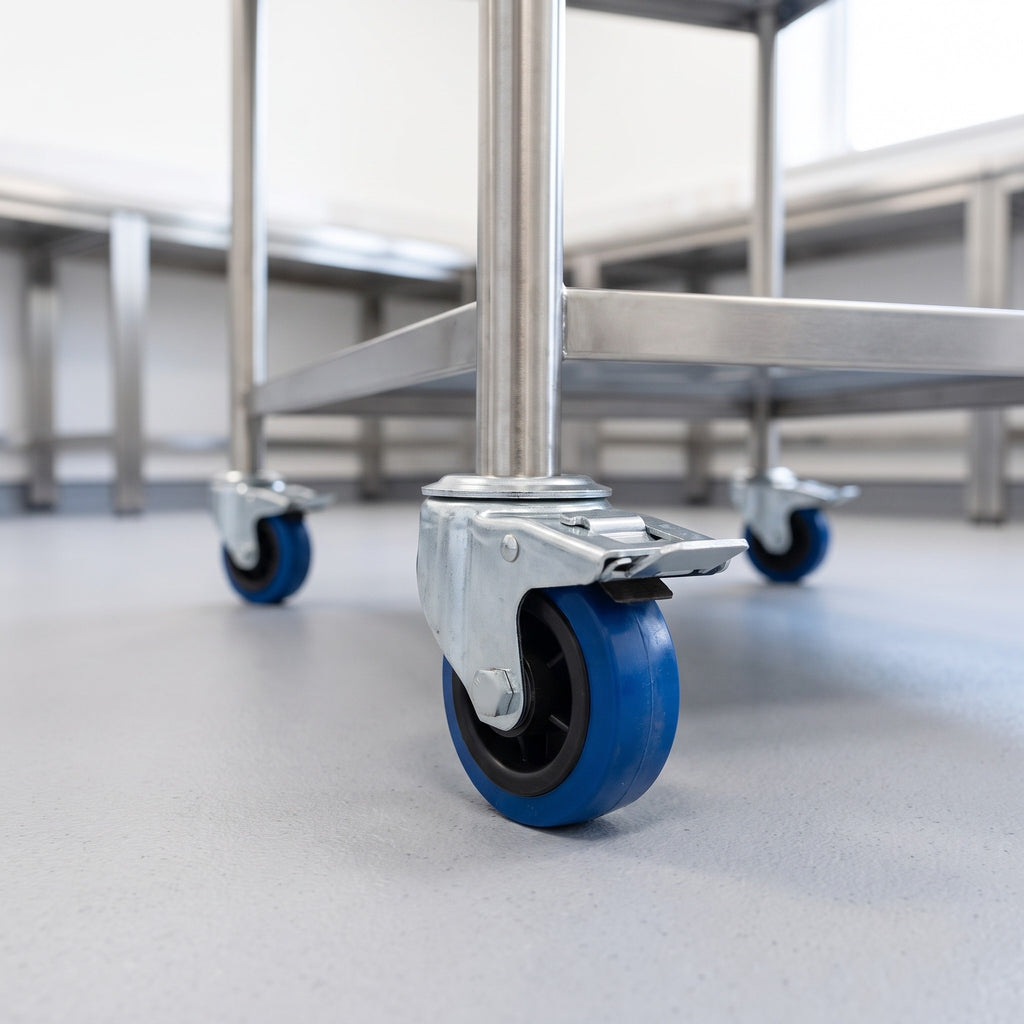

- ✓ Industrial equipment: trolleys, carts and machinery that need mobility and stability.
- ✓ Warehouse use: moving loads across smooth floors in storage and distribution.

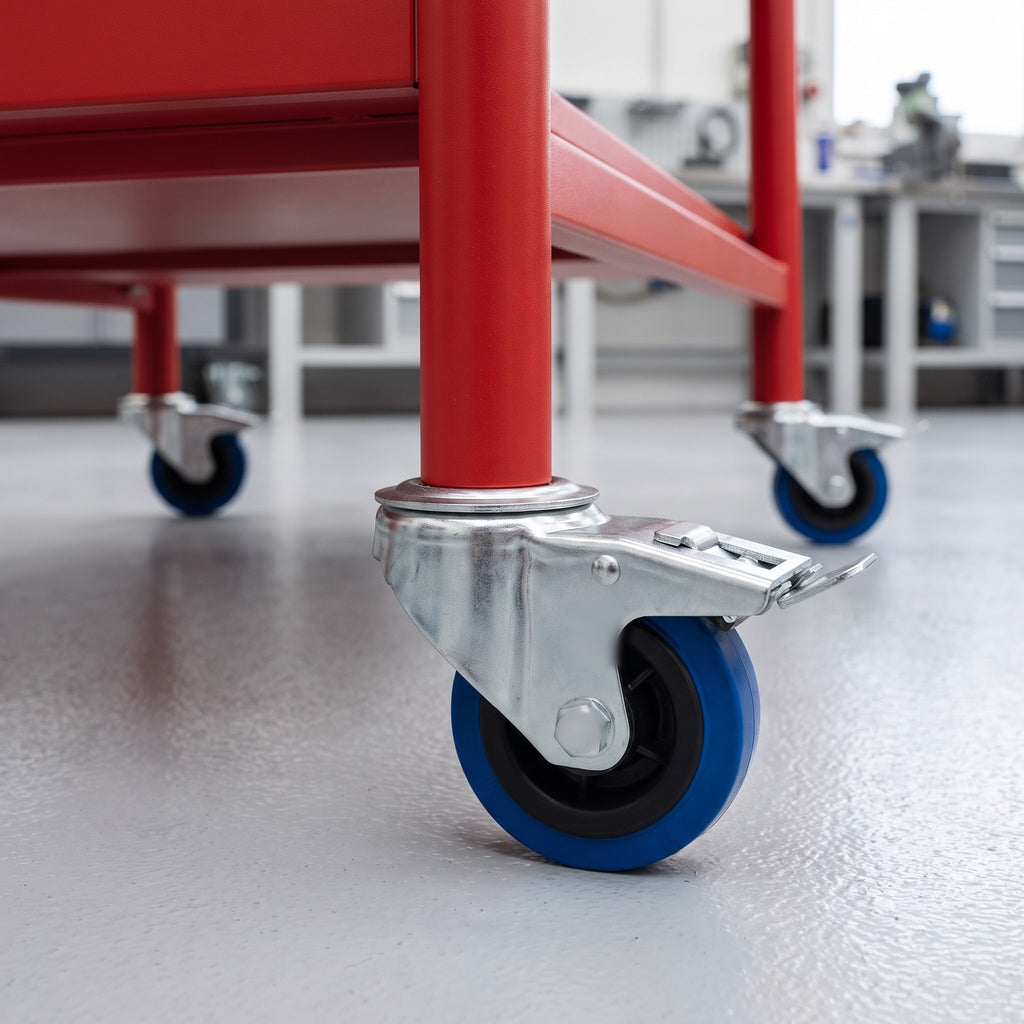

- ✓ Workshop tools: tool cabinets and workbenches that are repositioned often.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
Will the wheel mark my floor?
No. The blue rubber tyre is non-marking, and its 64 Shore A tread gives good grip on smooth floors.
How much weight can this castor carry?
Each castor is rated for 100kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 115mm and the total castor height is 108mm.
Where can I use this castor?
It suits industrial trolleys, carts and machinery, warehouse equipment, tool cabinets and workbenches.
