- Load per castor50kg per castor *
- Wheel diameter80mm
- Overall height109mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- 85 Shore A
- Bearing Type
- Plain Bearing
- Load Capacity
- 50kg per castor *
- Brake
- Foot pedal brake
- Bolt Hole Size
- 12mm
- Swivel Radius
- 98mm
- Total Castor Height
- 109mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole12mm
- Overall height109mm
- Swivel radius98mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

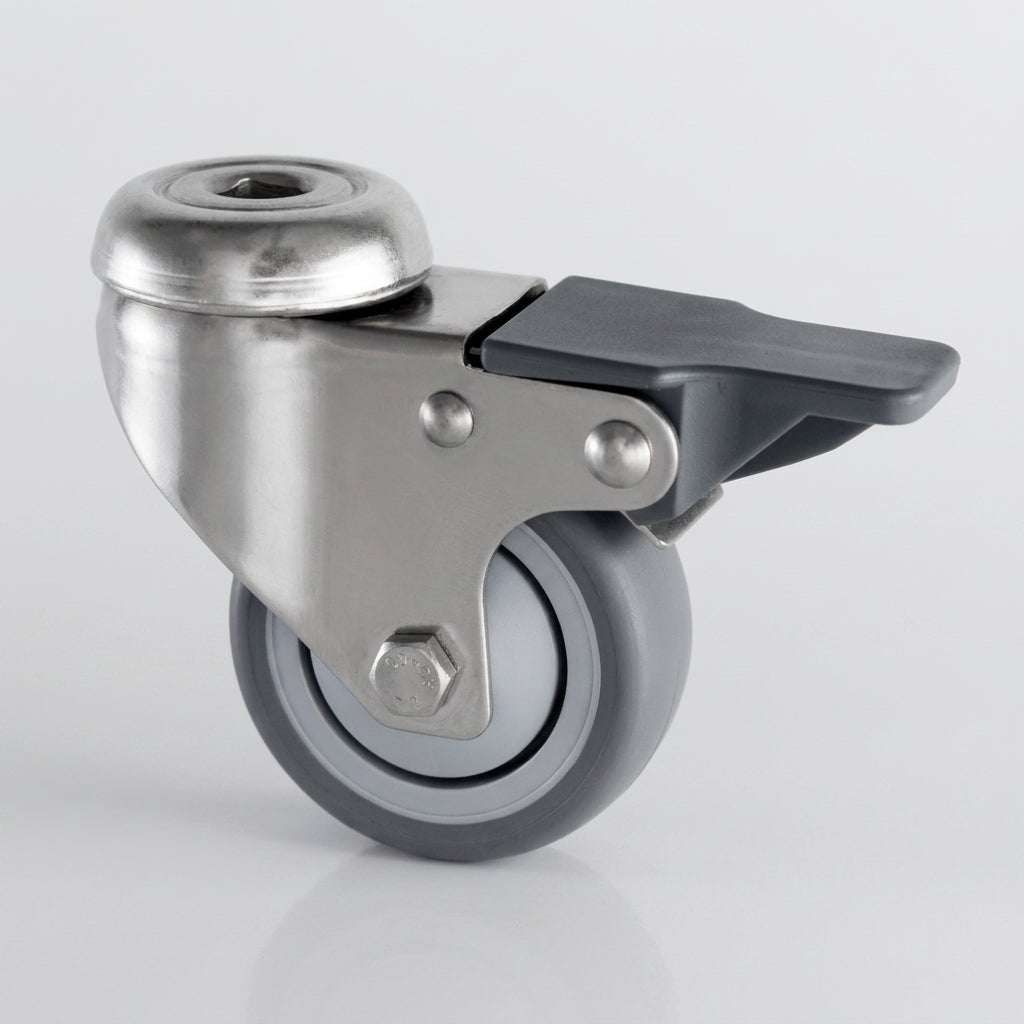

Bolt Hole Stainless Steel Castors

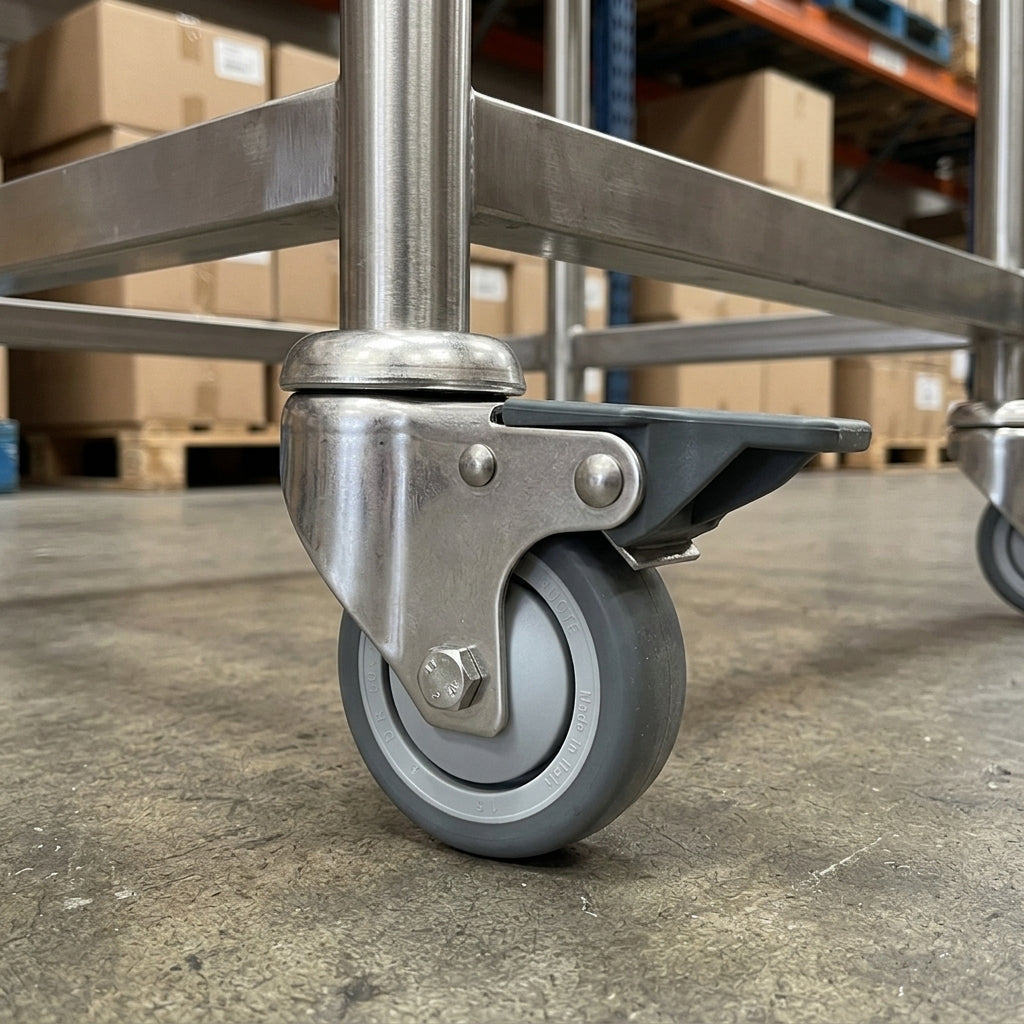

This 80mm stainless steel braked castor suits healthcare settings, where hygiene and easy manoeuvring both matter. Its grey rubber tread on a polypropylene core balances grip and resilience, and it carries 50kg per castor.
A foot pedal brake holds equipment in place when you stop, the plain bearing keeps direction changes smooth, and the castor fits through a single 12mm bolt hole in the centre of the swivel head.
Why Choose This Castor
- ✓ Foot pedal brake to hold equipment in place.
- ✓ Stainless steel housing for hygiene-focused environments.
- ✓ Grey rubber tread on a polypropylene core, 22mm wide and 85 Shore A.
- ✓ Single 12mm bolt hole in the centre of the swivel head.
- ✓ 50kg load capacity per castor.
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Healthcare equipment: smooth, controlled movement on hospital beds and medical trolleys.
- ✓ Laboratory carts: precise manoeuvring in controlled environments.
- ✓ Medical devices: equipment that needs stable, hygienic mobility.
Frequently Asked Questions
What does the brake do?
Press the foot pedal to apply the brake and stop the wheel rolling, so your equipment stays where you park it. Lift the pedal to move off again.
How much weight can a set of four carry?
Each castor is rated for 50kg. Planning on three castors carrying the load, a set of four suits about 150kg.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head. The bolt must match the 12mm hole size.
What does the 85 Shore A tread mean for me?
It gives a balance of grip and resilience, so the wheel holds the floor and still rolls easily.
How much space does it need to swivel?
The swivel radius is 98mm and the total castor height is 109mm.
Where can I use this castor?
It suits hospital beds and medical trolleys, laboratory carts, and medical devices.
