- Load per castor90kg per castor
- Wheel diameter75mm
- Overall height100mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Bolt Hole Castor
- Wheel Diameter
- 75mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Black
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 10mm (M10)
- Bearing Type
- Plain
- Swivel Radius
- 74mm
- Total Castor Height
- 100mm
- Load Capacity
- 90kg per castor
- Brake
- No (swivel only)
Will it fit?
- Bolt hole10mm (M10)
- Overall height100mm
- Swivel radius74mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

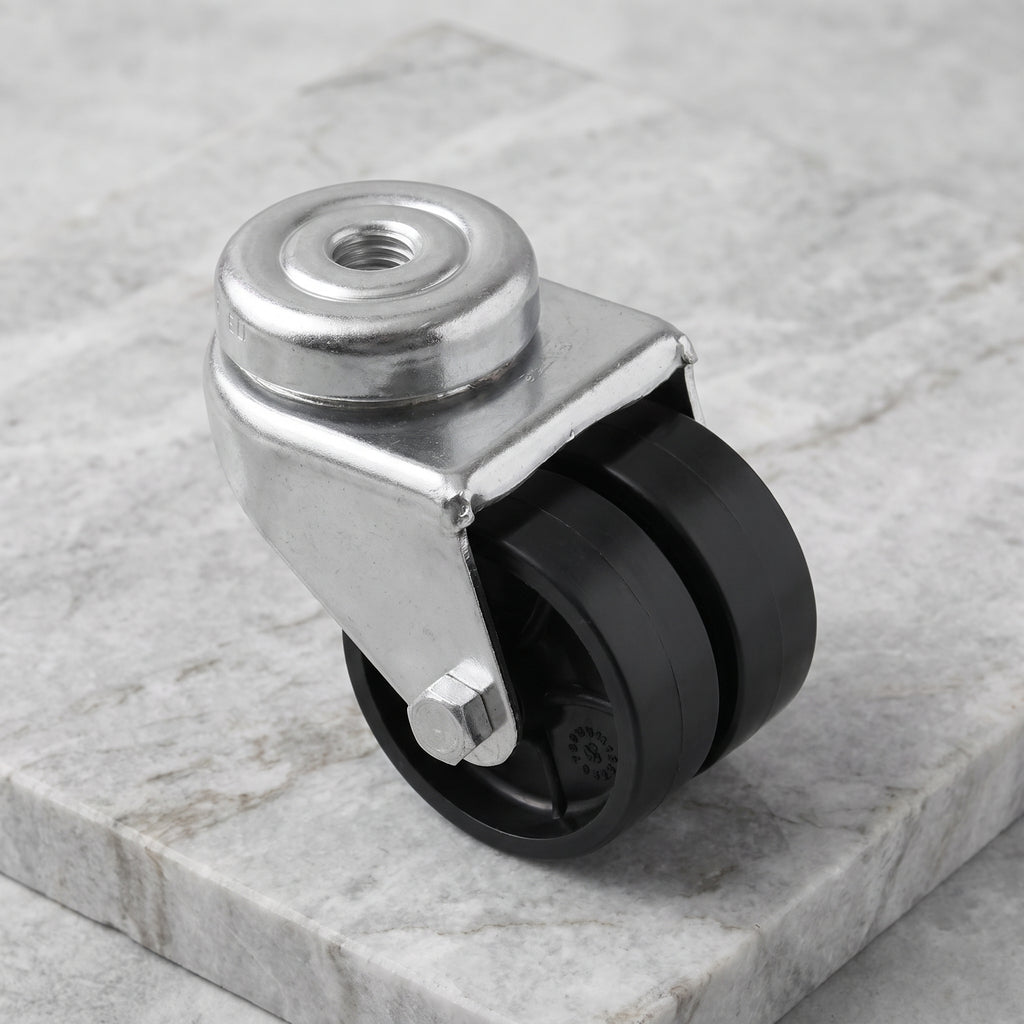

Light Duty Twin Wheel Castors
This 75mm twin wheel swivel castor fits through a single 10mm bolt hole and carries up to 90kg per castor. Two black wheels run side by side on a smooth swivel head, so shop display units, office furniture and light duty trolleys turn easily and spread their weight gently across the floor.
A popular choice for shop fitting, retail fixtures, desks and stock trolleys, this bolt hole twin wheel castor combines a compact 100mm total height with a 74mm swivel radius. The rubber on polypropylene wheels roll quietly on shop floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Twin wheel design spreads the load over two wheels for easy steering and gentle floor contact.
- ✓ 90kg load capacity per castor for light duty furniture, fixtures and trolleys.
- ✓ Single 10mm bolt hole fixing for quick fitting into tube legs with a tube adaptor.
- ✓ Full swivel movement with a compact 74mm swivel radius for tight shop aisles.
- ✓ Rubber on polypropylene wheels in black for quiet, smooth rolling.
- ✓ Low 100mm total height keeps furniture and display units close to the floor.
* Load capacity is per castor on a smooth, level floor. Choose a bolt and tube adaptor that match the 10mm bolt hole and the inside of your tube leg.
Where It Works Best
This twin wheel bolt hole castor is made for everyday light duty movement indoors:

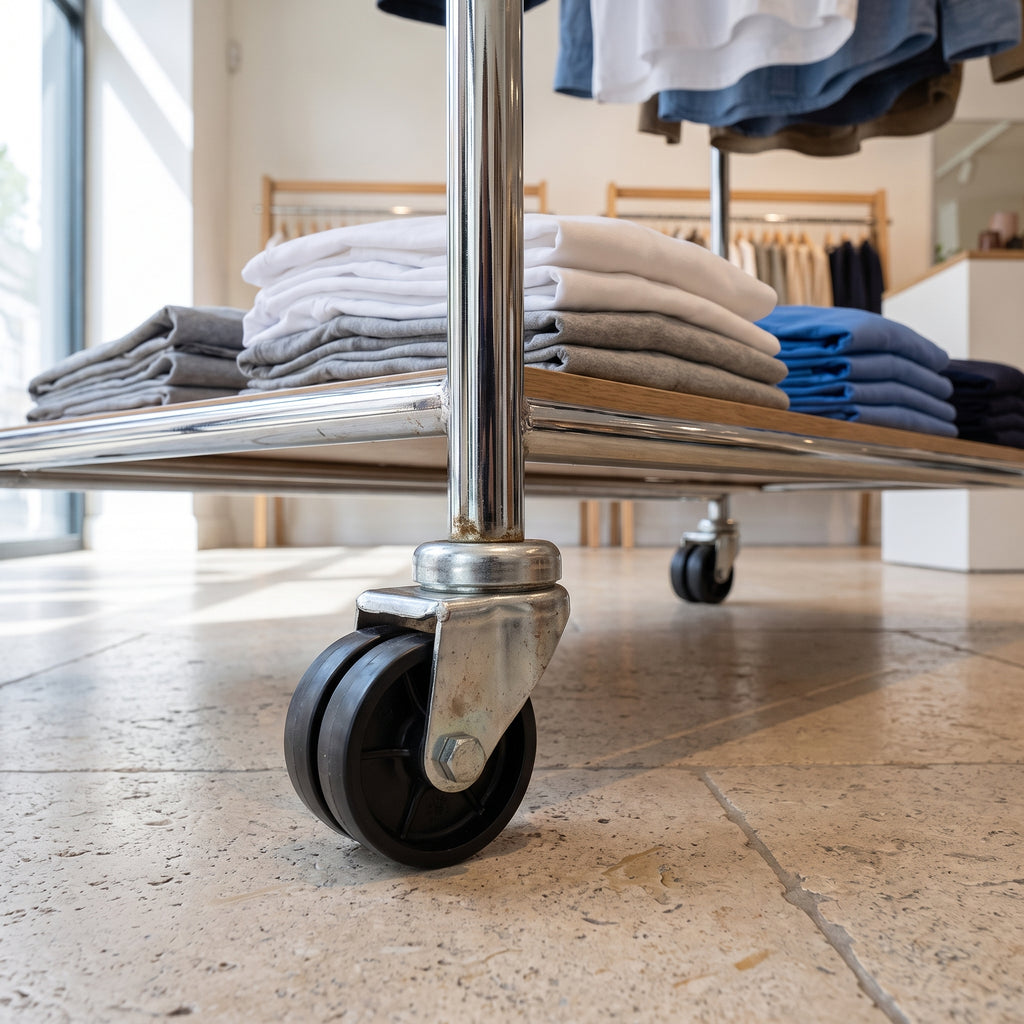

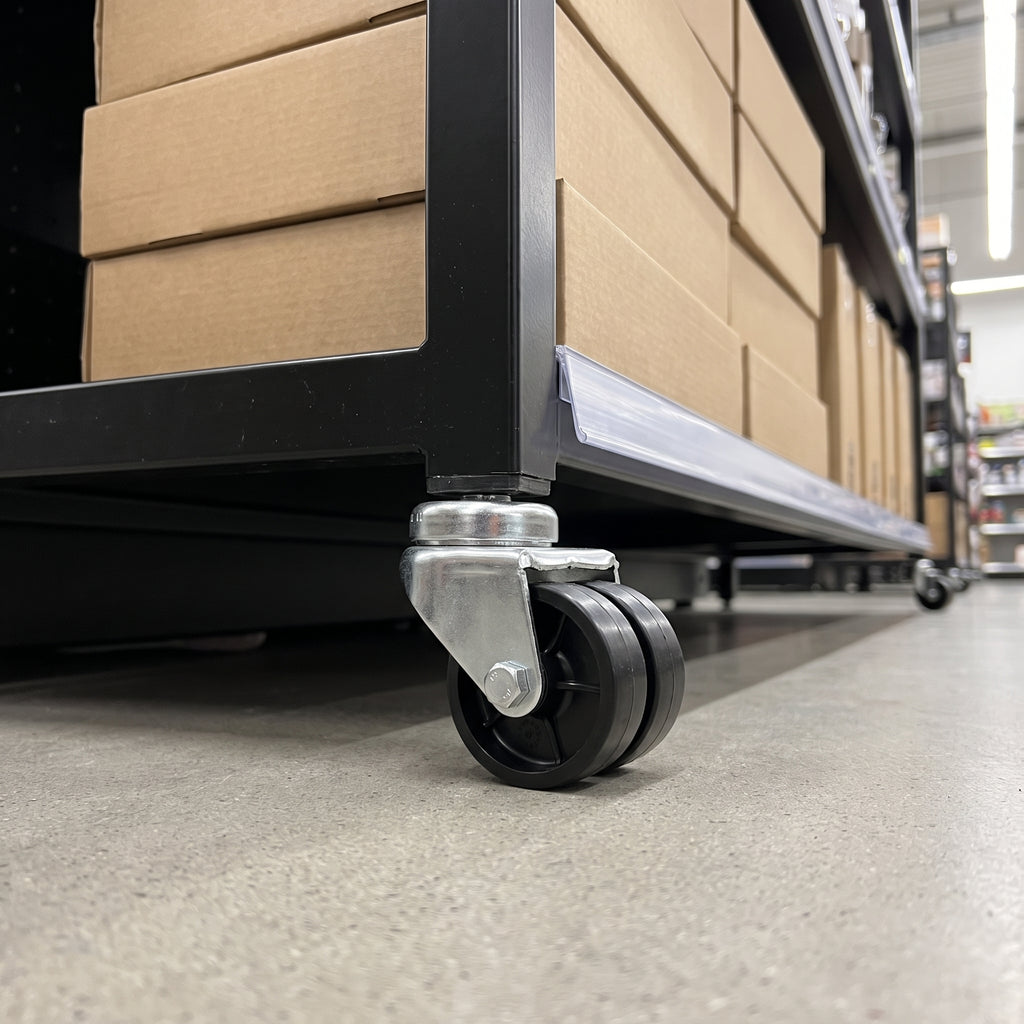

- ✓ Shop fitting equipment: display units, shelving and retail fixtures.
- ✓ Office furniture: chairs and desks that need easy mobility.

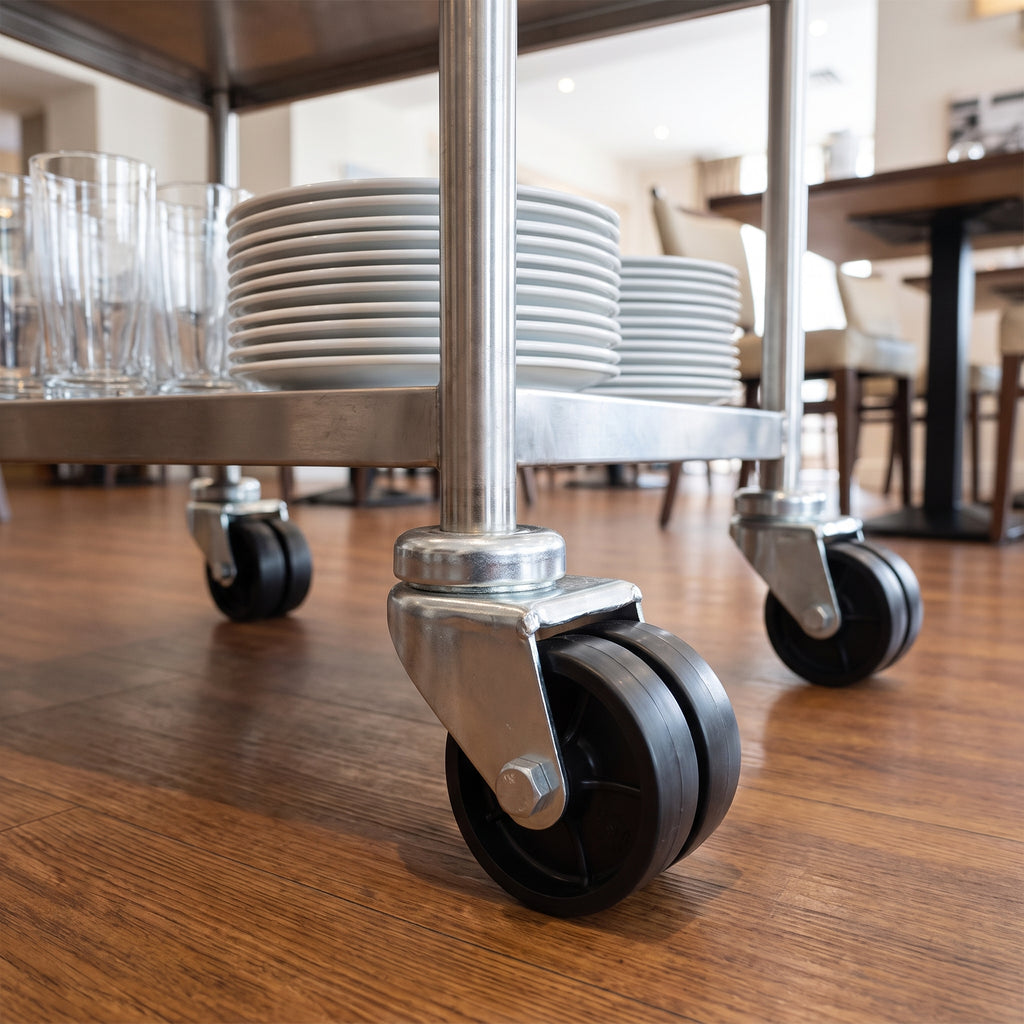

- ✓ Light duty trolleys: moving goods around stores and stockrooms.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 90kg on a smooth, level floor.
What size bolt does it take?
It has a single 10mm bolt hole, so it suits an M10 bolt or threaded stud.
Can I fit it into a tube leg?
Yes. Use a round or square tube adaptor that matches the inside size of your tube, then bolt the castor into the adaptor.
How tall is the castor?
The total castor height is 100mm and the swivel radius is 74mm.
Does this castor have a brake?
No, this is a swivel castor without a brake.
