- Load per castor75kg *
- Wheel diameter75mm
- Overall height100mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 75mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Tread Width
- 22mm
- Bearing Type
- Plain
- Load Capacity
- 75kg *
- Max Load Capacity of 4 Castors
- 225kg
- Plate Length
- 60mm
- Plate Width
- 67mm
- Plate Hole Centres Length
- 48/38mm
- Plate Hole Centres Width
- 48/38mm
- Plate Hole Diameter
- 6mm
- Total Castor Height
- 100mm
Will it fit?
- Top plate60mm × 67mm
- Hole centres48/38mm × 48/38mm
- Fixing holeØ 6mm
- Overall height100mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

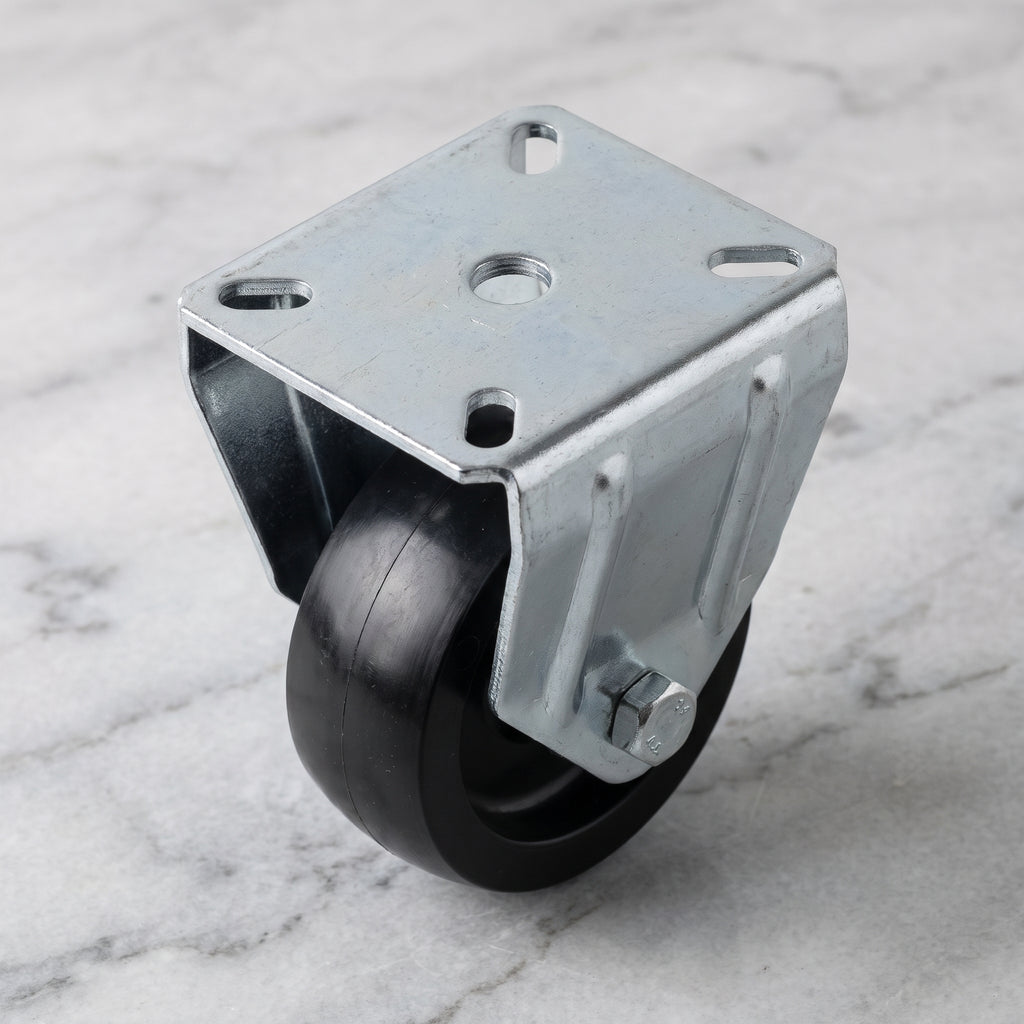

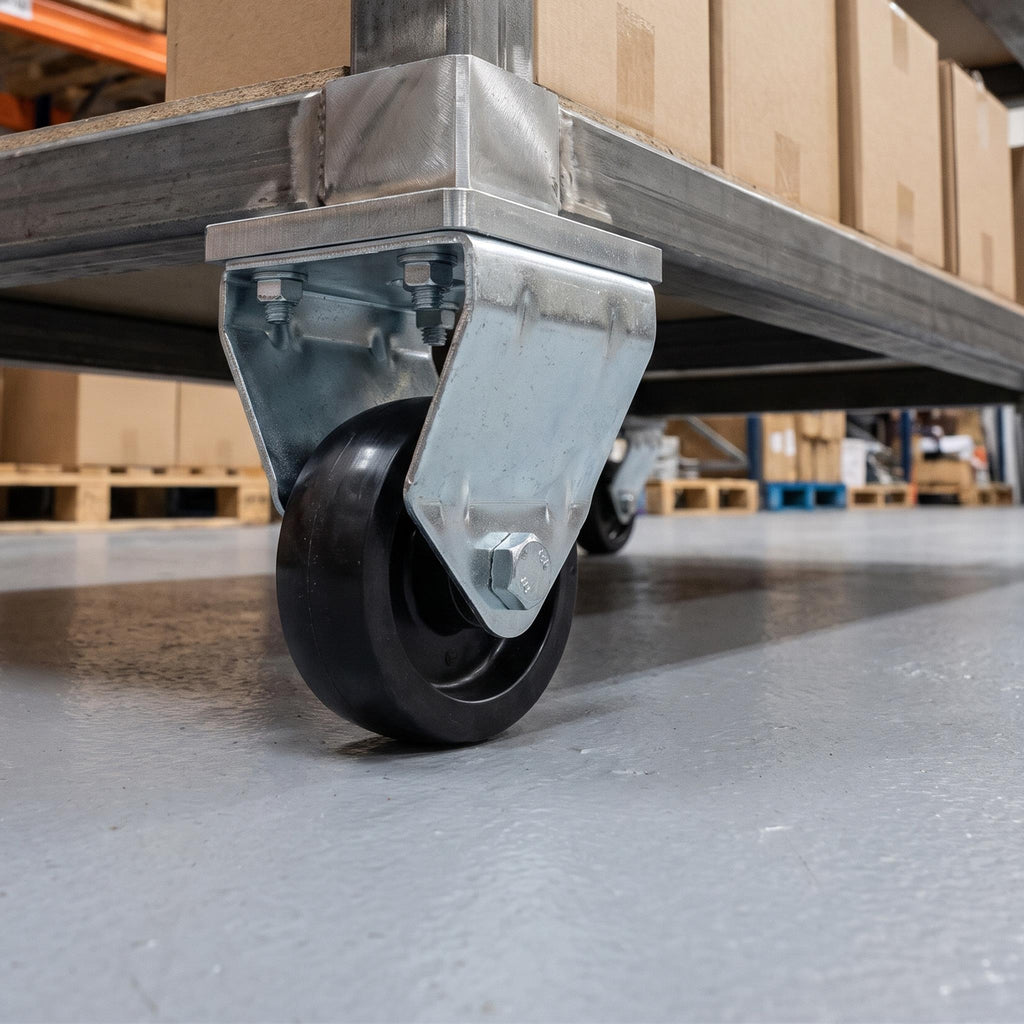

Light Duty Top Plate Castors
This 75mm fixed castor with a black polypropylene wheel is a robust choice for equipment and furniture that need reliable, straight-line movement with a solid base. It carries up to 75kg per castor and is commonly used in warehouses, workshops and offices.
With a durable, wear-resistant polypropylene wheel, a 22mm tread, a plain bearing and a total height of 100mm, this light duty top plate castor fits easily with its 60 x 67mm top plate. Pair it with matching swivel castors for easy steering.
Why Choose This Castor
- ✓ Fixed design for stability and straight-line rolling
- ✓ 75kg load capacity per castor, up to 225kg with four castors
- ✓ Black polypropylene wheel, durable and resistant to wear
- ✓ 22mm tread width to spread the load evenly
- ✓ Plain bearing for smooth, simple operation
- ✓ 60 x 67mm top plate with 6mm holes for secure fitting
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best
- ✓ Office furniture: desks and units that need easy movement with stability
- ✓ Warehouse equipment: trolleys and shelving units in storage areas
- ✓ Workshops: tool cabinets and benches for flexible workspace layouts
- ✓ Retail displays: display units that are easy to rearrange
Frequently Asked Questions
Does this castor swivel?
No. It is a fixed (rigid) castor that rolls in a straight line. Use it with swivel castors at the other end of your trolley or unit for easy steering.
How much weight can it carry?
Each castor is rated at 75kg, giving up to 225kg with four castors.
What is the wheel made of?
The wheel is black polypropylene, which is durable and resistant to wear for frequent use.
How is the castor fitted?
It has a 60 x 67mm top plate with 6mm holes on 48/38mm hole centres, which you bolt to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 100mm.
