- Load per castor200kg per castor
- Wheel diameter70mm
- Overall height102mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Cargo Top Plate Swivel Castor
- Wheel Diameter
- 70mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 35mm
- Bearing Type
- Ball journal
- Load Capacity
- 200kg per castor
- Fixing
- 2 bolt hole top plate
- Plate Size
- 110 x 70mm
- Plate Hole Centres
- 89mm
- Plate Hole Diameter
- 8mm
- Swivel Radius
- 54mm
- Total Castor Height
- 102mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Cargo Castors

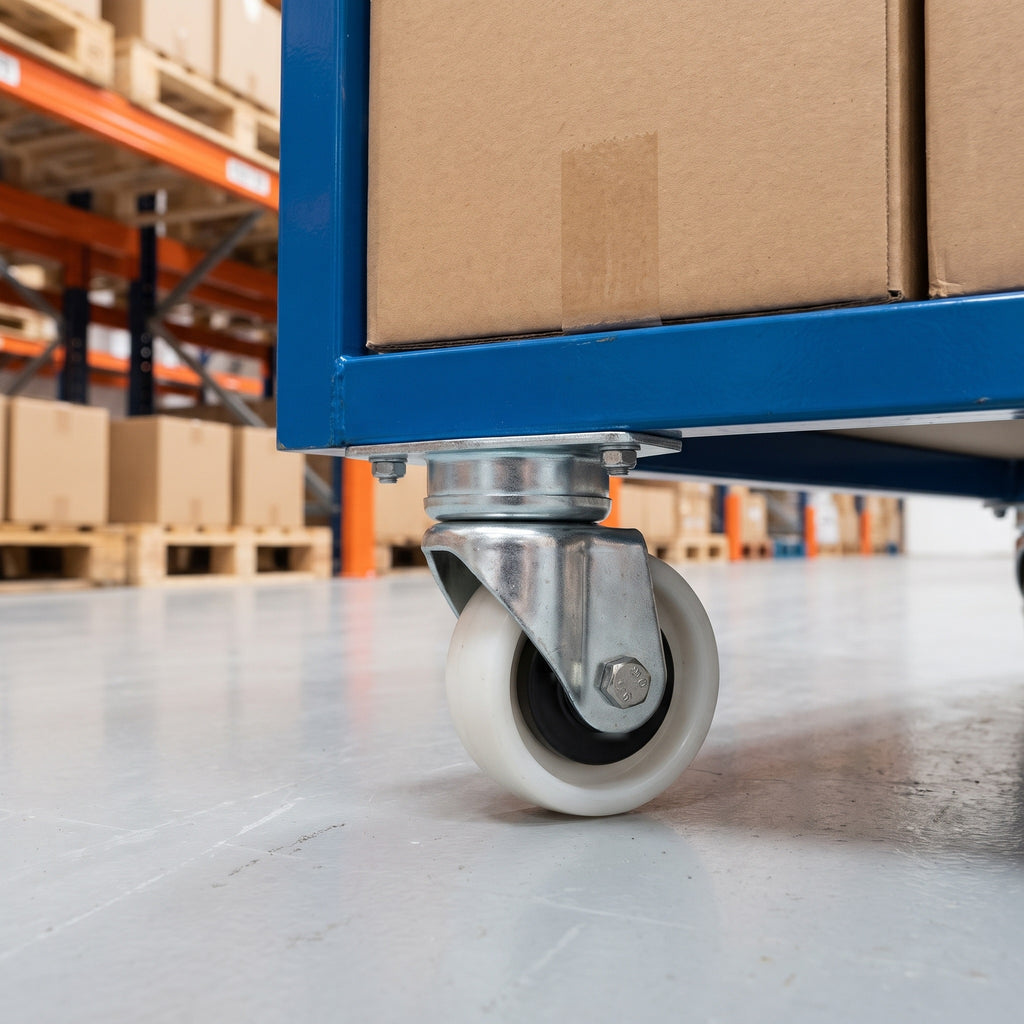

Compact, low and built to carry heavy loads. This 70mm cargo castor pairs a hard white nylon wheel with a heavy pressed steel swivel housing, carrying up to 200kg per castor while standing just 102mm tall. It is made for transport trolleys, warehouse carts and display units that move goods over smooth floors.

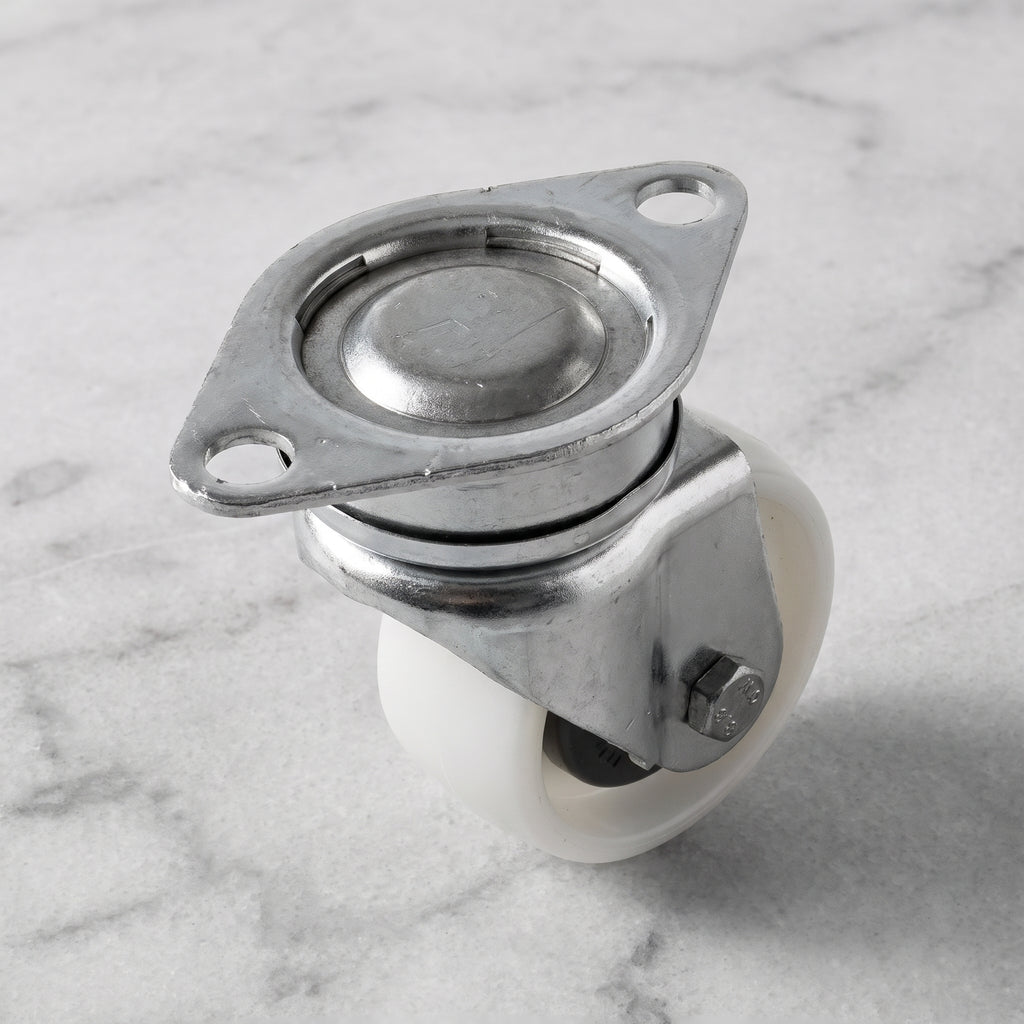

A ball journal bearing gives a smooth swivel action, and the 35mm wide nylon tread rolls easily on smooth surfaces. The castor fixes with a 110 x 70mm two-hole top plate, with 8mm holes on 89mm centres. Check the plate dimensions and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ 200kg load capacity per castor from a compact 70mm wheel.
- ✓ White nylon wheel with a 35mm tread, hard-wearing and easy rolling on smooth floors.
- ✓ Ball journal bearing for smooth swivelling.
- ✓ Low 102mm height keeps loads close to the floor.
- ✓ 110 x 70mm two-hole top plate for a secure fixing.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 70mm cargo castor suits:
- ✓ Transport trolleys: moving goods efficiently on smooth surfaces.
- ✓ Warehouse equipment: carts and dollies for internal transport.
- ✓ Display units: easy movement and positioning.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 110 x 70mm top plate with two 8mm holes on 89mm centres, bolted to the underside of your equipment.
Which floors does the nylon wheel suit?
Nylon is a hard material that rolls easily and is best on smooth, level floors.
How tall is the castor?
The castor is 102mm tall overall, from the floor to the top of the plate, with a 54mm swivel radius.
Does this castor have a brake?
No. This is a free-swivelling castor with no brake.
