- Load per castor90kg per castor (270kg for a set of 4) *
- Wheel diameter65mm
- Overall height75mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Twin Wheel Threaded Stem Castor
- Fixing
- M8 x 25mm Threaded Stem
- Wheel Diameter
- 65mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- White with dark grey tyre
- Tread Hardness
- 92 Shore A
- Bearing Type
- Ball Journal Bearings
- Brake
- Integrated Wheel Lock
- Swivel Radius
- 51mm
- Total Castor Height
- 75mm
- Load Capacity
- 90kg per castor (270kg for a set of 4) *
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Modern Designer Castor

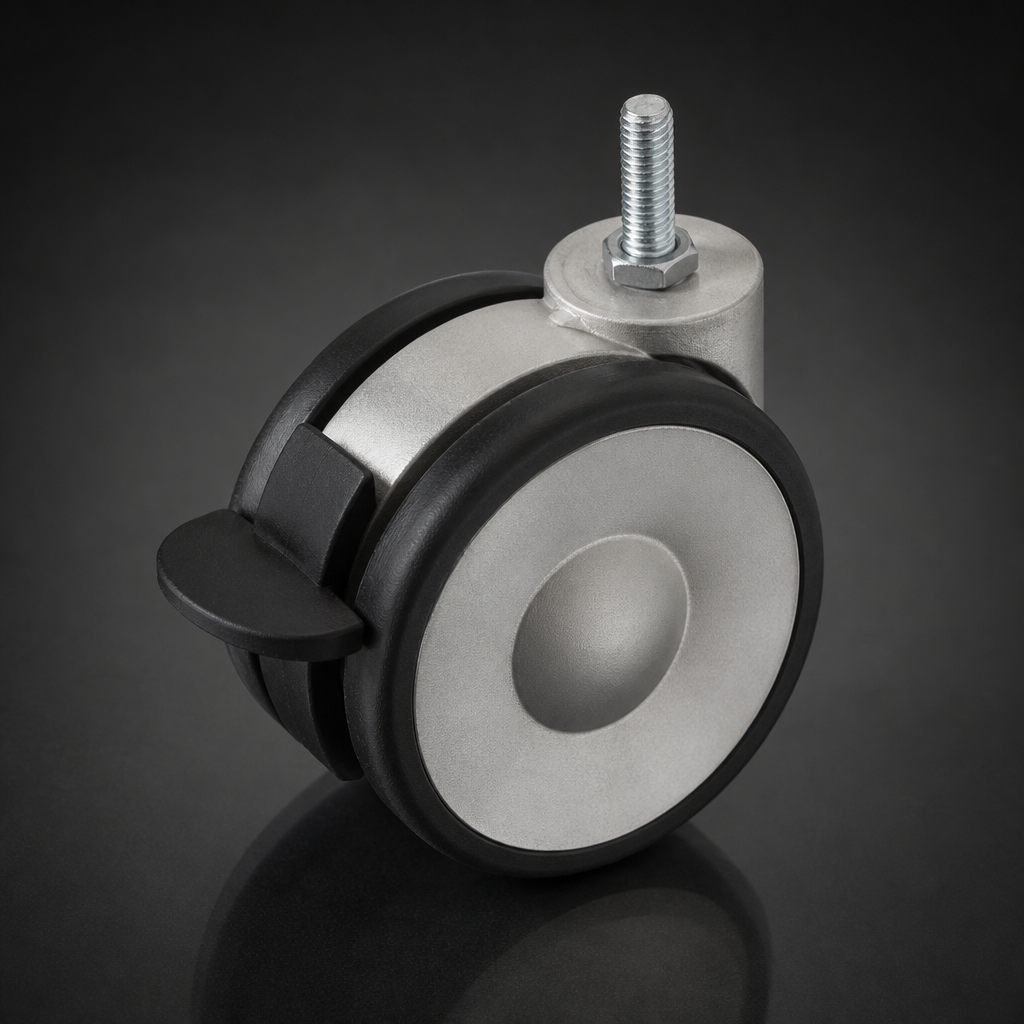

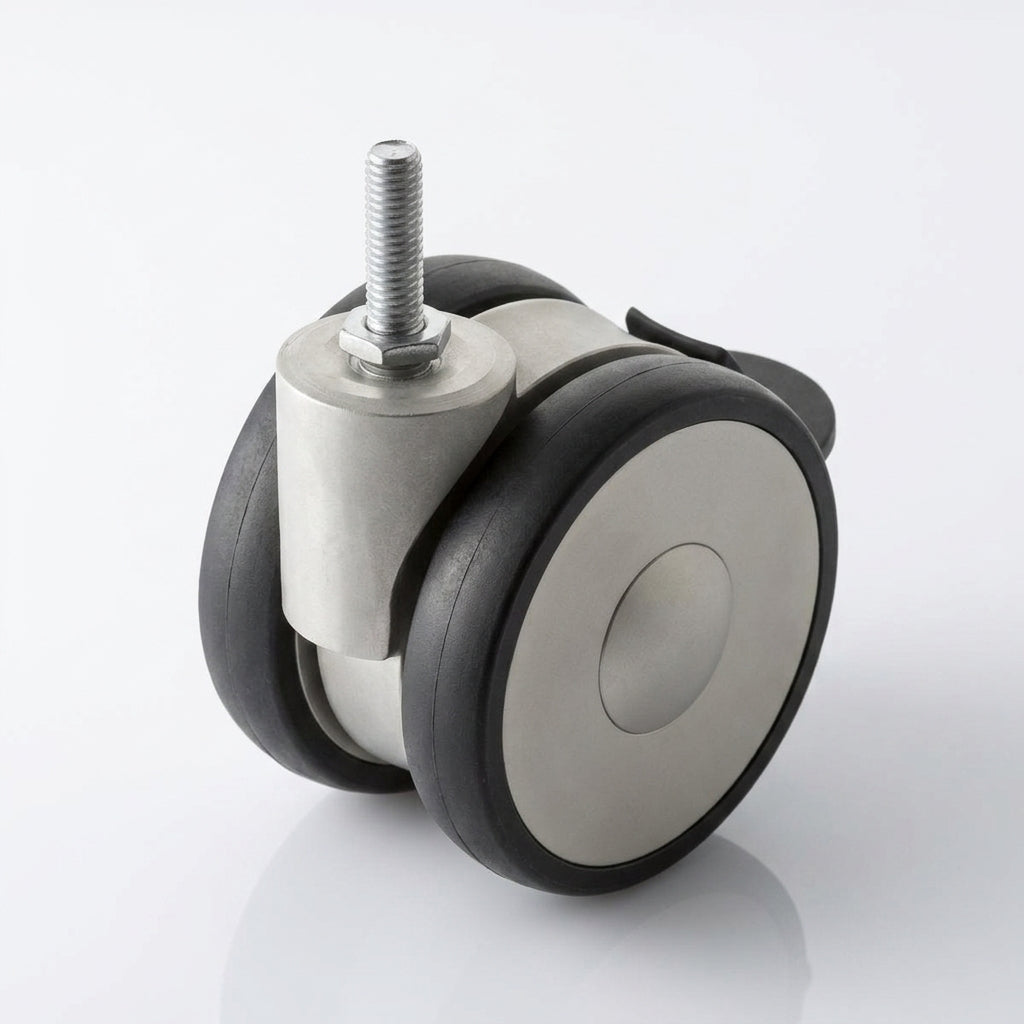

This 65mm twin wheel modern castor has a pearl-white body, dark grey rubber tyres and a brake that locks both wheels, rated at 90kg per castor. Ball journal bearings make it roll smoothly and easily, giving furniture, seating, trolleys and medical units quiet, controlled movement.
The castor fixes with an M8 x 25mm threaded stem that screws into a matching insert or socket. The 92 Shore A rubber tread grips well and helps protect wood, laminate, tile and low-pile carpet, and the twin wheel design spreads the load for extra stability.
Why Choose This Castor
- ✓ Brake locks both wheels for secure positioning
- ✓ Ball journal bearings for smooth, low-effort rolling
- ✓ 90kg load capacity per castor
- ✓ Quiet rubber tyres that help protect floors
- ✓ M8 x 25mm threaded stem for a secure fit
- ✓ Clean modern pearl-white finish
* Load capacity per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load. Check that your fitting takes an M8 x 25mm stem before ordering.
Where It Works Best
- ✓ Furniture and seating: pieces that need secure stopping.

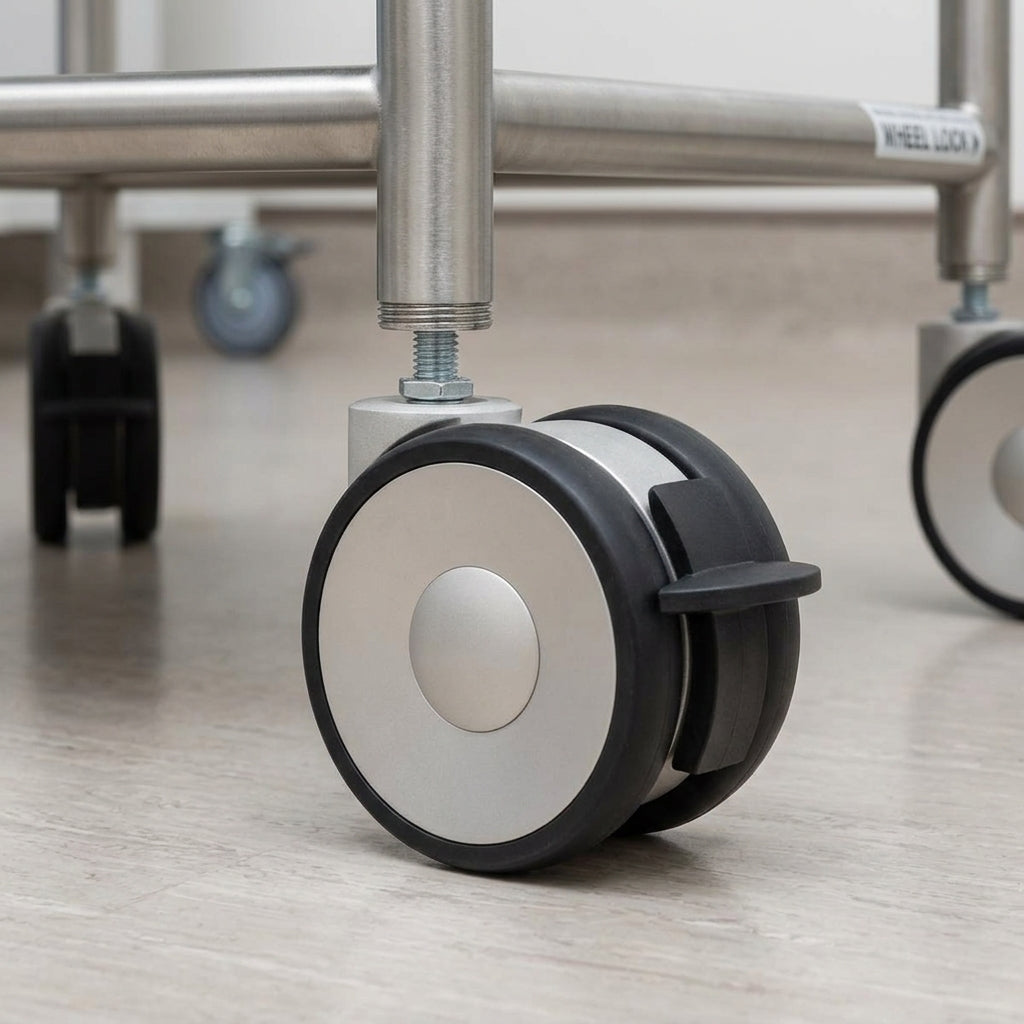

- ✓ Trolleys: utility, equipment and service trolleys.
- ✓ Medical furniture: medical units and bases.
- ✓ Cabinets: movable units that need a brake.
Frequently Asked Questions
What does the brake do?
Press the brake pedal down to lock both wheels so the item cannot roll. Lift the pedal to release it and move again. No tools are needed.
How do I fit this castor?
Screw the M8 x 25mm stem into a matching M8 threaded insert or socket and tighten the nut against the leg.
Why ball bearings?
Ball journal bearings reduce rolling resistance, so the castor moves more easily under load than one with plain bearings.
Can it be used on carpet?
Yes. It rolls well on low-pile carpet as well as wood, laminate, tile and vinyl floors.
How much weight can it carry?
Each castor is rated at 90kg, and a set of four up to 270kg.
How tall is the castor?
The total castor height is 75mm, with 65mm wheels and a 51mm swivel radius.
