- Load per castor50kg per castor *
- Wheel diameter65mm
- Overall height103mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Modern Design Swivel Braked Castor, Threaded Stem
- Wheel Diameter
- 65mm
- Wheel Material
- Nylon
- Wheel Colour
- Black
- Tower Material
- Aluminium
- Brake
- Integrated brake lever
- Tread Width
- 20mm
- Bearing Type
- Plain
- Load Capacity
- 50kg per castor *
- Max Load of 4 Castors
- 200kg
- Fitting
- M10 x 15mm Threaded Stem
- Swivel Radius
- 66mm
- Total Castor Height
- 103mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Modern Design Furniture Castors

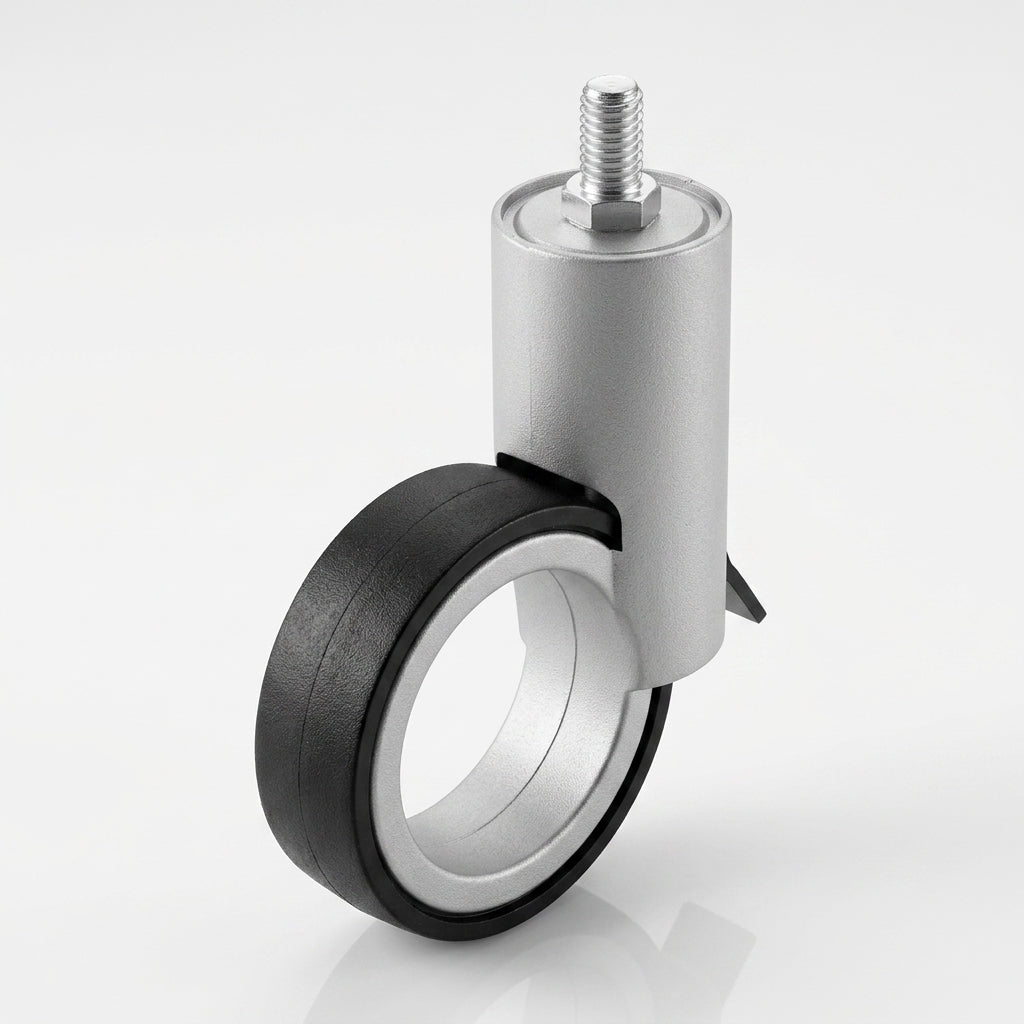

Give modern furniture a clean, premium finish with this 65mm braked designer castor. A satin aluminium tower sits above an open-centre black nylon wheel, and the built-in brake lever holds the piece firmly in place whenever you need it to stay still.
The hard-wearing nylon wheel has a 20mm tread and a plain bearing for smooth, easy rolling on indoor hard floors. It fits with an M10 x 15mm threaded stem and hex nut, swivels on a 66mm radius, carries 50kg per castor and stands 103mm tall.
Why Choose This Castor
- ✓ Aluminium tower with a satin silver finish for modern, high-end furniture.
- ✓ Integrated brake: press the lever to lock the castor in place.
- ✓ Open-centre black nylon wheel with a light grey hub ring.
- ✓ Swivel action with a 66mm swivel radius for easy steering.
- ✓ 50kg per castor, up to 200kg on a set of four.
- ✓ M10 x 15mm threaded stem with hex nut for a secure fit.
* Load capacity is per castor. The furniture needs an M10 threaded insert or nut to take the stem.
Where It Works Best
- ✓ Home furniture: modern tables, kitchen islands, trolleys and storage units.
- ✓ Office furniture: meeting tables, desks, pedestals and reception seating.
- ✓ Hotels and shops: serving trolleys, display units and fixtures.
- ✓ Hard floors: wood, tile, vinyl and polished concrete.
Frequently Asked Questions
How do I fit this castor?
Screw the M10 x 15mm threaded stem into an M10 threaded insert or nut in the furniture leg or base, then tighten the hex nut to lock it in place.
How does the brake work?
Press the small lever at the base of the tower down with your foot to lock the castor, and lift it to release it.
How much weight can it carry?
Each castor is rated at 50kg, so a set of four supports up to 200kg.
Does it swivel?
Yes. It swivels freely with a 66mm swivel radius, so furniture is easy to move in any direction.
How tall is the castor?
The total castor height is 103mm.
Which floors is it best for?
The black nylon wheel rolls best on smooth hard floors such as wood, tile, vinyl and polished concrete in homes, offices and hotels.
