- Load per castor250 kg
- Wheel diameter63 mm
- Overall height102 +15
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Footmaster Castors
- Load Capacity
- 250 kg
- Bolt Hole Size
- M12x18
- Castor Width
- 85 mm
- Load Capacity Dynamic
- 250 kg
- Load Capacity Static
- 500 kg
- Max Load Capacity for 2 Jacking Castors
- 500 kg
- Max Load Capacity of 4 Castors
- 750 kg
- Operating Method
- Handwheel
- Total Castor Height
- 102 +15
- Wheel Colour
- Black
- Wheel Diameter
- 63 mm
- Wheel Material
- Nylon
Will it fit?
- Bolt holeM12x18
- Overall height102 +15
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

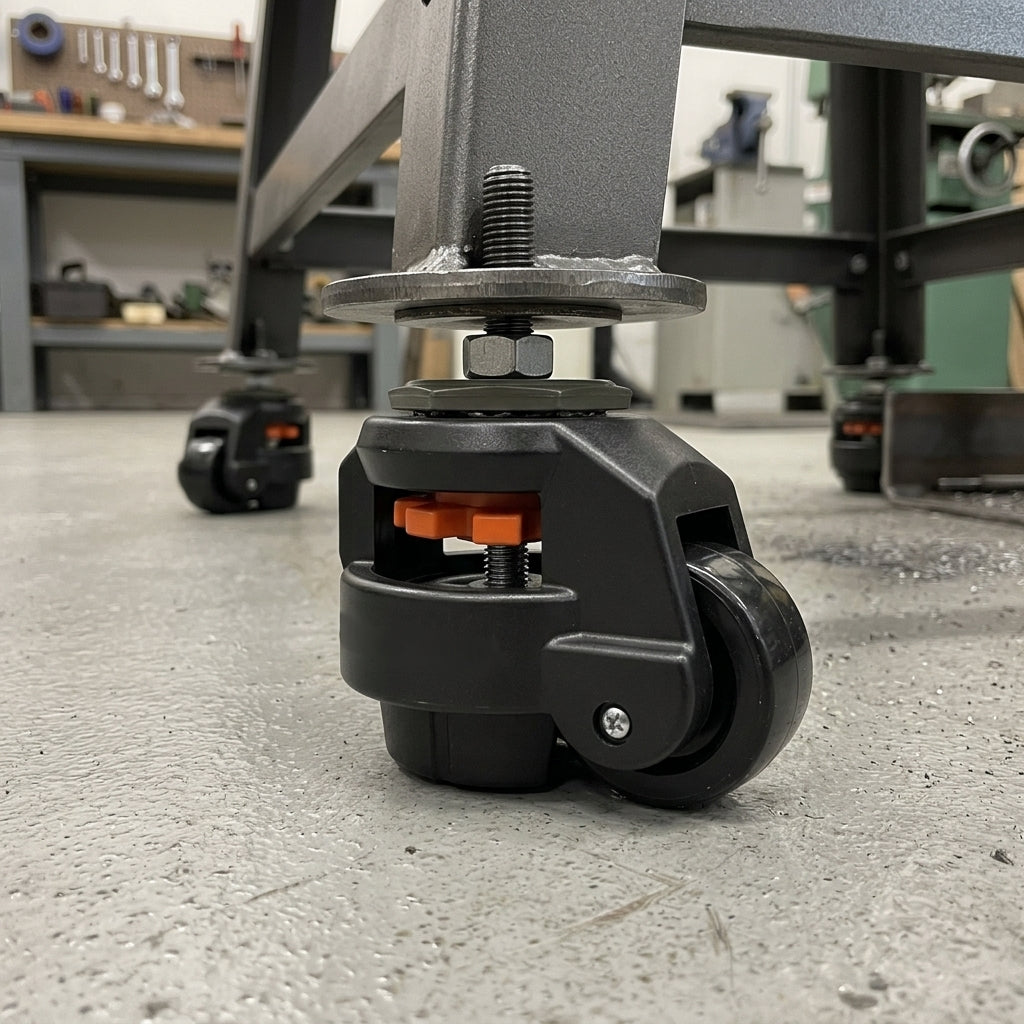

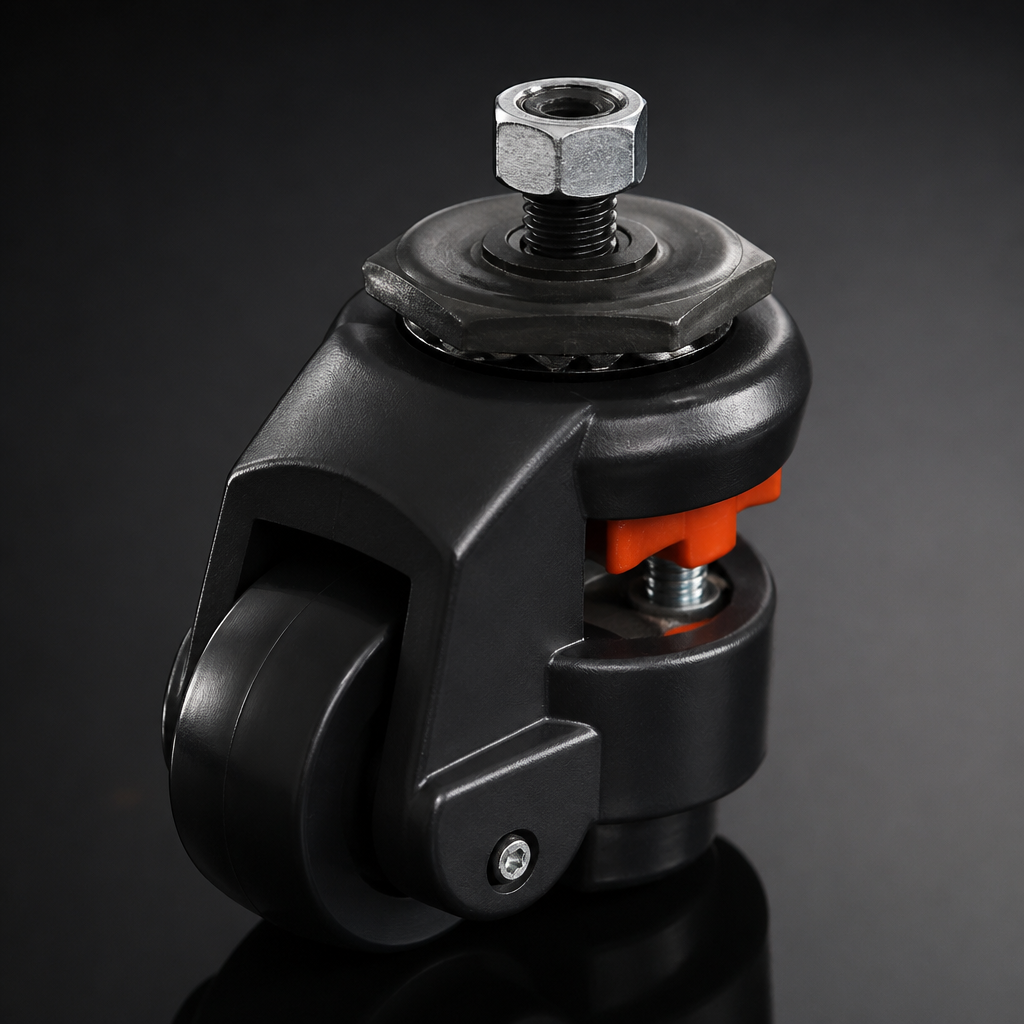

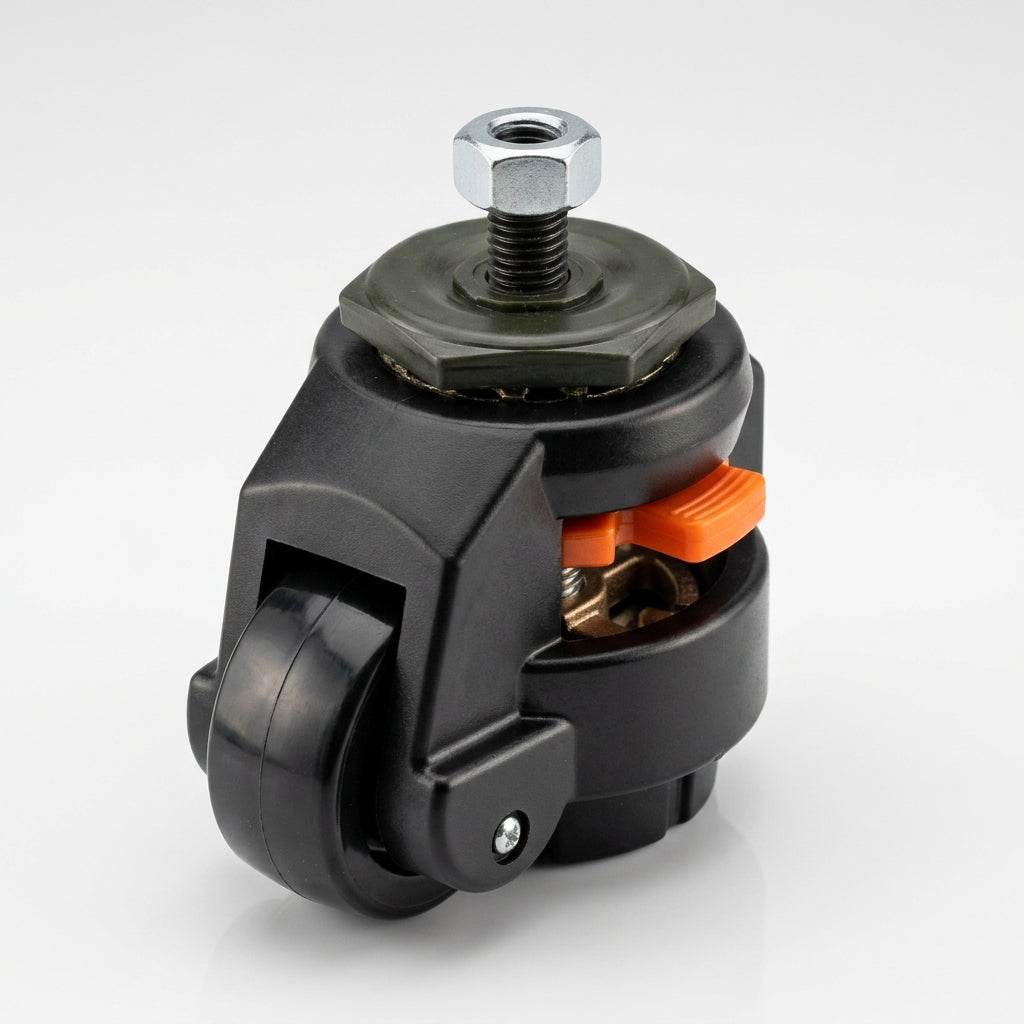

This 63mm Black Footmaster Leveling Castor with Stem Fitting is expertly designed to enhance stability and mobility in various industrial applications. Equipped with a handwheel-operated leveling mechanism, it provides exceptional dynamic and static load handling capabilities, making it ideal for supporting equipment and machinery on uneven surfaces.
Applications
This leveling castor is ideal for:
- Industrial equipment and machinery support
- Achieving stability on uneven surfaces
- Facilitating the movement of heavy equipment
Frequently Asked Questions
Q: What is the load capacity of this castor?
A: The dynamic load capacity is 250 kg, while the static load capacity is 500 kg.
Q: Can this castor be used on uneven surfaces?
A: Yes, the handwheel-operated leveling mechanism allows for easy adjustment to ensure stability on uneven surfaces.
Q: What material is the wheel made from?
A: The wheel is made from durable nylon, ensuring smooth movement and longevity.
Q: How do I install this castor?
A: The castor features a stem fitting and an M12x18 bolt hole size for easy installation.
Q: Is this castor suitable for heavy equipment?
A: Yes, it is designed to support heavy equipment and machinery effectively.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
