- Load per castor250 kg
- Wheel diameter63 mm
- Overall height102 +15 mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Footmaster Castors
- Load Capacity
- 250 kg
- Castor Width
- 85 mm
- Load Capacity Dynamic
- 250 kg
- Load Capacity Static
- 500 kg
- Max Load Capacity for 2 Jacking Castors
- 500 kg
- Plate Length
- 90 mm
- Plate Width
- 90 mm
- Plate Hole Centres Length
- 70 mm
- Plate Hole Centres Width
- 70 mm
- Plate Hole Diameter
- 9 mm
- Operating Method
- Handwheel
- Total Castor Height
- 102 +15 mm
- Wheel Colour
- Black
- Wheel Diameter
- 63 mm
- Wheel Material
- Nylon
Will it fit?
- Top plate90 mm × 90 mm
- Hole centres70 mm × 70 mm
- Fixing holeØ 9 mm
- Overall height102 +15 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

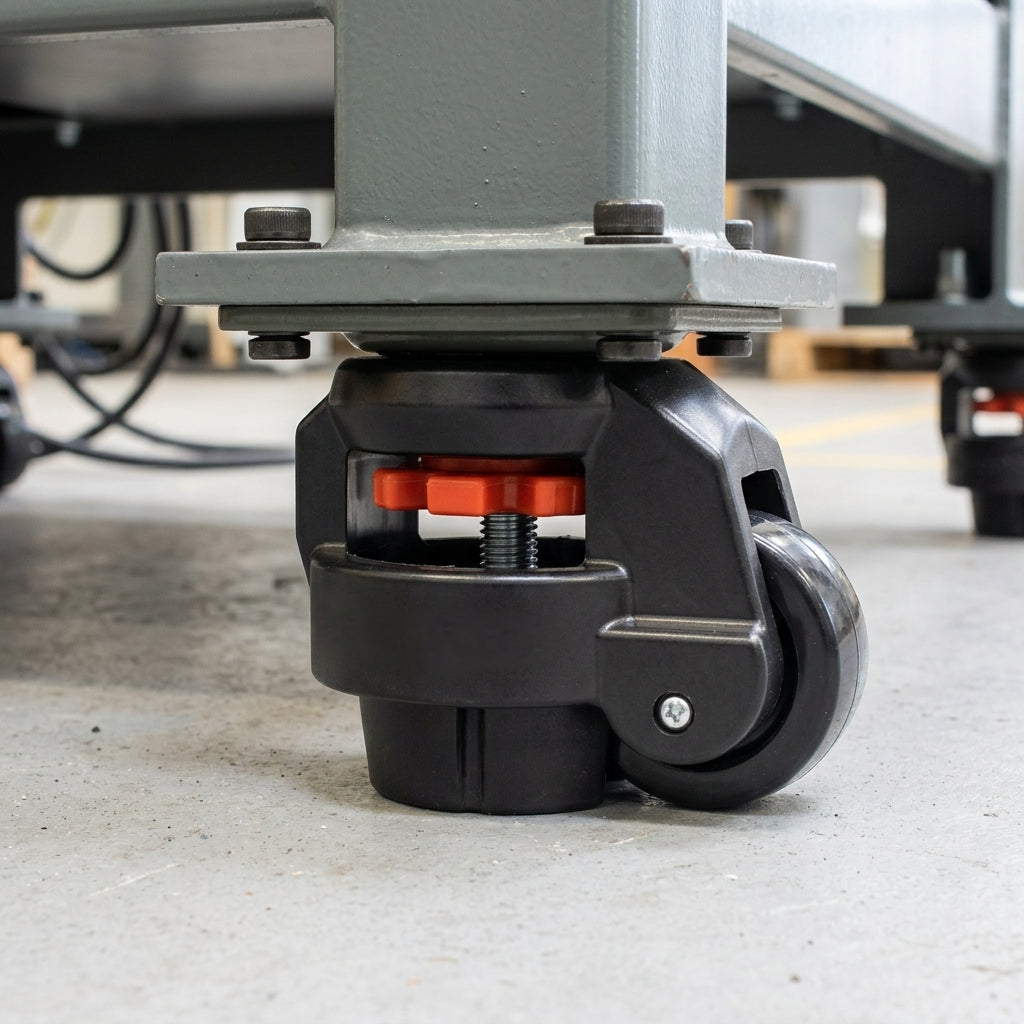

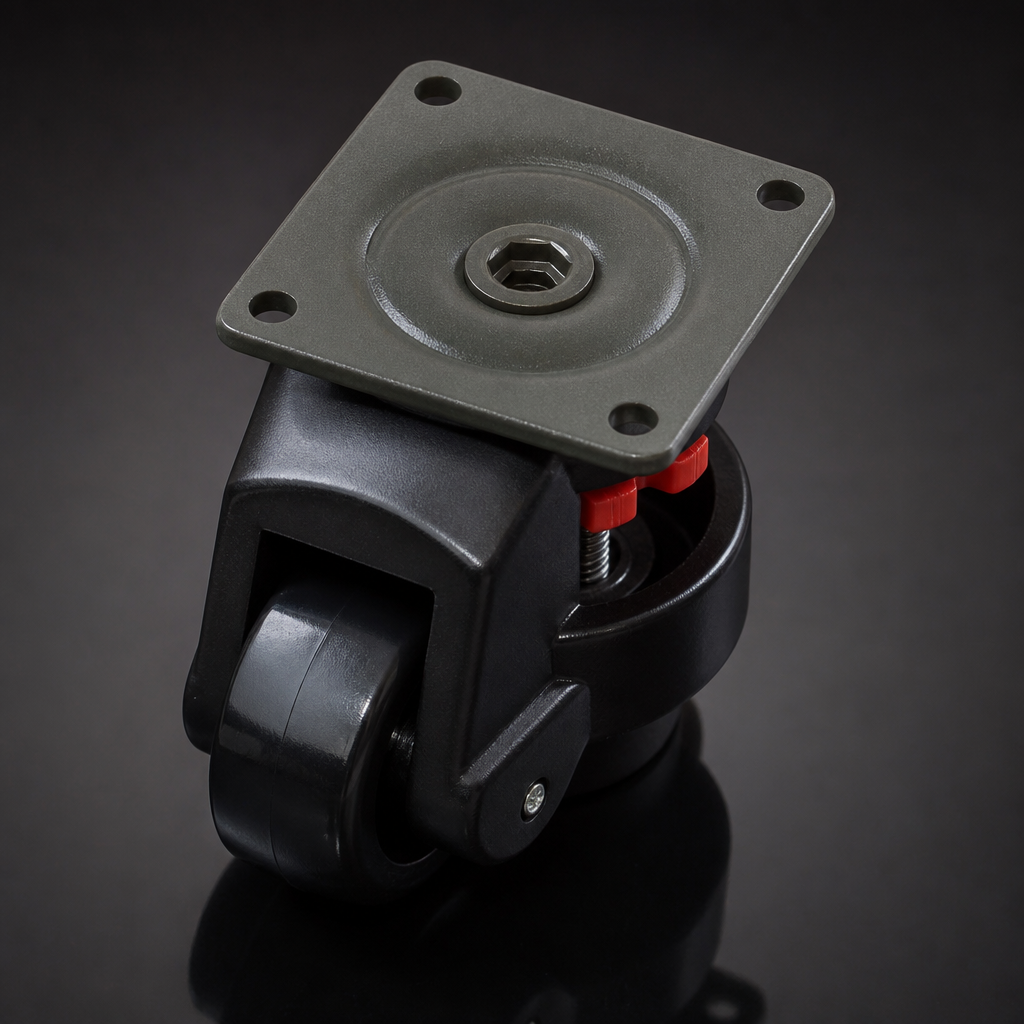

The 63mm Black Footmaster Levelling Castor with Plate Fitting is expertly engineered for industrial applications that demand precise levelling and robust support. This durable castor features a sturdy nylon wheel, ensuring reliable movement and stability in various environments. The handwheel operating method allows for effortless adjustments, making it ideal for situations where equipment needs to be levelled or repositioned efficiently.
Applications
- Industrial Equipment: Ideal for levelling and supporting machinery and heavy equipment.
- Mobile Units: Facilitates the movement and stability of mobile units across various settings.
- Adjustable Support: Commonly used in environments where adjustable support is essential for stability.
FAQs
- What is the maximum load capacity of this castor? The dynamic load capacity is 250 kg, while the static load capacity is 500 kg.
- What materials are used in the construction of the wheel? The wheel is made from durable nylon, ensuring reliability in industrial applications.
- How is the castor adjusted? The castor features a handwheel operating method for easy and precise adjustments.

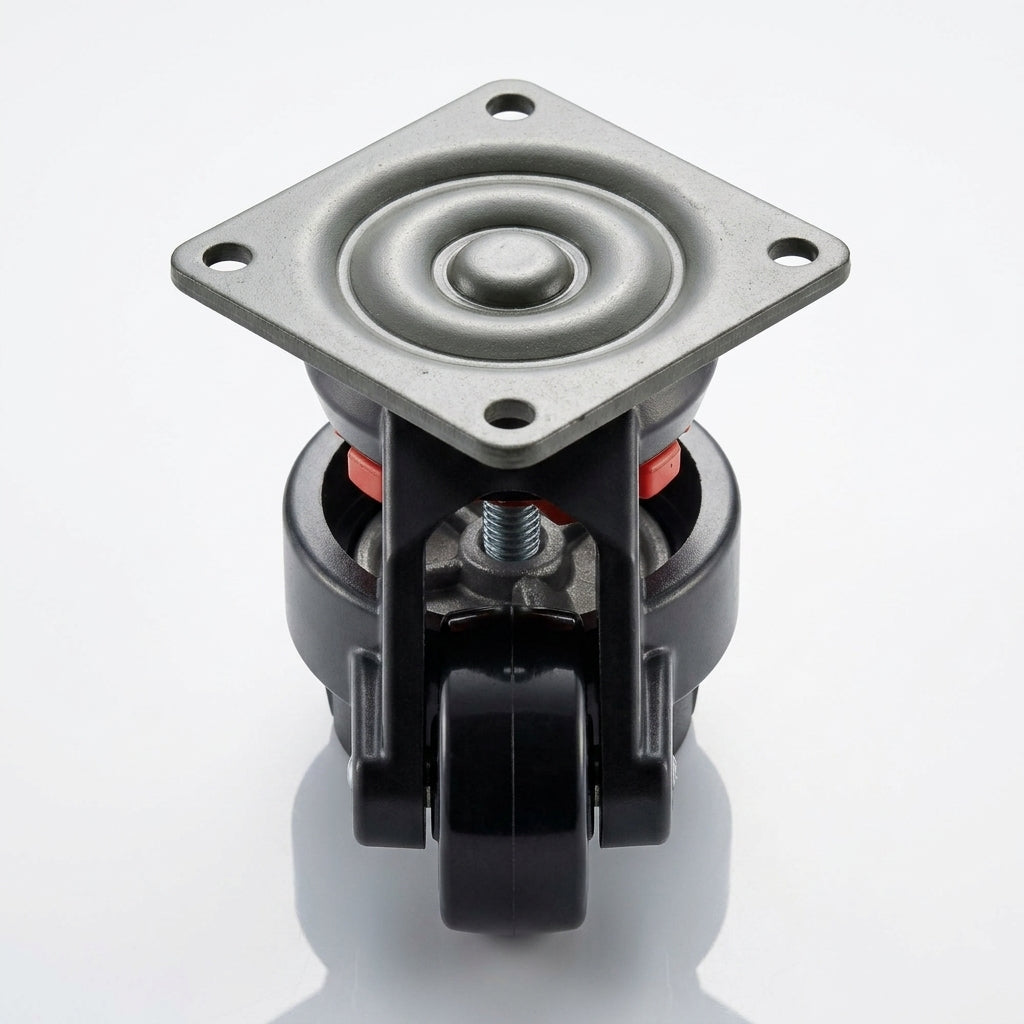

- What are the dimensions of the plate fitting? The plate measures 90 mm x 90 mm with specific hole centres for straightforward installation.
- Can this castor be used on uneven surfaces? Yes, it is designed for precise levelling, making it suitable for uneven surfaces.
- Is this castor suitable for heavy machinery? Absolutely, with a load capacity of up to 500 kg, it is perfect for heavy machinery and equipment.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
