- Load per castor250 kg
- Wheel diameter63 mm
- Overall height102 +15
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Footmaster Castors
- Load Capacity
- 250 kg
- Bolt Hole Size
- M12x18
- Castor Width
- 85 mm
- Load Capacity Dynamic
- 250 kg
- Load Capacity Static
- 500 kg
- Max Load Capacity for 2 Jacking Castors
- 500 kg
- Max Load Capacity of 4 Castors
- 750 kg
- Operating Method
- Handwheel
- Total Castor Height
- 102 +15
- Wheel Colour
- Black
- Wheel Diameter
- 63 mm
- Wheel Material
- Nylon
Will it fit?
- Bolt holeM12x18
- Overall height102 +15
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

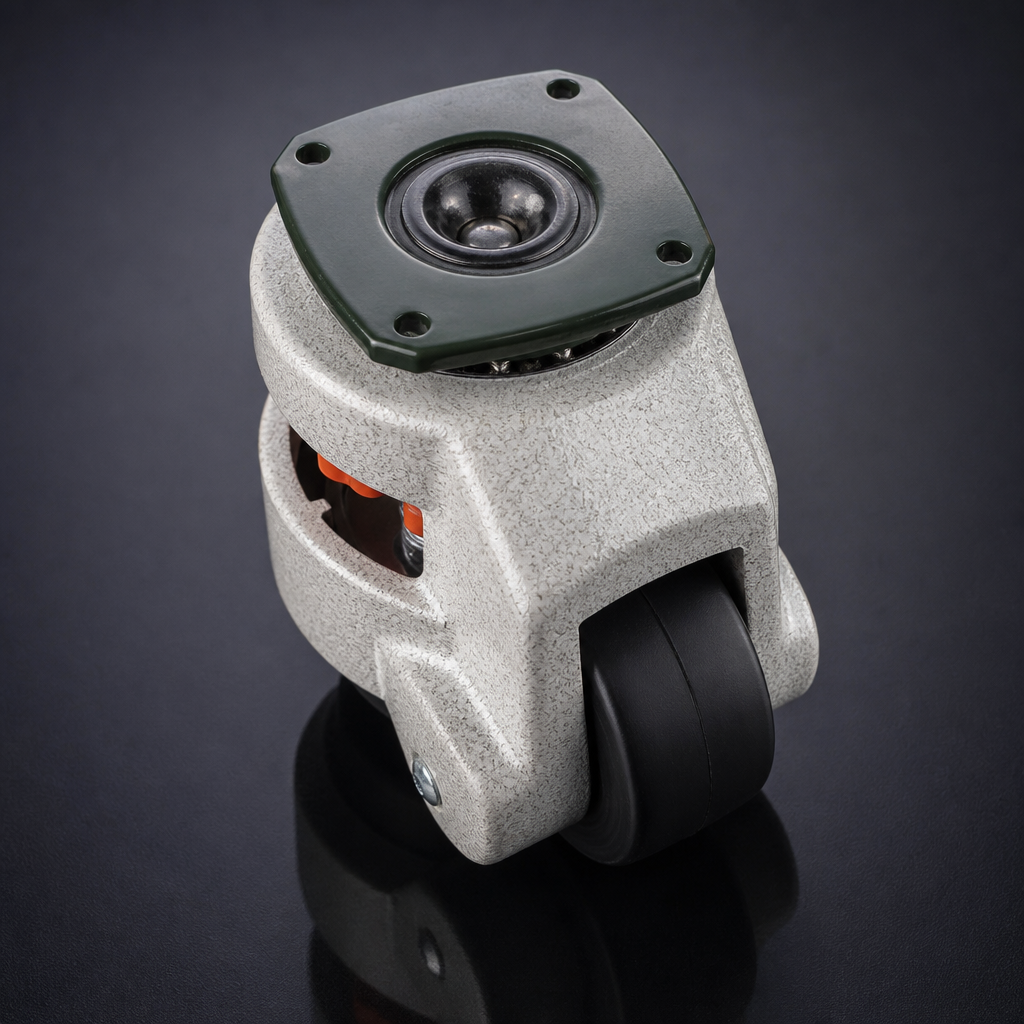

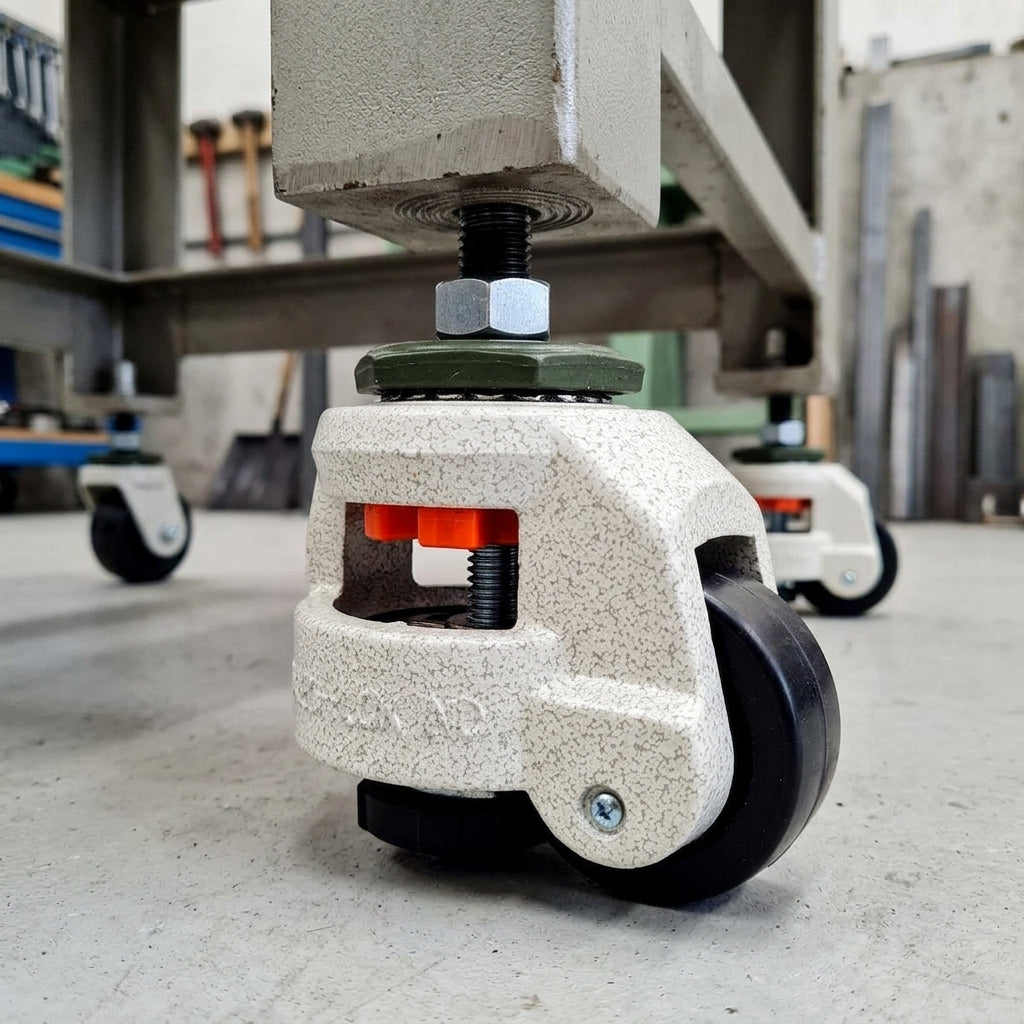

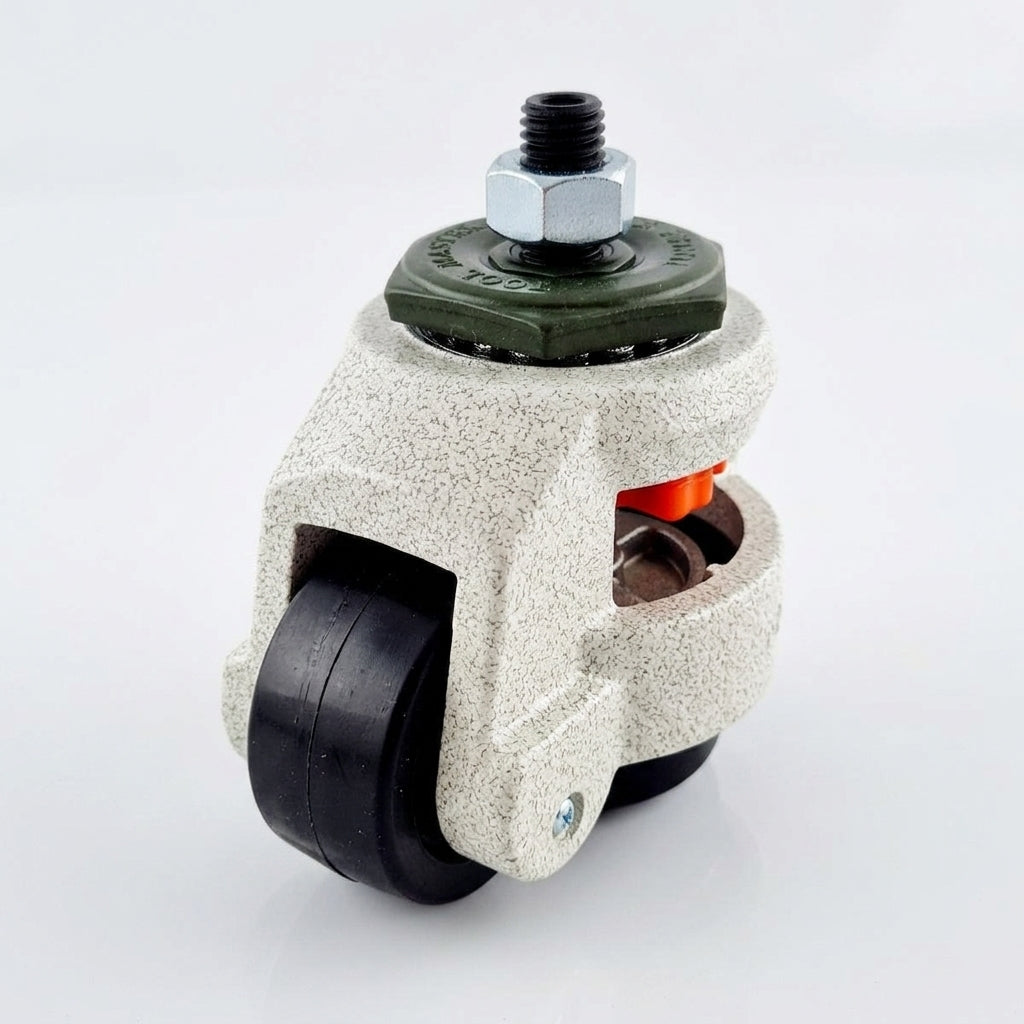

The 63mm Footmaster Levelling Castor with Stem Fitting is expertly crafted for industrial applications, providing a dependable solution for equipment mobility and stability. With a wheel diameter of 63mm, this castor is ideal for tasks requiring precise levelling and smooth movement, making it an essential component for various industrial setups.
Applications
- Industrial Equipment: Ensures mobility and stability for machinery and tools.
- Levelling Tasks: Ideal for applications requiring precise height adjustments.
- Heavy Load Support: Effectively supports substantial weight in stationary conditions.
Frequently Asked Questions
- What is the maximum load capacity of the castor? The maximum load capacity for static conditions is 500kg.
- How do I adjust the height of the castor? The castor features a handwheel for easy height adjustments.
- What material is the wheel made of? The wheel is constructed from durable nylon, suitable for industrial use.
- Can this castor be used on uneven surfaces? Yes, it is designed for precise levelling on uneven surfaces.
- What is the bolt hole size for installation? The bolt hole size is M12x18, ensuring compatibility with various fixtures.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
