- Load per castor40kg per castor *
- Wheel diameter60mm
- Overall height89mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- 85 Shore A
- Bearing Type
- Plain Bearing
- Load Capacity
- 40kg per castor *
- Bolt Hole Size
- 12mm
- Swivel Radius
- 57mm
- Total Castor Height
- 89mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole12mm
- Overall height89mm
- Swivel radius57mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

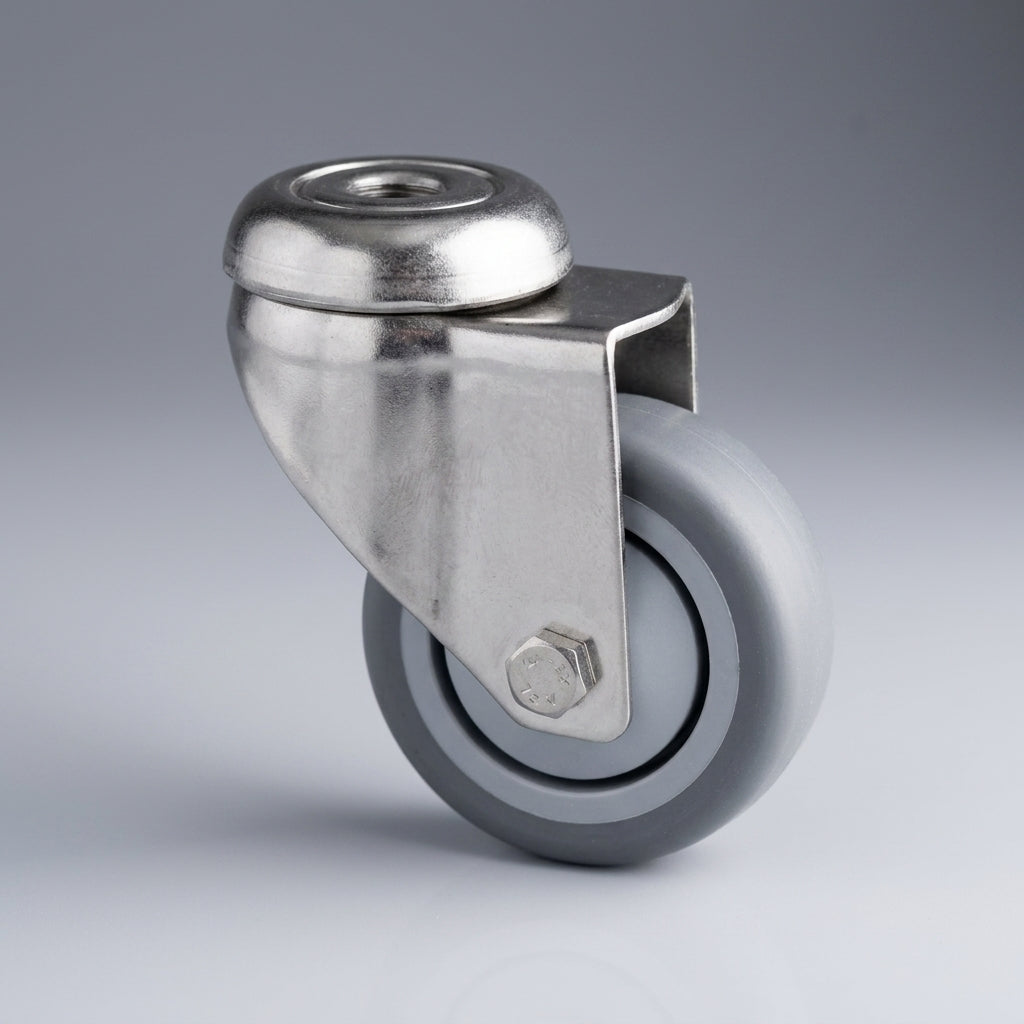

Bolt Hole Stainless Steel Castors

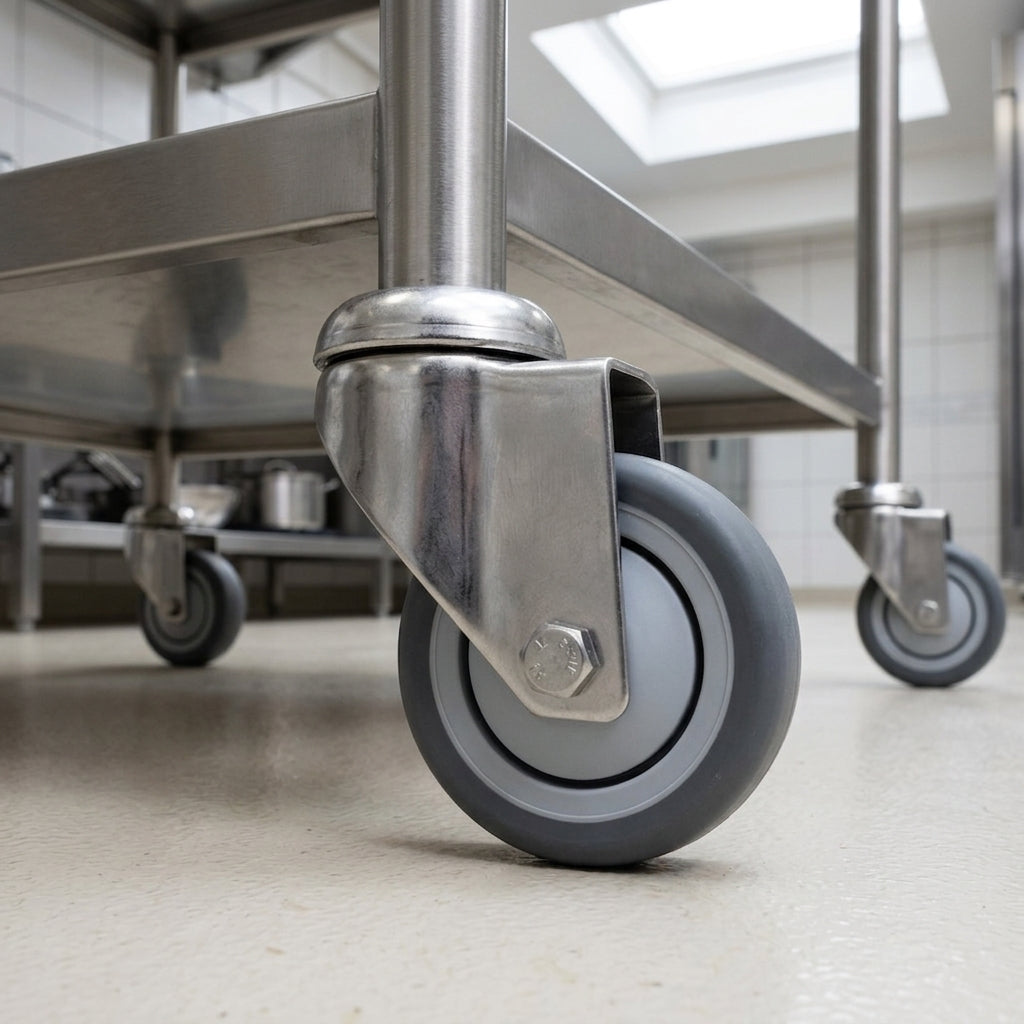

This 60mm stainless steel swivel castor is made for healthcare settings, where hygiene and easy movement both matter. Its grey rubber tread on a polypropylene core gives good grip and manoeuvrability on smooth indoor floors, and it carries 40kg per castor.
It is light but sturdy, runs on a plain bearing, and fits through a single 12mm bolt hole in the centre of the swivel head, so it suits equipment on tube legs.
Why Choose This Castor
- ✓ Stainless steel housing for hygiene-focused environments.
- ✓ Grey rubber tread on a polypropylene core, 22mm wide and 85 Shore A.
- ✓ Plain bearing that keeps the castor simple and light.
- ✓ Single 12mm bolt hole in the centre of the swivel head.
- ✓ 40kg load capacity per castor.
- ✓ Compact size at 89mm tall with a 57mm swivel radius.
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital beds: smooth movement and positioning.
- ✓ Medical trolleys: reliable mobility when transporting equipment.
- ✓ Laboratory equipment: easy relocation within controlled environments.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, so it turns freely through 360 degrees.
How much weight can a set of four carry?
Each castor is rated for 40kg. Planning on three castors carrying the load, a set of four suits about 120kg.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
What floors does the wheel suit?
The 85 Shore A rubber tread gives good grip and manoeuvrability on smooth indoor surfaces.
How much space does it need to swivel?
The swivel radius is 57mm and the total castor height is 89mm.
Where can I use this castor?
It suits hospital beds, medical trolleys and laboratory equipment.
