- Load per castor100kg per castor *
- Wheel diameter60mm
- Overall height89mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- 316 Grade Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Bearing Type
- Plain Bearing
- Load Capacity
- 100kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 42mm
- Total Castor Height
- 89mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole12mm
- Overall height89mm
- Swivel radius42mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

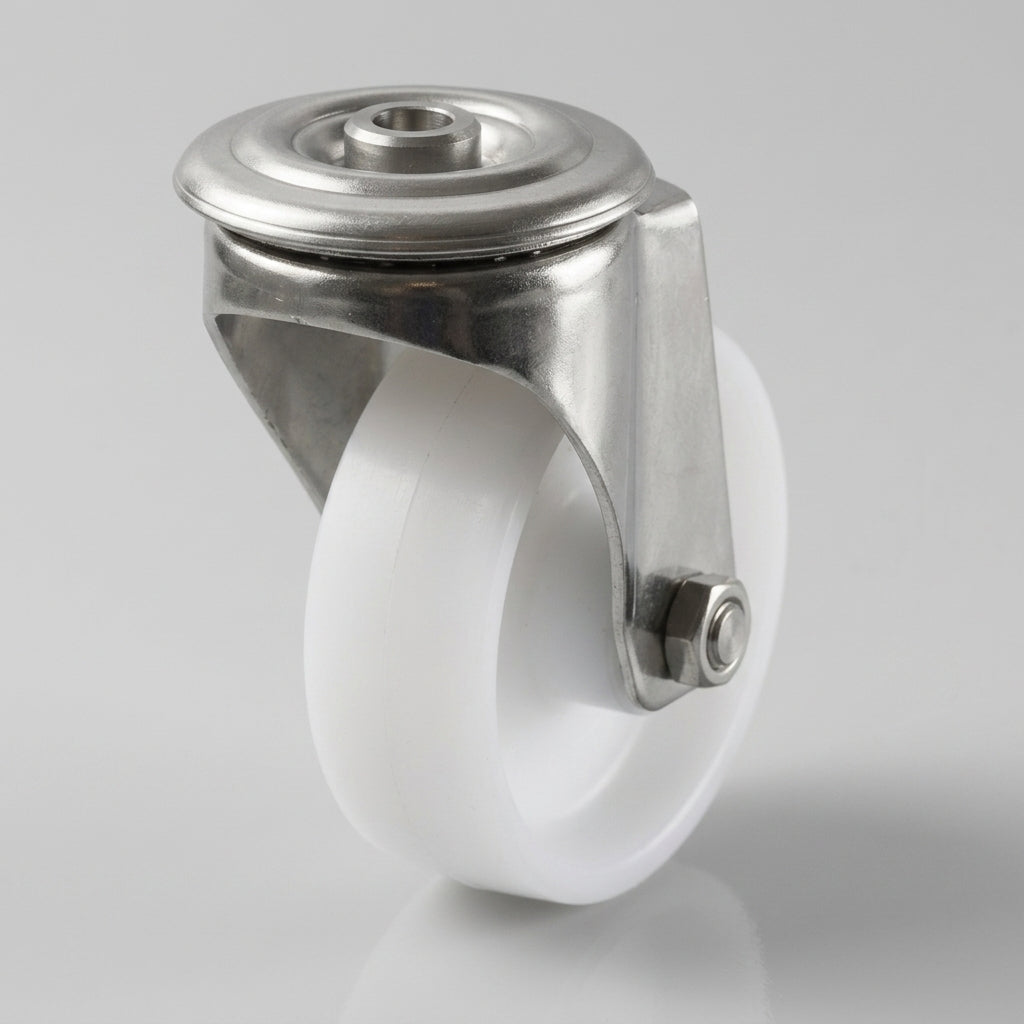

316 Stainless Steel Bolt Hole Castor
This 60mm swivel castor is made from 316 grade stainless steel and runs on a hard-wearing white nylon wheel, carrying up to 100kg per castor. 316 stainless gives extra corrosion resistance against salt, chemicals and strong cleaning agents, so it suits hospital, pharmaceutical, food and marine equipment.
The nylon wheel runs directly on the axle with a plain bearing and rolls easily on smooth floors. A single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing, and the castor works from -40°C to +80°C.
Why Choose This Castor
- ✓ 316 grade stainless steel housing for the most corrosive and washdown areas
- ✓ Hard-wearing white nylon wheel for smooth floors
- ✓ 100kg load capacity per castor
- ✓ Works from -40°C to +80°C
- ✓ Compact 89mm height with a 42mm swivel radius
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

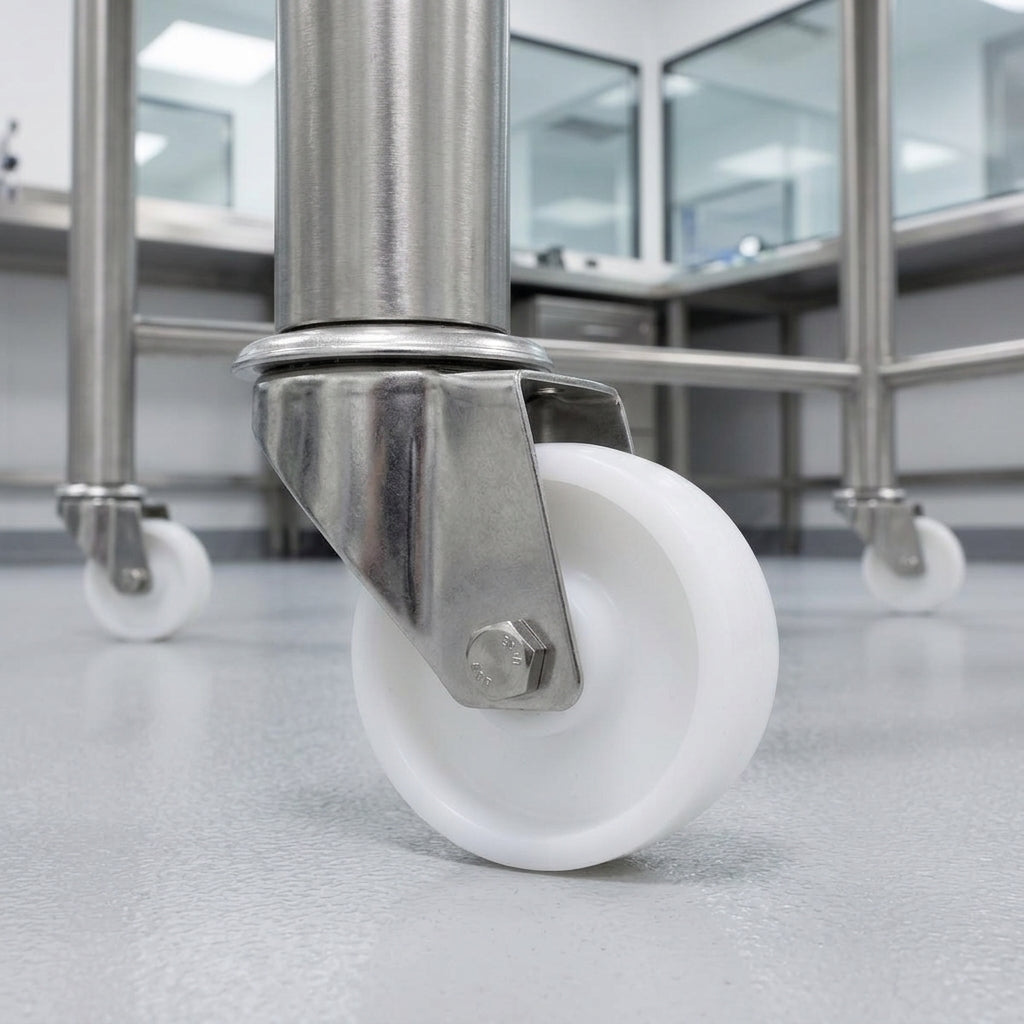

- ✓ Hospital and medical trolleys that are cleaned with strong disinfectants
- ✓ Pharmaceutical and laboratory equipment in clean rooms
- ✓ Food processing, marine and chemical environments
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can it carry?
Each castor is rated at 100kg. A set of four is best used for loads up to around 300kg, allowing for uneven floors.
What is the difference between 316 and standard stainless steel?
316 grade stainless contains molybdenum, which gives it better resistance to salt water, chemicals and chlorine-based cleaners than standard 304 stainless.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What temperatures can it work in?
The castor works from -40°C to +80°C.
How tall is the castor?
The total castor height is 89mm and it needs 42mm of clearance to swivel freely.
