- Load per castor40kg per castor *
- Wheel diameter60mm
- Overall height89mm
- WheelElectrically Conductive Rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Electrically Conductive Rubber
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Hardness of Tread
- A85
- Bearing Type
- Ball Bearing
- Load Capacity
- 40kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 57mm
- Total Castor Height
- 89mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole12mm
- Overall height89mm
- Swivel radius57mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

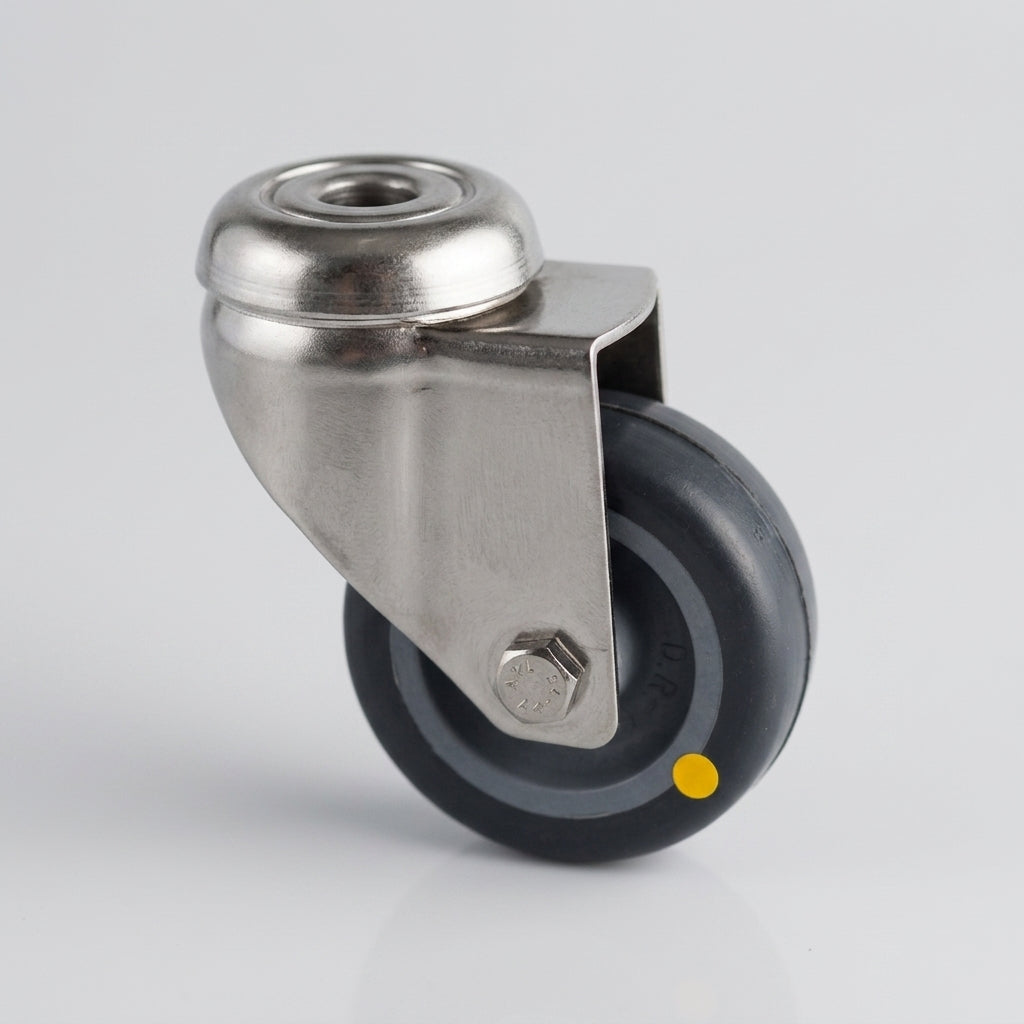

Stainless Steel Bolt Hole Castor
This 60mm stainless steel swivel castor runs on a grey electrically conductive rubber wheel and carries up to 40kg per castor. The wheel helps to dissipate static electricity, which suits medical equipment, laboratory furniture and electronics manufacturing.
A ball journal bearing gives smooth swivelling, and the A85 tread is set on a stainless steel castor made for light-duty work. A single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing, which keeps fitting simple.
Why Choose This Castor
- ✓ Electrically conductive rubber wheel to help dissipate static
- ✓ Stainless steel housing for washdown areas
- ✓ Ball journal bearing for smooth swivelling
- ✓ A85 tread hardness
- ✓ 40kg load capacity per castor
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

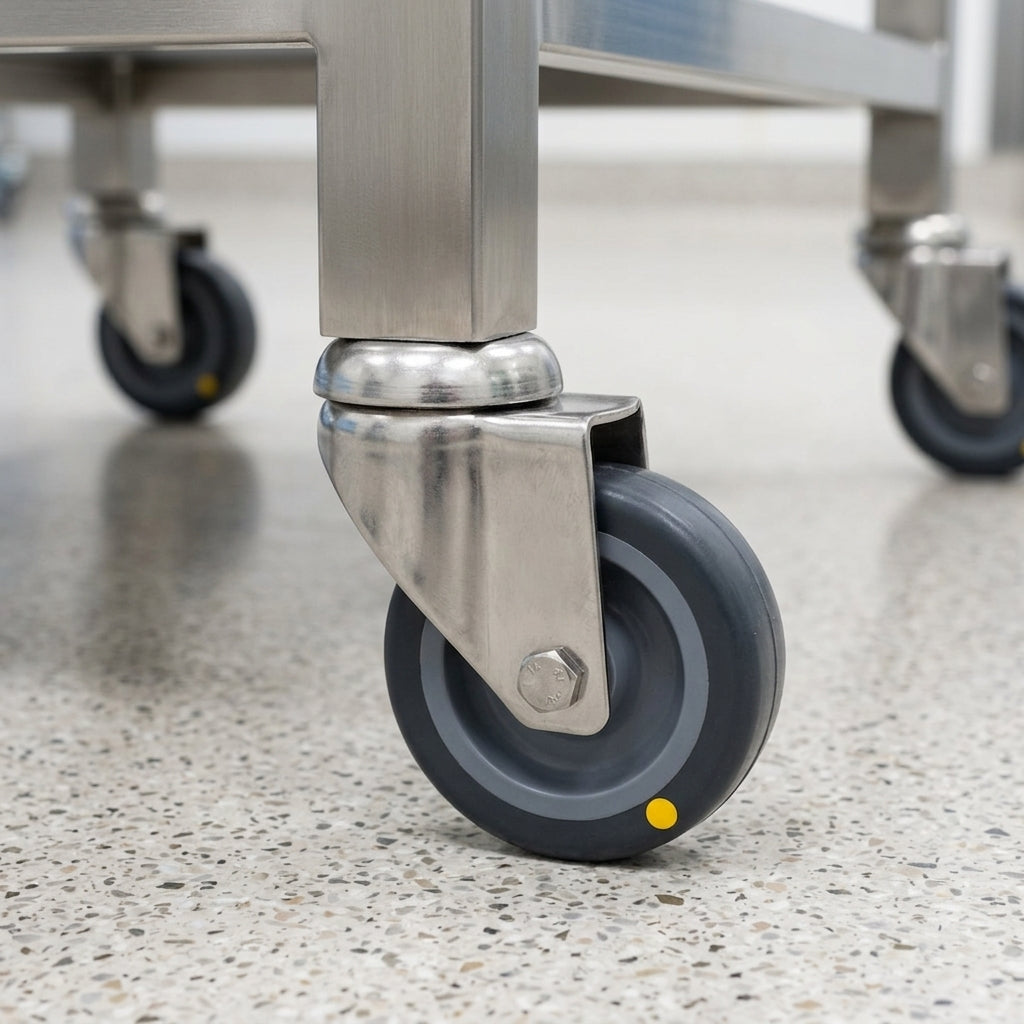

- ✓ Hospital trolleys and carts where static discharge needs to be controlled
- ✓ Laboratory benches and tables to prevent static build-up
- ✓ Electronics manufacturing where sensitive components are handled
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
Why choose an electrically conductive wheel?
The conductive rubber helps to dissipate static electricity and reduces the risk of static build-up, which matters around medical equipment and sensitive electronics.
How much weight can it carry?
Each castor is rated at 40kg. A set of four is best used for loads up to around 120kg, allowing for uneven floors.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What temperatures can it work in?
The castor works from -20°C to +60°C.
How tall is the castor?
The total castor height is 89mm and it needs 57mm of clearance to swivel freely.
