- Load per castor40kg per castor
- Wheel diameter60mm
- Overall height89mm
- WheelElectrically Conductive Rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Electrically Conductive Rubber
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- Shore A85
- Bearing Type
- Roller Bearing
- Brake
- Total Lock (Wheel and Swivel)
- Load Capacity
- 40kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 65 x 50mm
- Plate Hole Centres
- 50 x 36mm
- Plate Hole Diameter
- 6mm
- Swivel Radius
- 90mm
- Total Castor Height
- 89mm
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

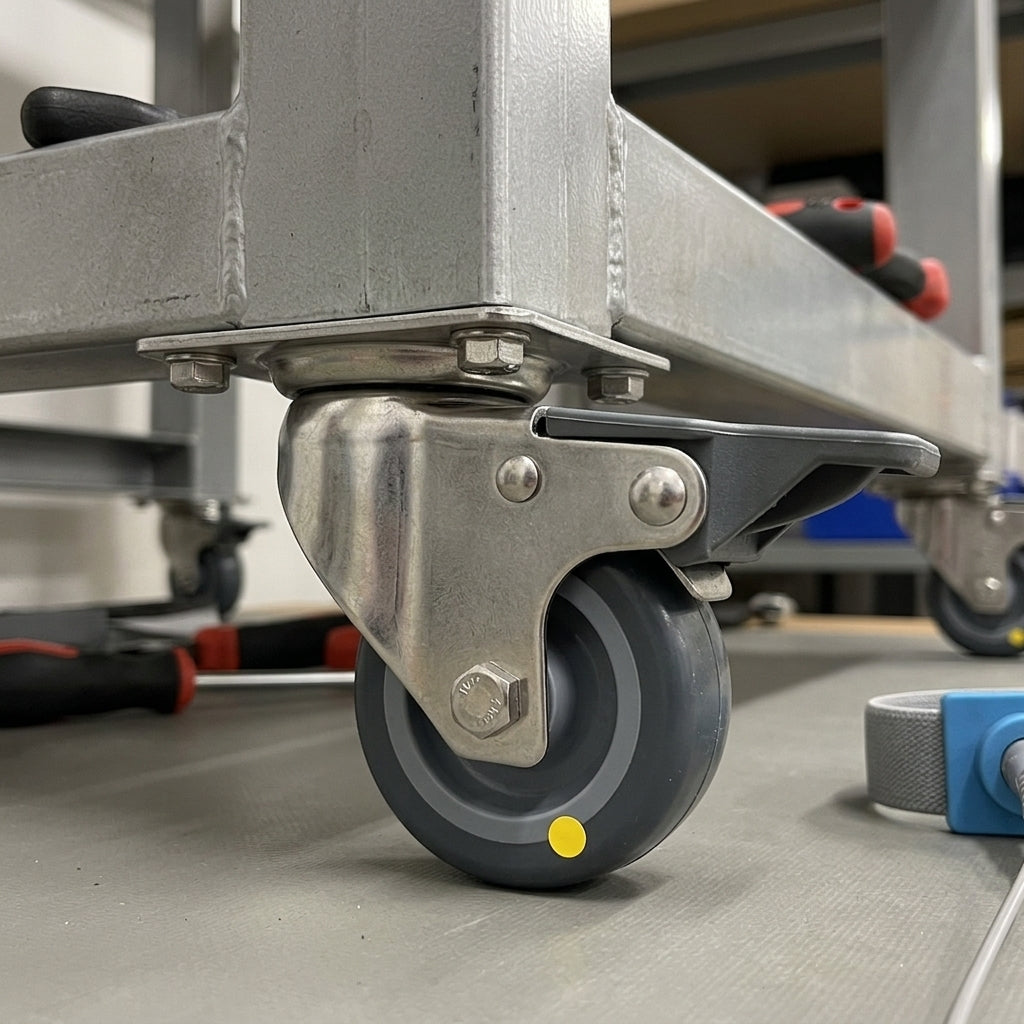

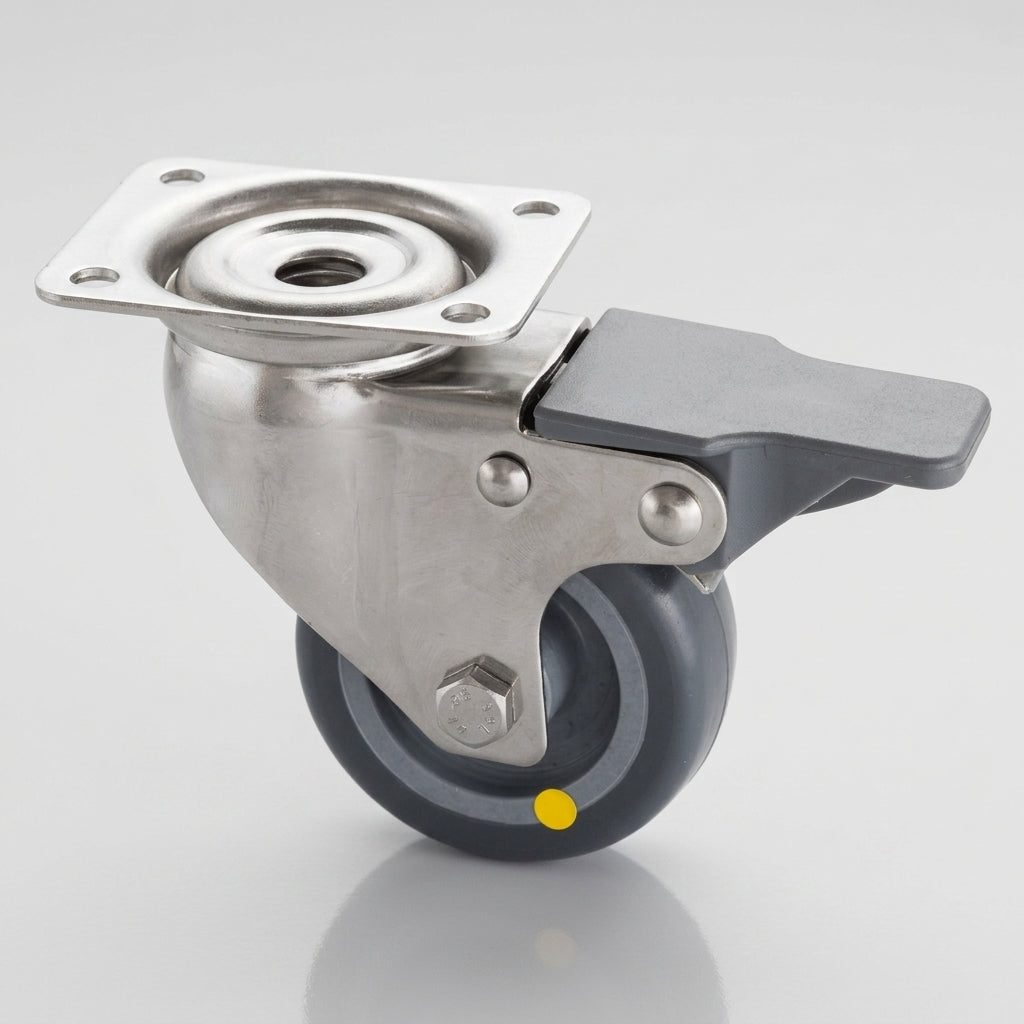

Stainless Steel Braked Swivel Castor
This compact 60mm stainless steel braked swivel castor runs on a grey electrically conductive rubber wheel that safely carries static charge to the floor, with a load capacity of 40kg per castor. It is made for medical trolleys, laboratory apparatus and hospital beds where static build-up must be prevented.
The stainless steel housing stands up to regular cleaning, and the small 65 x 50mm top plate bolts securely to the underside of your equipment. The A85 rubber tread gives a good balance of grip and durability, the roller bearing keeps the wheel turning smoothly, and the brake locks both the wheel and the swivel head when the equipment needs to stay put.
Why Choose This Castor
- ✓ Brake locks both the wheel and the swivel head
- ✓ Electrically conductive wheel for static-sensitive areas
- ✓ Stainless steel housing for hygienic and clean areas
- ✓ 40kg load capacity per castor
- ✓ Compact 60mm grey rubber wheel with a 22mm tread
- ✓ 65 x 50mm top plate with four 6mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Medical equipment: trolleys and carts in healthcare settings where static build-up must be prevented.
- ✓ Laboratory equipment: sensitive apparatus that needs anti-static protection.
- ✓ Hospital beds: mobility with secure locking when braked.
Frequently Asked Questions
What does electrically conductive mean?
The rubber wheel lets static charge flow from your equipment to the floor, which protects sensitive electronics and reduces the risk of sparks.
How much weight can it carry?
Each castor is rated at 40kg. Add up the castors fitted to your equipment to work out the total load.
What does the brake lock?
The brake locks both the wheel and the swivel head, so the castor can neither roll nor turn while the brake is on.
How is it fitted?
It has a 65 x 50mm top plate with four 6mm holes on 50 x 36mm centres, bolted to the underside of your equipment.
What temperatures is it suitable for?
The castor is rated for use from -20°C to +60°C, which suits hospitals, laboratories and normal indoor areas.
How tall is the castor?
The total castor height is 89mm and it needs 90mm of clearance to swivel freely.
