- Load per castor40kg per castor *
- Wheel diameter60mm
- Overall height89mm
- WheelThermoplastic Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Thermoplastic Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- A85
- Bearing Type
- Plain
- Load Capacity
- 40kg per castor *
- Top Plate Size
- 65 x 54mm
- Bolt Hole Centres
- 50 x 36mm
- Bolt Hole Diameter
- 6mm
- Total Castor Height
- 89mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole50 x 36mm
- Overall height89mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

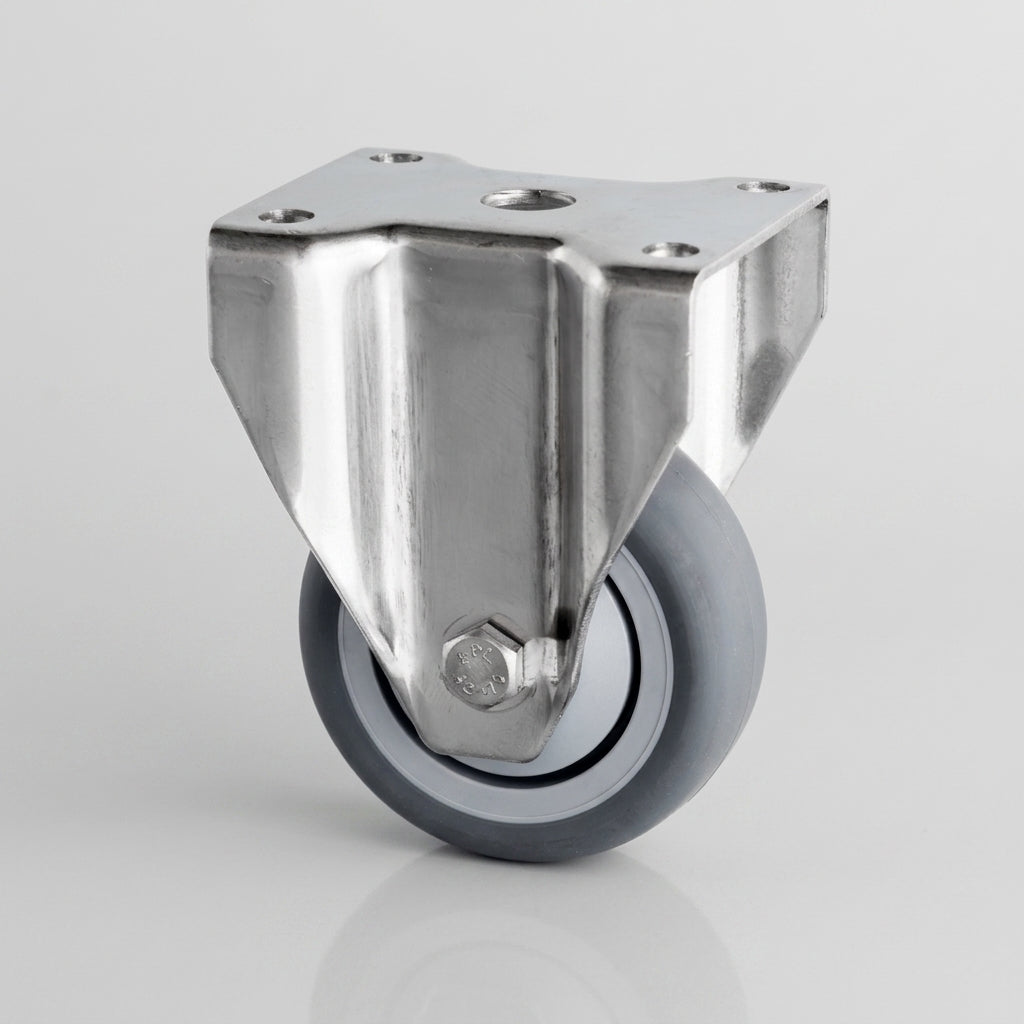

Stainless Steel Fixed Castor
This 60mm stainless steel fixed castor runs on a grey thermoplastic rubber wheel with a lightweight polypropylene centre, carrying up to 40kg per castor. It is made for hospital beds, medical trolleys, laboratory carts and medical devices that need stable, smooth movement.
The rigid stainless bracket keeps equipment tracking in a straight line. The A85 rubber tread grips well and runs quietly, the plain bearing keeps maintenance low, and the compact 65 x 54mm top plate with four 6mm holes gives a secure fitting. It works from -20°C to +60°C.
Why Choose This Castor
- ✓ Fixed (rigid) design for straight, controlled travel
- ✓ Stainless steel bracket for washdown and hygienic areas
- ✓ Grey thermoplastic rubber tread on a polypropylene centre
- ✓ A85 tread hardness with a 22mm width for grip and quiet running
- ✓ Low-maintenance plain bearing
- ✓ Compact 65 x 54mm top plate with 6mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital beds and medical trolleys that need smooth mobility
- ✓ Laboratory carts transporting sensitive equipment
- ✓ Medical devices that need stable, smooth movement
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
What is a thermoplastic rubber wheel?
It has a soft rubber-like tread moulded onto a rigid polypropylene centre. The tread grips well and runs quietly, while the centre keeps the wheel light.
How much weight can it carry?
Each castor is rated at 40kg. A set of four is best used for loads up to around 120kg, allowing for uneven floors.
How is it fitted?
The 65 x 54mm top plate has four 6mm holes on 50 x 36mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 89mm.
