- Load per castor40kg per castor *
- Wheel diameter60mm
- Overall height89mm
- WheelElectrically Conductive Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Electrically Conductive Polyurethane
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- A85
- Bearing Type
- Roller
- Load Capacity
- 40kg per castor *
- Top Plate Size
- 65 x 54mm
- Bolt Hole Centres
- 50 x 36mm
- Bolt Hole Diameter
- 6mm
- Total Castor Height
- 89mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole50 x 36mm
- Overall height89mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

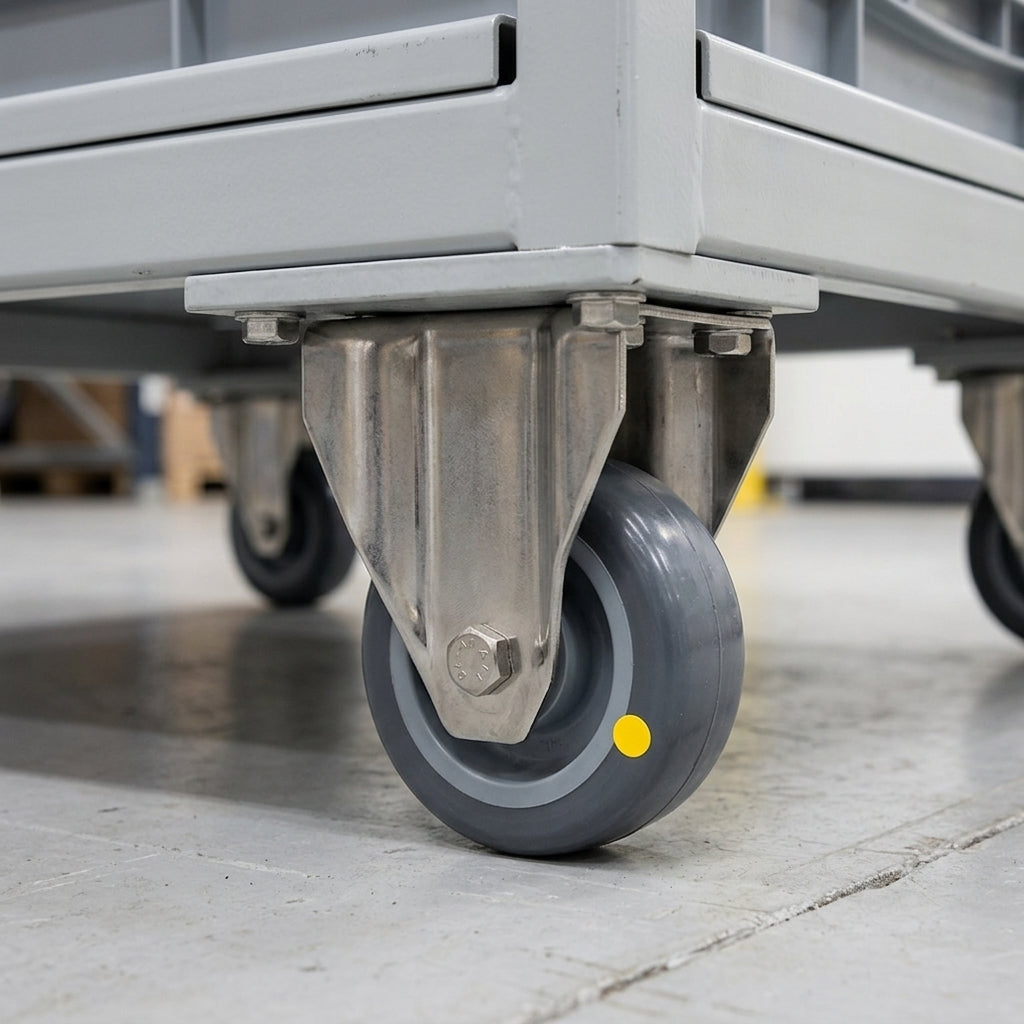

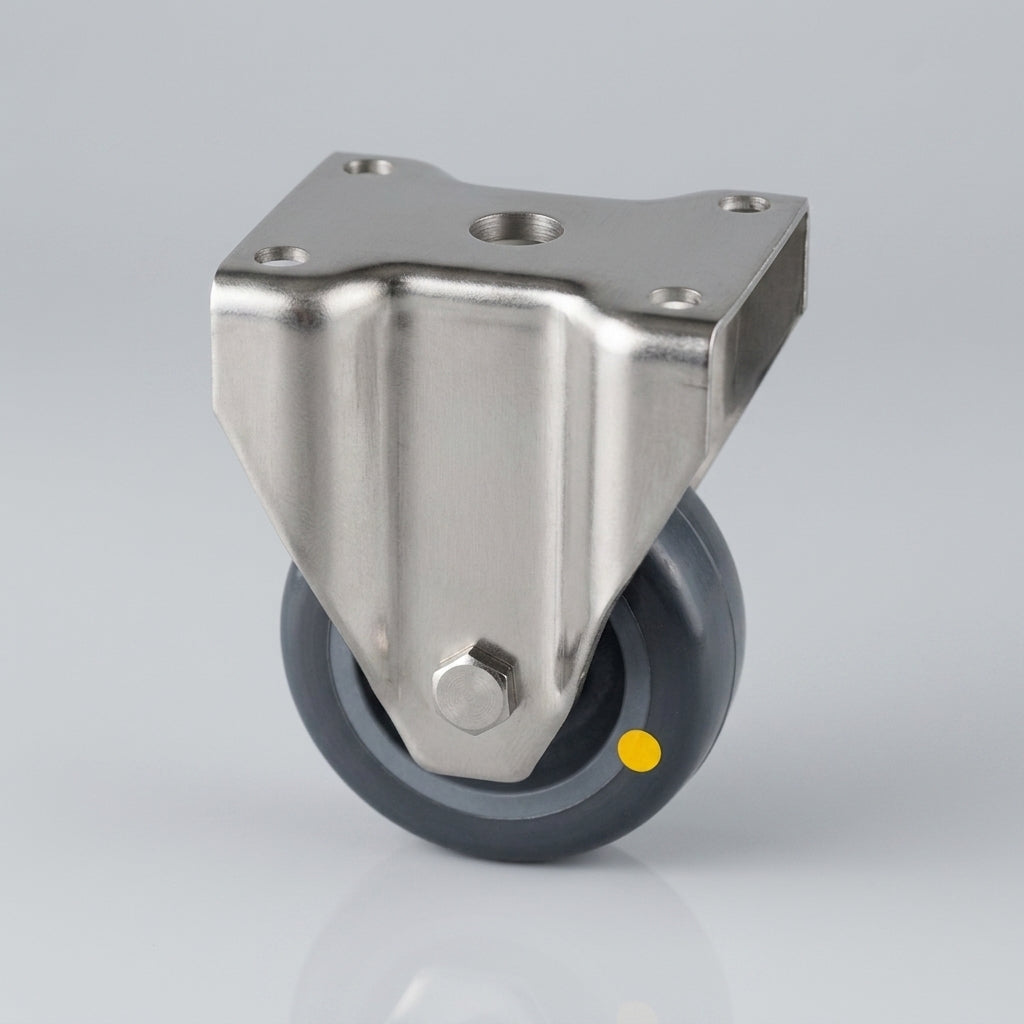

Stainless Steel Anti-Static Castor
This 60mm stainless steel fixed castor runs on a grey electrically conductive polyurethane wheel that helps dissipate static electricity, carrying up to 40kg per castor. It is made for healthcare and laboratory settings where static build-up must be controlled.
The rigid stainless bracket keeps equipment tracking in a straight line. A roller bearing gives smooth rotation, the soft A85 tread is kind to floors, and the compact 65 x 54mm top plate with four 6mm holes gives a secure fitting. It works from -20°C to +60°C.
Why Choose This Castor
- ✓ Electrically conductive polyurethane wheel to manage static discharge
- ✓ Fixed (rigid) design for straight, controlled travel
- ✓ Stainless steel bracket for washdown and hygienic areas
- ✓ Soft A85 grey tread with a 22mm width
- ✓ Roller bearing for smooth rotation
- ✓ Compact 65 x 54mm top plate with 6mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Healthcare equipment where static discharge control is critical
- ✓ Medical carts that need smooth, controlled movement
- ✓ Laboratory equipment that needs static control and precise mobility
Need a different size? See our anti-static castor range.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
What does electrically conductive mean?
The polyurethane wheel lets static electricity pass to the floor, which reduces the risk of static build-up on equipment.
How much weight can it carry?
Each castor is rated at 40kg. A set of four is best used for loads up to around 120kg, allowing for uneven floors.
How is it fitted?
The 65 x 54mm top plate has four 6mm holes on 50 x 36mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 89mm.
