- Load per castor100kg per castor *
- Wheel diameter60mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Housing
- 316 Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 35mm
- Load Capacity
- 100kg per castor *
- Top Plate Size
- 100 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Swivel Radius
- 42mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole80 x 60mm
- Swivel radius42mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

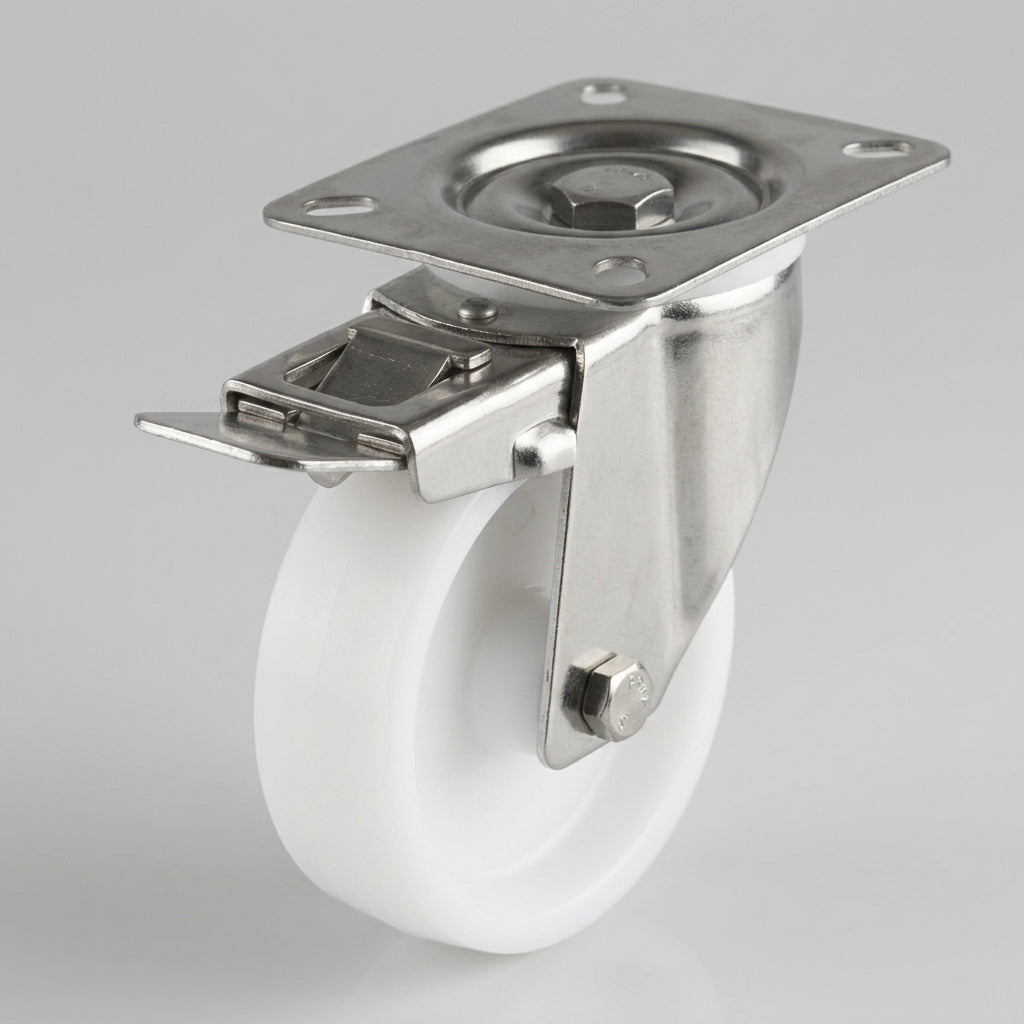

316 Stainless Steel Braked Castor

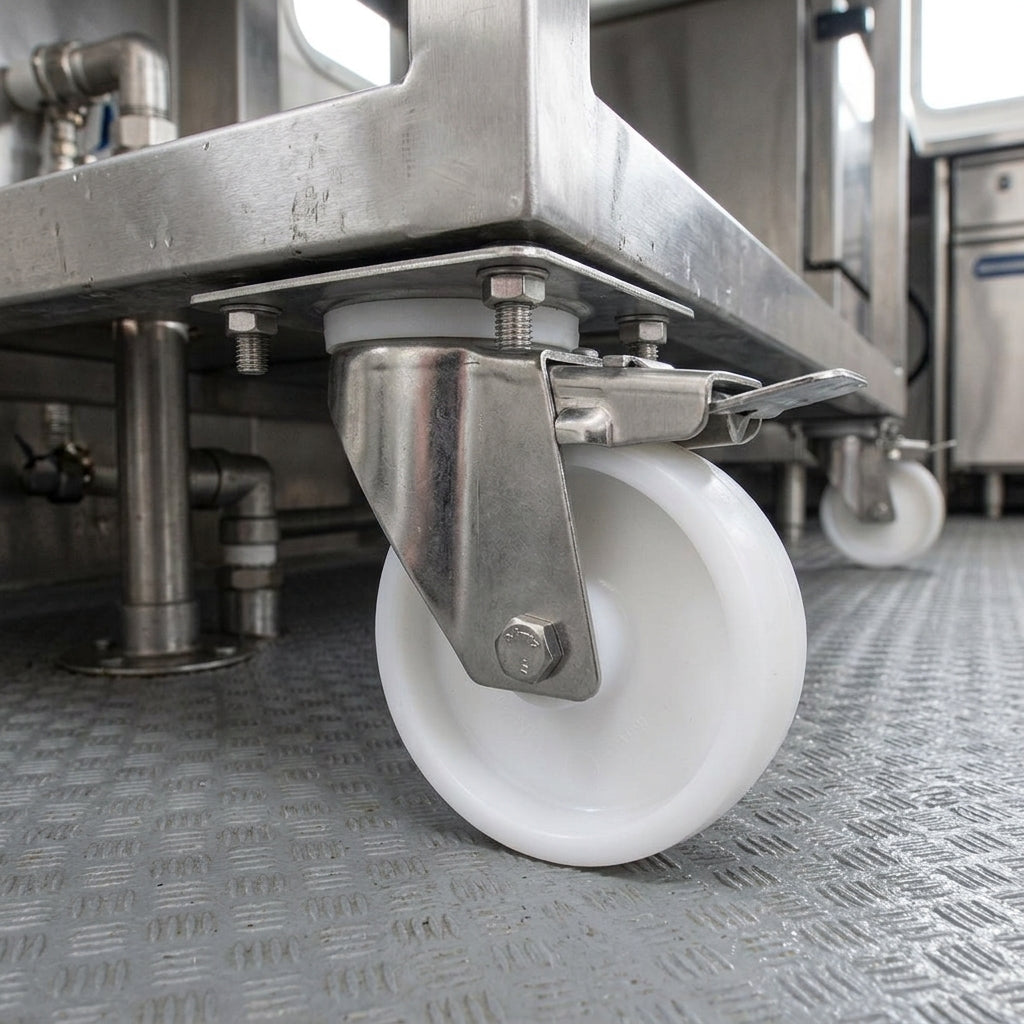

This 60mm 316 stainless steel braked swivel castor runs on a white nylon wheel, carrying up to 100kg per castor. It is made for medical equipment, food processing trolleys and laboratory carts where hygiene and corrosion resistance are critical.
The brake locks the wheel to give stability when the equipment is stationary. The hard-wearing nylon wheel suits smooth surfaces, and the 100 x 85mm top plate with four 8mm holes attaches securely to flat surfaces. It works from -40°C to +80°C.
Why Choose This Castor
- ✓ 316 stainless steel for hygiene and corrosion resistance
- ✓ Brake locks the wheel for stability when stationary
- ✓ Hard-wearing white nylon wheel for smooth surfaces
- ✓ 100kg load capacity per castor with a 35mm tread
- ✓ Compact 42mm swivel radius
- ✓ Works from -40°C to +80°C
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Medical equipment that needs hygiene and corrosion resistance
- ✓ Food processing trolleys moving on smooth surfaces
- ✓ Laboratory carts that need braked stability
Need a different size? See our stainless steel braked castor range.
Frequently Asked Questions
What does the brake lock?
The brake locks the wheel, which keeps the equipment stable when it is stationary.
How much weight can it carry?
Each castor is rated at 100kg, with a maximum of 300kg for a set of four.
How is it fitted?
The 100 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
What floors does it suit?
The hard-wearing nylon wheel is well suited to smooth surfaces.
What temperatures can it handle?
It is rated from -40°C to +80°C.
