- Load per castor40kg per castor *
- Wheel diameter60mm
- Overall height89mm
- WheelThermoplastic Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 60mm
- Wheel Material
- Thermoplastic Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Hardness of Tread
- A85
- Bearing Type
- Plain Bearing
- Load Capacity
- 40kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 90mm
- Total Castor Height
- 89mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole12mm
- Overall height89mm
- Swivel radius90mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

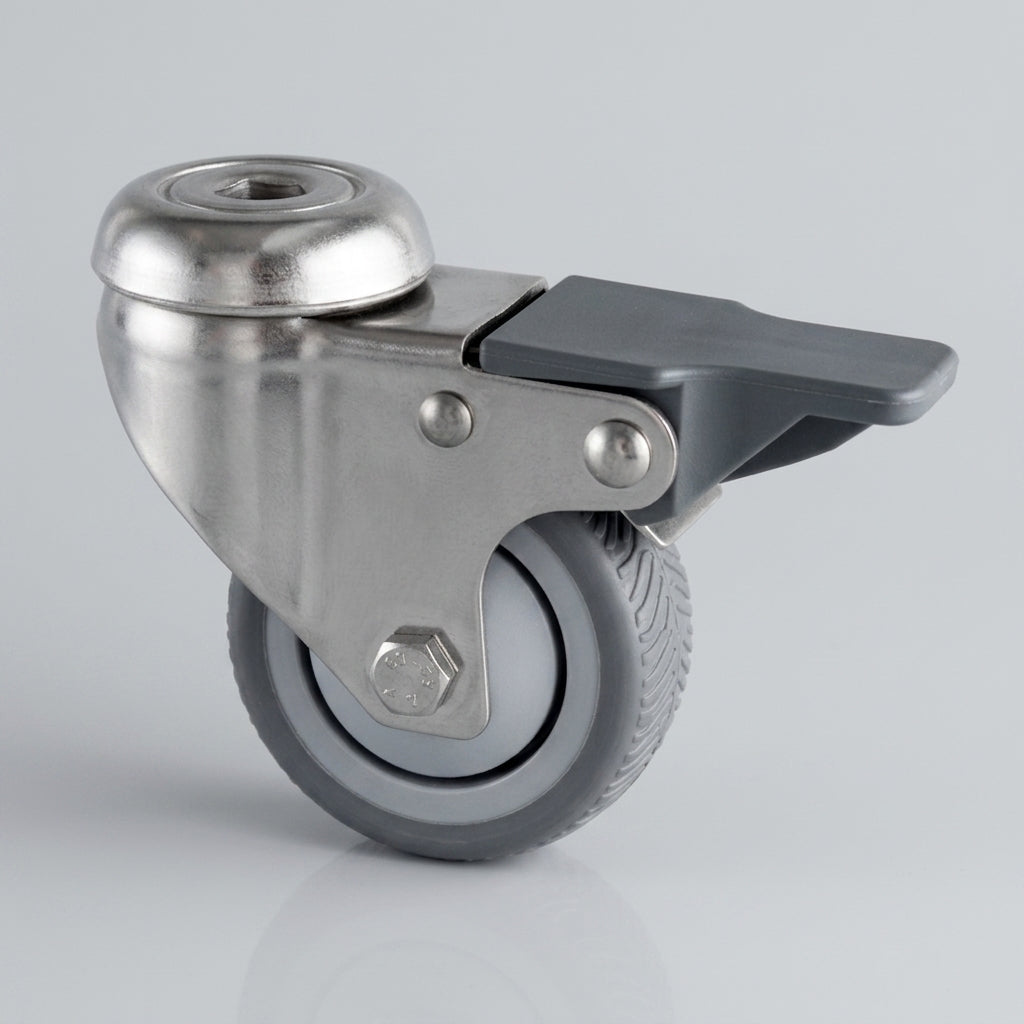

Stainless Steel Bolt Hole Castor
This 60mm stainless steel braked swivel castor runs on a grey thermoplastic rubber wheel set on a polypropylene core and carries up to 40kg per castor. It suits hospital beds, medical carts, laboratory trolleys and medical devices that need steady movement and secure braking.
The A85 tread balances grip with durability, and the plain bearing keeps the wheel rolling smoothly. A single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing, which keeps installation simple, and the brake holds the equipment in place when it is parked.
Why Choose This Castor
- ✓ Foot brake to hold equipment in place when parked
- ✓ Stainless steel housing for washdown areas
- ✓ Grey thermoplastic rubber wheel on a polypropylene core
- ✓ A85 tread hardness for a balance of grip and durability
- ✓ 40kg load capacity per castor
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

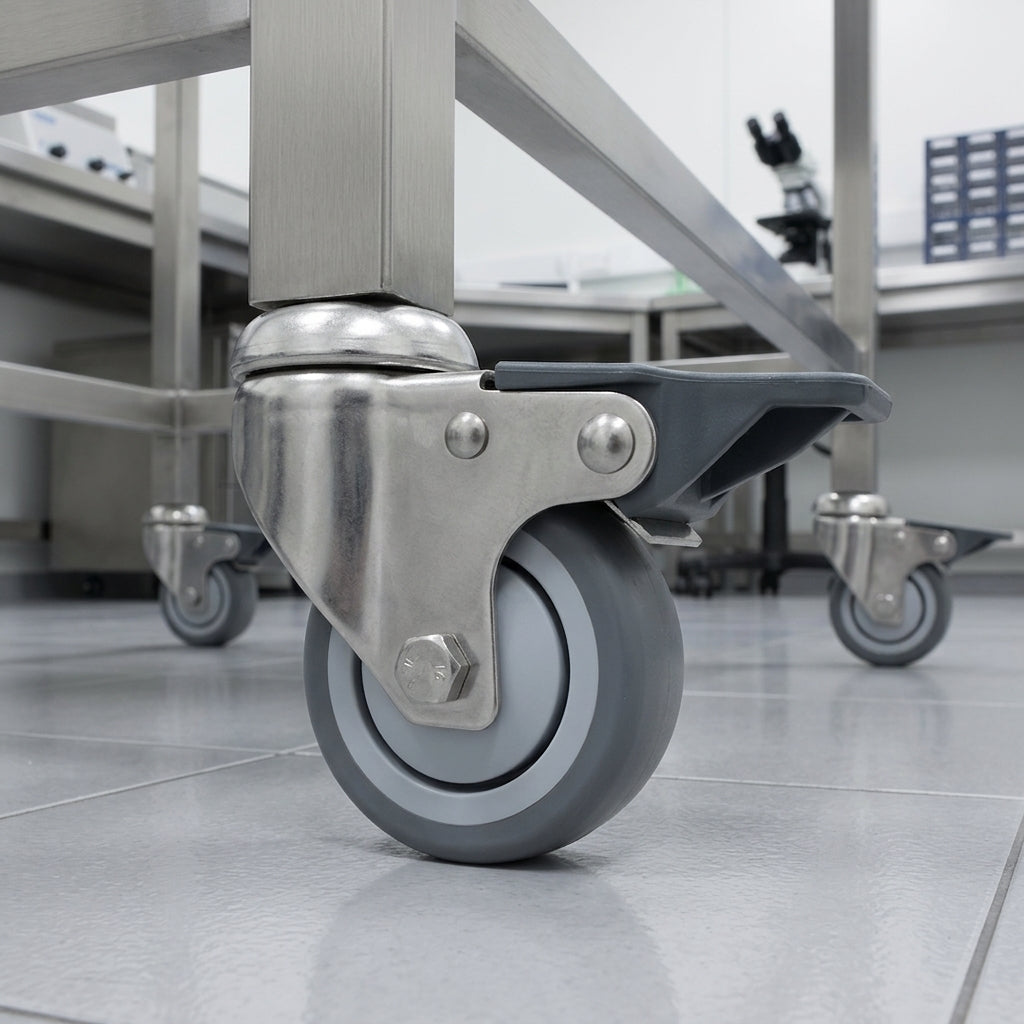

- ✓ Healthcare equipment such as hospital beds and medical carts
- ✓ Laboratory trolleys used for transporting equipment
- ✓ Medical devices that need precise positioning and braking
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can it carry?
Each castor is rated at 40kg. A set of four is best used for loads up to around 120kg, allowing for uneven floors.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What is the wheel made of?
The wheel has a grey thermoplastic rubber tread with an A85 hardness, set on a polypropylene core.
What temperatures can it work in?
The castor works from -20°C to +60°C.
How tall is the castor?
The total castor height is 89mm and the swivel radius is 90mm.
