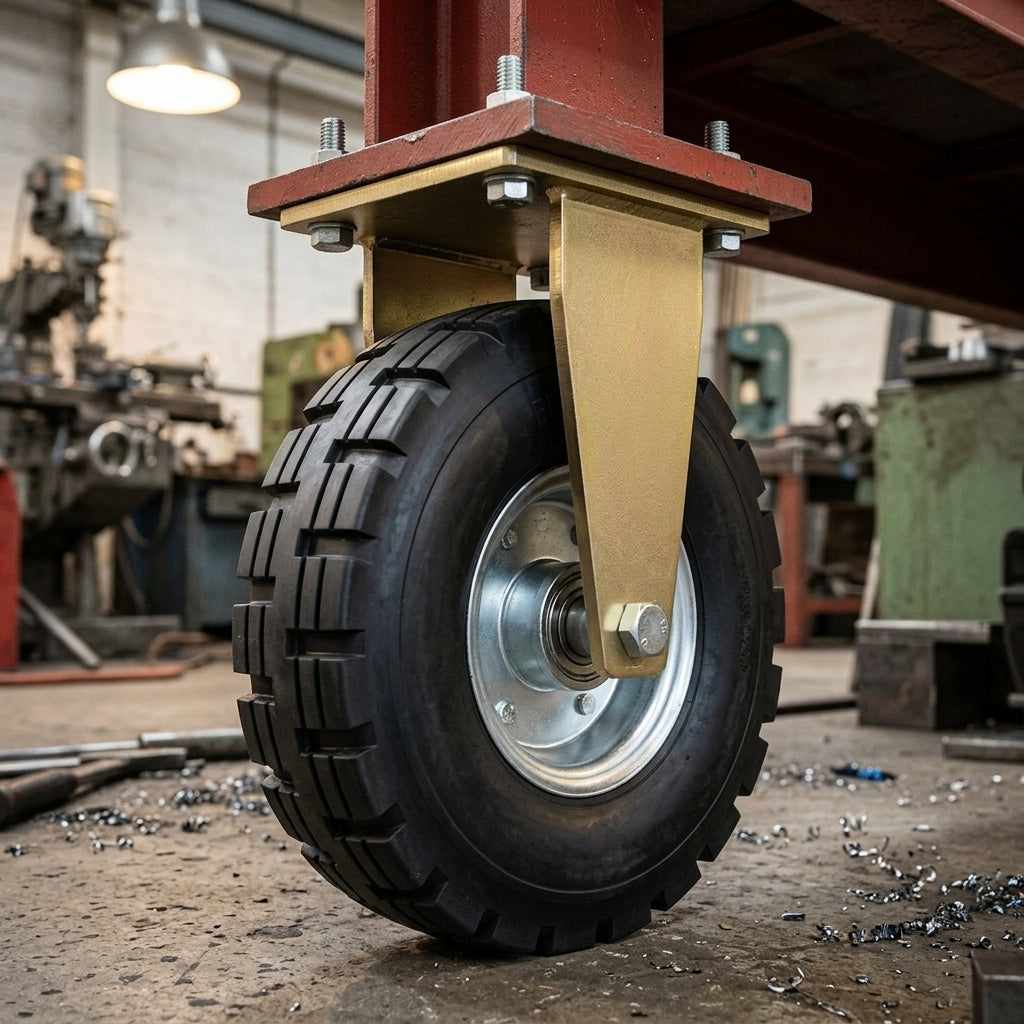

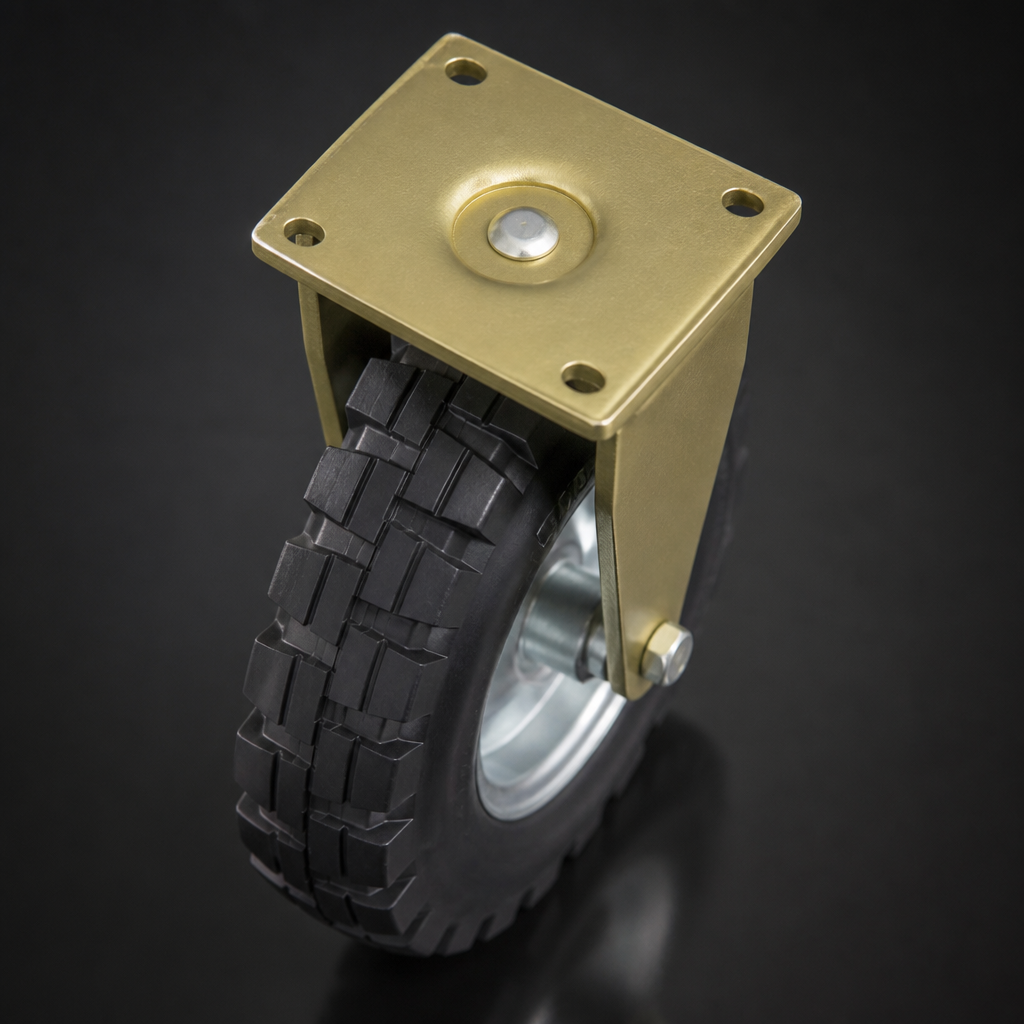

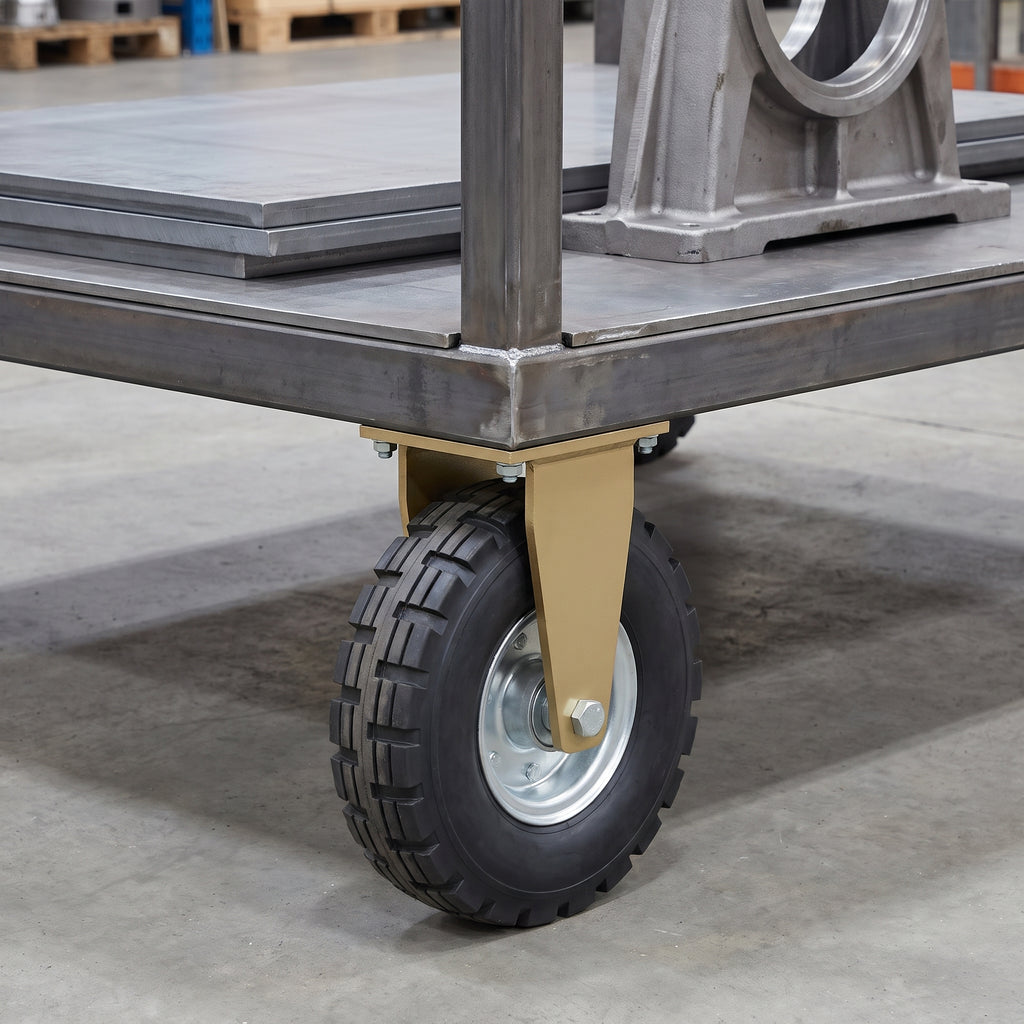

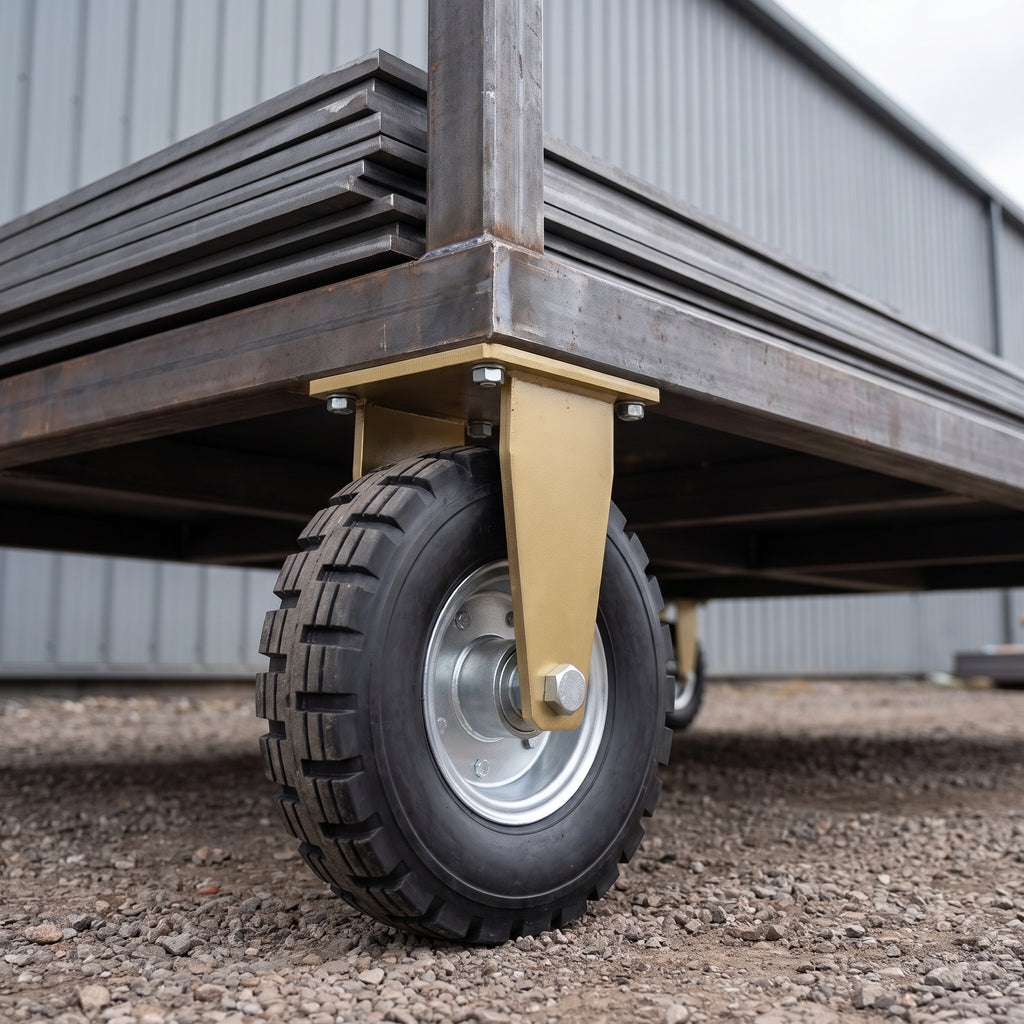

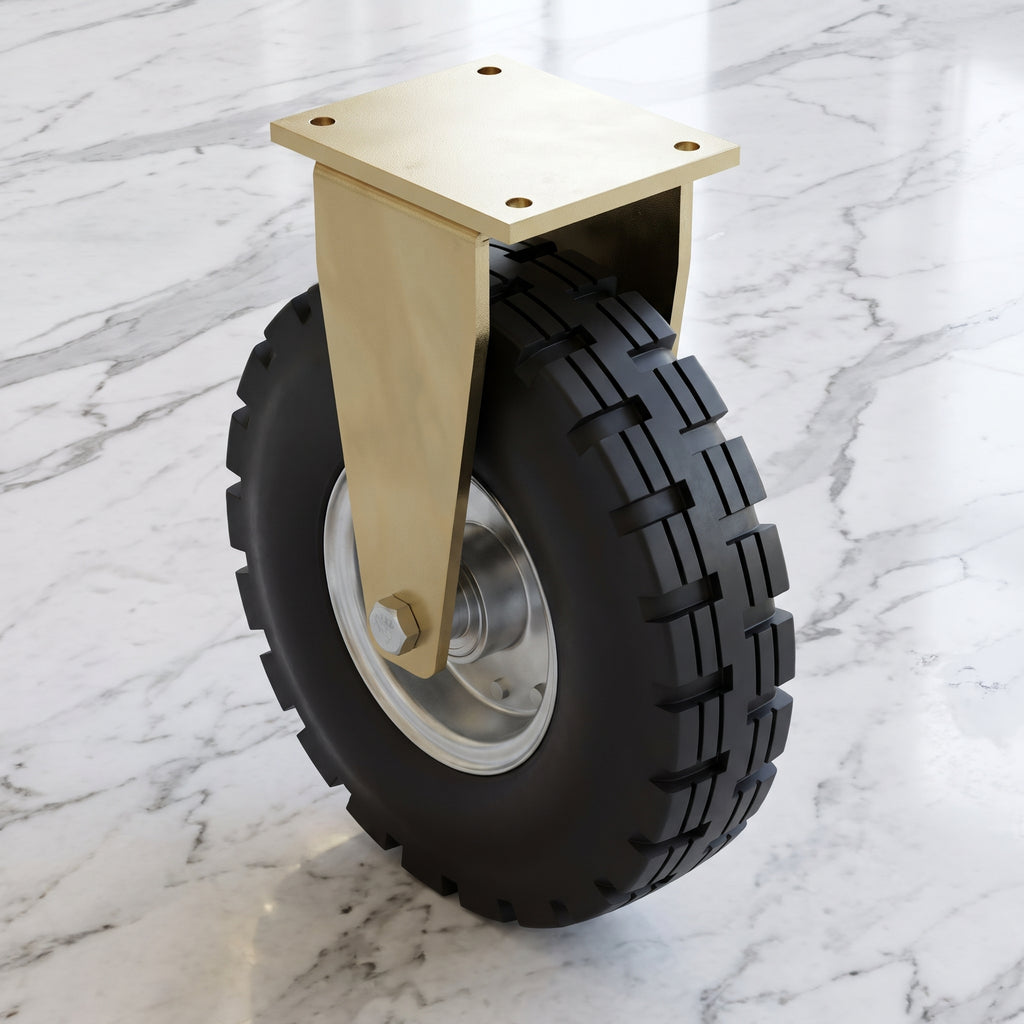

525mm Fixed Castor - Elastic Rubber Wheel, Block Rib Tread

Heavy-duty fixed castor for reliable performance.

This fixed castor is designed for heavy-duty applications, featuring a 525mm diameter elastic rubber wheel with a block rib tread for enhanced grip. It supports a load capacity of 1885 kg, making it suitable for demanding weight requirements. Ensure compatibility by checking the bolt hole size and plate dimensions against existing equipment before ordering.

Key Features

• Wheel Diameter: 525mm – check against the existing wheel size.
• Tread Width: 140mm – matches the contact surface width.
• Load Capacity: 1885kg – maximum load rating per wheel.
• Bearing Type: Ball Bearing – facilitates smooth rotation.
• Plate Length: 255mm – overall length of the mounting plate.
• Plate Width: 200mm – overall width of the mounting plate.
• Plate Hole Centres Length: 210mm – distance between mounting holes lengthwise.
• Plate Hole Centres Width: 160mm – distance between mounting holes widthwise.

Applications

• Industrial trolleys: Provides stable support for transporting heavy loads.
• Warehouse equipment: Ideal for moving large items efficiently.
• Material handling: Enhances mobility in various industrial settings.
• Transport carts: Facilitates easy movement of goods.
