- Load per castor60kg per castor
- Wheel diameter50mm
- Overall height72mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Braked Swivel Bolt Hole Castor
- Wheel Diameter
- 50mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 10mm (M10)
- Bearing Type
- Plain
- Swivel Radius
- 84mm
- Total Castor Height
- 72mm
- Load Capacity
- 60kg per castor
- Brake
- Yes, locks wheels and swivel head
Will it fit?
- Bolt hole10mm (M10)
- Overall height72mm
- Swivel radius84mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Twin Wheel Castors

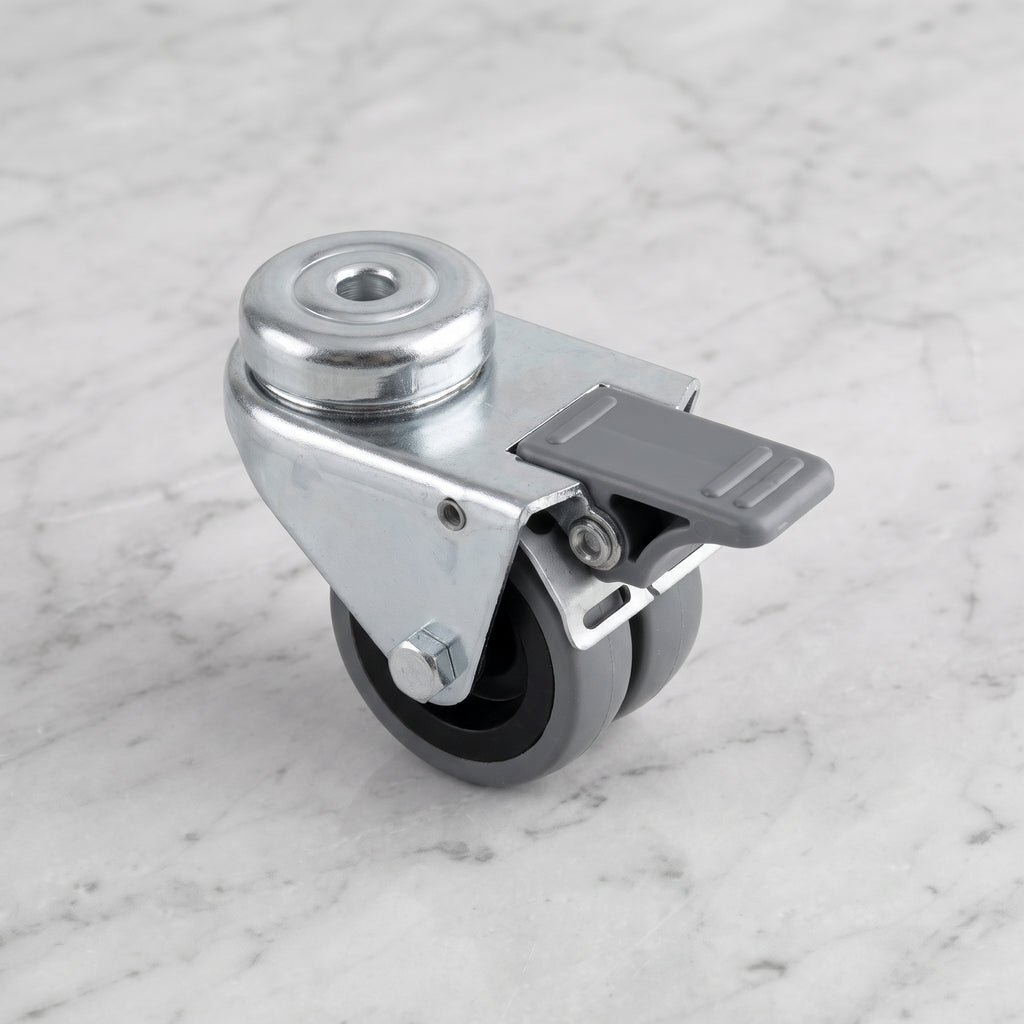

This compact 50mm twin wheel braked castor fits through a single 10mm bolt hole and carries up to 60kg per castor. Two grey rubber wheels roll quietly side by side on a smooth swivel head, and the foot brake locks both the wheels and the swivel head, so shop displays, retail carts and display stands move easily and stay firmly in place when parked.
A popular choice for shop fitting equipment, retail carts and display stands, this braked bolt hole twin wheel castor combines a low 72mm total height with an 84mm swivel radius. The grey rubber on polypropylene wheels grip well and roll quietly on shop floors, and the plain bearing keeps the castor simple and low maintenance.
Why Choose This Castor
- ✓ Twin wheel design spreads the load over two wheels for easy steering and gentle floor contact.
- ✓ Foot brake locks both the wheels and the swivel head for secure positioning.
- ✓ Single 10mm bolt hole fixing for quick fitting into tube legs with a tube adaptor.
- ✓ 60kg load capacity per castor with an 84mm swivel radius for easy steering.
- ✓ Grey rubber on polypropylene wheels for quiet running and good floor grip.
- ✓ Low 72mm total height keeps displays and fixtures close to the floor.
* Load capacity is per castor on a smooth, level floor. Choose a bolt and tube adaptor that match the 10mm bolt hole and the inside of your tube leg.
Where It Works Best
This braked twin wheel bolt hole castor is made for light duty equipment that must move easily and then stay put:
- ✓ Shop fitting equipment: displays and fixtures that need easy repositioning and stability.

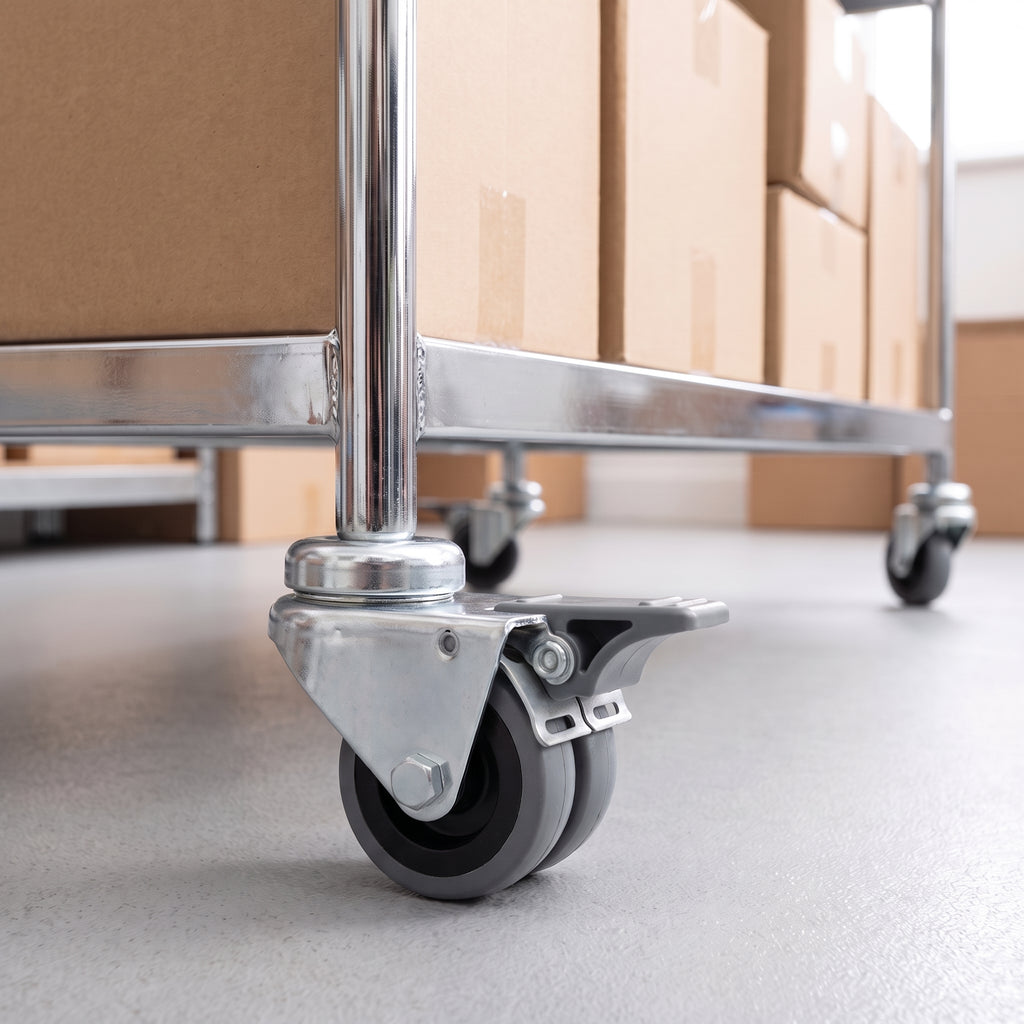

- ✓ Retail carts: smooth movement and secure braking for merchandise transport.

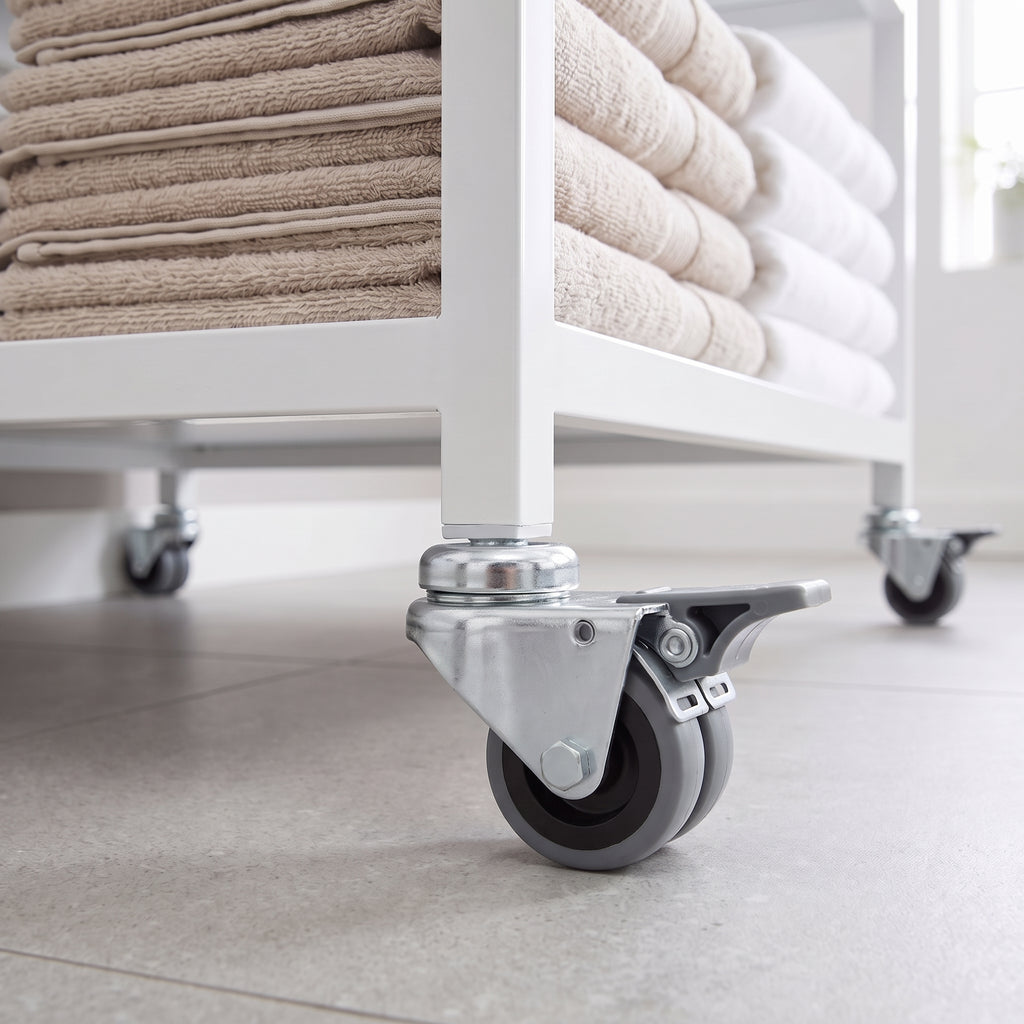

- ✓ Display stands: flexible arrangement and secure positioning in retail environments.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 60kg on a smooth, level floor.
What size bolt does it take?
It has a single 10mm bolt hole, so it suits an M10 bolt or threaded stud.
Can I fit it into a tube leg?
Yes. Use a round or square tube adaptor that matches the inside size of your tube, then bolt the castor into the adaptor.
How tall is the castor?
The total castor height is 72mm and the swivel radius is 84mm.
What does the brake lock?
Pressing the foot pedal locks both the wheels and the swivel head, so the castor can neither roll nor turn.
