- Load per castor65kg *
- Wheel diameter50mm
- Overall height72mm
- WheelPolypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Braked Top Plate Castor
- Wheel Diameter
- 50mm
- Wheel Material
- Polypropylene
- Wheel Colour
- Black
- Tread Width
- 22mm
- Bearing Type
- Plain
- Load Capacity
- 65kg *
- Plate Length
- 60mm
- Plate Width
- 60mm
- Plate Hole Centres Length
- 48/38mm
- Plate Hole Centres Width
- 48/38mm
- Plate Hole Diameter
- 6mm
- Swivel Radius
- 80mm
- Total Castor Height
- 72mm
Will it fit?
- Top plate60mm × 60mm
- Hole centres48/38mm × 48/38mm
- Fixing holeØ 6mm
- Overall height72mm
- Swivel radius80mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Top Plate Castors

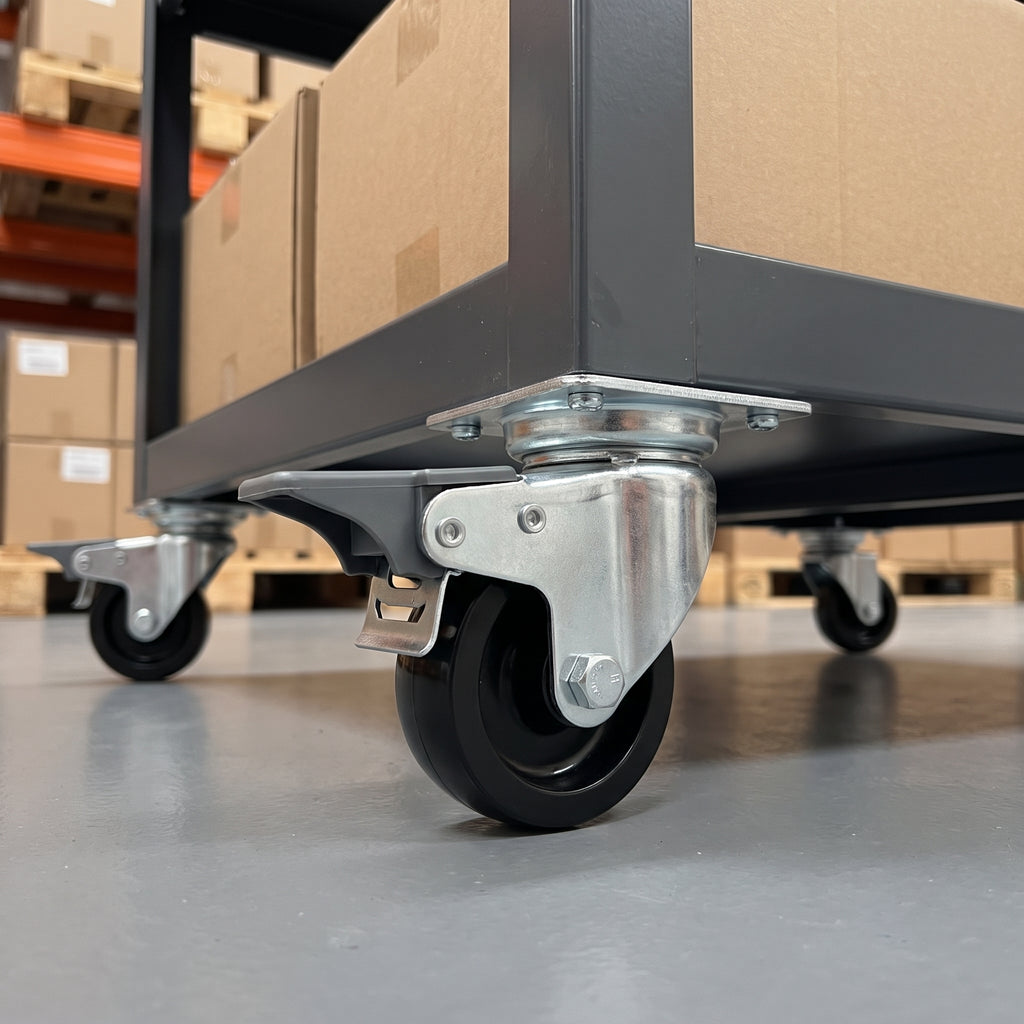

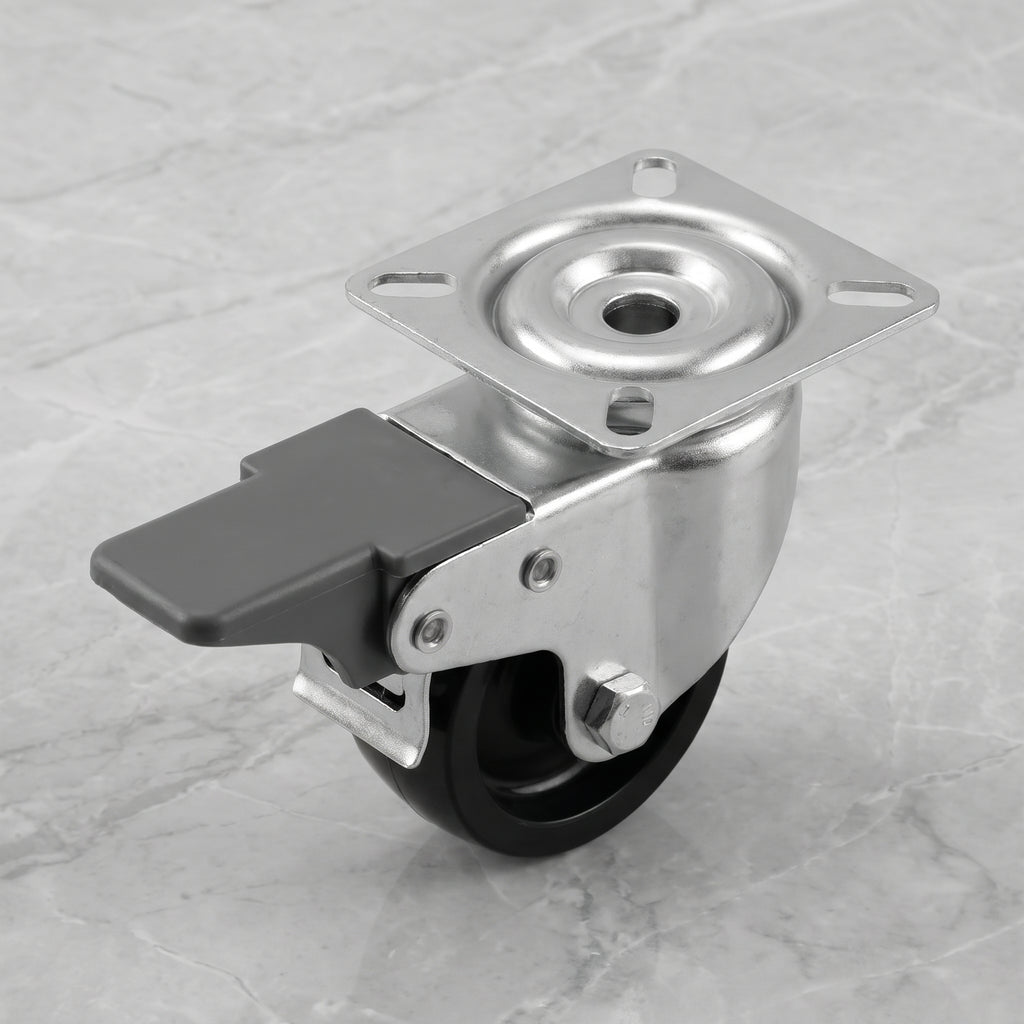

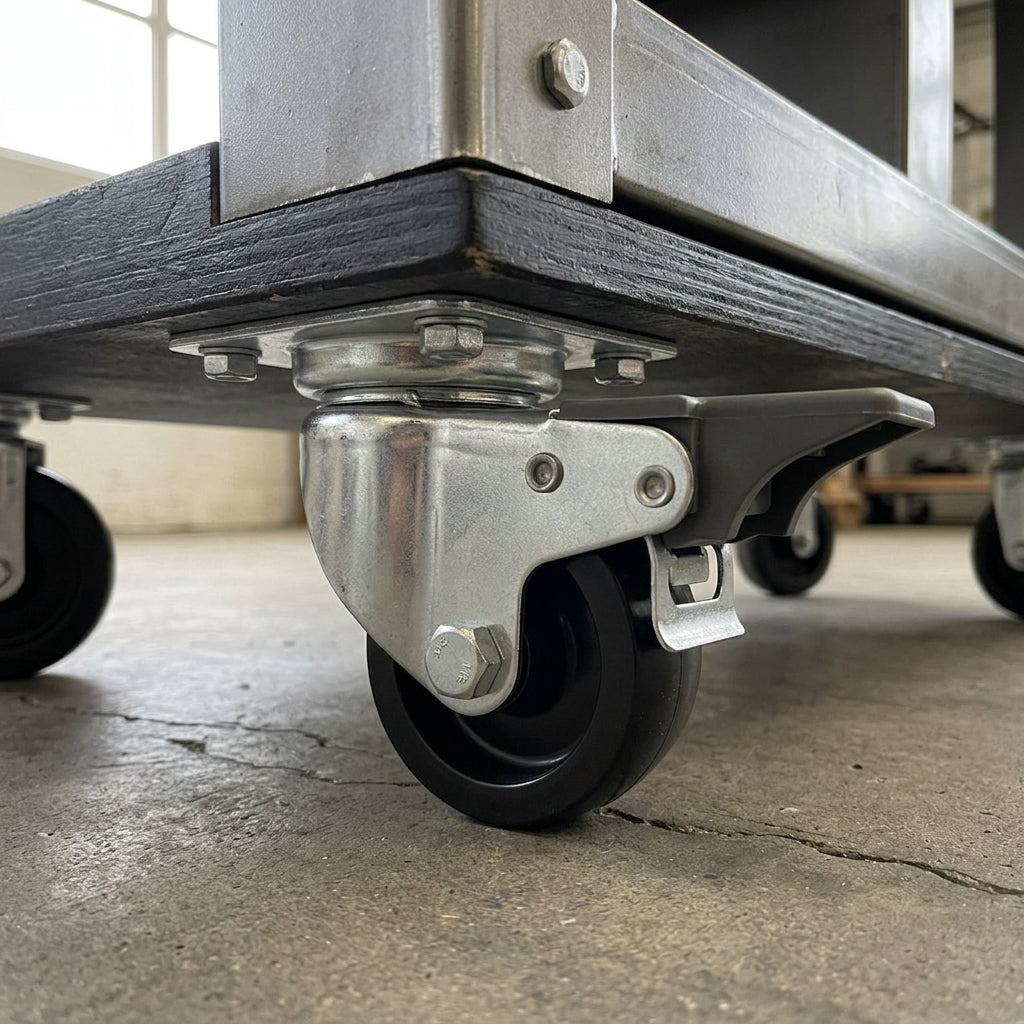

This 50mm swivel braked castor with a black polypropylene wheel makes it easy to move display units, furniture and equipment, then hold them firmly in place when they need to stay put. It carries up to 65kg per castor and its swivel design lets it turn easily in tight spaces.
With an integrated brake, a lightweight yet strong polypropylene wheel, a 22mm tread, a plain bearing and a low total height of 72mm, this light duty top plate castor fits easily with its 60 x 60mm top plate and suits shop fitting, furniture, workshop equipment and light industrial trolleys.
Why Choose This Castor
- ✓ Integrated brake for added safety and stability when stationary
- ✓ Swivel design for easy manoeuvring in tight spaces
- ✓ Black polypropylene wheel, lightweight yet strong for regular use
- ✓ 65kg load capacity per castor
- ✓ Low 72mm total height for compact units and furniture
- ✓ 60 x 60mm top plate with 6mm holes for easy fitting
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best
- ✓ Shop fitting: moving display units and shelving in retail environments
- ✓ Furniture mobility: easy relocation of furniture in offices and homes
- ✓ Workshop equipment: transporting tools and equipment around workshops
- ✓ Industrial settings: trolleys and carts in a range of industrial applications
Frequently Asked Questions
What does the brake lock?
Pressing the foot pedal applies the integrated brake to the wheel, so your unit stays safely in place when it is stationary.
Does this castor swivel?
Yes. It is a swivel castor with an 80mm swivel radius, so it turns easily in tight spaces.
How much weight can it carry?
Each castor is rated at 65kg. Add up the rating of all the castors on your unit to find the total capacity.
How is the castor fitted?
It has a 60 x 60mm top plate with 6mm holes on 48/38mm hole centres, which you bolt to the underside of your trolley, display or cabinet.
How tall is the castor?
The total castor height is 72mm, ideal where a low profile is needed.
* This product does not have free shipping.
