- Load per castor50kg
- Wheel diameter50mm
- Overall height70mm
- WheelGrey rubber tyre on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel
- Fixing Type
- Single Bolt Hole
- Bolt Hole Size
- 8mm (for M8 bolt)
- Top Plate
- None (bolt hole fitting)
- Wheel Diameter
- 50mm
- Tread Width
- 20mm
- Wheel Material
- Grey rubber tyre on polypropylene centre
- Wheel Colour
- Grey
- Housing
- Zinc-plated pressed steel
- Bearing Type
- Plain
- Load Capacity (per castor)
- 50kg
- Max Load (set of 4 castors)
- 150kg *
- Total Castor Height
- 70mm
- Swivel Radius
- 52mm
Will it fit?
- Bolt hole8mm (for M8 bolt)
- Overall height70mm
- Swivel radius52mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Bolt Hole Castors

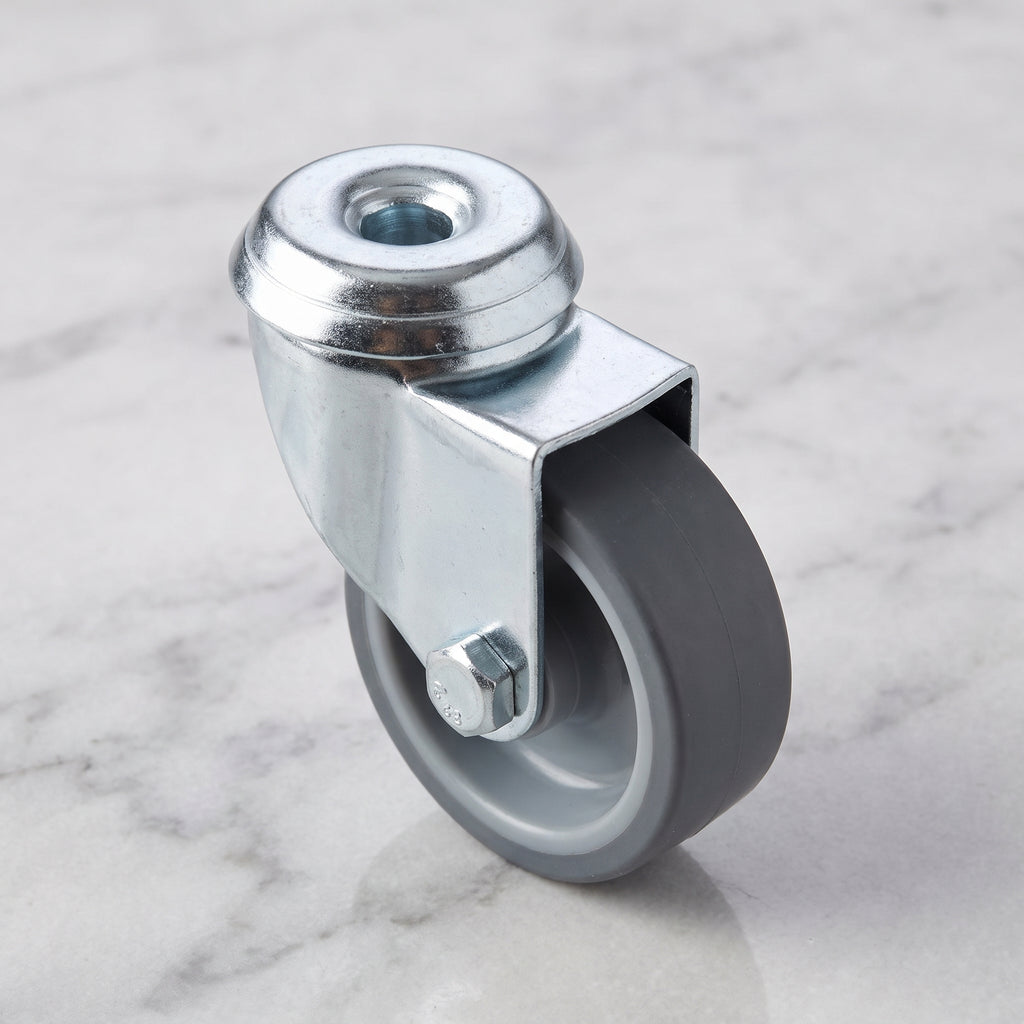

This compact 50mm swivel castor combines a quiet grey rubber tyre with a polypropylene centre and a single M8 bolt hole fitting. It turns freely through 360 degrees, rolls smoothly and gently on indoor floors, and carries up to 50kg per castor, making it a neat choice for shop fittings, display stands, small trolleys and tube-leg furniture.
If you are searching for a small bolt hole castor, a 50mm grey rubber swivel wheel, an M8 castor for furniture or a quiet non-marking style castor for a display unit, this castor offers a tidy, low-profile upgrade.
Why Choose This Castor
- ✓ Grey rubber tyre for quiet, smooth rolling that is kind to indoor floors.
- ✓ Single bolt hole fitting for an M8 bolt, ideal for tube legs and tube adaptors.
- ✓ Full 360 degree swivel for easy steering in tight spaces.
- ✓ 50kg per castor with a 150kg rating for a set of four.
- ✓ Zinc-plated pressed steel housing for a clean finish and good corrosion protection indoors.
- ✓ Low 70mm height keeps furniture and displays close to the floor.
* The set-of-four figure allows for only three castors being in full contact with the floor at any time (3 x 50kg), which gives a safer working load on real-world floors.
Where It Works Best

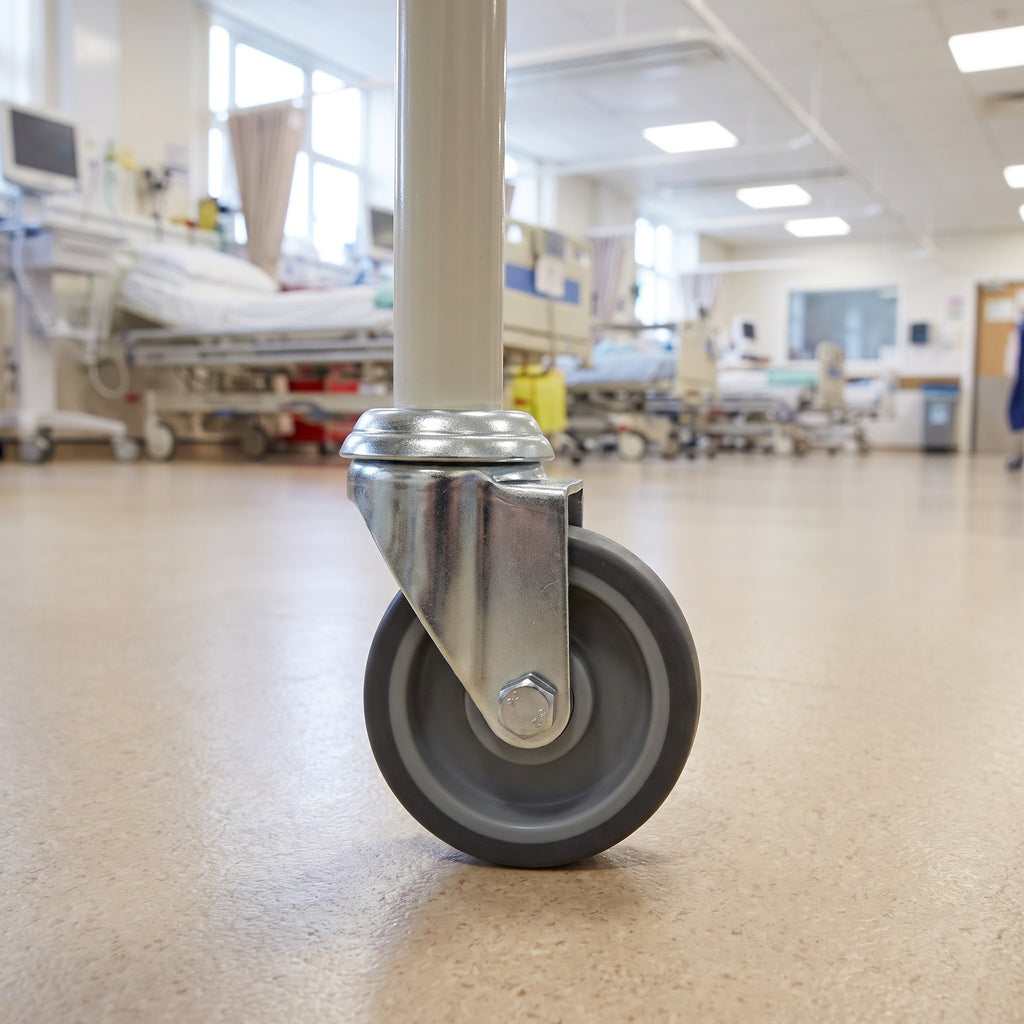

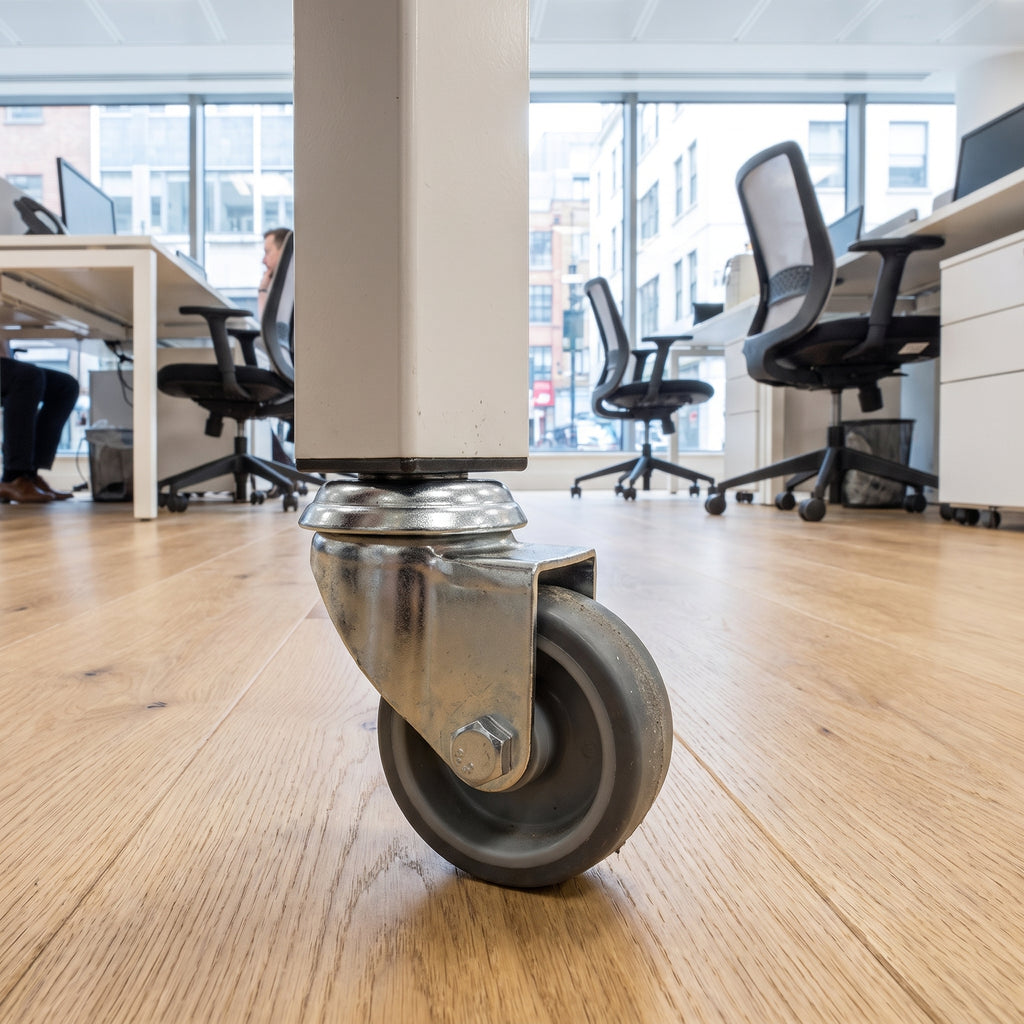

This small grey rubber bolt hole castor suits shop display stands and clothes rails, light hotel and serving trolleys, medical and utility trolleys, mobile office units, small workbenches and tube-framed furniture. The rubber tyre makes it a good match for offices, shops, hotels and other indoor spaces where quiet movement and floor care matter.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How do I fit a bolt hole castor?
Pass an M8 bolt through the 8mm hole in the top of the castor and secure it into your furniture, a threaded insert or a tube adaptor fitted inside the leg.
How much weight can a set of four carry?
Each castor is rated at 50kg. For a set of four we recommend a maximum of 150kg, as only three castors are usually in full contact with the floor at once.
Is the grey rubber wheel quiet and floor friendly?
Yes. The grey rubber tyre rolls quietly and is gentle on wood, vinyl, tiled and other smooth indoor floors.
Does this castor have a brake?
No, this is a plain swivel castor. For equipment that needs to stay in place, pair it with braked castors of the same size.
What is the total height of the castor?
The total castor height is 70mm from the floor to the top of the fitting, which keeps equipment low and stable.
Is this castor suitable for outdoor use?
It is best suited to indoor use on smooth, level floors. For rough ground or outdoor areas, choose a larger wheel.
