- Load per castor65kg per castor*
- Wheel diameter50mm
- Overall height72mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor with Brake
- Wheel Diameter
- 50mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 22mm
- Bearing Type
- Plain
- Brake
- Foot-operated brake
- Load Capacity
- 65kg per castor*
- Plate Size
- 60 x 60mm
- Plate Hole Centres
- 48/38 x 48/38mm
- Plate Hole Diameter
- 6mm
- Swivel Radius
- 85mm
- Total Castor Height
- 72mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Light Duty Top Plate Castors

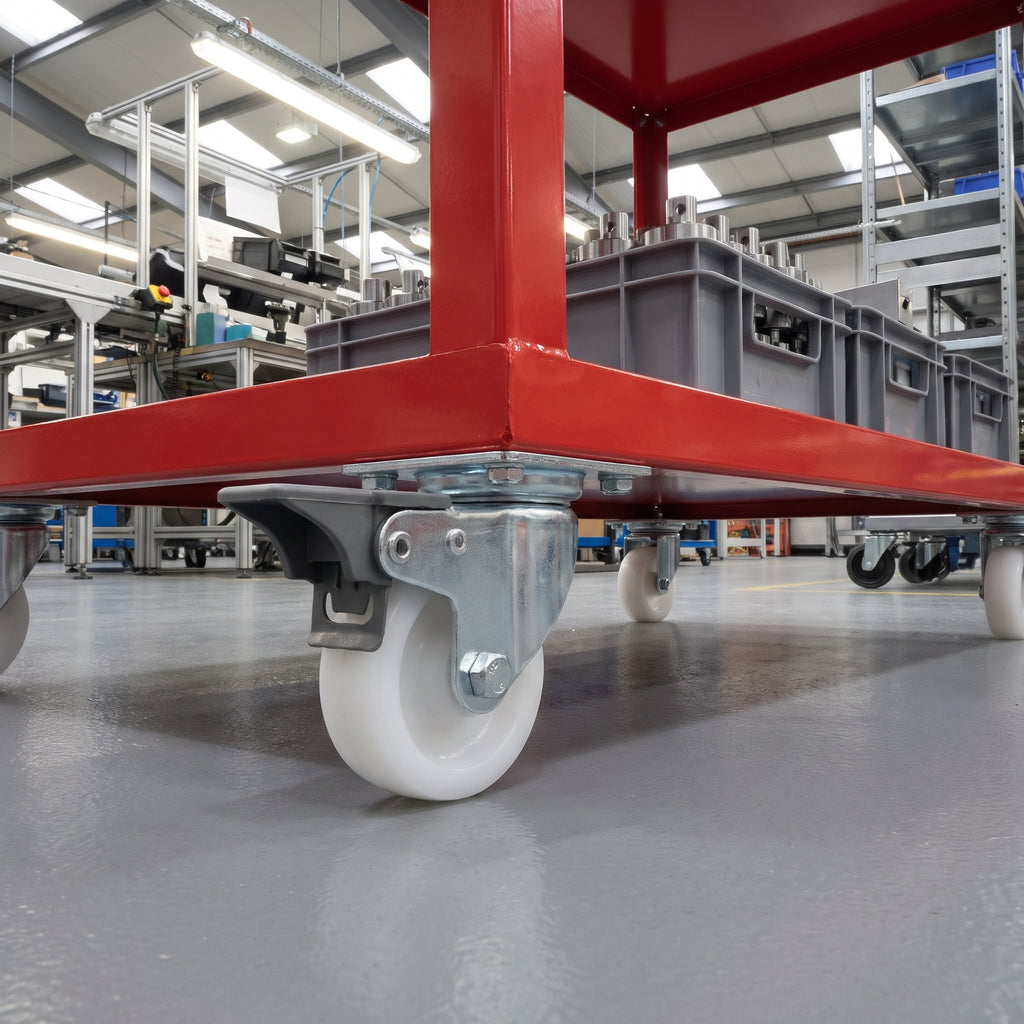

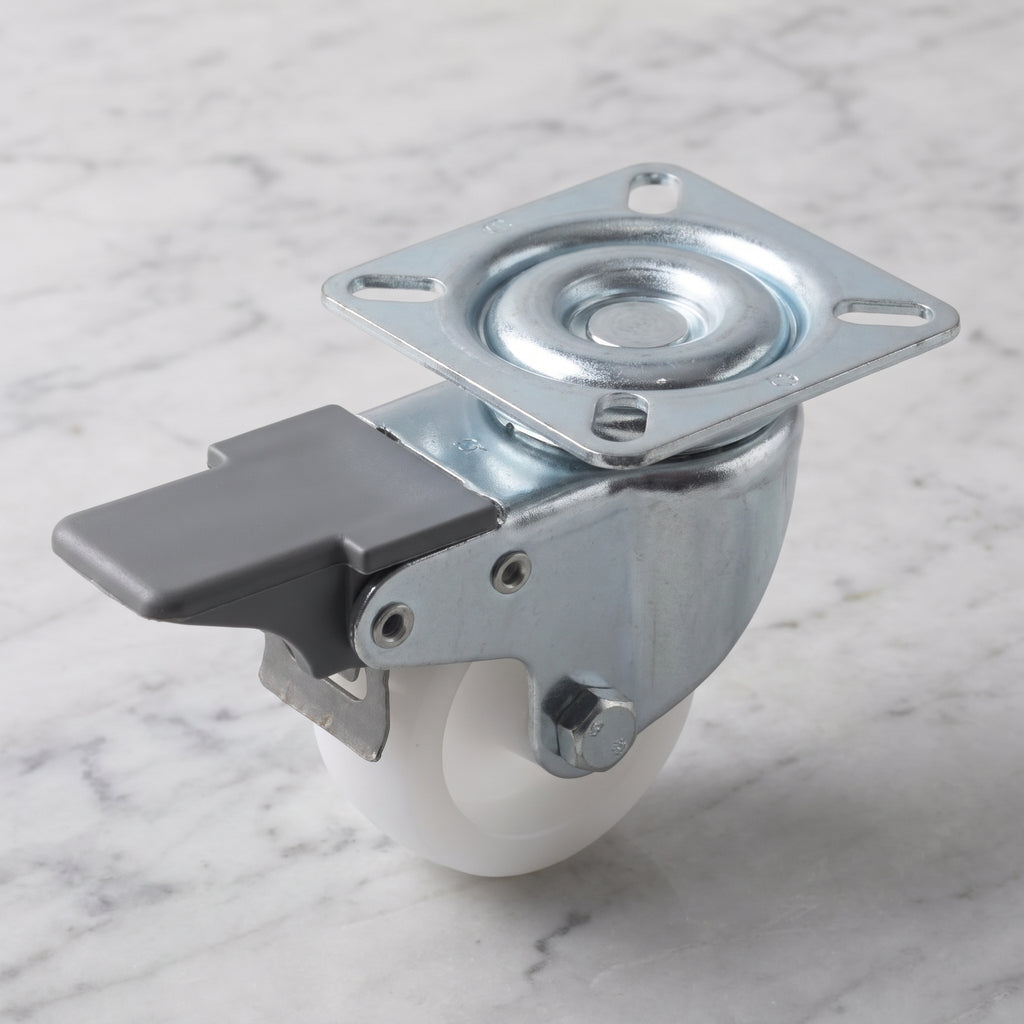

Move equipment and fixtures with ease, then hold them firmly in place. This 50mm braked swivel castor combines a hard-wearing white nylon wheel with a foot-operated brake, giving you smooth movement when you need it and secure positioning when you don't. Each castor is rated for 65kg.
It fits with a 60 x 60mm top plate with four 6mm bolt holes on 48/38mm centres, stands 72mm tall and has an 85mm swivel radius. The 22mm nylon tread rolls smoothly and resists wear. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ Braked swivel castor the brake allows secure positioning and prevents unwanted movement.
- ✓ 85mm swivel radius easy steering around corners and through tight spaces.
- ✓ White nylon wheel 50mm wheel with a 22mm tread for a smooth rolling action that resists wear.
- ✓ 60 x 60mm top plate four 6mm bolt holes on 48/38mm centres for straightforward fitting.
- ✓ Plain bearing simple, low-maintenance running.
- ✓ 65kg load capacity per castor for moving moderately heavy items.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This braked swivel castor suits:
- ✓ Retail fixtures: moving display units and shelving in shops.
- ✓ Workshop equipment: relocating tools and equipment within workshops.
- ✓ Furniture mobility: moving furniture in commercial and residential settings.
- ✓ Event setup: moving staging and displays for events.
Frequently Asked Questions
What does the brake lock?
The foot-operated brake holds the castor in place when your equipment is stationary, preventing unwanted movement. Release the brake to move and steer again.
How much weight can this castor carry?
Each castor is rated for 65kg. Add up the castors fitted to your equipment to work out the total load.
What size is the top plate?
The top plate is 60 x 60mm with four 6mm bolt holes on 48/38mm centres.
How tall is the castor?
The total castor height is 72mm and the swivel radius is 85mm.
What is the wheel made of?
A 50mm white nylon wheel with a 22mm tread, running on a plain bearing. It rolls smoothly and resists wear.
Does this castor swivel?
Yes. The swivel design with an 85mm swivel radius lets you steer easily around corners and through tight spaces.
