- Load per castor650kg per castor *
- Wheel diameter420mm
- Overall height480mm
- WheelPneumatic on Pressed Steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor
- Wheel Diameter
- 420mm
- Wheel Material
- Pneumatic on Pressed Steel
- Wheel Colour
- Black
- Tread Width
- 115mm
- Bearing Type
- Ball Bearing
- Housing
- Welded steel, zinc plated
- Load Capacity
- 650kg per castor *
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 200 x 160mm
- Hole Centres
- 160 x 120mm
- Hole Diameter
- 14mm
- Total Castor Height
- 480mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Pneumatic tyre
- Rides over gravel, grass and rough ground
- Maximum cushioning for fragile loads
- Can puncture; check tyre pressure
- Lower load rating than a solid wheel of the same size
Details & FAQs
Heavy Duty Pneumatic Castors

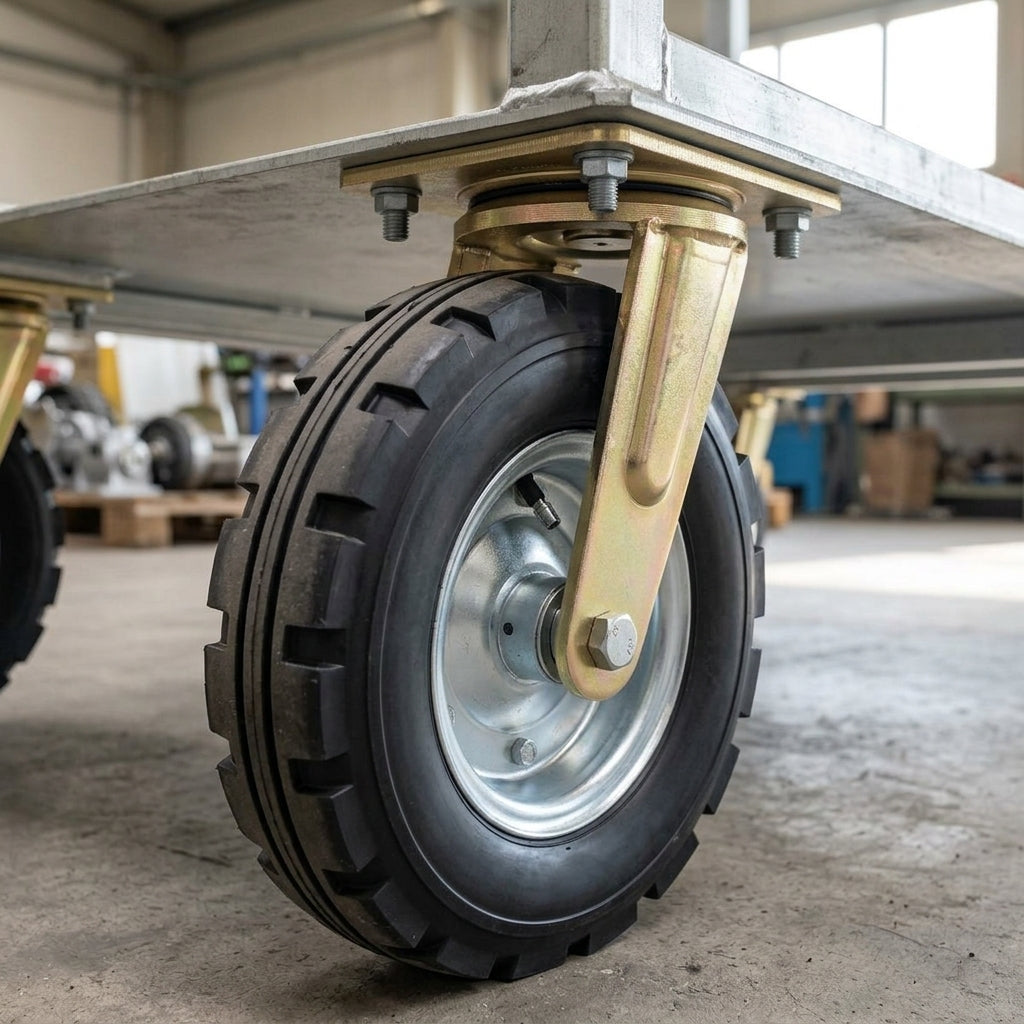

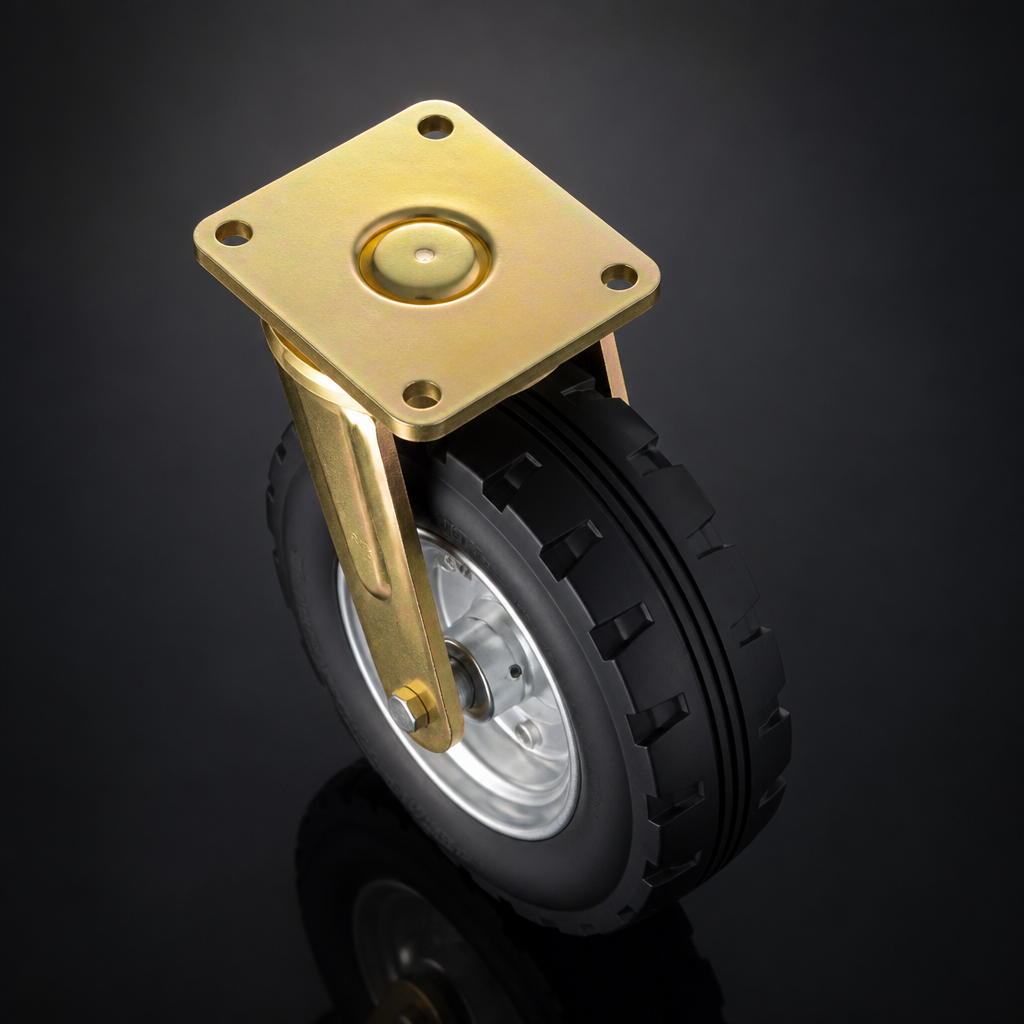

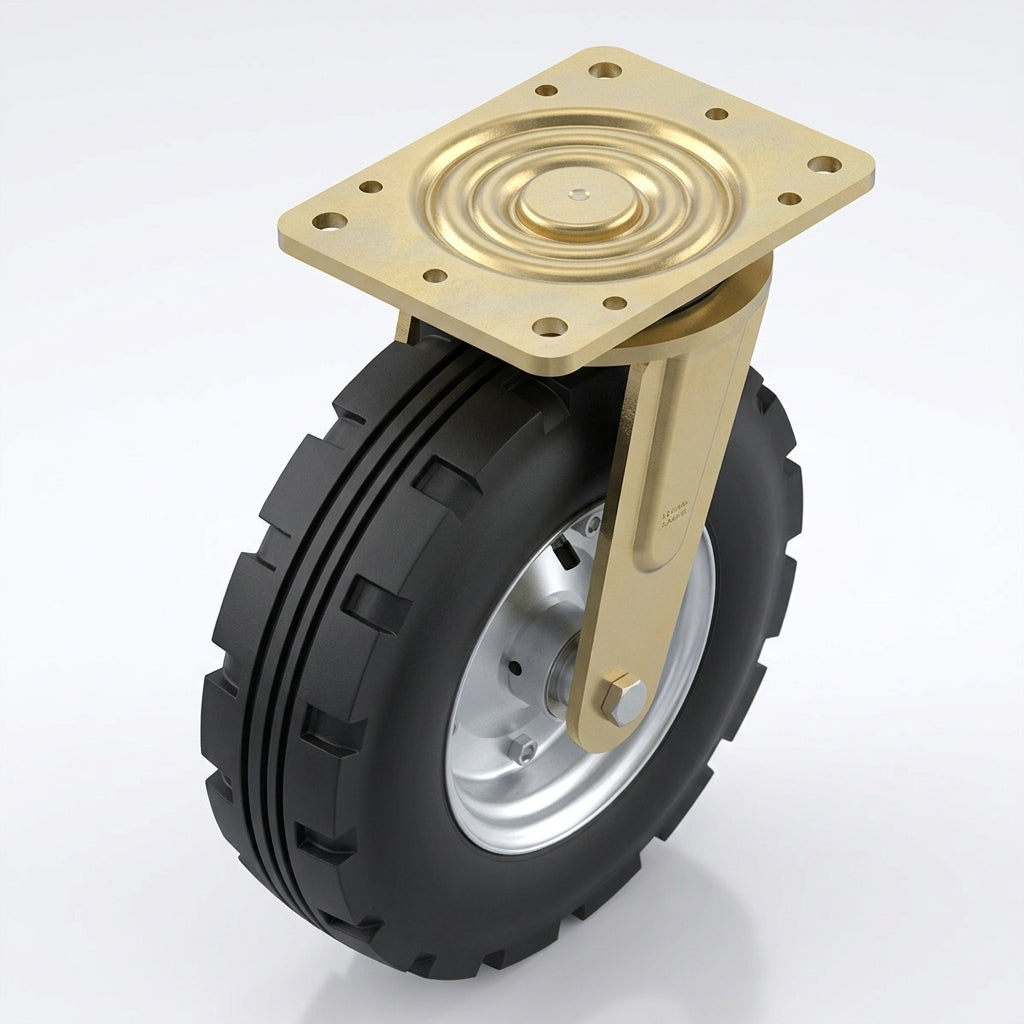

This 420mm heavy duty swivel castor runs on a large black pneumatic rubber wheel on a pressed steel centre, giving a smooth, cushioned ride over rough and uneven ground. It carries 650kg per castor and is built for heavy duty baggage trolleys, runway equipment and general heavy duty work.
The housing is durable welded steel with a zinc plated finish, robust enough for a wide range of environments. The pneumatic tyre is steel wire reinforced, so it is smooth to manoeuvre and extremely hard-wearing in rugged conditions. It bolts on with a 200 x 160mm top plate and stands 480mm tall.
Why Choose This Castor
- ✓ 420mm pneumatic wheel with a 115mm tread for a cushioned ride over rough ground.
- ✓ Steel wire reinforced tyre, smooth to manoeuvre and hard-wearing in rugged environments.
- ✓ 650kg per castor, built for heavy duty trolleys and equipment.
- ✓ Welded steel housing with a zinc plated finish for strength and durability.
- ✓ Swivel action for easy steering of large, heavy loads.
- ✓ 200 x 160mm top plate with four 14mm bolt holes.
* Load capacity is per castor with the tyre correctly inflated. Check that the plate size and hole centres match your equipment before fitting.
Where It Works Best
- ✓ Heavy duty baggage trolleys: smooth, cushioned movement under heavy loads.
- ✓ Runway equipment: rolls easily over tarmac and rough outdoor surfaces.
- ✓ General heavy duty purposes: industrial trolleys and equipment used indoors and outdoors.
Frequently Asked Questions
Does this castor swivel?
Yes. It is a swivel castor, so it turns freely to steer your trolley or equipment.
What is a pneumatic wheel?
It has an air-filled rubber tyre on a pressed steel centre. The air cushions the load, and this tyre is steel wire reinforced so it stays hard-wearing on rough ground.
How much weight can it carry?
Each castor is rated at 650kg with the tyre correctly inflated.
Can I use it outdoors?
Yes. The zinc plated welded steel housing and the pneumatic tyre suit outdoor use, rolling smoothly over rough and uneven ground.
How is it fitted and how tall is it?
It has a 200 x 160mm top plate with 14mm holes on 160 x 120mm centres, bolted flat to the underside of your trolley or equipment. The total castor height is 480mm.
