- Load per castor20kg per castor (60kg for a set of 4) *
- Wheel diameter40mm
- Overall height52mm
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Ball Castor, Top Plate
- Wheel Diameter
- 40mm
- Wheel
- Grey rubber
- Housing
- Zinc plated metal hood
- Tread Width
- 22mm
- Bearing Type
- Plain
- Plate Size
- 37 x 37mm
- Plate Hole Centres
- 30 x 30mm
- Plate Hole Diameter
- 4mm
- Swivel Radius
- 39mm
- Total Castor Height
- 52mm
- Load Capacity
- 20kg per castor (60kg for a set of 4) *
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Ball Furniture Castor

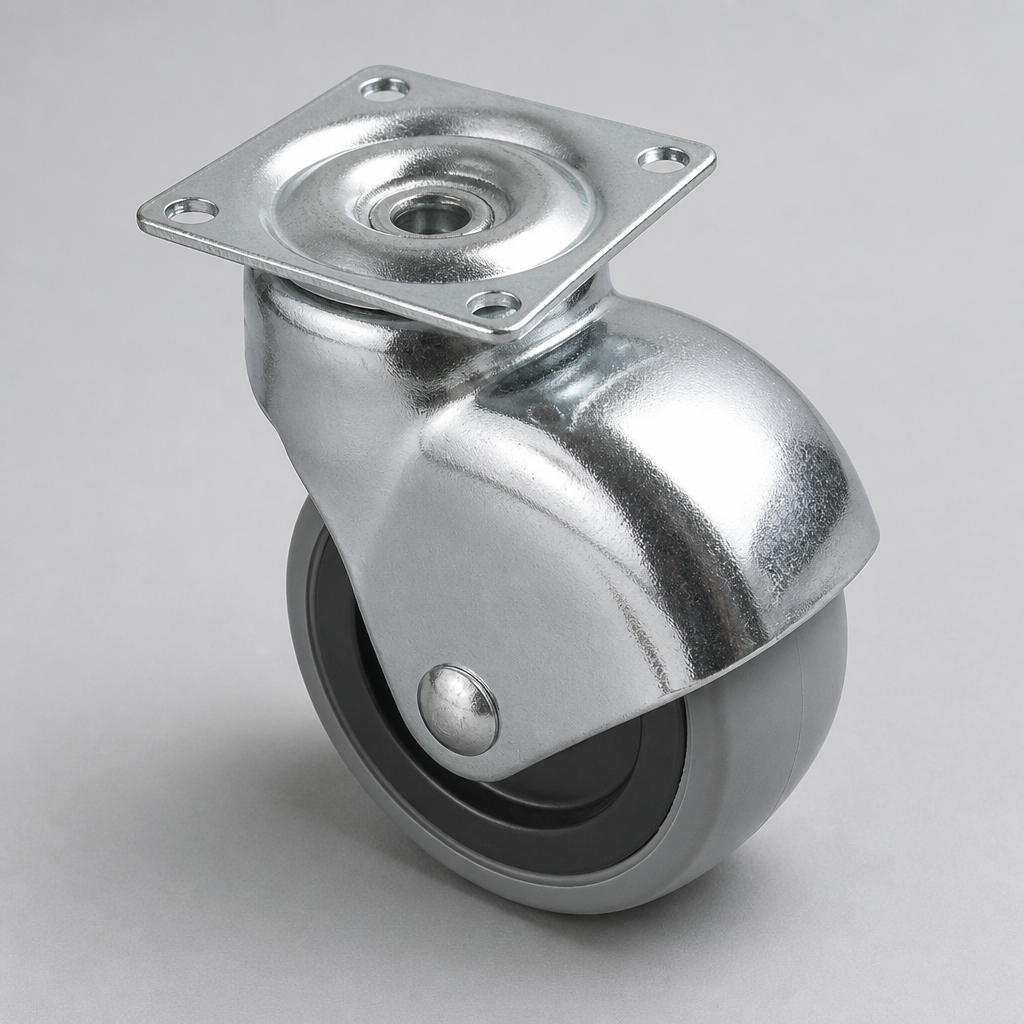

This 40mm swivel ball castor has a rounded zinc plated metal hood over a soft grey rubber wheel, rated at 20kg per castor. Its compact, classic shape suits small tables, plant stands, footstools and light storage units that need to move easily around the home.
The grey rubber tread rolls quietly and is kind to wood, laminate and vinyl floors. The castor fixes with a small 37 x 37mm top plate with four 4mm holes at 30 x 30mm centres, and the low 52mm height keeps furniture close to the floor.
Why Choose This Castor
- ✓ Rounded zinc plated metal hood for a neat, classic look
- ✓ Soft grey rubber wheel that runs quietly
- ✓ Smooth swivel action for easy turning
- ✓ Compact 37 x 37mm top plate
- ✓ Low 52mm height
- ✓ 20kg load capacity per castor
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Small tables: side tables, coffee tables and bedside tables.
- ✓ Plant stands and footstools: light pieces that are moved around often.
- ✓ Light storage: toy boxes, magazine racks and small trolleys.
- ✓ Floors: wood, laminate, vinyl and tile.
Frequently Asked Questions
How do I fit this castor?
Screw the 37 x 37mm top plate to a flat base through the four 4mm holes, set at 30 x 30mm centres.
How much weight can it carry?
Each castor is rated at 20kg, and a set of four up to 60kg, so it is best for light furniture.
Will it mark my floor?
The grey rubber wheel rolls quietly and is designed to be kind to hard floors.
Does it have a brake?
No, this is a free-swivel ball castor without a brake.
Is there a stem version?
Yes. The same 40mm ball castor is also available with an M8 threaded stem.
How tall is the castor?
The total castor height is 52mm, with a 40mm wheel.
