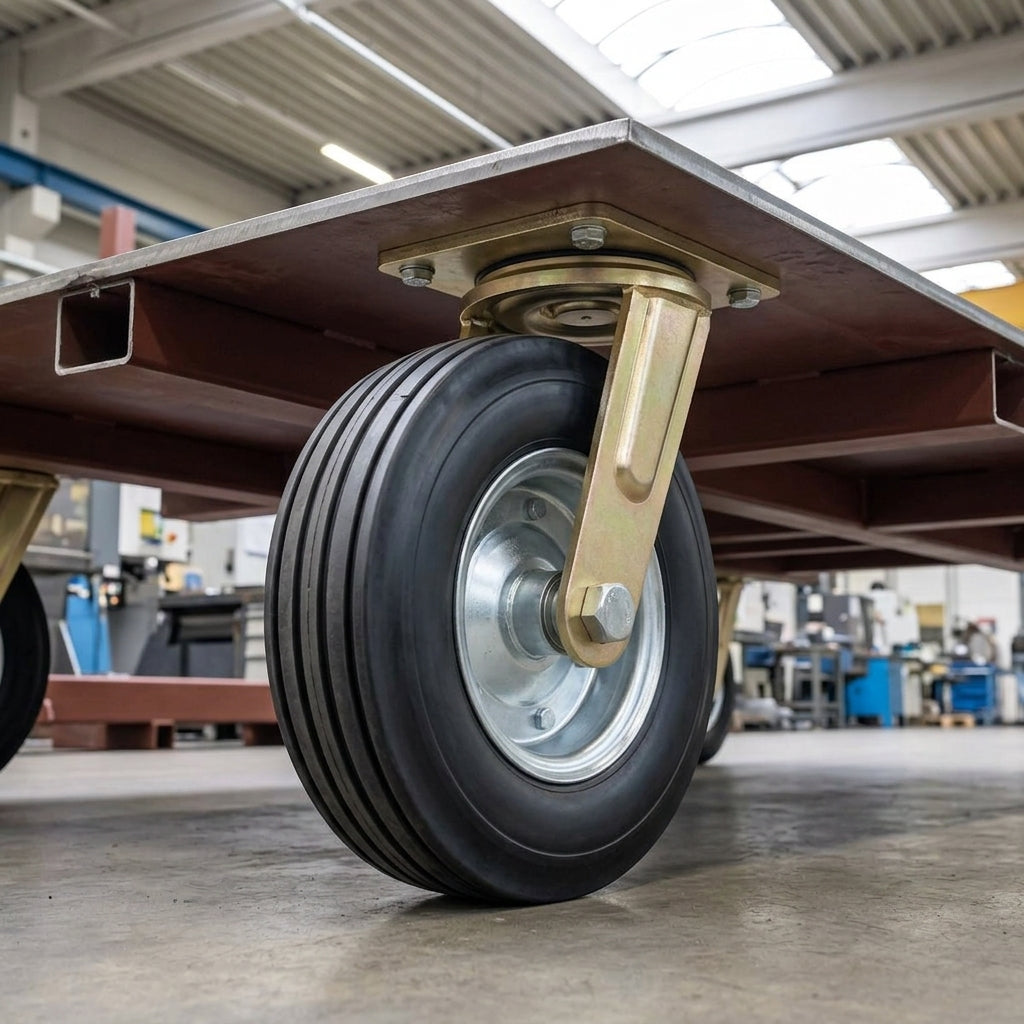

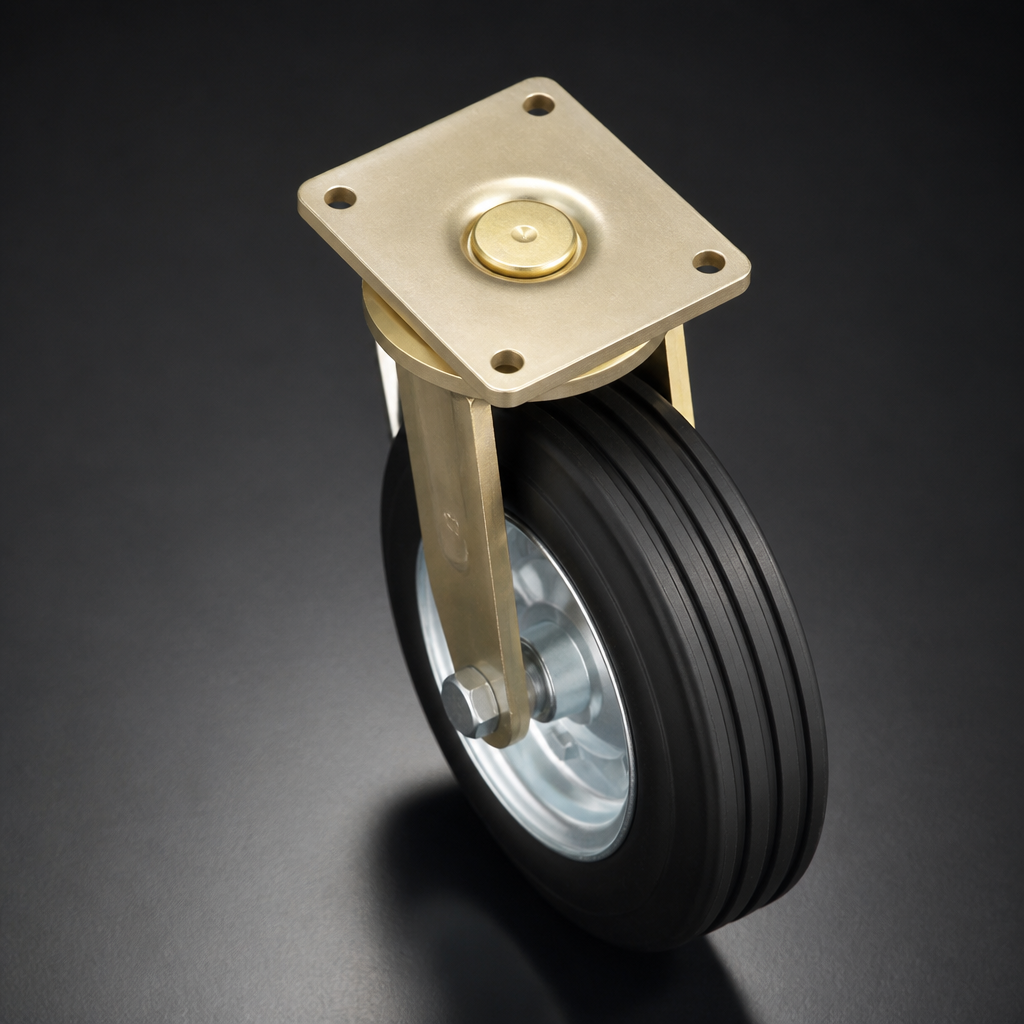

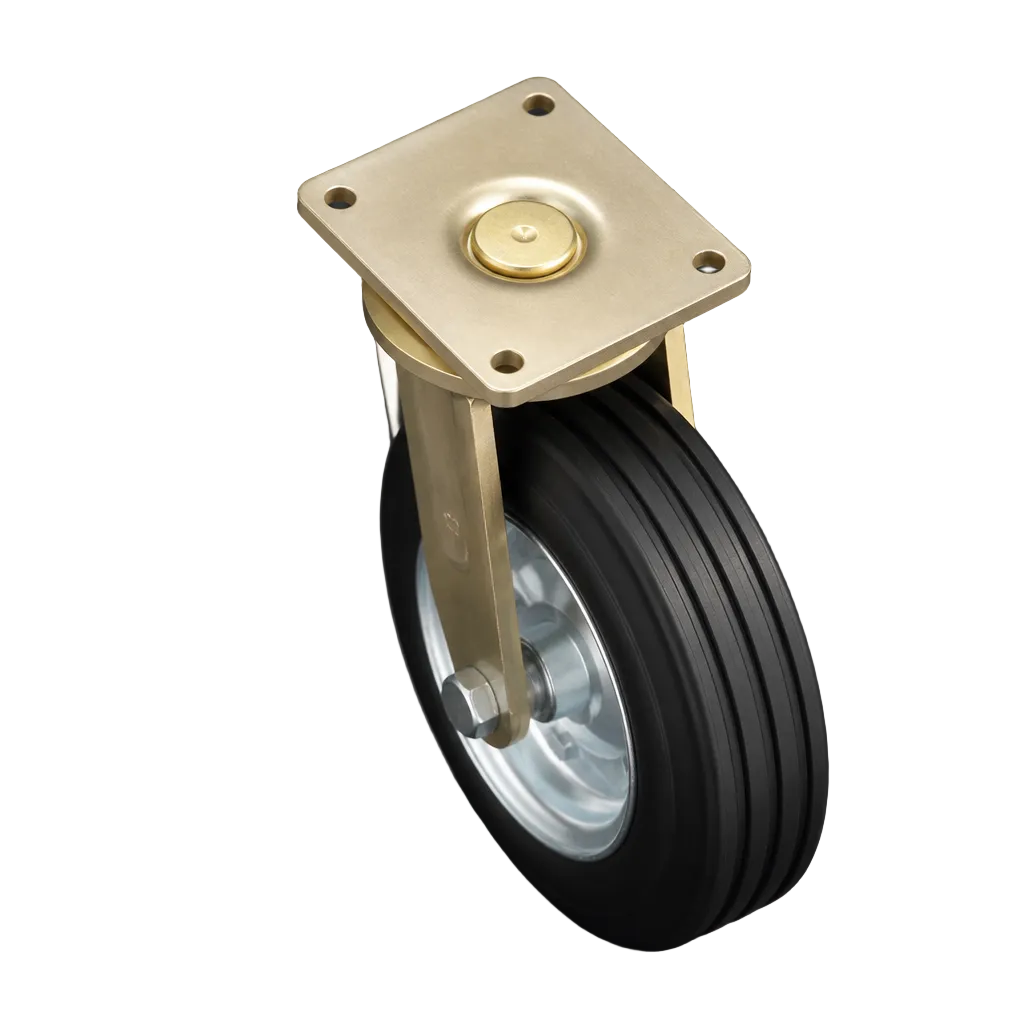

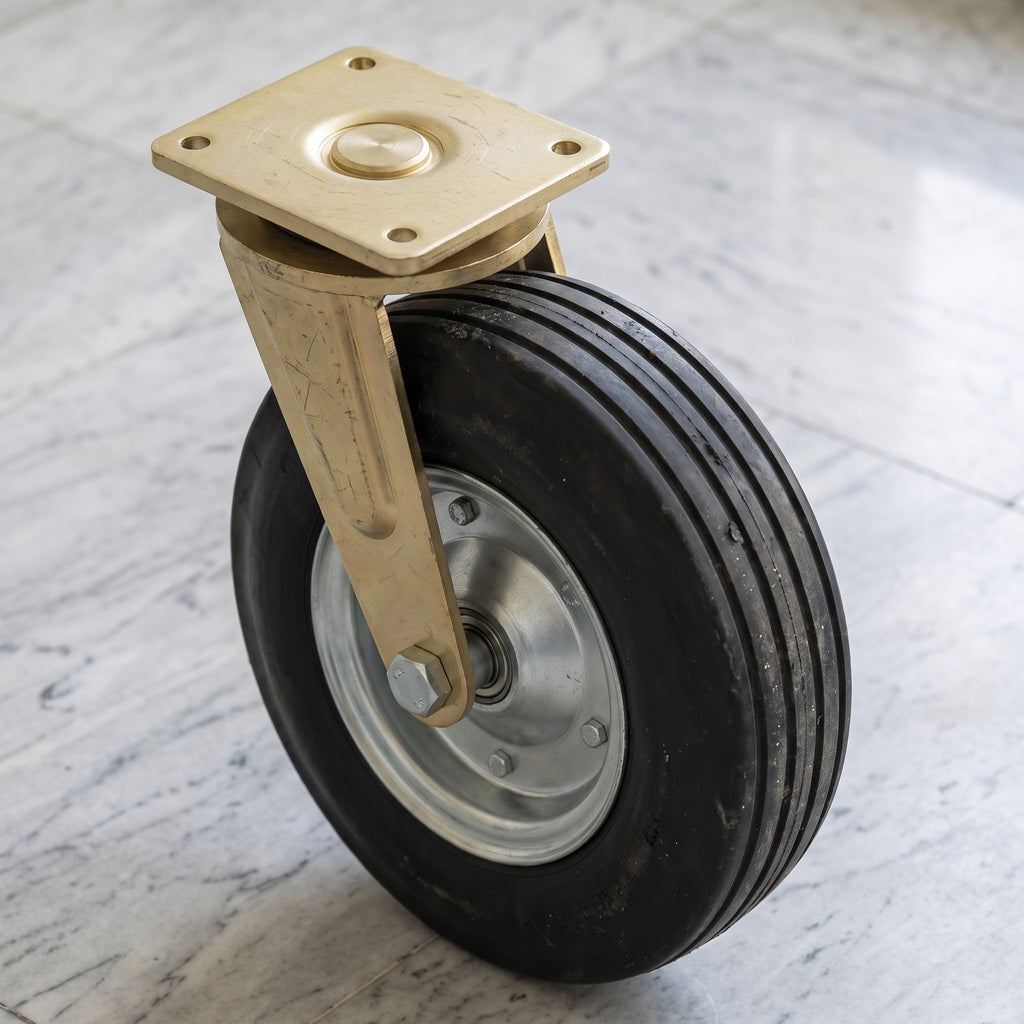

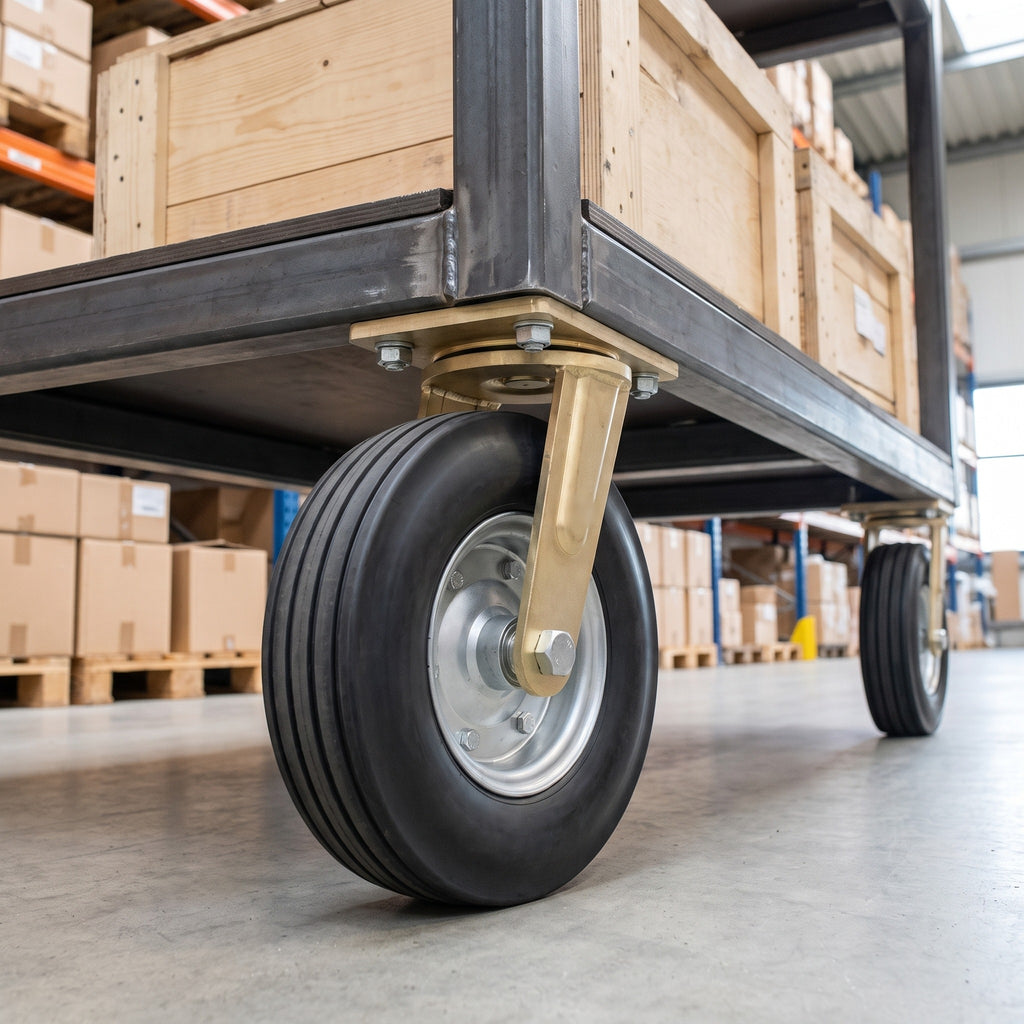

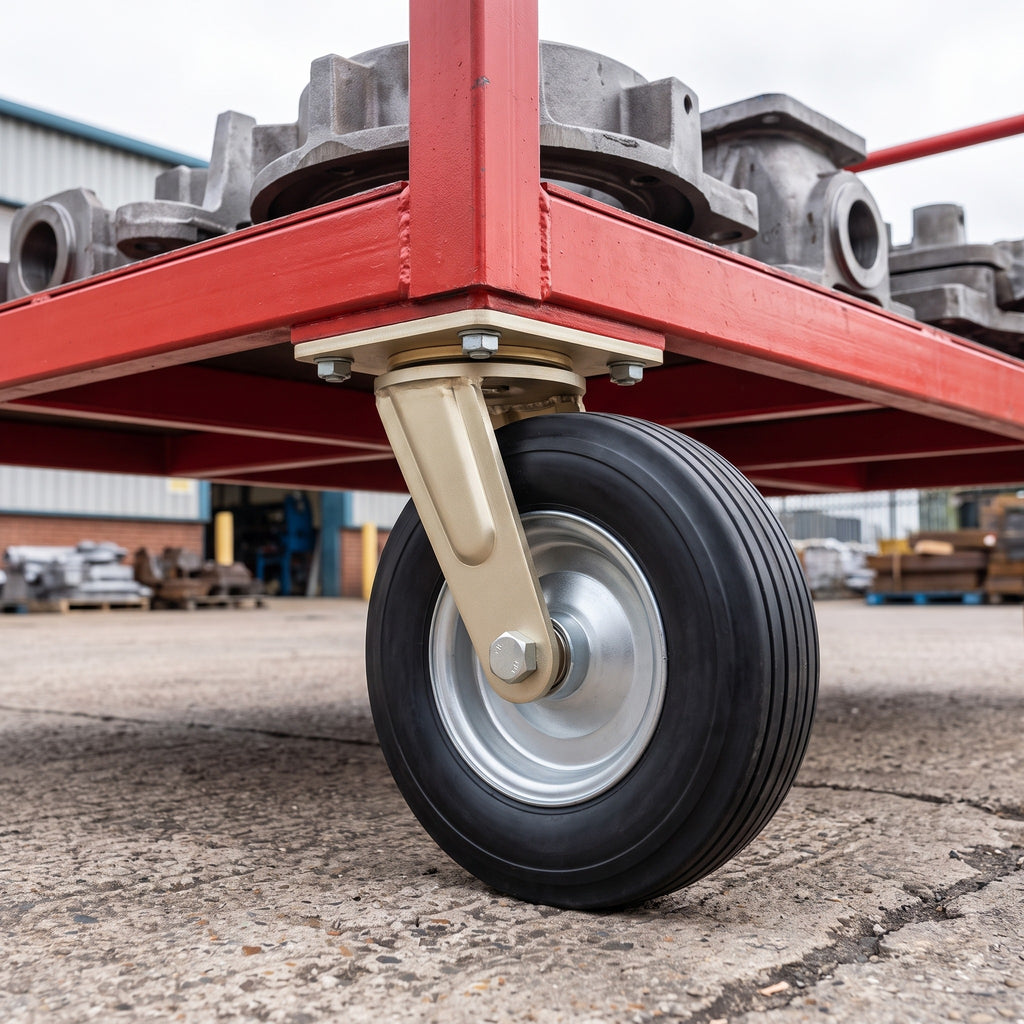

405mm Swivel Castor - Elastic Rubber Wheel with Multi-Rib Tread
This robust 405mm swivel castor is expertly designed for heavy-duty applications, featuring an elastic rubber wheel equipped with a multi-rib tread. This design not only enhances grip and stability but also ensures smooth maneuverability, making it ideal for industrial trolleys, warehouse carts, and material handling equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Ball Bearing |
| Height (mm) | 473 |
| Load Capacity | 950 |
| Tread Width (mm) | 105 |
| Bolt Hole Size | 14 |
| Plate Length (mm) | 200 |
| Plate Width (mm) | 160 |
| Plate Hole Centres Length (mm) | 160 |
| Plate Hole Centres Width (mm) | 120 |
| Total Castor Height | 473 |
| Wheel Colour | Black |
| Wheel Diameter (mm) | 405 |
| Wheel Material | Rubber on Pressed Steel |
Applications
- Industrial trolleys: Facilitating the movement of heavy loads.
- Warehouse carts: Enhancing the efficiency of goods handling.
- Material handling equipment: Supporting high load capacity requirements.
Frequently Asked Questions
- What is the load capacity of this castor?
- The load capacity is 950 kg per wheel, making it suitable for heavy-duty applications.
- What type of bearing does this castor use?
- This castor features a ball bearing mechanism for smooth rotation.
- What is the diameter of the wheel?
- The wheel diameter is 405 mm, which is ideal for various industrial applications.
- Can this castor be used on uneven surfaces?
- Yes, the elastic rubber wheel provides excellent grip and stability on uneven surfaces.
- What are the dimensions of the mounting plate?
- The plate measures 200 mm in length and 160 mm in width.
- Is this castor suitable for outdoor use?
- Yes, the durable rubber material is suitable for both indoor and outdoor applications.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
