405mm Fixed Castor - Elastic Rubber Wheel, 950kg Load Capacity

Reliable fixed castor for heavy-duty use.

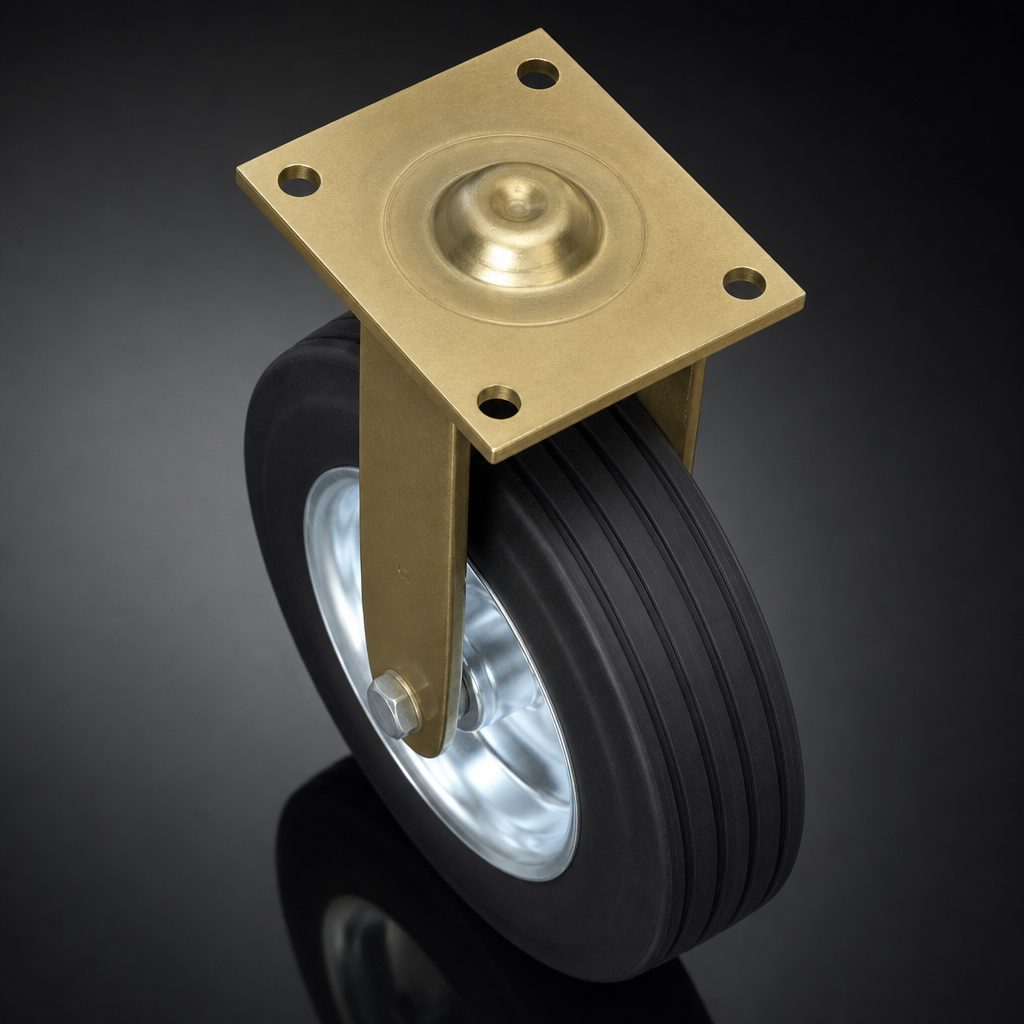

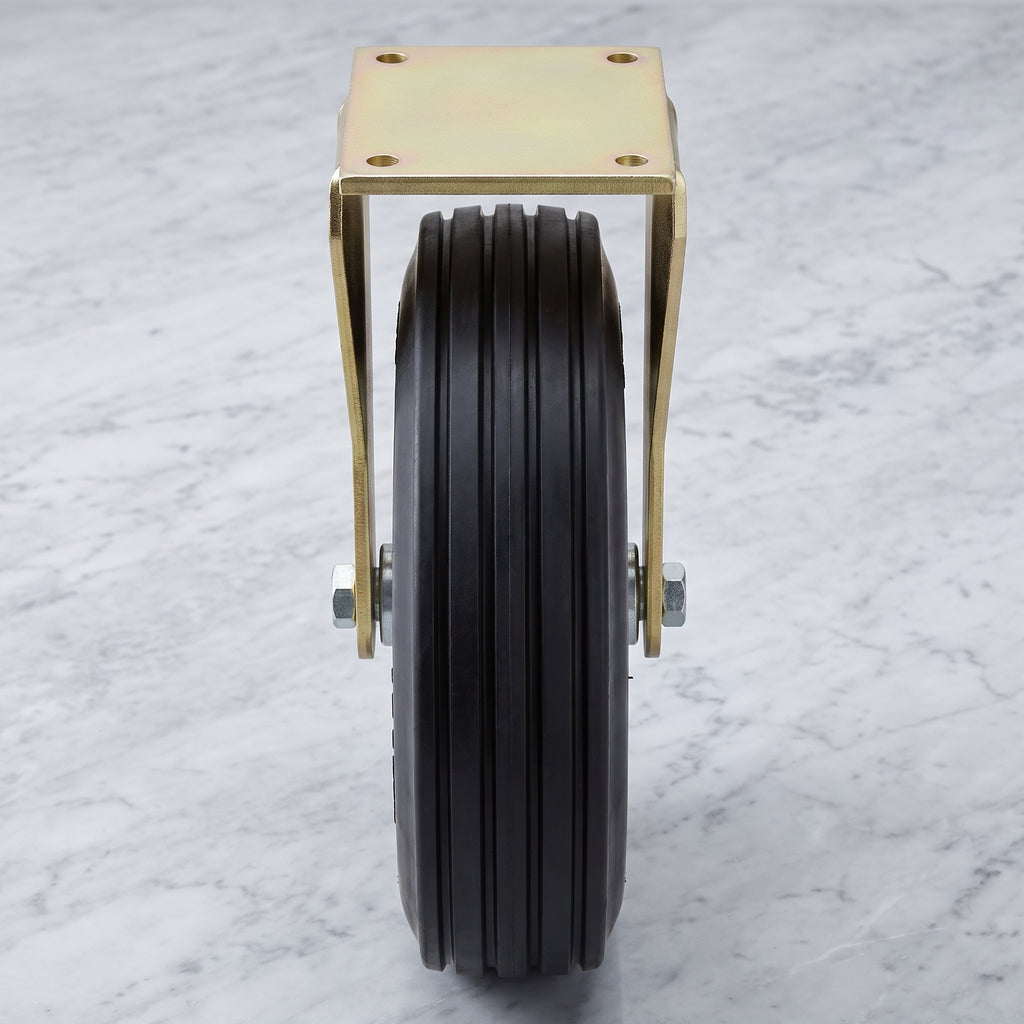

This fixed castor features a 405mm elastic rubber wheel with a multi-rib tread, designed for smooth and stable movement across various surfaces. It includes a ball bearing for efficient rotation and a load capacity of 950kg, making it suitable for heavy-duty applications. Ensure compatibility by checking the bolt hole size and plate dimensions before ordering.

Key Features

• Wheel Diameter: 405mm – check against the existing wheel size.
• Tread Width: 105mm – width of the wheel tread.
• Load Capacity: 950kg – maximum load rating per wheel.
• Bearing Type: Ball Bearing – for smooth rotation.
• Plate Length: 200mm – overall length of the mounting plate.
• Plate Width: 160mm – overall width of the mounting plate.
• Plate Hole Centres Length: 160mm – distance between hole centres lengthwise.
• Plate Hole Centres Width: 120mm – distance between hole centres widthwise.

Applications

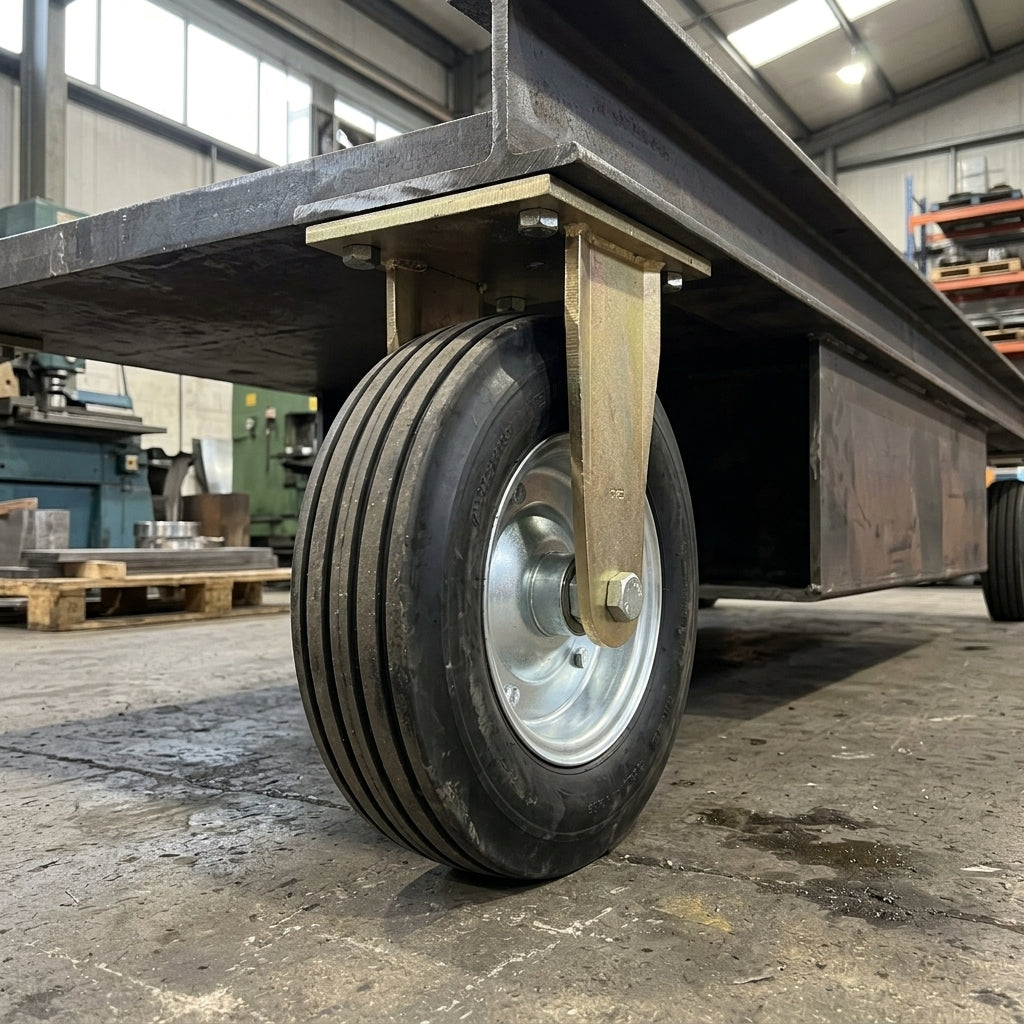

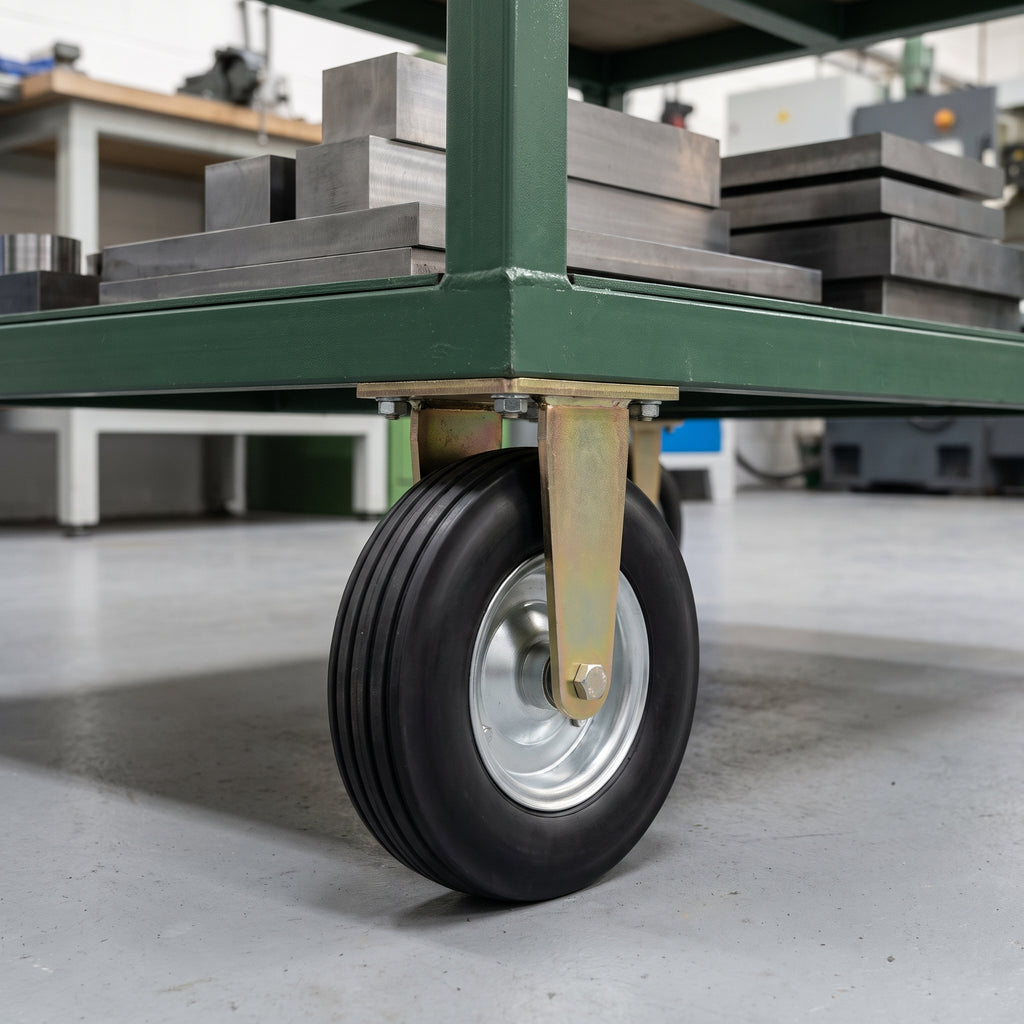

• Industrial trolleys: Used in heavy-duty trolleys for efficient movement.
• Warehouse equipment: Ideal for moving heavy loads in warehouses.
• Manufacturing carts: Suitable for manufacturing environments requiring mobility.
• Transport vehicles: Perfect for transport vehicles needing durable wheels.
