- Load per castor950kg per castor
- Wheel diameter405mm
- Overall height473mm
- WheelBlack super elastic rubber tyre on pressed steel centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor with Directional Lock
- Directional Lock
- Lever-operated swivel lock
- Wheel Diameter
- 405mm
- Wheel Material
- Black super elastic rubber tyre on pressed steel centre
- Tread
- Multi-rib
- Tread Width
- 105mm
- Bearing Type
- Ball bearing
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 200 x 160mm
- Hole Centres
- 160 x 120mm
- Hole Diameter
- 14mm
- Total Castor Height
- 473mm
- Load Capacity
- 950kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs
Super Elastic Rubber Castors

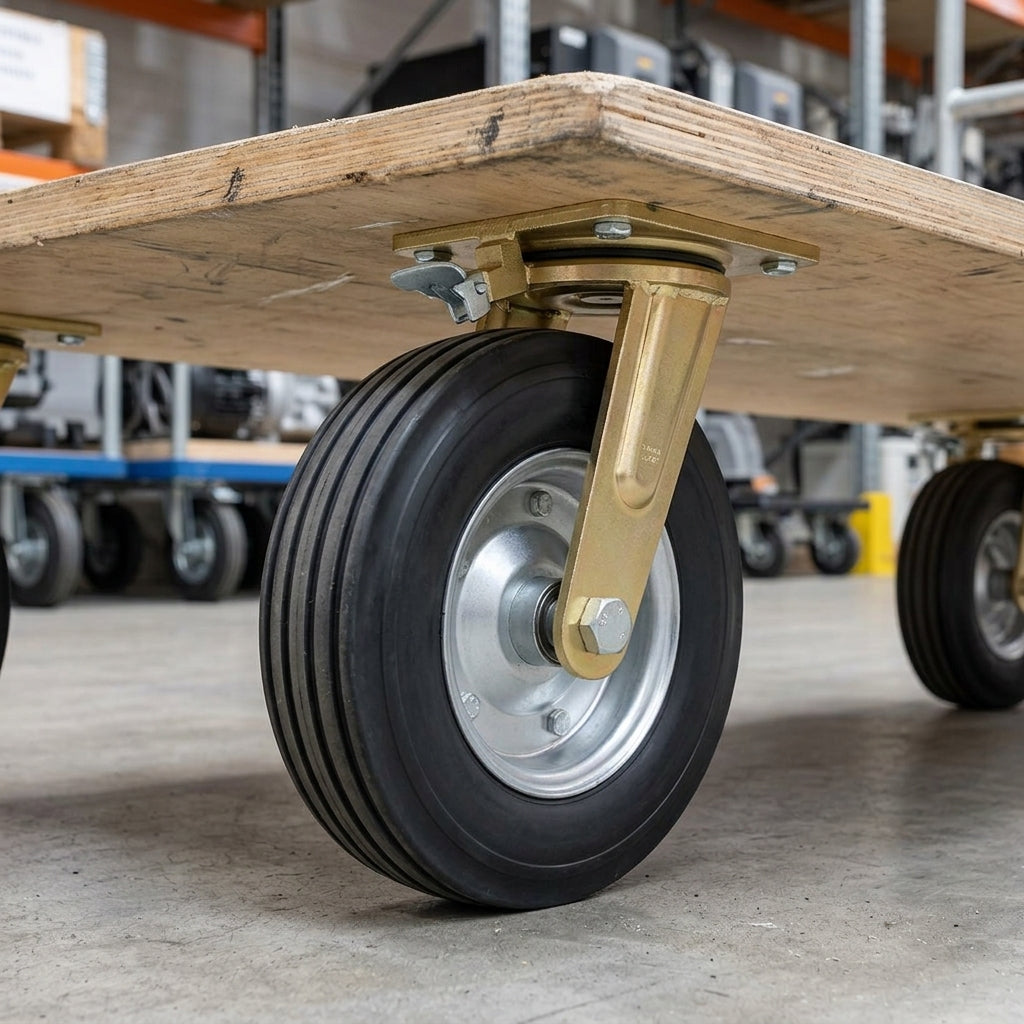

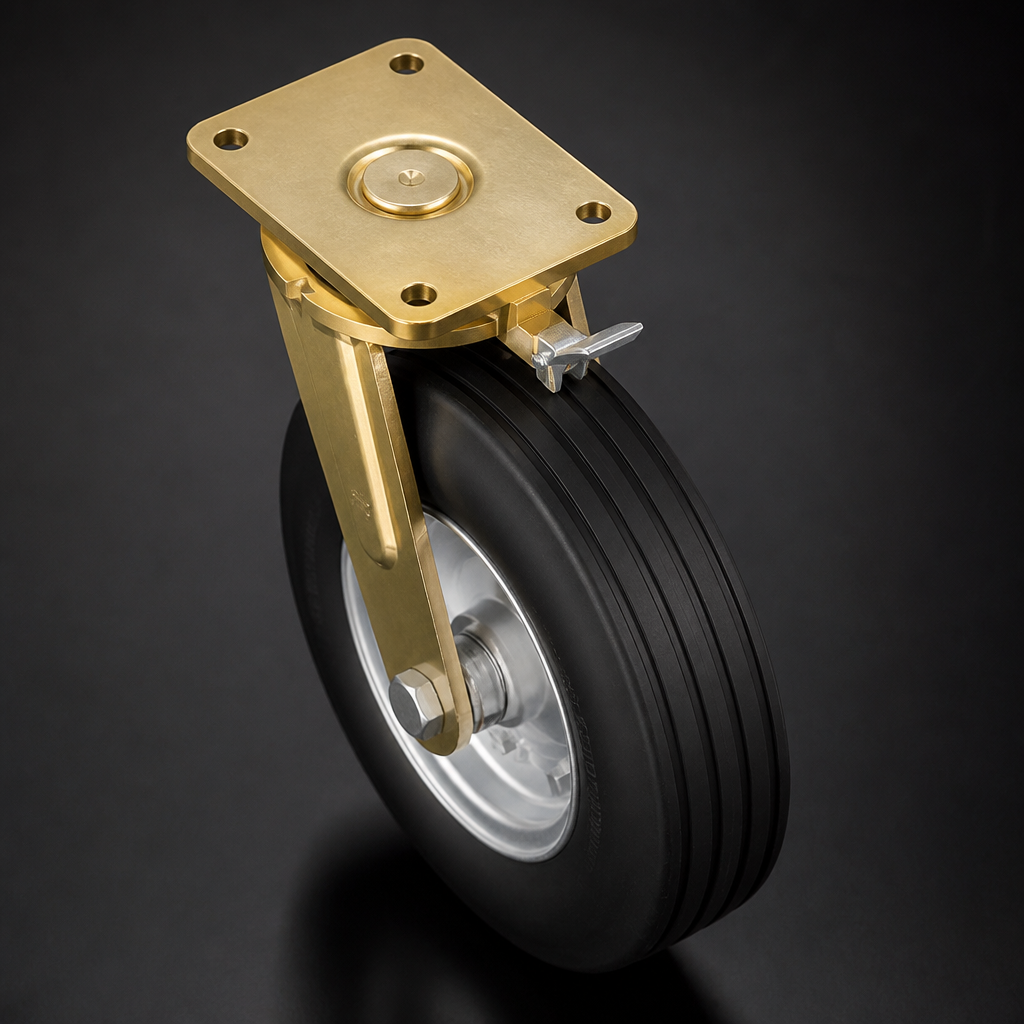

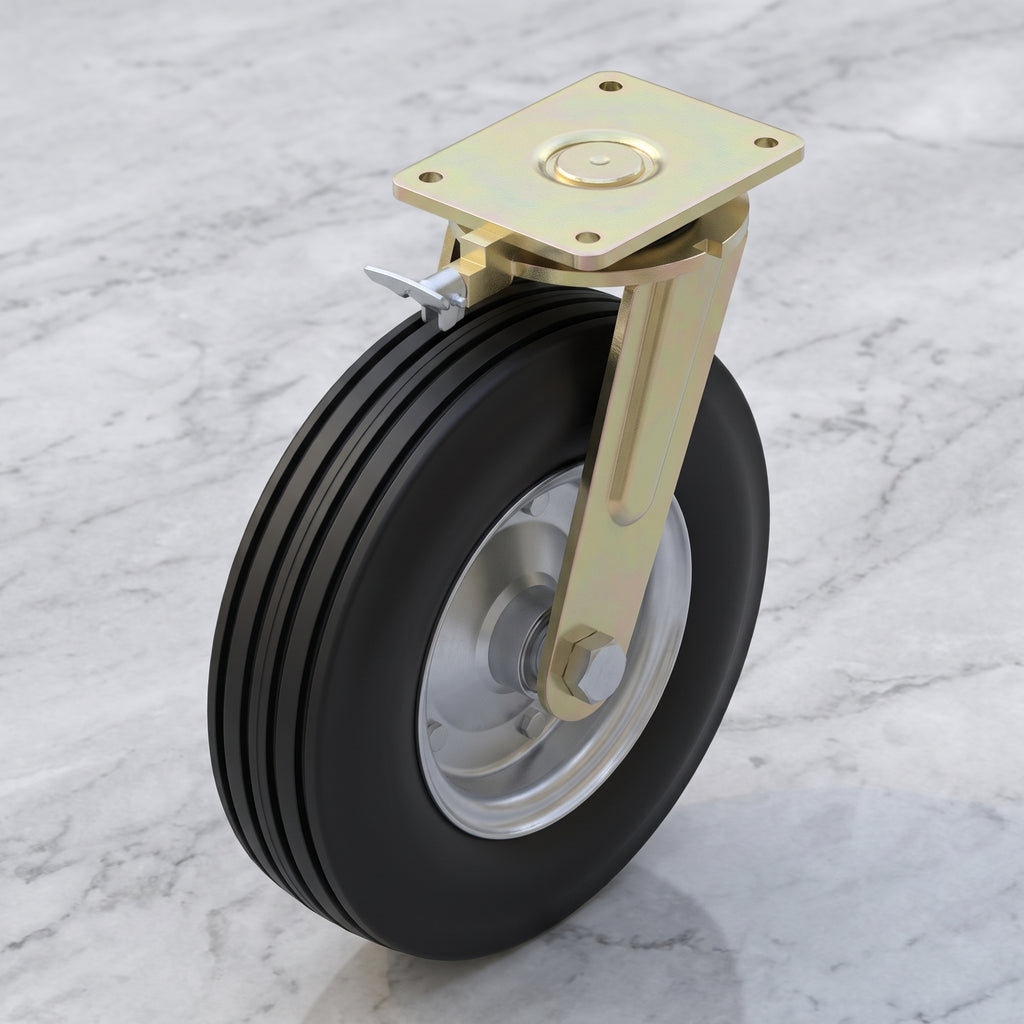

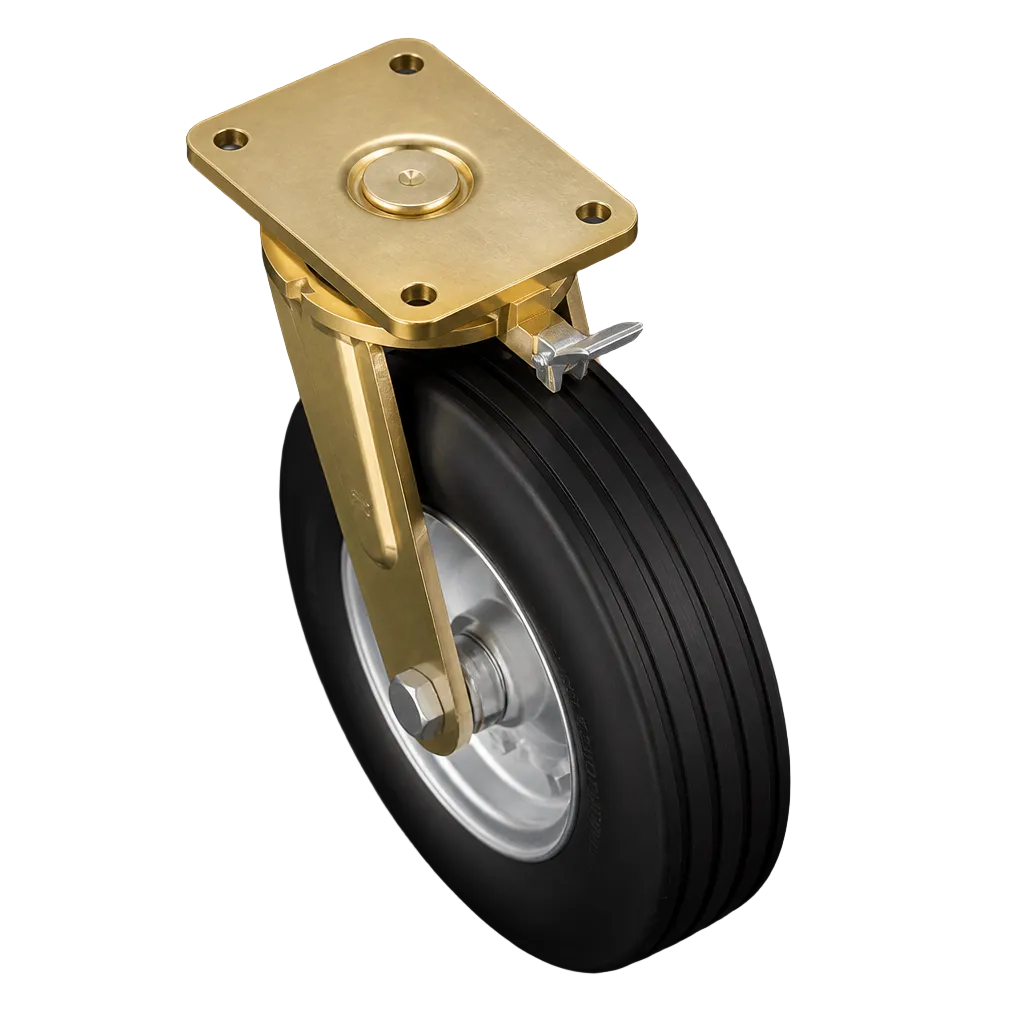

Built for big, heavy trolleys that need a soft, smooth ride, this heavy duty swivel castor has a large 405mm black super elastic rubber tyre with a multi-rib tread on a pressed steel centre. A lever-operated directional lock holds the swivel head straight so the castor runs like a fixed castor for easy straight-line pushing, and releases to let it swivel freely when you need to turn. The thick elastic rubber cushions bumps and rolls over uneven floors and outdoor surfaces with ease, while the ball bearing keeps rotation smooth. Each castor is rated for 950kg.
It fixes to your equipment with a 200 x 160mm top plate and stands 473mm tall. Check that the plate size and hole centres match your existing setup before ordering.
Why Choose This Castor
- ✓ 950kg load capacity per castor for heavy loads.
- ✓ Super elastic rubber tyre 405mm black tyre with a 105mm multi-rib tread, cushioning shocks and running quietly.
- ✓ Large wheel rolls easily over cracks, thresholds and rough ground.
- ✓ Ball bearing for efficient rotation with less effort.
- ✓ Directional lock locks the swivel head straight for easy pushing over long runs.
- ✓ Swivel head swivels freely for tight turns when the lock is released.
- ✓ 200 x 160mm top plate with four 14mm holes on 160 x 120mm centres.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.

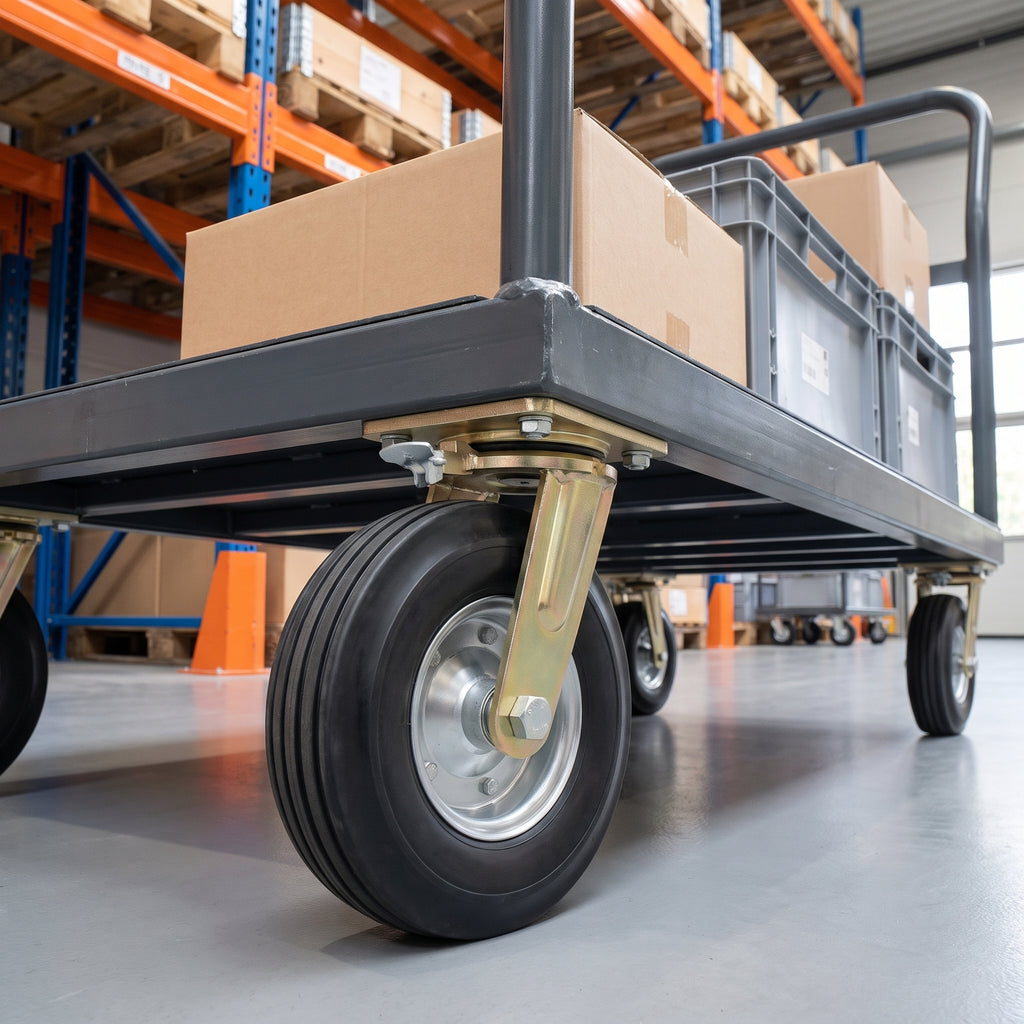

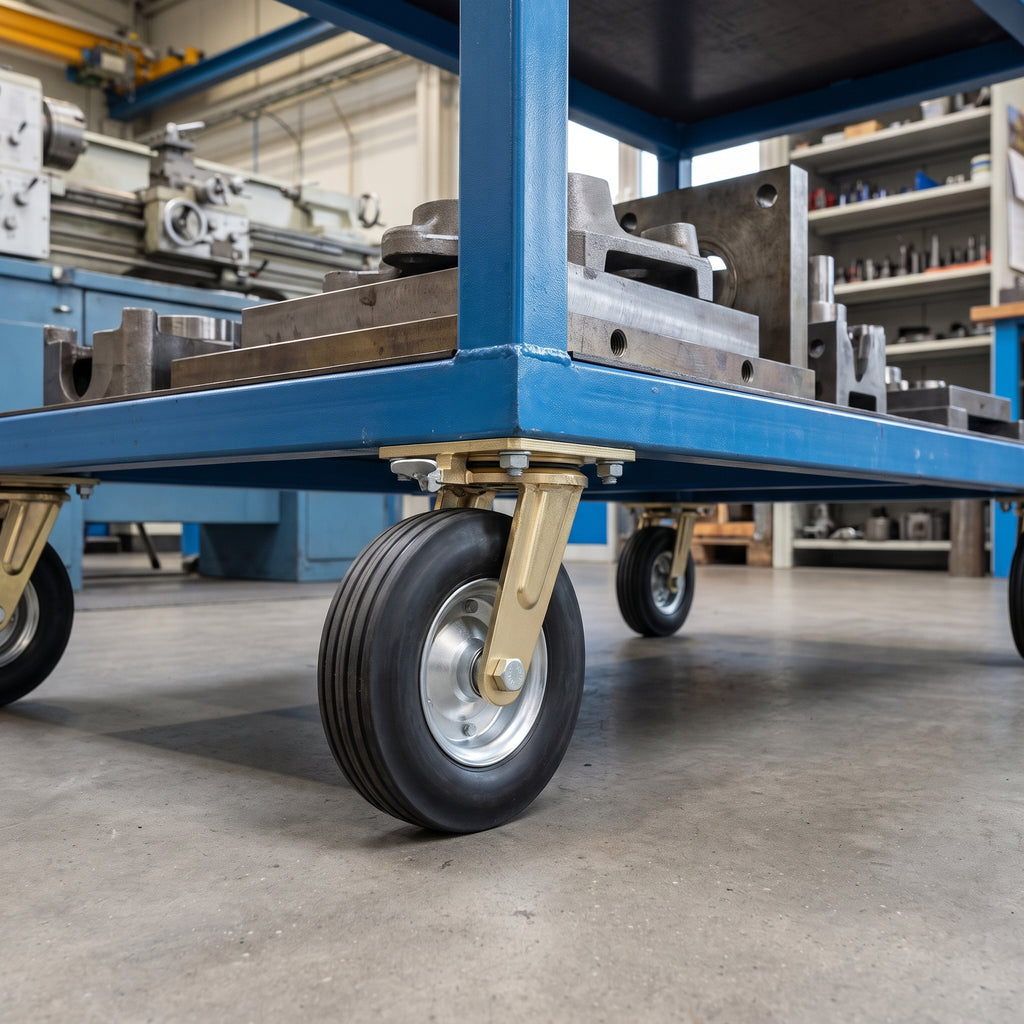

Where It Works Best
This heavy duty elastic rubber castor with directional lock suits:
- ✓ Industrial equipment: machinery that needs directional stability.
- ✓ Heavy-duty trolleys: trolleys carrying substantial loads.
- ✓ Warehouse carts: efficient material handling.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 950kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 405mm black super elastic rubber tyre with a multi-rib tread, fitted on a pressed steel centre and running on a ball bearing.
How is the castor fitted?
It has a 200 x 160mm top plate with four 14mm holes on 160 x 120mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Can it be used outdoors?
Yes. The large elastic rubber tyre handles uneven ground, ramps and outdoor surfaces well and cushions the load as it rolls.
What does the directional lock do?
Set the lock lever and the swivel head is held straight, so the castor runs like a fixed castor. This makes long straight pushes easier. Release it to swivel freely again.
Does this castor have a brake?
No. This castor has a directional lock only. Pair it with braked castors if your equipment needs to be held in place. The total castor height is 473mm.
