306mm Fixed Castor - 700kg Load Capacity

Reliable fixed castor for heavy-duty applications.

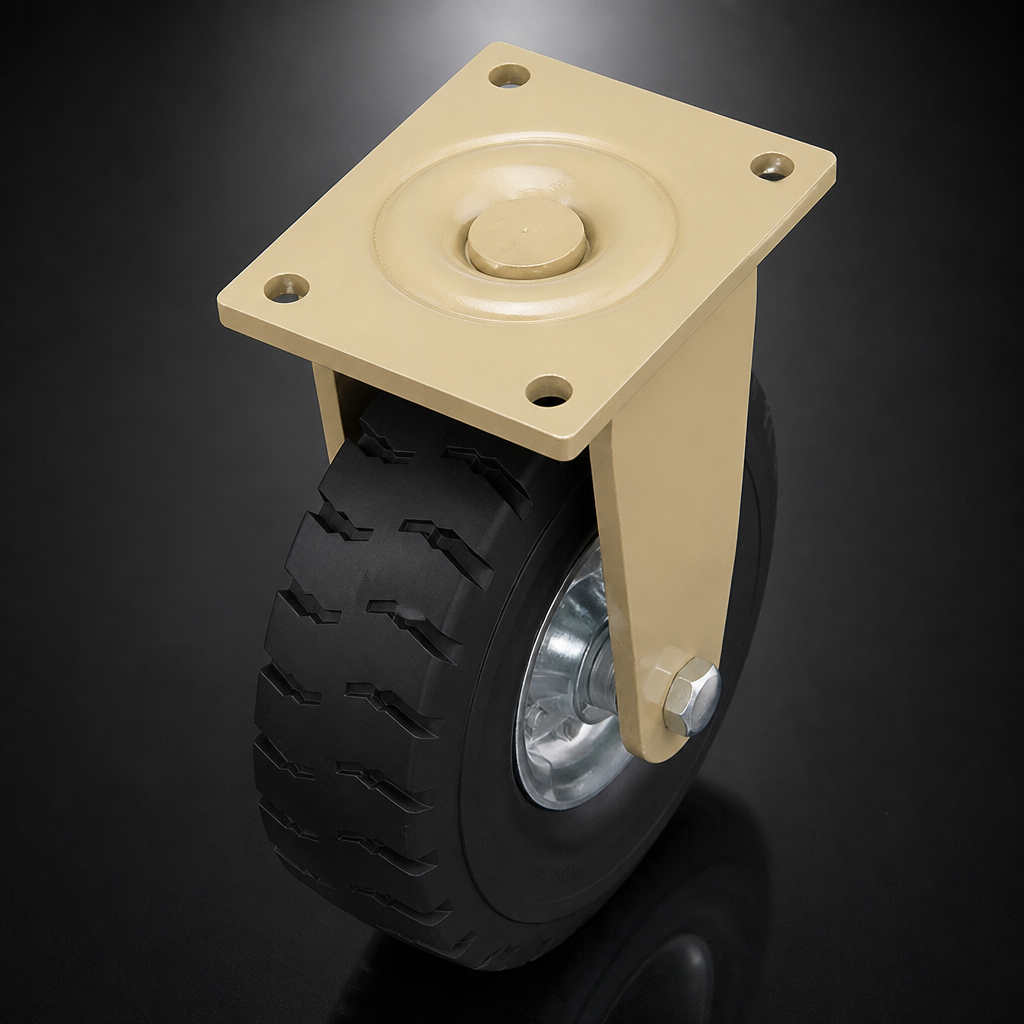

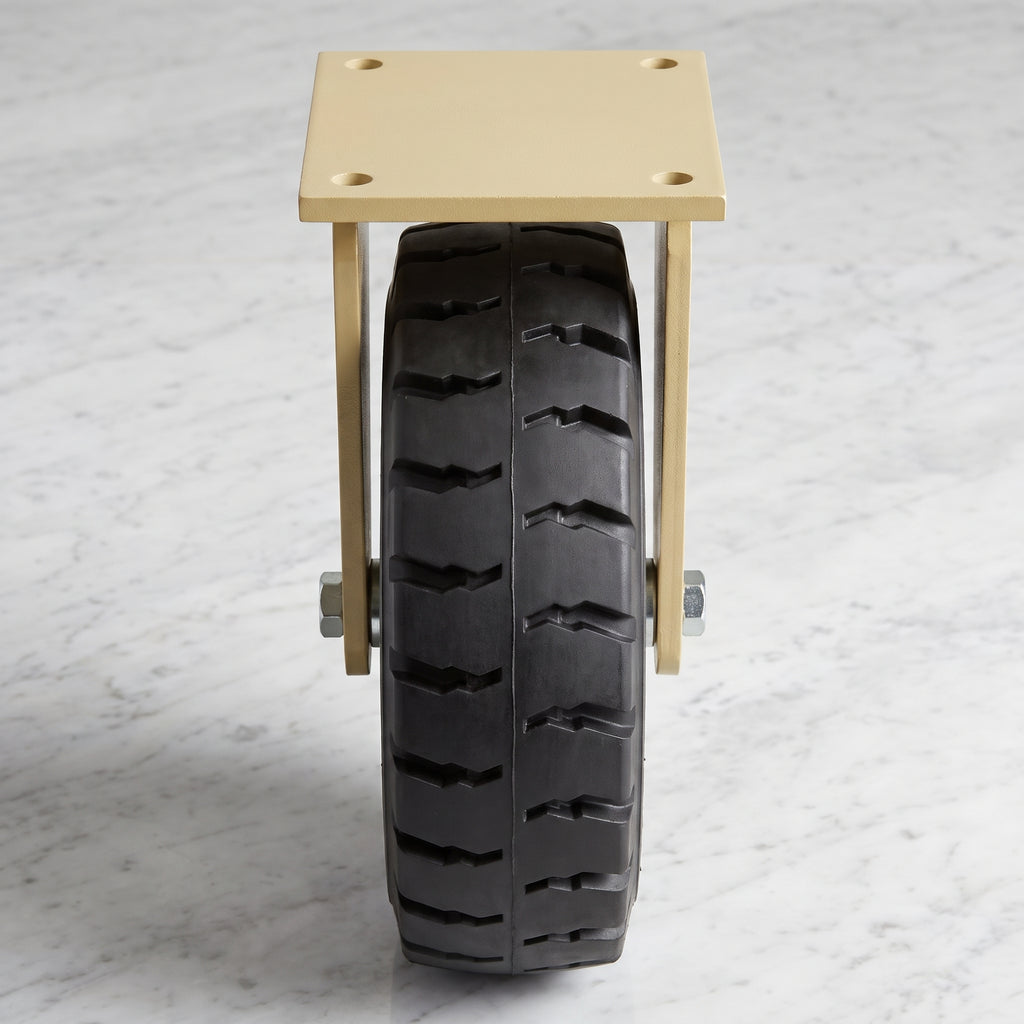

This fixed castor features an elastic rubber wheel with a staggered block tread, designed to provide enhanced grip and stability. With a load capacity of 700kg and a total height of 358mm, it is perfect for various industrial uses. Ensure compatibility by checking the bolt hole size and plate dimensions against your existing setup.

Key Features

• Wheel Diameter: 306mm – check against the existing wheel size.
• Tread Width: 105mm – provides the contact surface width.
• Load Capacity: 700kg – maximum load rating per wheel.
• Height: 358mm – total castor height.
• Bearing Type: Ball Bearing – for smooth rotation.
• Plate Length: 200mm – overall length of the mounting plate.
• Plate Width: 160mm – overall width of the mounting plate.
• Bolt Hole Size: 14 – must match the bolt size.

Applications

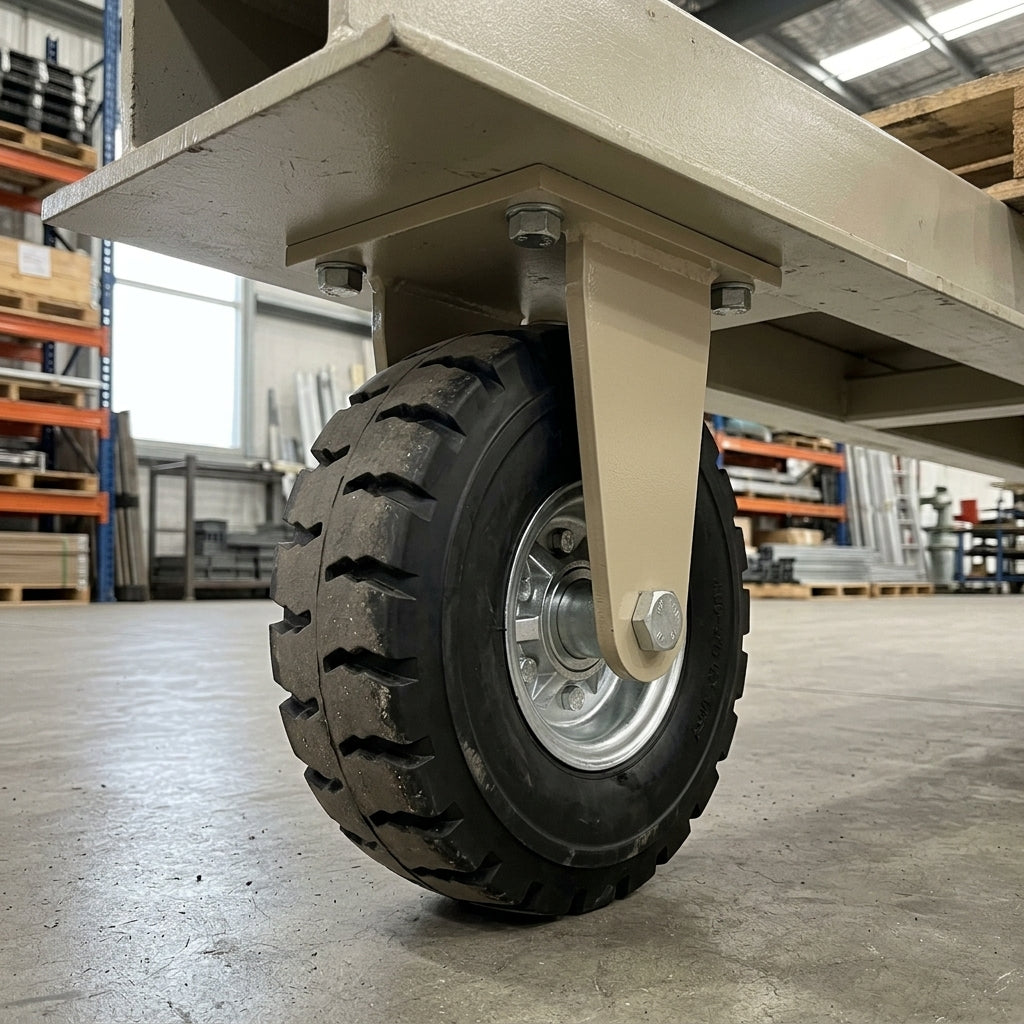

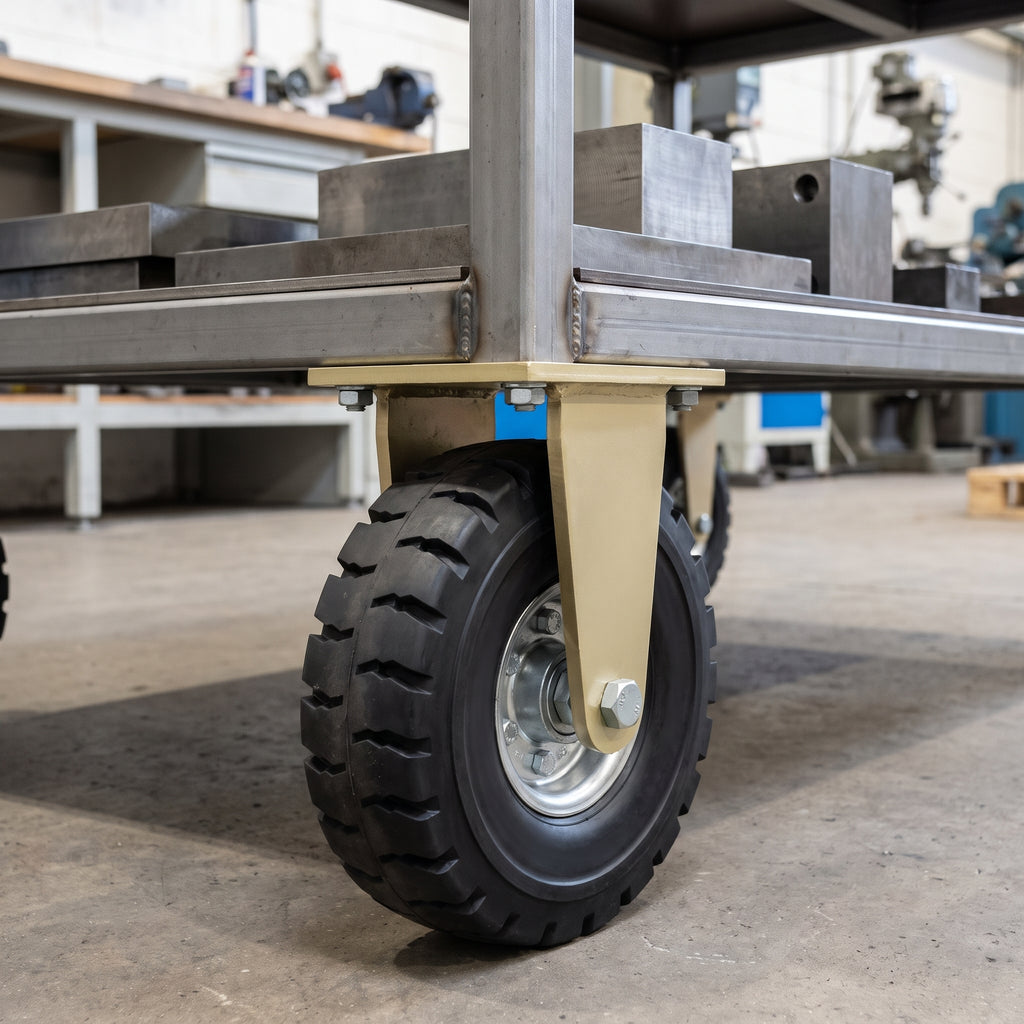

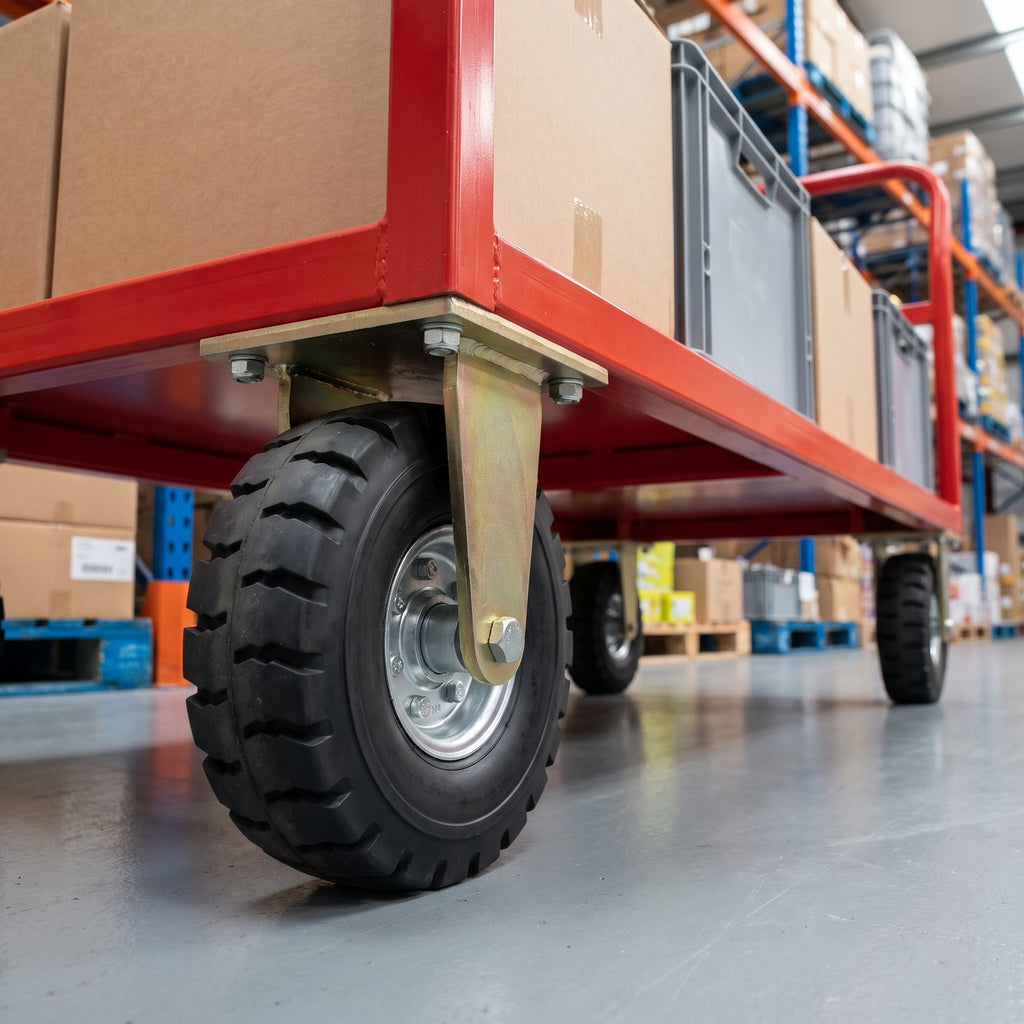

• Industrial Trolleys: Used for transporting heavy loads within facilities.
• Warehouse Equipment: Fitted to machinery requiring stable movement.
• Heavy-Duty Carts: Ideal for carts that need to support substantial weight.
• Manufacturing Equipment: Suitable for equipment in manufacturing settings.
