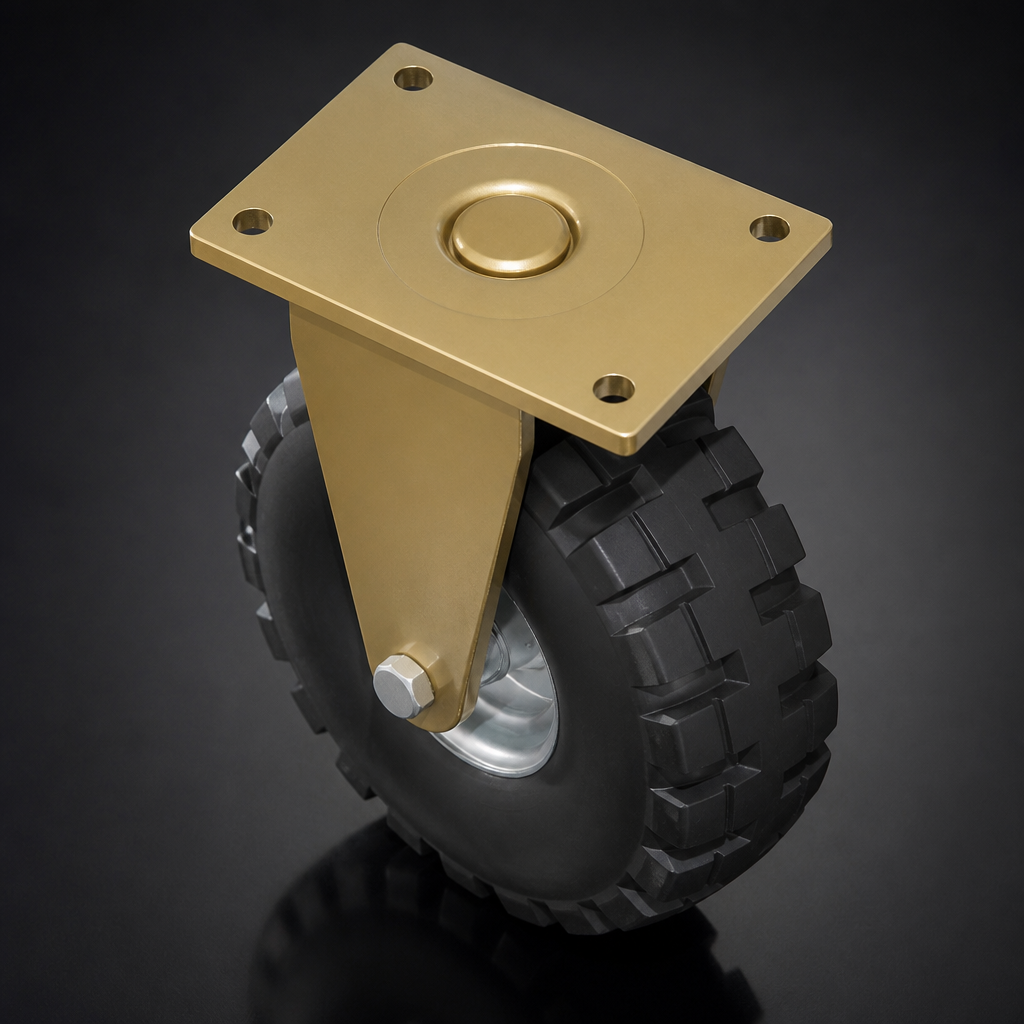

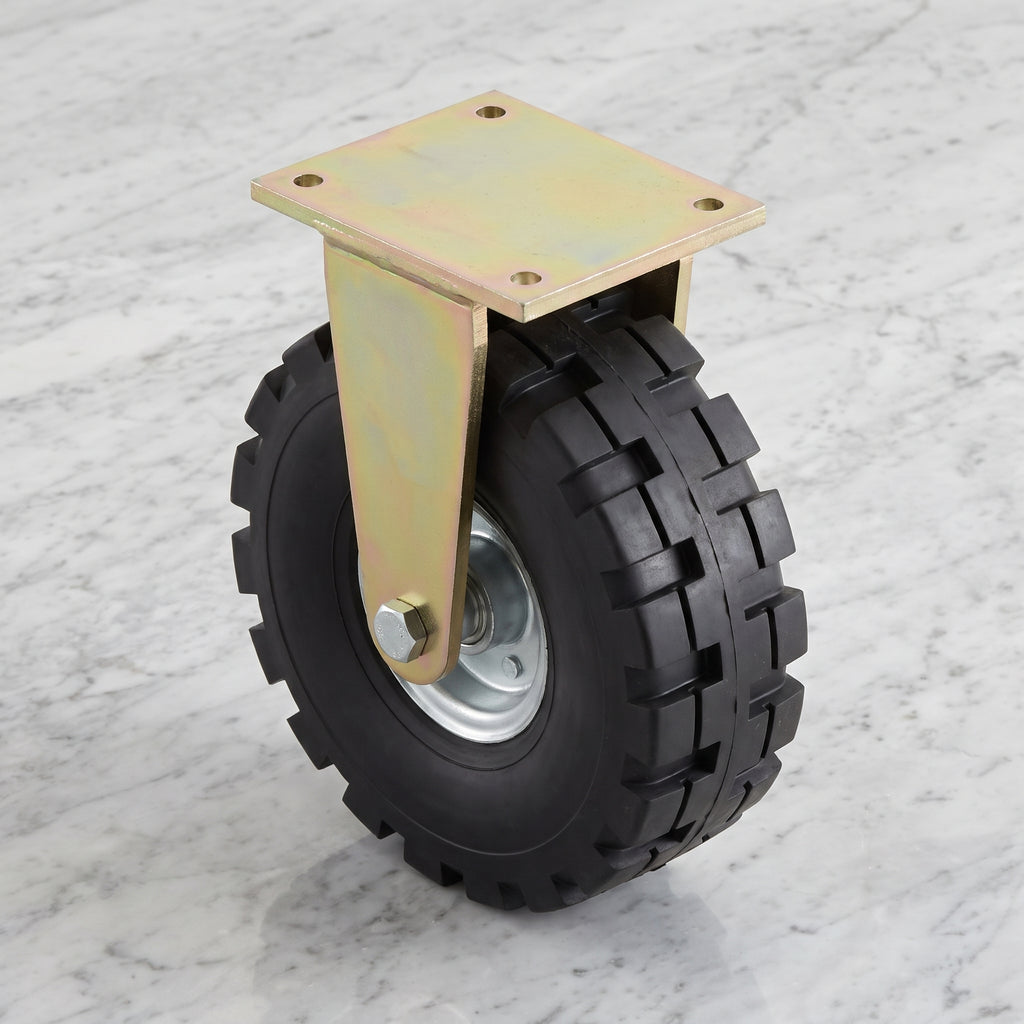

306mm Fixed Castor - 450kg Load Capacity, 105mm Tread Width

High-performance fixed castor for heavy-duty use.

This 306mm fixed castor features an elastic rubber wheel with a cross-block tread, designed for applications that demand high load capacities. The ball bearing design ensures smooth rotation, making it an excellent choice for industrial trolleys and other heavy-duty equipment.

Key Features

• Wheel Diameter: 306mm – check against the existing wheel size.
• Tread Width: 105mm – width of the wheel tread.
• Load Capacity: 450kg – maximum load rating per wheel.
• Height: 358mm – total height of the castor.
• Plate Length: 200mm – overall length of the mounting plate.
• Plate Width: 160mm – overall width of the mounting plate.
• Plate Hole Centres Length: 160mm – distance between the centre of the holes along the length.
• Plate Hole Centres Width: 120mm – distance between the centre of the holes along the width.

Applications

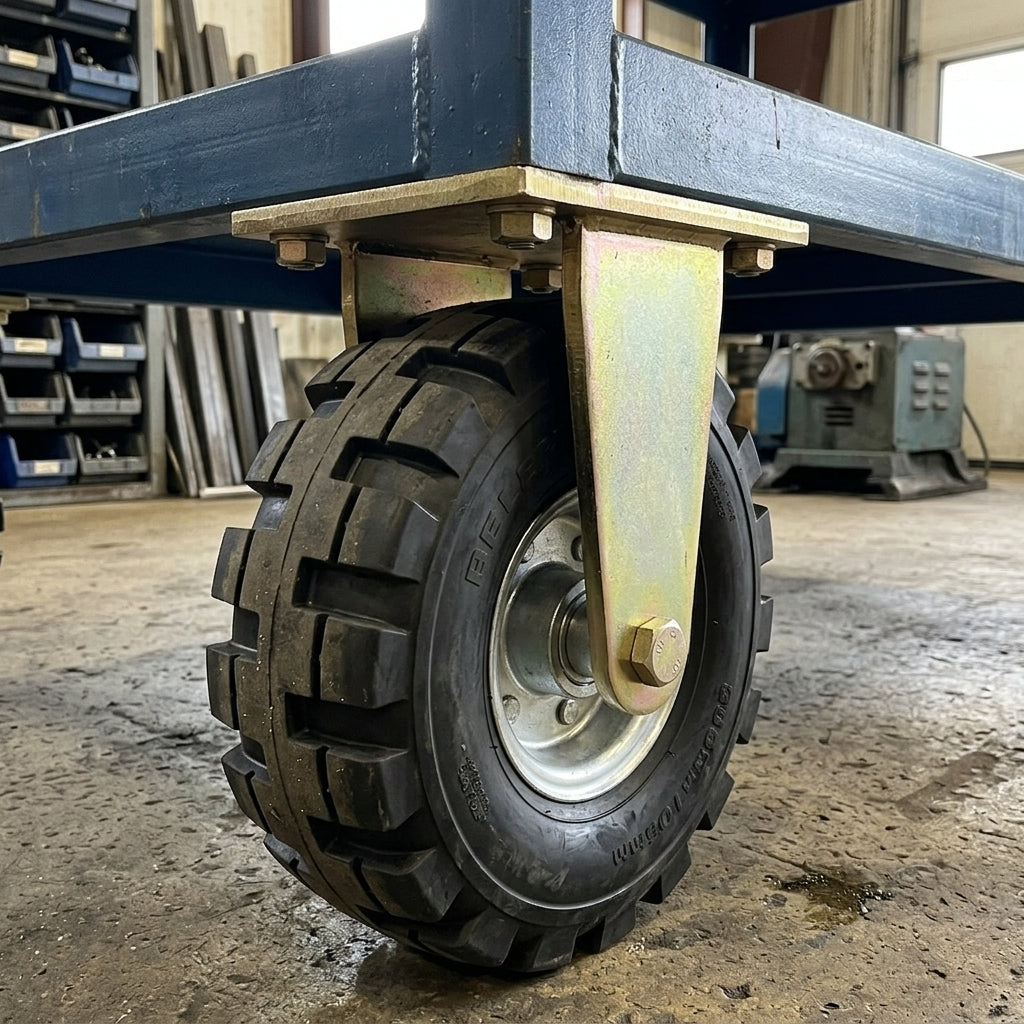

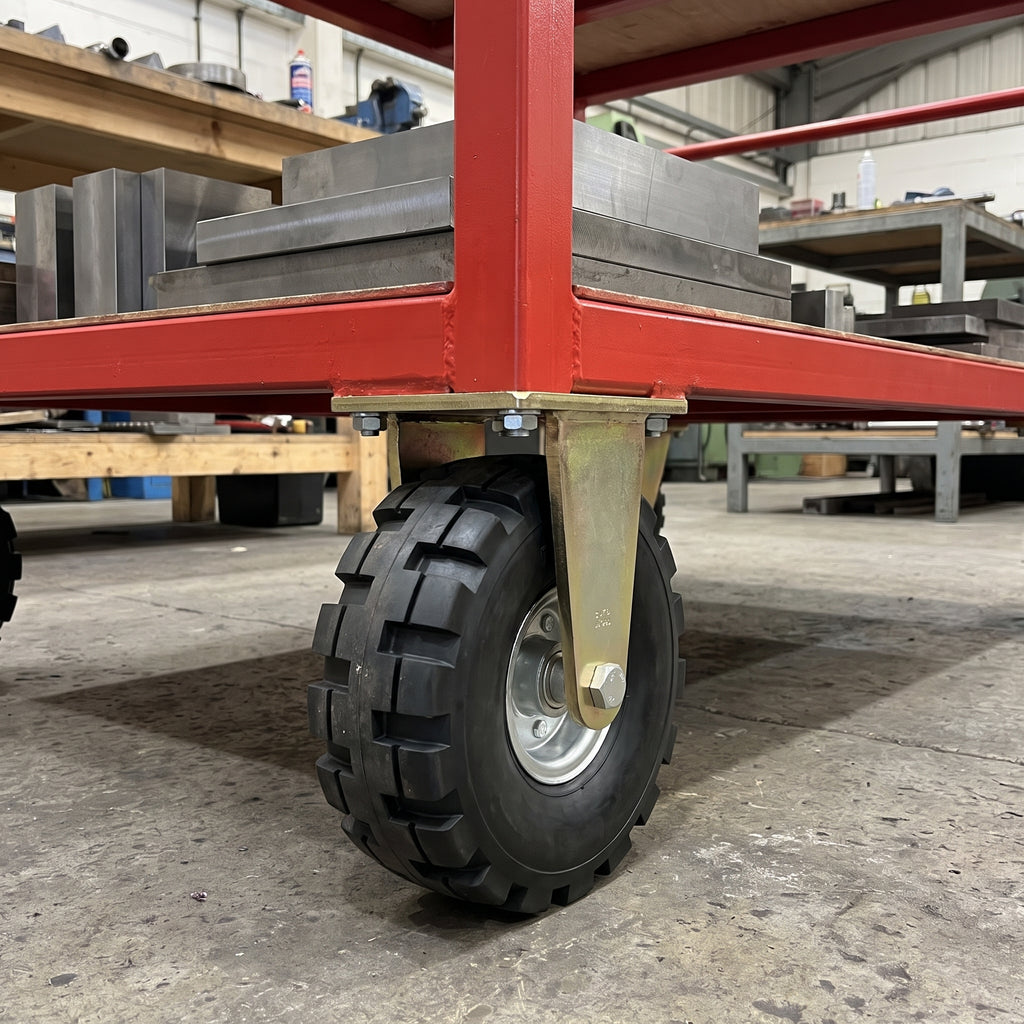

• Industrial trolleys: Provides stable support for heavy-duty trolleys.

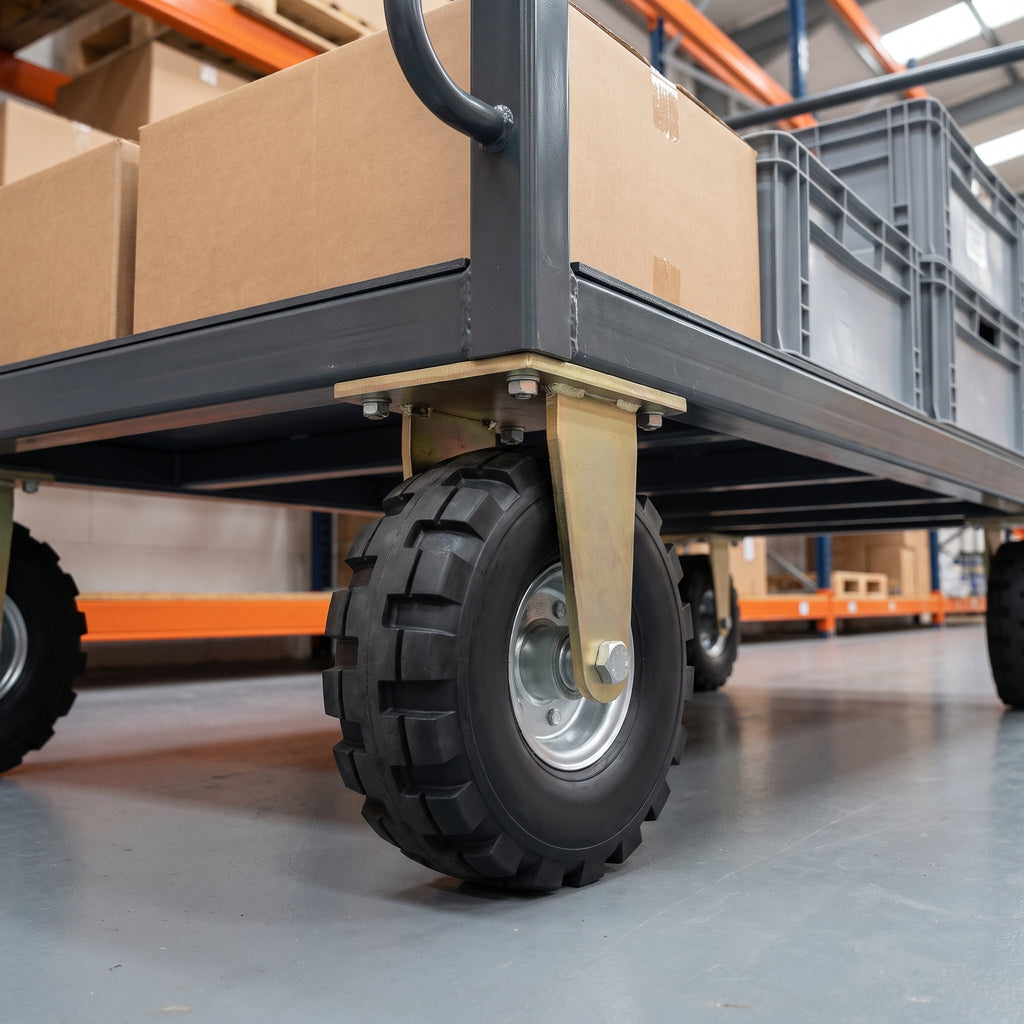

• Warehouse equipment: Ideal for moving heavy loads efficiently.
• Transport carts: Enhances mobility for transport solutions.
• Manufacturing setups: Supports machinery and tools in production lines.
