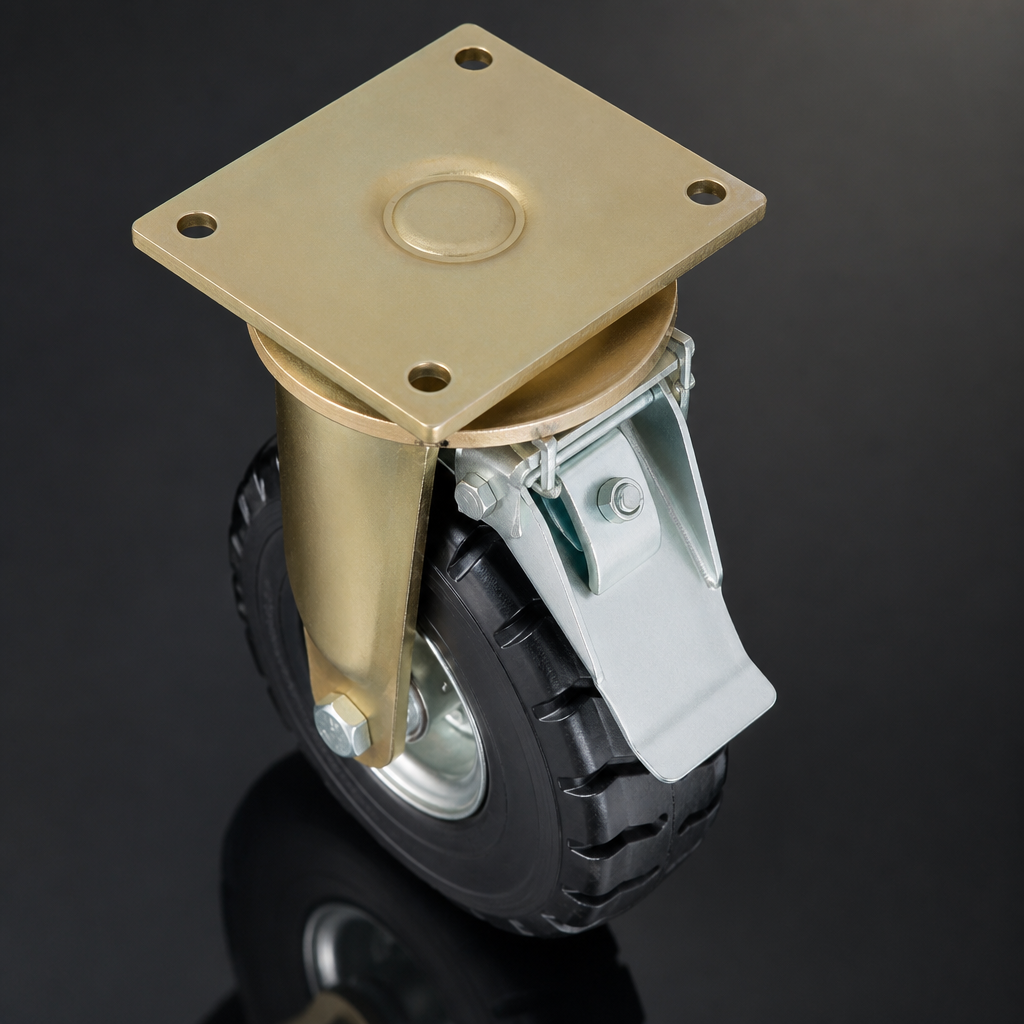

306mm Directional Lock Castor - 450kg Capacity

High-performance directional lock castor

This directional lock castor features an elastic rubber wheel with a cross-block tread, ideal for precise manoeuvrability and stability. The ball bearing design ensures smooth operation, while the robust construction supports a load capacity of 450kg. Ensure compatibility by checking the bolt hole size and plate dimensions before ordering.

Key Features

• Wheel Diameter: 306mm – check against the existing wheel size.
• Tread Width: 105mm – overall width of the wheel tread.
• Load Capacity: 450kg – maximum load rating per wheel.
• Height: 358mm – total height of the castor.
• Plate Length: 200mm – overall length of the mounting plate.
• Plate Width: 160mm – overall width of the mounting plate.
• Plate Hole Centres Length: 160mm – distance between hole centres lengthwise.
• Plate Hole Centres Width: 120mm – distance between hole centres widthwise.

Applications

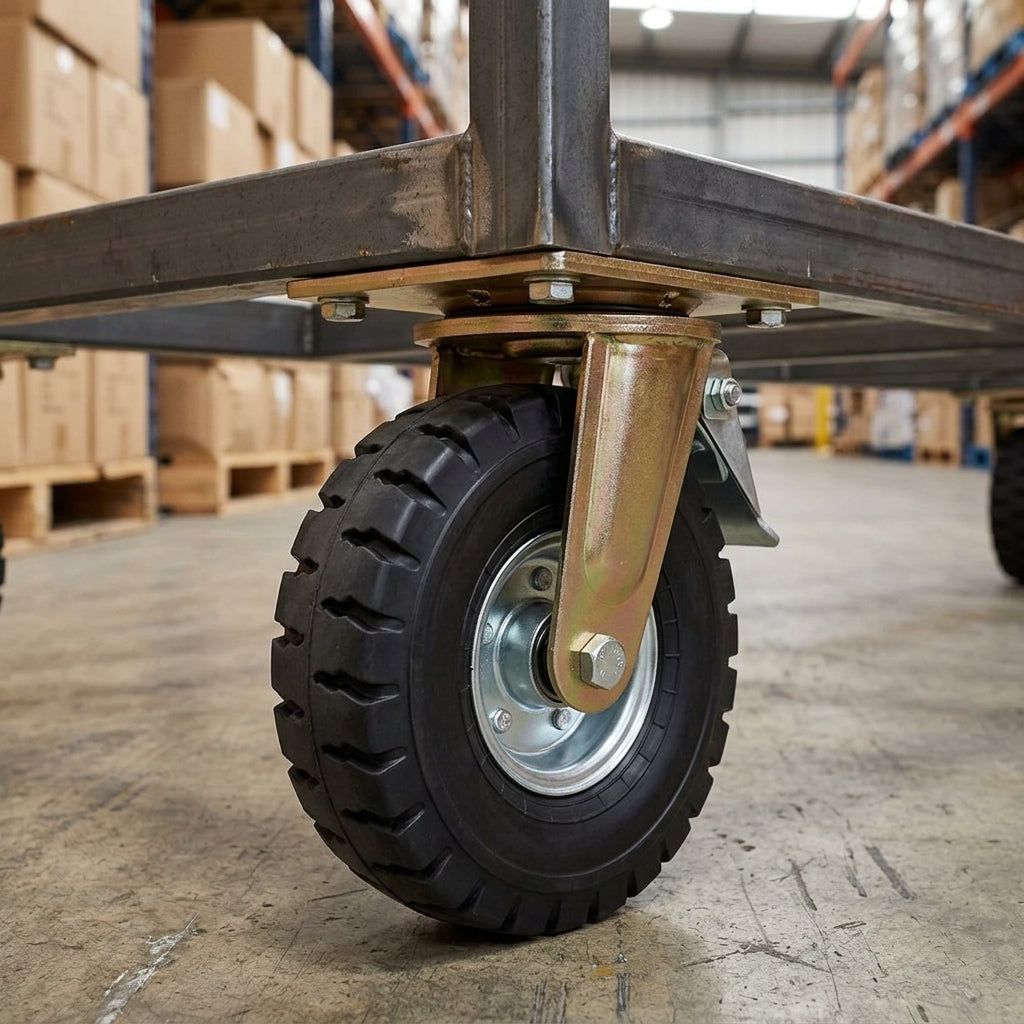

• Industrial trolleys: Provides stability and directional control.
• Warehouse equipment: Enhances mobility and ease of transport.
• Material handling: Ideal for moving heavy loads efficiently.
