- Load per castor550kg per castor
- Wheel diameter305mm
- Overall height358mm
- WheelPneumatic tyre on pressed steel wheel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor
- Wheel Diameter
- 305mm
- Wheel Material
- Pneumatic tyre on pressed steel wheel
- Wheel Colour
- Black
- Tread Width
- 105mm
- Bearing Type
- Ball bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 200 x 160mm
- Hole Centres
- 160 x 120mm
- Bolt Hole Size
- 14mm
- Total Castor Height
- 358mm
- Load Capacity
- 550kg per castor
Will it fit?
- Bolt hole14mm
- Overall height358mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Pneumatic tyre
- Rides over gravel, grass and rough ground
- Maximum cushioning for fragile loads
- Can puncture; check tyre pressure
- Lower load rating than a solid wheel of the same size
Details & FAQs
Heavy Duty Pneumatic Castors

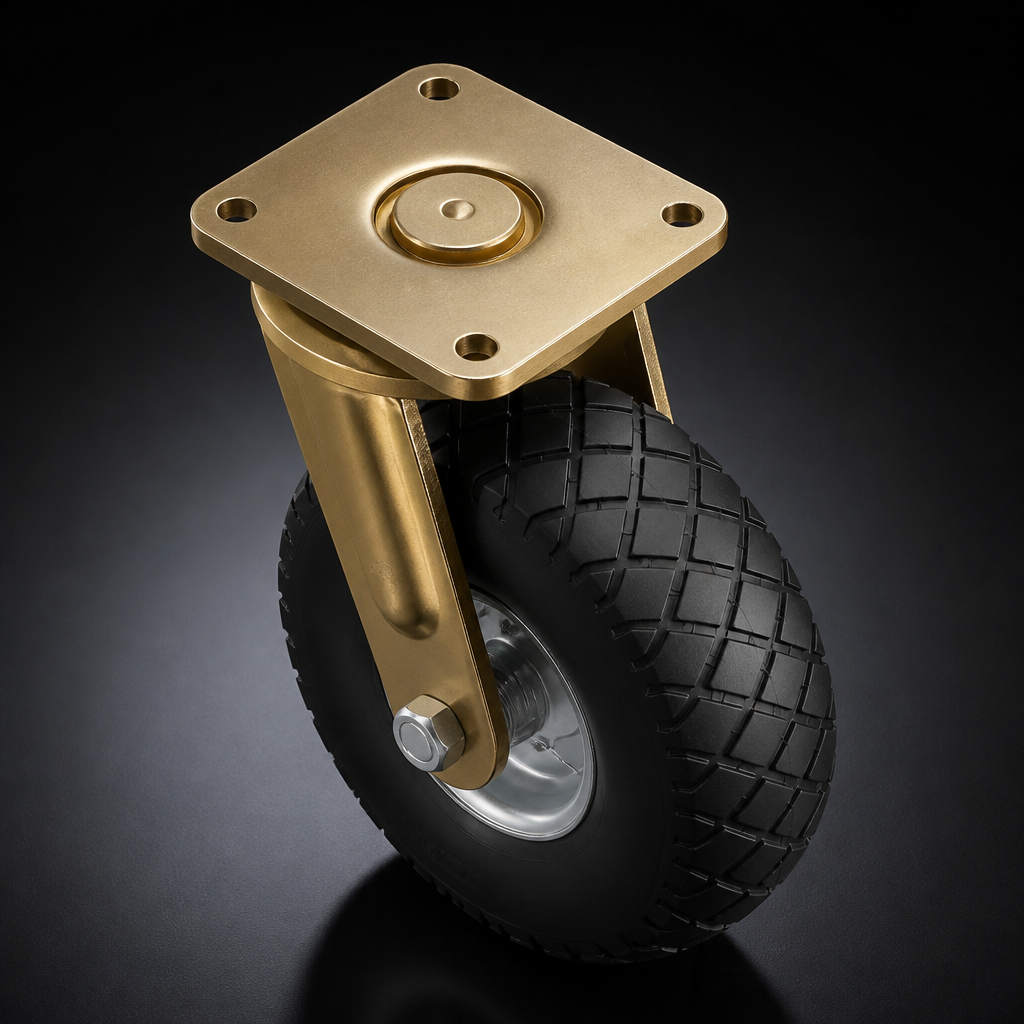

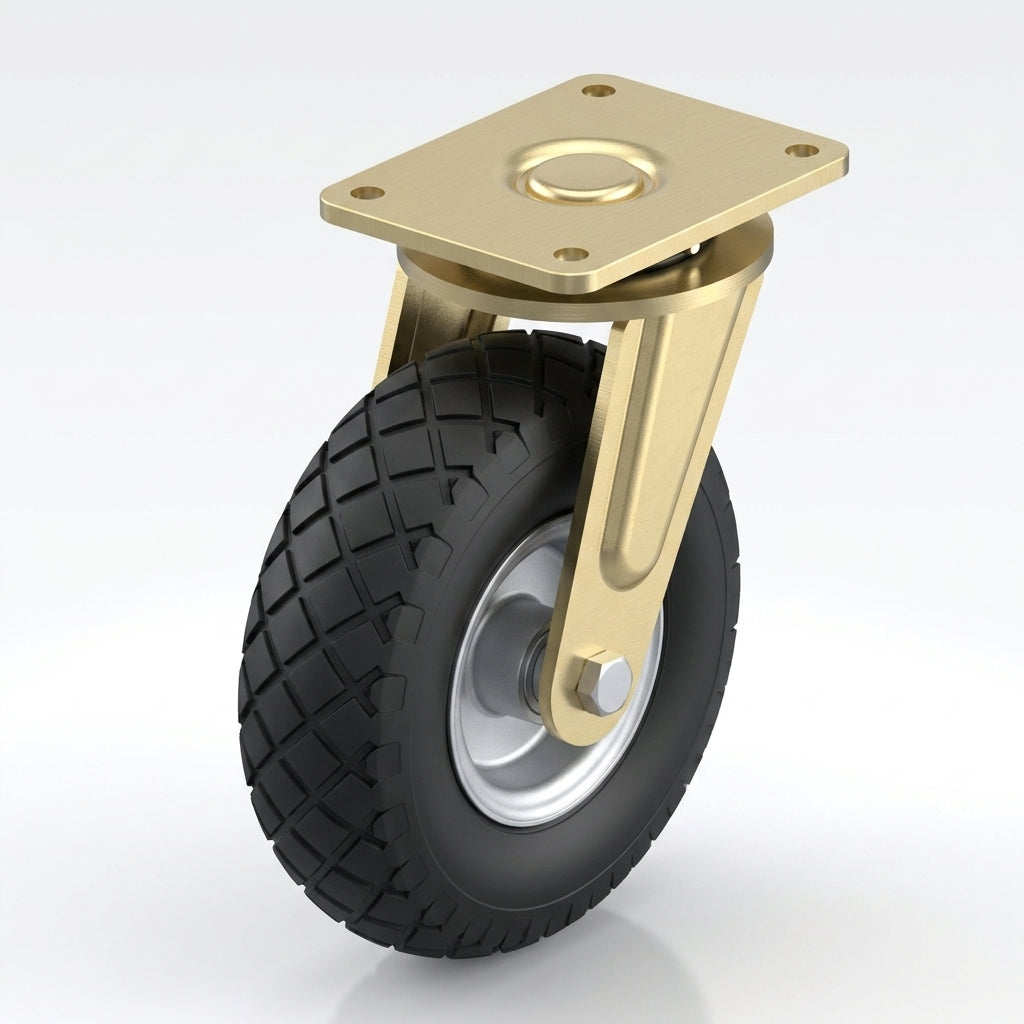

This 305mm heavy duty swivel castor has a large black pneumatic tyre on a pressed steel wheel, a ball bearing and a strong yellow zinc plated fork. It is built for heavy loads up to 550kg per castor and rolls smoothly over rough, uneven ground such as building sites, yards and grass.
It fixes with a 200 x 160mm top plate and stands 358mm tall. The wide 105mm tread spreads the load and keeps heavy trolleys and equipment stable.
Why Choose This Castor
- ✓ 550kg load capacity per castor.
- ✓ Large 305mm pneumatic tyre for a cushioned ride over rough ground.
- ✓ Ball bearing for smooth rotation under heavy loads.
- ✓ Swivel head for easy steering.
- ✓ Wide 105mm tread for stability.
- ✓ 200 x 160mm top plate with four 14mm holes.
* Load capacity is per castor with the tyre correctly inflated. Check that the plate size, hole centres and swivel clearance suit your equipment before fitting.
Where It Works Best
- ✓ Construction equipment: moving over uneven construction sites.
- ✓ Garden machinery: easy movement over grass and soil.

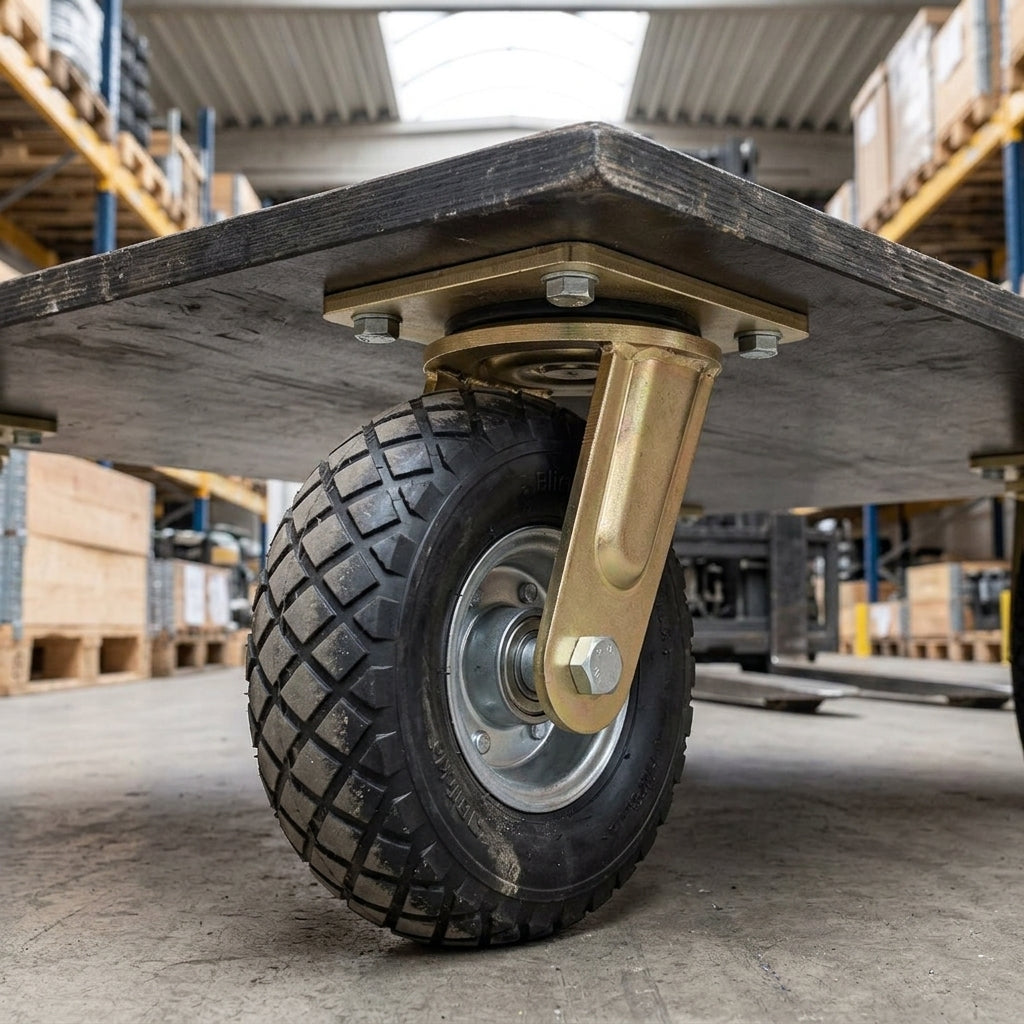

- ✓ Warehouse trolleys: smooth transport of heavy loads.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 550kg.
Why choose a pneumatic wheel?
The air-filled tyre cushions the load and rolls easily over rough or uneven ground such as gravel, grass and site surfaces.
How is it fitted?
It has a 200 x 160mm top plate with four 14mm bolt holes on 160 x 120mm hole centres, bolted flat to the underside of your trolley or equipment.
How tall is it?
The total castor height is 358mm.
What bearing does it use?
It uses a ball bearing for smooth rotation under heavy loads.
