- Load per castor1800kg per castor
- Wheel diameter300mm
- Overall height350mm
- WheelOrange polyurethane tyre on cast iron centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor
- Wheel Diameter
- 300mm
- Wheel Material
- Orange polyurethane tyre on cast iron centre
- Tread Width
- 70mm
- Bearing Type
- Ball bearing
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 200 x 160mm
- Hole Centres
- 160 x 120mm
- Hole Diameter
- 14mm
- Total Castor Height
- 350mm
- Load Capacity
- 1800kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Extra Heavy Duty Castors

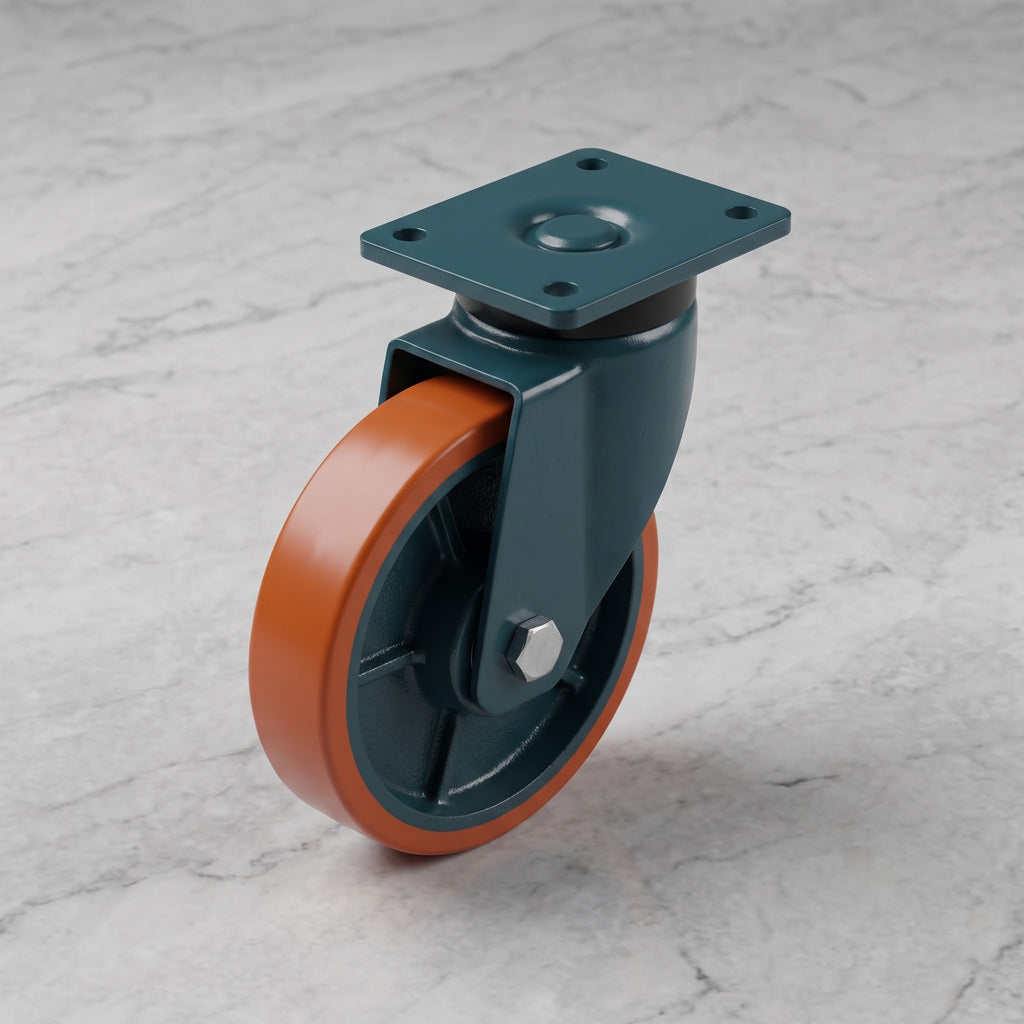

Engineered for high-performance mobility, this heavy duty swivel castor has a 300mm orange polyurethane tyre on a cast iron centre with a 70mm tread and a ball bearing for smooth, efficient rotation and frequent changes of direction. The polyurethane tyre runs quietly and protects floors, the cast iron centre adds strength, and each castor is rated for 1800kg.
It fixes to your equipment with a 200 x 160mm top plate and stands 350mm tall. Check that the plate size and hole centres match your existing setup before ordering.
Why Choose This Castor
- ✓ 1800kg load capacity per castor for heavy loads.
- ✓ Polyurethane on cast iron 300mm orange tyre with a 70mm tread, quiet running and kind to floors.
- ✓ Ball bearing for efficient rotation with less effort.
- ✓ Swivel head for easy changes of direction.
- ✓ 200 x 160mm top plate with four 14mm holes on 160 x 120mm centres.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty polyurethane swivel castor suits:

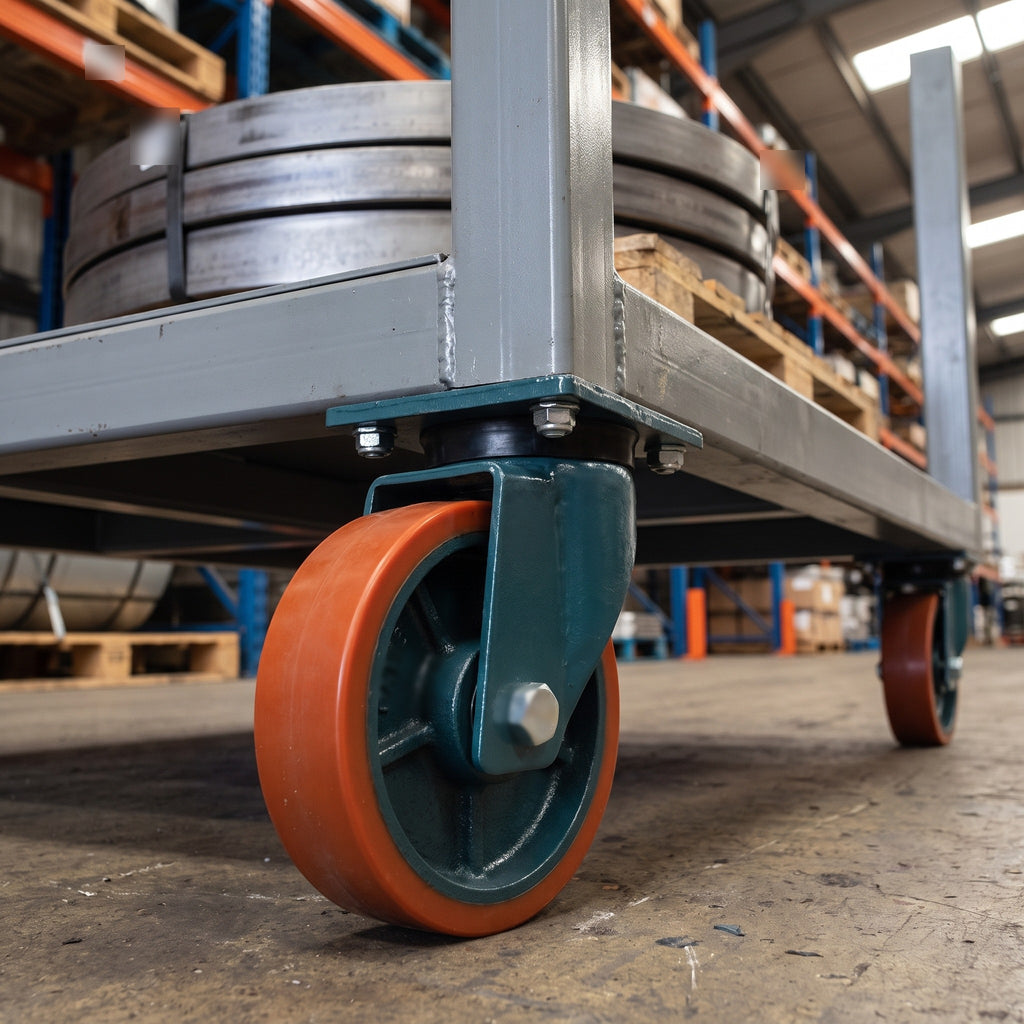

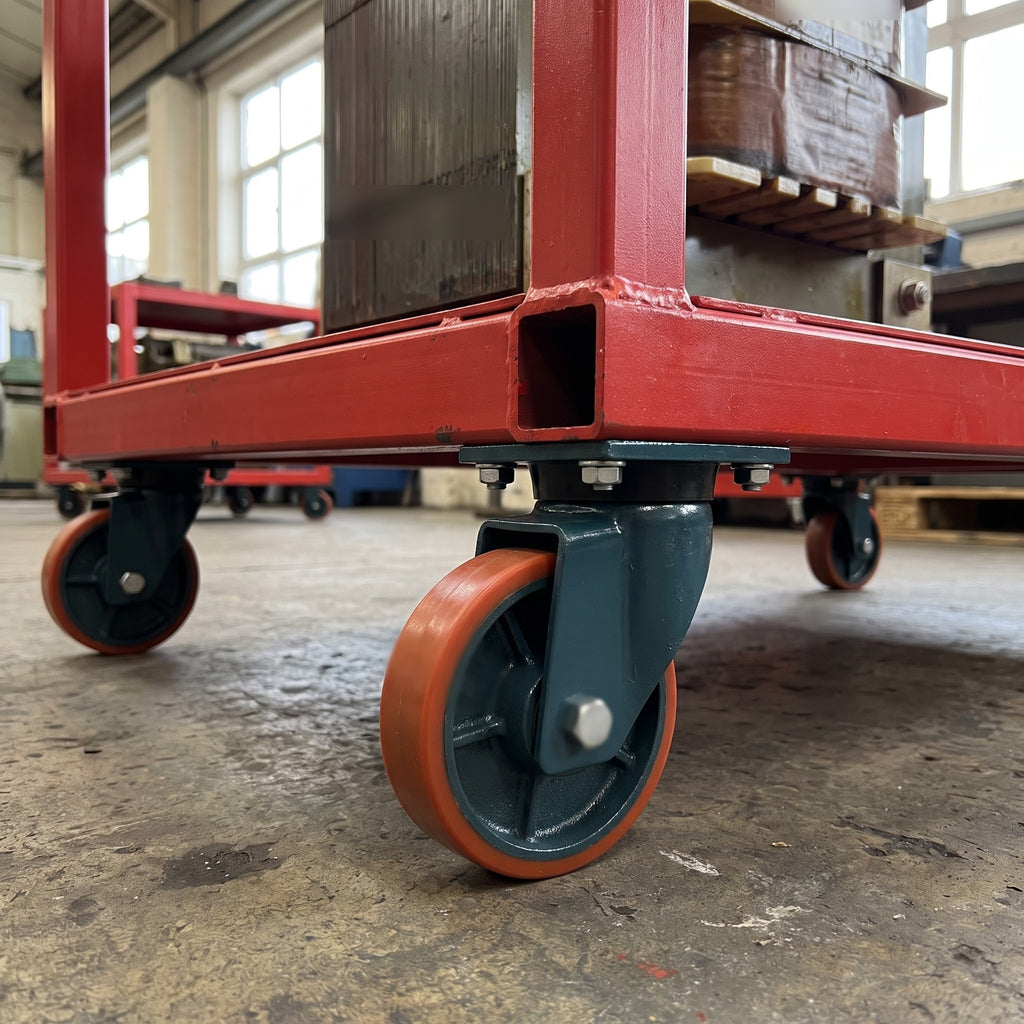

- ✓ Warehouse equipment: trolleys and carts that move heavy materials often.
- ✓ Manufacturing facilities: moving machinery and tools across shop floors.
- ✓ Logistics and distribution: transport equipment in busy environments.
- ✓ Retail displays: mobile display units that are repositioned regularly.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 1800kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 300mm orange polyurethane tyre bonded to a cast iron centre, with a 70mm tread, running on a ball bearing.
How is the castor fitted?
It has a 200 x 160mm top plate with four 14mm holes on 160 x 120mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
Yes. The swivel head lets you change direction easily. The total castor height is 350mm.
What floors does it suit?
The polyurethane tyre suits most hard floors, rolling quietly and leaving floors undamaged.
