- Load per castor120kg per castor (dynamic)
- Wheel diameter260mm
- Overall height318mm
- WheelPuncture-proof tyre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 260mm
- Wheel Material
- Puncture-proof tyre
- Wheel Colour
- Black tyre, red centre
- Tread Width
- 85mm
- Bearing Type
- Roller bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 115 x 105mm
- Hole Centres
- 92/76 x 76/67mm
- Hole Diameter
- 10mm
- Swivel Radius
- 171mm
- Total Castor Height
- 318mm
- Load Capacity
- 120kg per castor (dynamic)
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Details & FAQs

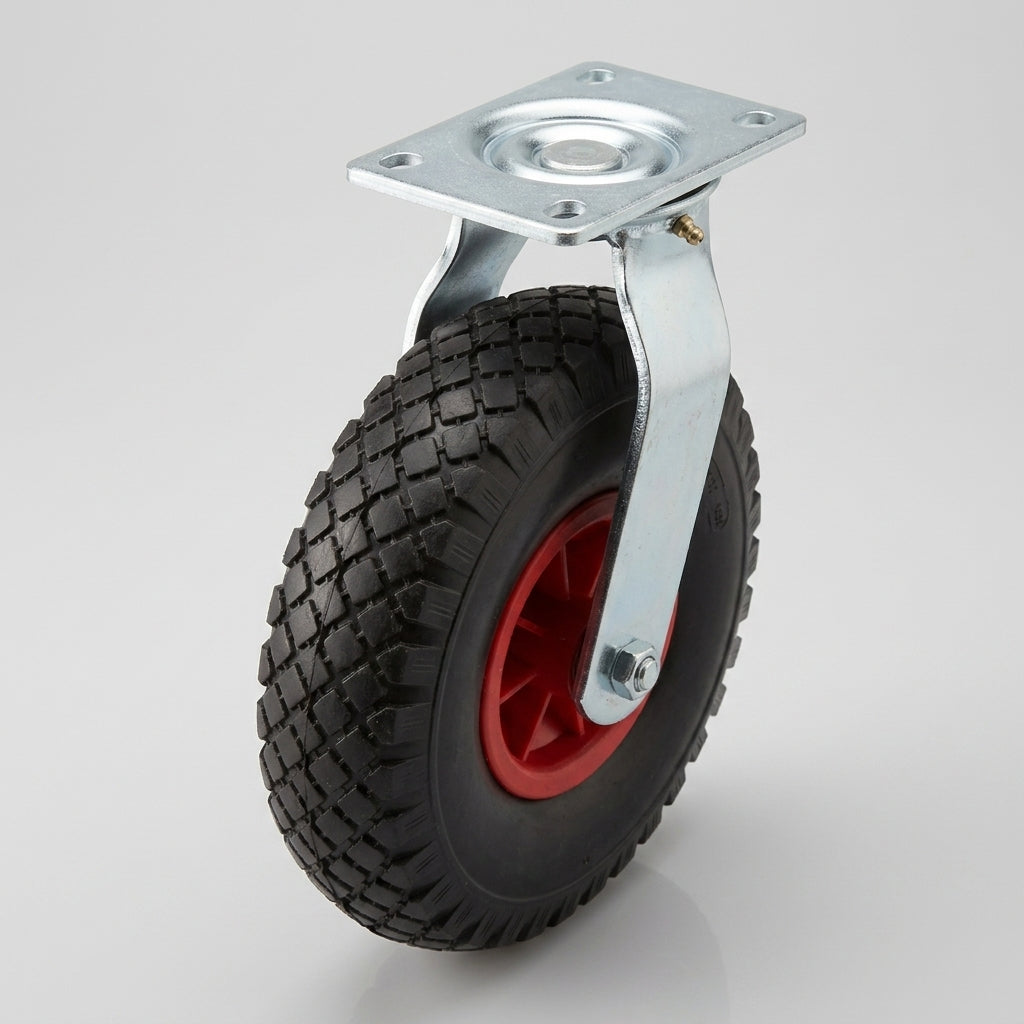

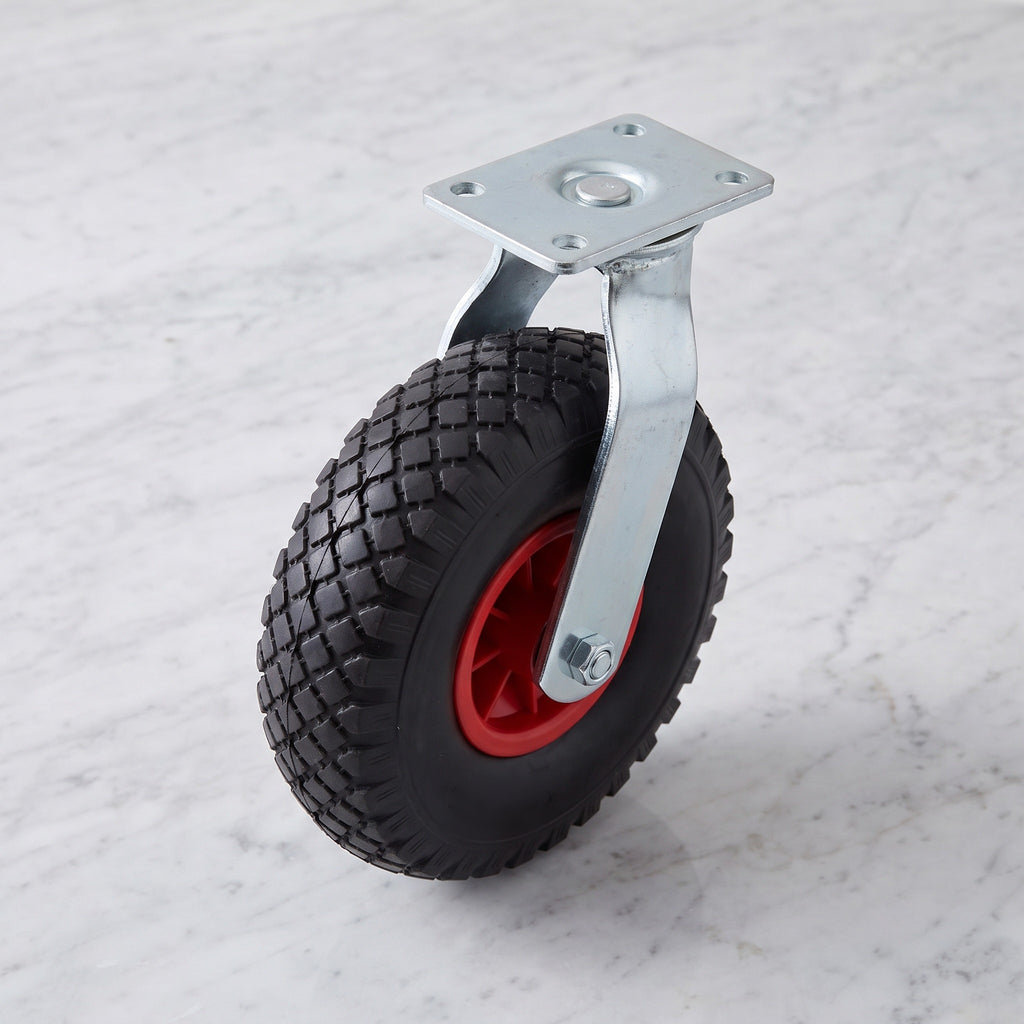

Puncture-Proof Swivel Castors
This 260mm swivel castor has a large black puncture-proof tyre on a red centre, built for durability and long life in demanding working environments. The swivel head turns a full 360 degrees for easy changes of direction, and the roller bearing reduces friction for smooth rolling. It carries a dynamic load of 120kg per castor and suits trolleys, carts and other mobile equipment.
It fixes with a 115 x 105mm top plate, has a 171mm swivel radius and stands 318mm tall.
Why Choose This Castor
- ✓ Puncture-proof tyre that cannot go flat.
- ✓ Roller bearing for smooth rotation.
- ✓ Swivel head for easy turning in tight spaces.
- ✓ 120kg load capacity per castor.
- ✓ 260mm wheel with 85mm tread for stability over uneven floors.
- ✓ 115 x 105mm top plate with four 10mm holes.
* Load capacity is the dynamic rating per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This puncture-proof swivel castor suits:

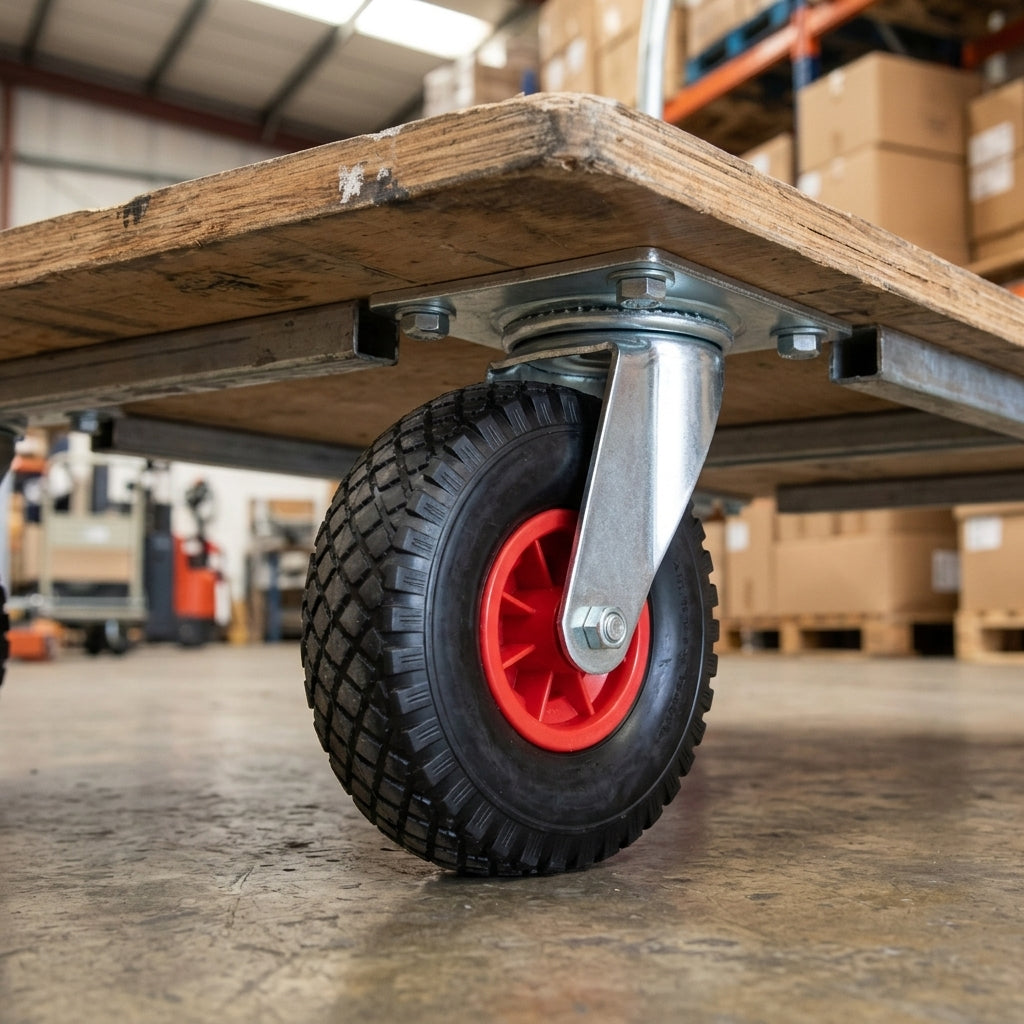

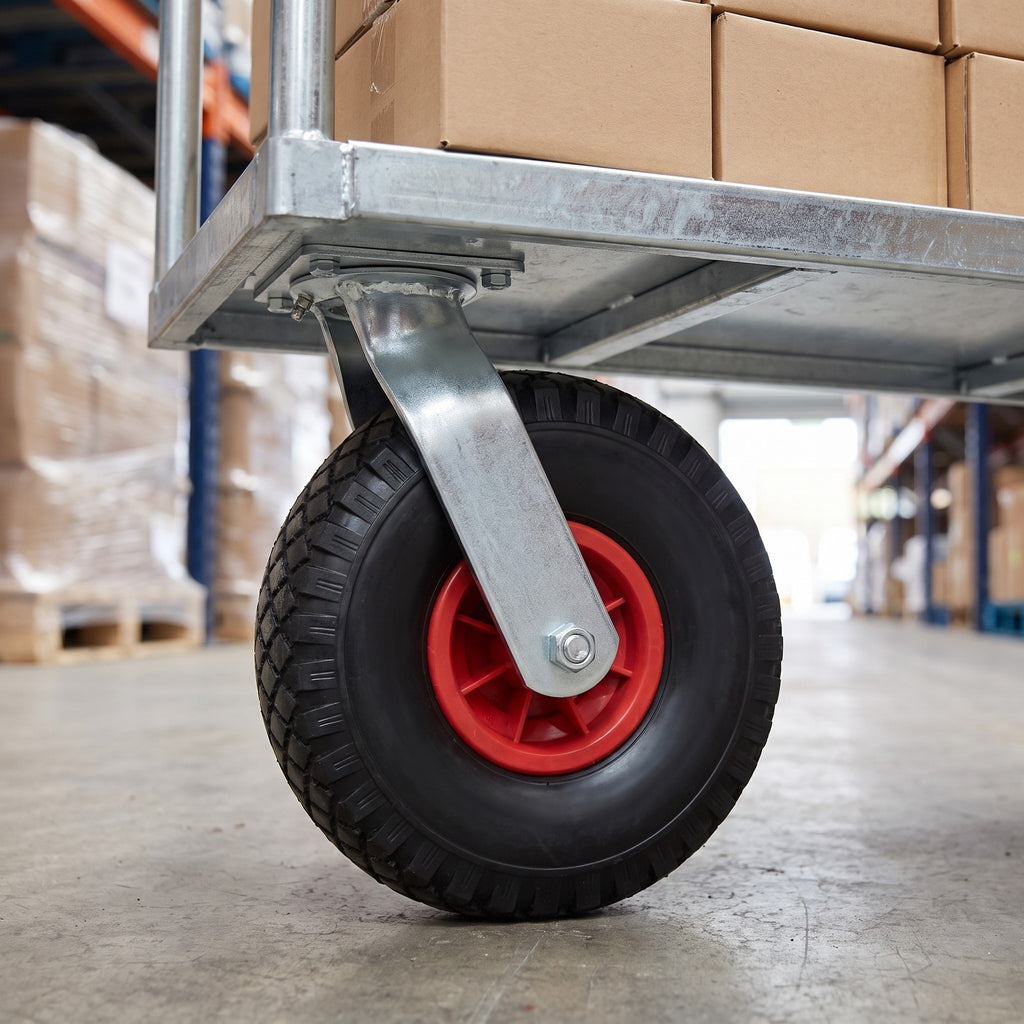

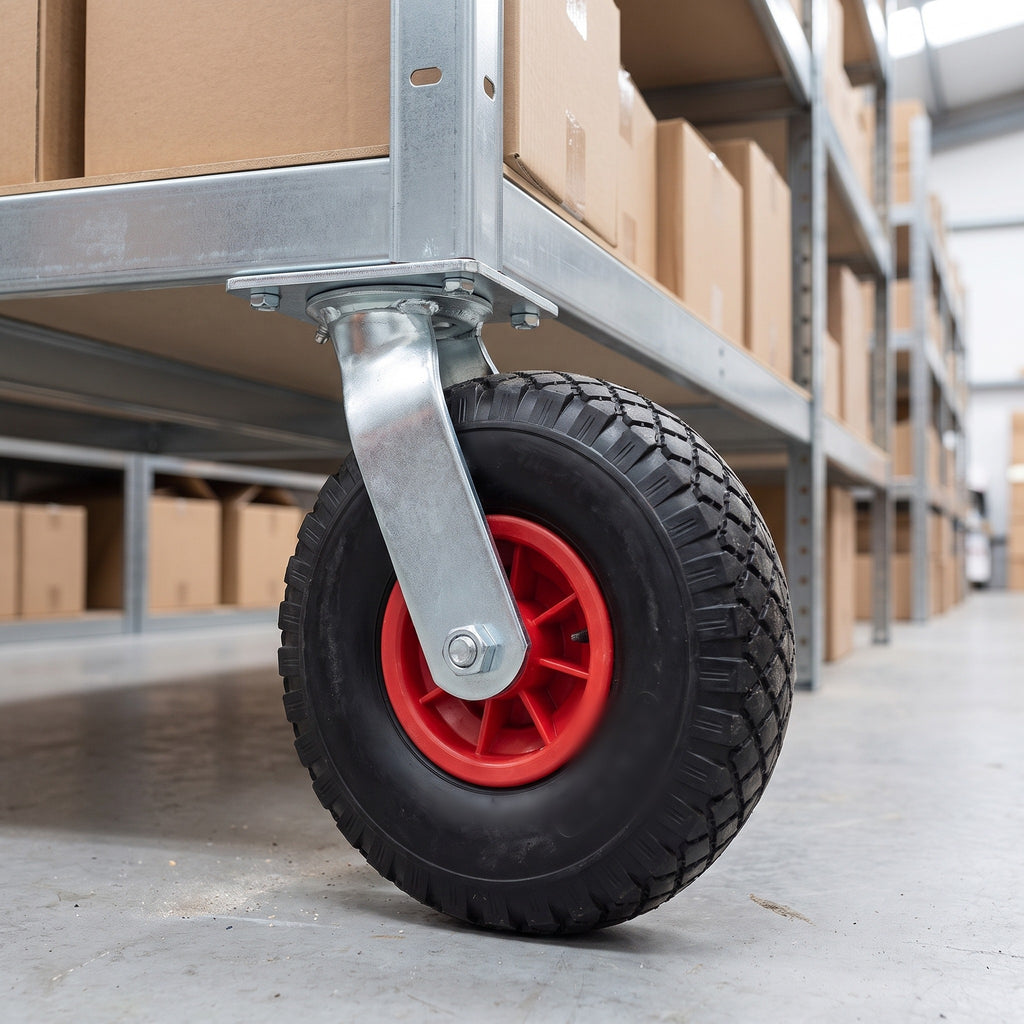

- ✓ Trolleys: smooth and reliable movement for transporting goods.
- ✓ Carts: easy manoeuvrability in warehouse and retail environments.
- ✓ Mobile equipment: stable movement with easy changes of direction.
Frequently Asked Questions
What is a puncture-proof tyre?
It is a tyre that cannot go flat, so it keeps working even where nails, screws or other sharp objects are on the floor. There is no air to check or top up.
Does this castor have a brake?
No. This is a plain swivel castor without a brake. For parking, pair it with the matching 260mm braked puncture-proof castor.
How much weight can this castor carry?
Each castor is rated for 120kg.
How is the castor fitted?
It has a 115 x 105mm top plate with four 10mm holes on 92/76 x 76/67mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 171mm and the total castor height is 318mm.
Where can I use this castor?
It suits trolleys, warehouse and retail carts, and mobile equipment that needs easy changes of direction.
