Description

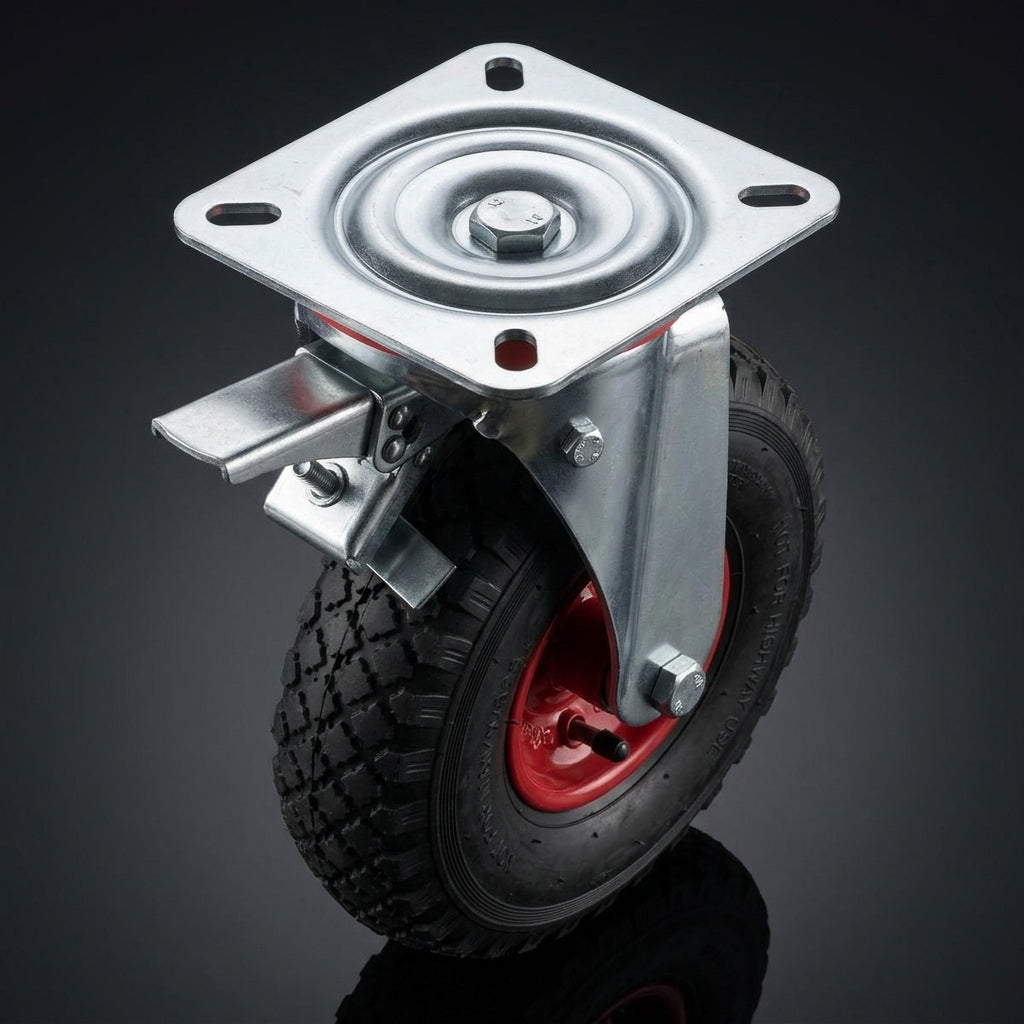

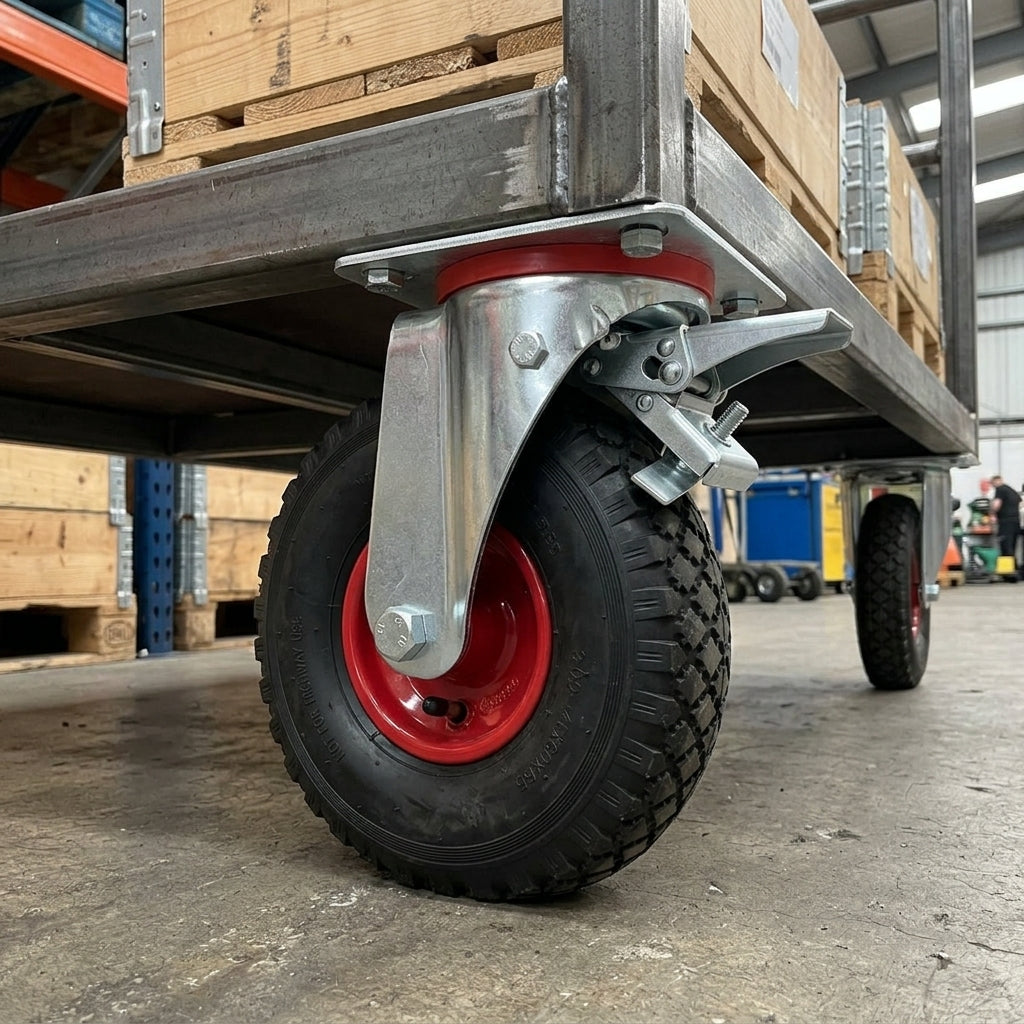

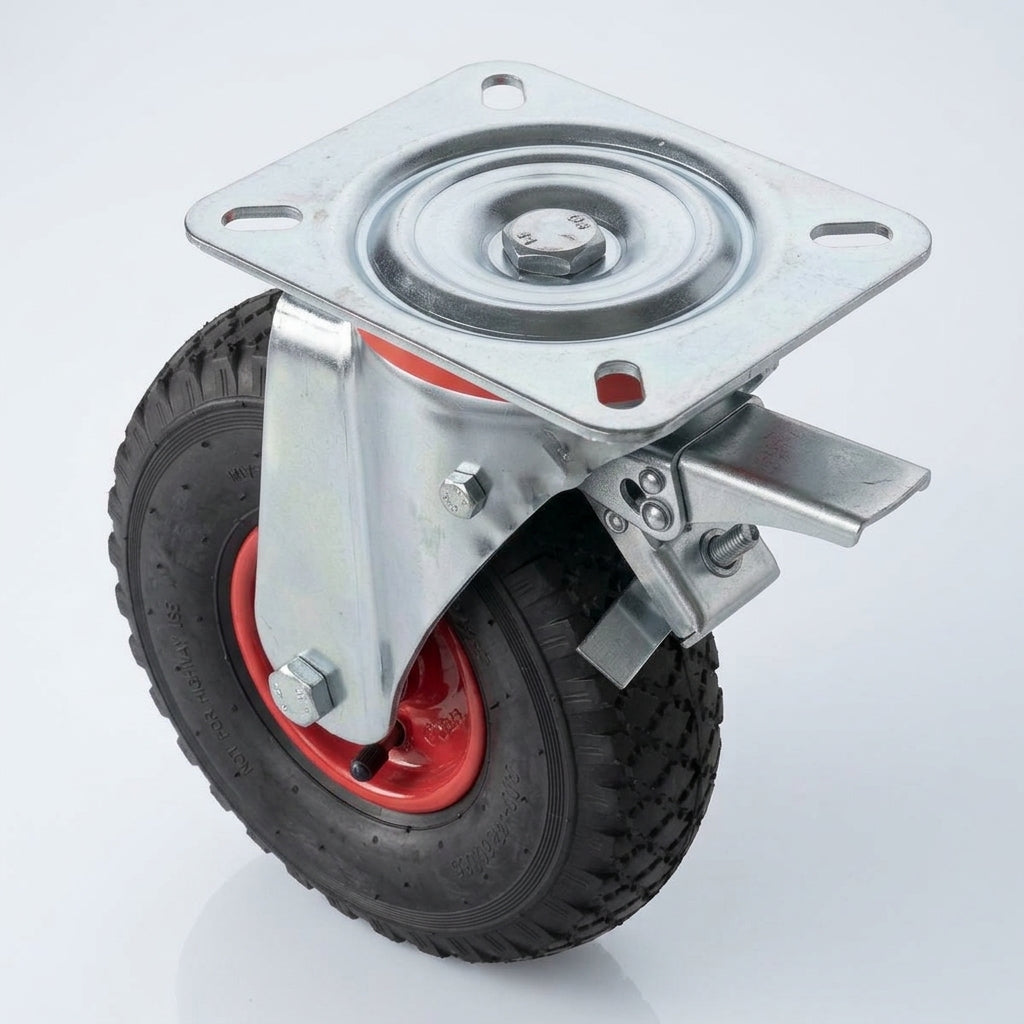

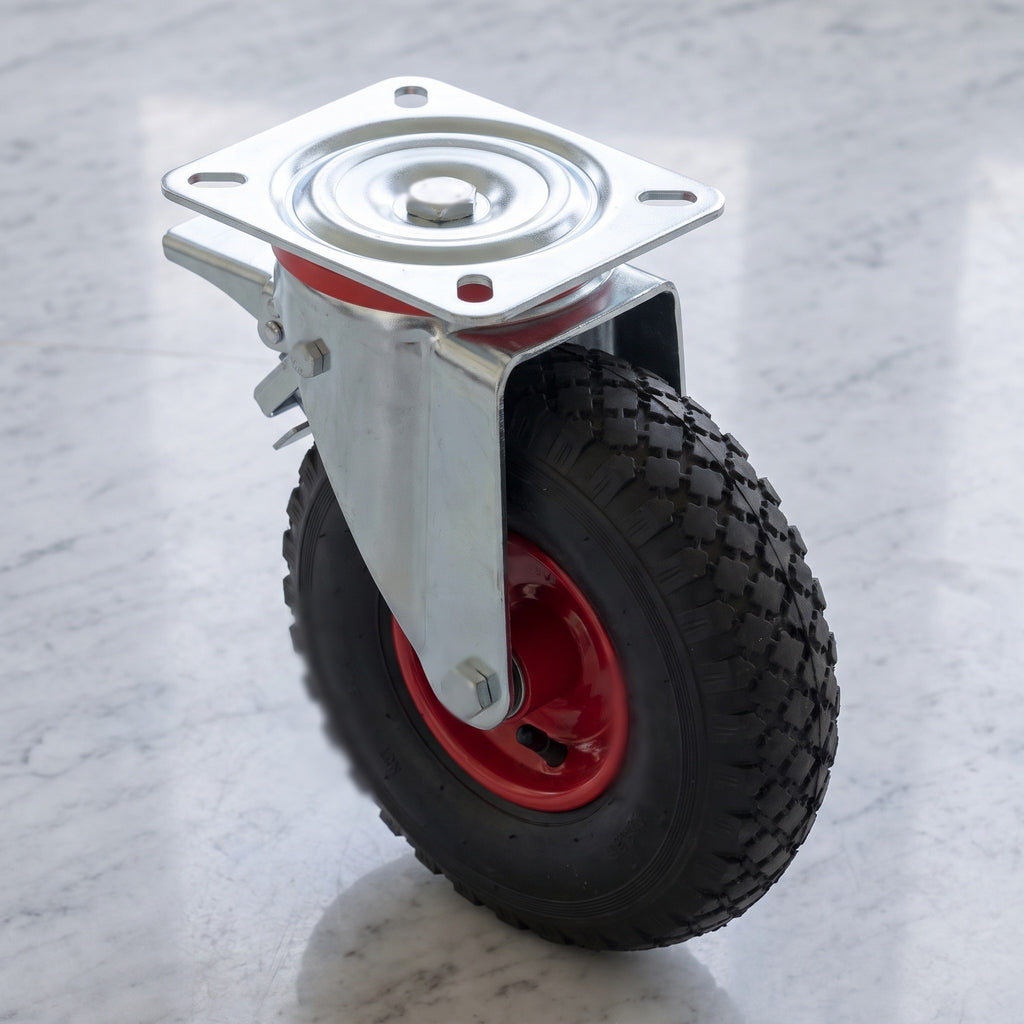

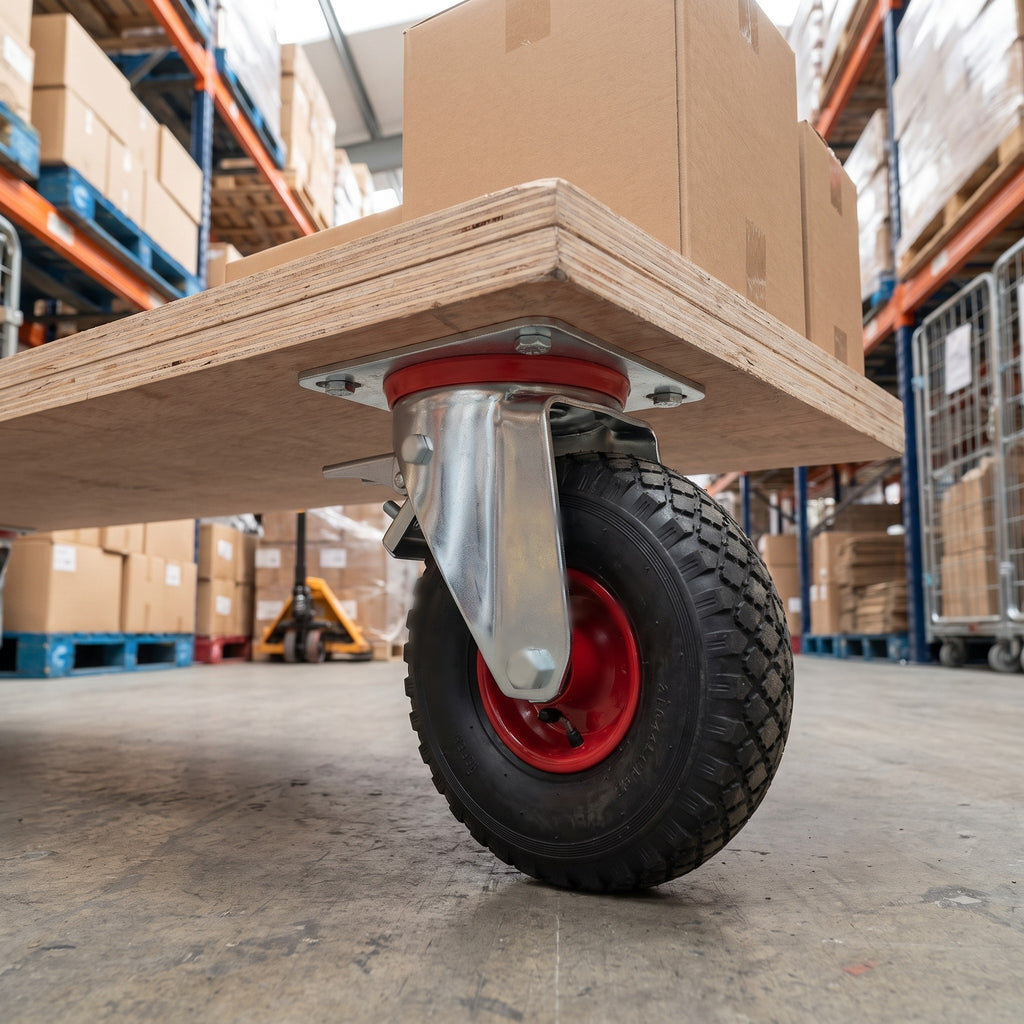

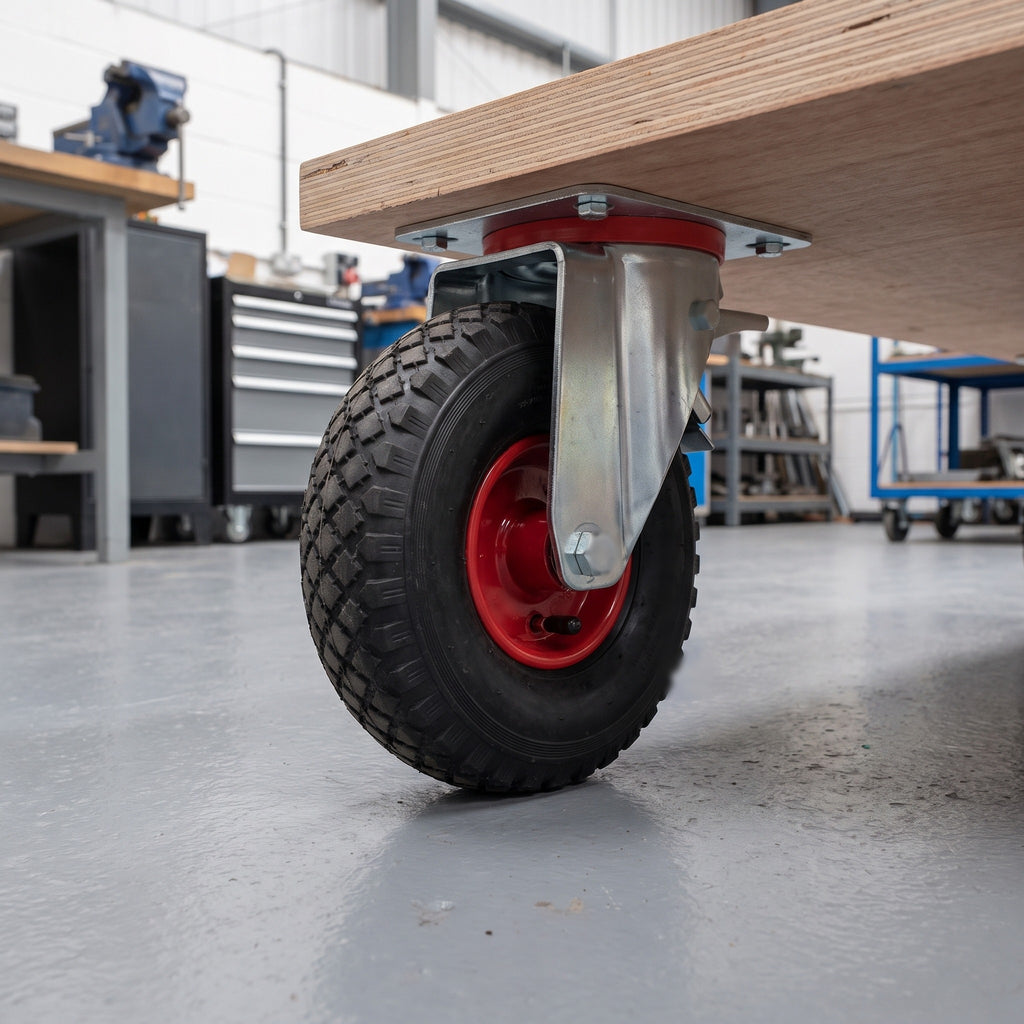

260mm Swivel Braked Pneumatic Castors with Metal Centre
The 260mm Swivel Braked Pneumatic Castors with a robust metal centre are engineered for industrial applications where mobility and load-bearing capacity are critical. Designed to support a load capacity of 136kg per castor, these units can handle a maximum load of 600kg when deployed in sets of four. The swivel feature enhances manoeuvrability, making them perfect for tight spaces and environments requiring precise handling. The pneumatic air-filled rubber wheels provide exceptional cushioning, minimizing shock and vibration during transport.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Roller |
| Load Capacity | 136 kg |
| Tread Width (mm) | 85 |
| Max Load Capacity of 4 Castors | 600 kg |
| Plate Length (mm) | 200 |
| Plate Width (mm) | 160 |
| Plate Hole Centres Length (mm) | 150 |
| Plate Hole Centres Width (mm) | 115 |
| Plate Hole Diameter | 12 |
| Swivel Radius | 215 |
| Total Castor Height | 302 |
| Wheel Colour | Black |
| Wheel Diameter (mm) | 260 |
| Wheel Material | Pneumatic on Pressed Steel |
Applications
- Warehouse Operations: Perfect for moving heavy pallets and equipment.
- Manufacturing Facilities: Ideal for transporting machinery and materials across the shop floor.
- Logistics and Distribution: Facilitates the movement of goods within storage and loading areas.
- Maintenance Services: Useful for mobile tool carts and equipment stands.
Frequently Asked Questions
-
What is the load capacity of these castors?
The load capacity is 136kg per castor, with a maximum of 600kg for four castors. -
Are these castors suitable for outdoor use?
Yes, the pneumatic wheels provide excellent shock absorption, making them suitable for various surfaces. -
Can these castors be used on uneven surfaces?
Yes, the pneumatic design helps navigate uneven terrains effectively. -
What is the swivel radius of these castors?
The swivel radius is 215mm, allowing for easy navigation in tight spaces. -
What materials are used in the construction of these castors?
The wheels are made of pneumatic rubber on a pressed steel frame for durability. -
How do I install these castors?
Installation is straightforward with the provided plate dimensions of 200mm x 160mm.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
